- Page 1 Operating instructions Refrigerator To avoid the risk of accidents or damage to the appliance it is essen- tial to read these instructions before it is installed and used for the first time. en-GB M.-Nr. 12 541 610...
-
Page 2: Table Of Contents
Contents Warning and Safety instructions..............Caring for the environment ................14 Installation......................15 Installation site..................... 15 Side-by-side combinations ................16 Climate range ....................16 Ventilation ......................17 Furniture door panel .................... 17 Horizontal and vertical gaps................17 Weight of the furniture door ................18 Building-in dimensions .................. - Page 3 Contents Storing food in the fridge zone................. 31 Different storage zones ..................31 Temperature indicator for the coldest area ............ 32 Food which is not suitable for storage in the refrigerator section ....... 33 Notes on buying food..................33 Storing food correctly..................34 Defrosting......................
-
Page 4: Warning And Safety Instructions
Miele cannot be held liable for injury or damage caused by non- compliance with these instructions. Keep these operating and installation instructions in a safe place and pass them on to any future owner. - Page 5 The refrigeration appli- ance is also not suitable for use in areas where there is a risk of ex- plosion. Miele cannot be held liable for damage caused by improper or incor- rect use or operation of the appliance. ...
- Page 6 - Ventilate the room where the refrigeration appliance is located for several minutes. - Contact the Miele Customer Service Department. The more refrigerant there is in a refrigeration appliance, the larger the room it should be installed in. In the event of a leakage, if the ap- pliance is in a small room, there is the danger of a combustible gas/ air mixture building up.
- Page 7 BS OHSAS 18001–2 ISO 45001. If the electrical connection cable is faulty it must only be replaced by a Miele authorised service technician to protect the user from danger. Do not connect the appliance to the mains electrical supply by a multi-socket adapter or extension lead.
- Page 8 Faulty components must only be replaced with genuine Miele ori- ginal spare parts. Miele can only guarantee the safety standards of the appliance when Miele replacement parts are used. This refrigeration appliance is supplied with a special lamp to cope with particular conditions (e.g.
- Page 9 Warning and Safety instructions Proper installation When installing the refrigeration appliance, it is a mandatory re- quirement to follow the installation instructions supplied with it. Two people are required to install the refrigeration appliance. Always wear protective gloves when transporting and installing the refrigeration appliance.
- Page 10 Accessories and spare parts Only use original Miele accessories. If other parts are used, war- ranty, performance and product liability claims will be invalidated. Miele will guarantee to supply functional spare parts for a min- imum of 10 years and up to 15 years following the discontinuation of...
- Page 11 Warning and Safety instructions Cleaning and care Do not use any oils or grease on the door seals, as these will cause the seals to deteriorate and become porous with time. Do not use a steam cleaning appliance to clean or defrost this ap- pliance.
- Page 12 Warning and Safety instructions Disposal of your old appliance Children playing could become trapped in the appliance and could suffocate. - Remove the appliance doors. - Remove the drawers. - Leave the adjustable shelves in the refrigeration appliance so chil- dren cannot climb inside.
- Page 13 Warning and Safety instructions Symbol on the compressor (depending on model) This information is only relevant for recycling. There is no risk during normal oper- ation. The oil in the compressor can be fatal if swallowed or if it penet- rates the airways.
-
Page 14: Caring For The Environment
The packaging with Miele, free of charge. By law, you material used is selected from materials are solely responsible for deleting any which are environmentally friendly for personal data from the old appliance disposal and can generally be recycled. -
Page 15: Installation
*INSTALLATION* Installation This appliance should be installed in a Installation site dry, well-ventilated room. Risk of damage and danger of Risk of damage due to high hu- injury due to the refrigeration appli- midity. ance tipping over. In environments with high humidity, This refrigeration appliance is very condensation can build up on ex- heavy and can tip forwards when the... -
Page 16: Side-By-Side Combinations
*INSTALLATION* Installation When installing the refrigeration appli- Climate range ance, please note the following: This refrigeration appliance is designed for use within specific ambient temper- - The socket must be easily accessible atures (climate range). Do not use in in an emergency, not concealed be- ambient temperatures for which it is not hind the appliance. -
Page 17: Ventilation
*INSTALLATION* Installation Ventilation Furniture door panel Horizontal and vertical gaps Risk of fire and damage due to insufficient ventilation. Depending on the style of kitchen fur- If the refrigeration appliance is not niture the thickness and edge radius of ventilated sufficiently, the com- the furniture door panel and the gap pressor will run more frequently and... -
Page 18: Weight Of The Furniture Door
This can cause subsequent func- ≥16–19 tional problems. The maximum permissible weight of the furniture door is: Refrigeration appliance K 7115 E, K 7125 E K 7315 E, K 7325 E Adjoining kitchen furniture front A = Furniture front thickness B = Edge radius X = Gap Adjoining side wall A = Furniture front thickness... -
Page 19: Building-In Dimensions
Before installation, ensure the housing unit is the correct size. The specified ventil- ation cross-sections must be maintained in order to ensure the correct functioning of the appliance. Niche height K 7115 E, K 7125 E 874–881 K 7315 E, K 7325 E 1221–1228... -
Page 20: Connections And Ventilation
All dimensions are given in mm. a View from the front b Mains connection cable, length = 2300 mm A longer mains connection cable is available to order from the Miele Customer Service Department. c Ventilation cross-section min. 200 cm d Ventilation... -
Page 21: Electrical Connection
For safety reasons, do not use an ex- tective measures provided in the do- tension lead or multi-socket adapter. mestic electrical installation and in this Miele product must also be maintained The electrical installation must comply in isolated operation or in operation that with VDE 0100 requirements. -
Page 22: Saving Energy
Saving energy How to save energy: Installation The refrigeration appliance has to cool more often at higher am- site bient temperatures and consumes more energy in the process. Therefore, you should: - Install the refrigeration appliance in a well-ventilated room. - Do not install the refrigeration appliance near to a heat source (heater element, cooker). -
Page 23: Guide To The Appliance

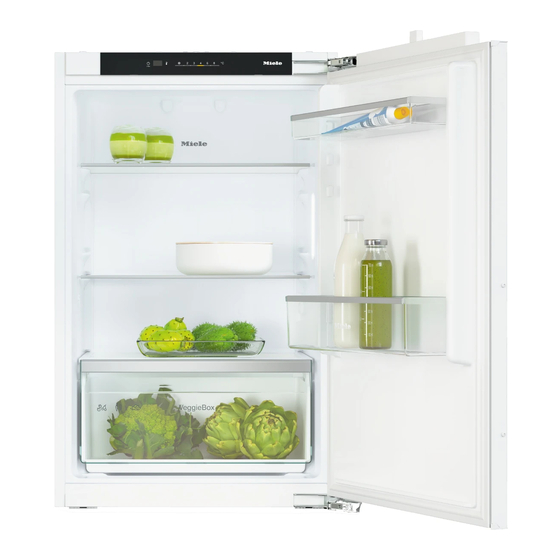

Guide to the appliance 3 Sec. VeggieBox This drawing is for illustration purposes only. a Control panel b Egg tray (depending on the model) c Flexible bottle rack (depending on the model) d Interior lighting e Adjustable shelf f Shelves in the appliance door... - Page 24 Guide to the appliance 3 Sec. a For switching the refrigeration appliance on/off, for switching the Party mode function (SuperCool) on/off and for setting the temperature b Party mode (SuperCool) display c Temperature display...
-
Page 25: Adjusting The Interior Fittings
Guide to the appliance Moving the shelves Adjusting the interior fittings The shelves can be adjusted according Moving the door shelf/bottle shelf to the height of the food. Only move the door/bottle shelves in Pull the shelf forwards and tilt it the appliance door when they are downwards to remove it. -
Page 26: Accessories Supplied
Guide to the appliance Accessories supplied Optional accessories A range of useful Miele accessories and Egg tray (depending on model) care products are available for your ap- pliance. Flexible bottle rack (depending on the model) SoftClose hinges Bottle holder (depending on model) -
Page 27: Switching On And Off
Switching on and off Switching off the refrigeration appli- Before using for the first time ance Remove all packaging material and Press the On/Off button in the control protective film. panel for approx. 3 seconds until the Clean the inside of the appliance and temperature display goes out. -
Page 28: The Correct Temperature
The correct temperature It is very important to set the correct Setting the temperature temperature to ensure the shelf life of Press the On/Off button in the control food. Reducing the temperature re- panel repeatedly until the temperature duces the growth rate of microorgan- you want is shown in the temperature isms. -
Page 29: Using Party Mode (Supercool)
Using Party mode (SuperCool) Switching the Party mode function Party mode (SuperCool) on and off When switched on, the Party mode Press the On/Off button in the control function can be used to rapidly re- panel repeatedly until the Party duce the temperature in the fridge mode ... -
Page 30: Door Alarm
Door alarm The refrigeration appliance is fitted with a warning system to avoid in- creased energy consumption and food becoming warm if the appliance door is left open. An alarm tone will sound if the appli- ance door has been left open for longer than 2 minutes. -
Page 31: Storing Food In The Fridge Zone
Storing food in the fridge zone Different storage zones Risk of explosion due to flam- mable mixes of gases. Due to natural air circulation, there are Electrical components can cause different temperature regions in the re- flammable mixes of gases to ignite. frigerator section. -
Page 32: Temperature Indicator For The Coldest Area
Storing food in the fridge zone - Hummus, vegetable spreads, plant- The temperature indicator will not based cream cheese substitutes display an accurate reading if the ap- pliance door is opened frequently or - Pre-packed vegetables for long periods. Do not keep the ap- - Other fresh food (with a label stating pliance door open for long periods. -
Page 33: Food Which Is Not Suitable For Storage In The Refrigerator Section
Storing food in the fridge zone Temperature indicator display Food which is not suitable for storage in the refrigerator sec- tion Not all food is suitable for refrigeration at temperatures below 5 °C, because it may be sensitive to cold. Depending on the type of food, the appearance, con- sistency, flavour and/or vitamin content may be altered if stored at too cold a... -
Page 34: Storing Food Correctly
Storing food in the fridge zone Storing food correctly Ensure that food stored in the fridge zone is covered or wrapped properly. This will prevent food odours from af- fecting other foods, stop food from dry- ing out and also prevent any cross-con- tamination of bacteria. -
Page 35: Defrosting
Defrosting The refrigerator section defrosts auto- matically. Condensate and frost can build up on the back wall of the refrigerator section whilst the compressor is running. You do not need to remove this. The condensate drains through a chan- nel and drain hole into an evaporation system at the back of the refrigeration appliance. -
Page 36: Cleaning And Care
Cleaning and care Cleaning agents The data plate located inside the in- terior cabinet of the refrigeration appli- Cleaning and conditioning agents ance must not be removed. It contains used in the interior cabinet of the re- information which is required in the frigeration appliance must be food event of a fault. -
Page 37: Preparing The Refrigeration Appliance For Cleaning
Cleaning and care Preparing the refrigeration ap- Cleaning the inside of the ap- pliance for cleaning pliance Switch the refrigeration appliance off. The refrigeration appliance should be cleaned regularly (at least once a Take any food out of the refrigeration month). -
Page 38: Removing And Dismantling Accessories For Cleaning
Cleaning and care Removing and replacing the front of Removing and dismantling ac- the fruit and vegetable drawer (Veg- cessories for cleaning gieBox) Dismantling the door shelf/bottle The front of the fruit and vegetable shelf drawer (VeggieBox) can be removed for cleaning. -
Page 39: Cleaning The Door Seal
A build-up of dust will increase the en- ergy consumption of the appliance. The ventilation gaps should be cleaned on a regular basis with a brush or vacuum cleaner (you could use a Miele vacuum cleaner dusting brush, for example). -
Page 40: Problem Solving Guide
You can save time and money in many cases, as you do not need to call the Miele Customer Service Department. Information to help you rectify faults yourself can be found at www.miele.com/ser- vice. The following tables are designed to help you to find the cause of a malfunction or a fault and to resolve it. - Page 41 - If 5 acoustic signals sound at the end of the self- test and the Party mode display flashes for 10 seconds, a fault has occurred. Contact the Miele Customer Service Department. The compressor is The ventilation gaps have been covered or become switching on more fre- too dusty.
- Page 42 Problem solving guide Problem Cause and remedy After a while, the temperature will return to normal by itself. The ambient temperature is too high. The higher the ambient temperature, the longer the compressor runs. See the information in “Installation – Installation site”.
- Page 43 Problem solving guide Other problems Problem Cause and remedy An alarm sounds. The appliance door has been open for longer than 2 minutes. Close the appliance door. The floor of the refriger- The condensate drain hole is blocked. ator section is wet. ...
- Page 44 When removing the lighting cover, there is a risk of coming into contact with live electrical compon- ents. Do not remove the lighting cover. The LED lighting may only be repaired or replaced by the Miele Customer Service Department. Risk of injury from LED lighting.
-
Page 45: Noises
Noises Normal What is causing them? noises Brrrrr ... A humming noise is made by the compressor. This noise can get louder for brief periods when the compressor switches on. Blubb, A gurgling noise can be heard when the refrigerant circulates blubb ... -
Page 46: Service
Miele dealer or Miele Customer Service. The model identifier can be found on You can book a Miele Customer Ser- the data plate inside the refrigeration vice call-out online at www.miele.com/ appliance or, depending on the model, service. - Page 47 United Kingdom Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: info@miele.co.uk Australia Ireland Singapore Miele Australia Pty. Ltd. Miele Ireland Ltd. Miele Pte. Ltd. ACN 005 635 398 2024 Bianconi Avenue...
- Page 48 K 7115 E, K 7125 E, K 7315 E, K 7325 E en-GB M.-Nr. 12 541 610 / 00...
