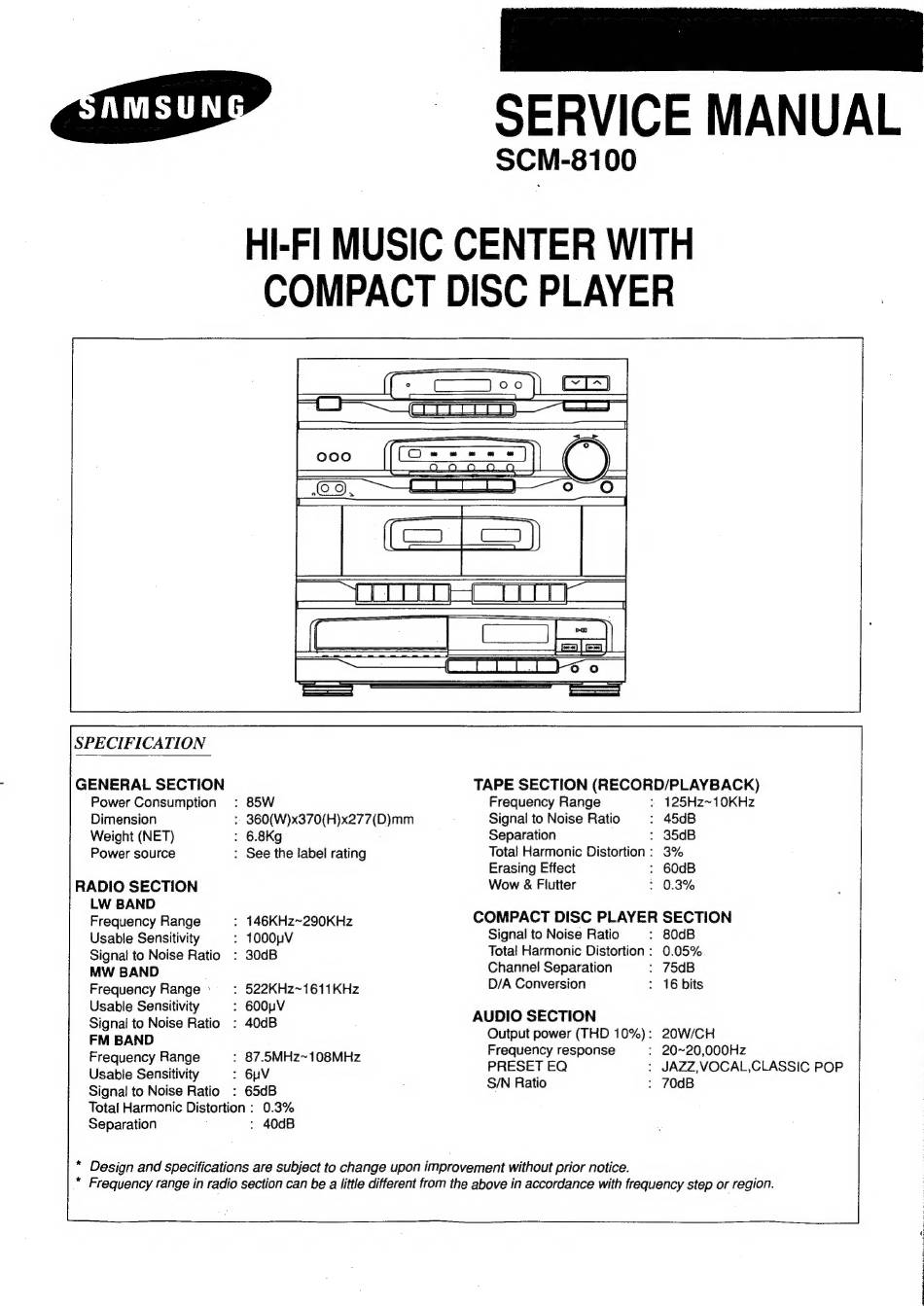

Samsung SCM-8100 Service Manual

SERVICE MANUAL
SCM-8100
HI-FI MUSIC CENTER WITH
COMPACT DISC PLAYER
Es ee
= ss 2 =
PLT ITTF] TL
zeae, ee a
a — — aS
SPECIFICATION
GENERAL SECTION TAPE SECTION (RECORD/PLAYBACK)
Power Consumption : 85W Frequency Range : 125Hz~10KHz
Dimension > 360(W)x370(H)x277(D)mm Signal to Noise Ratio > 450B
Weight (NET) : 6.8Kg Separation : 35dB
Power source : See the label rating Total Harmonic Distortion: 3%
Erasing Effect : 60dB
RADIO SECTION Wow & Flutter : 0.3%
LW BAND
Frequency Range : 146KH2~290KHz COMPACT DISC PLAYER SECTION
Usable Sensitivity : 1000yV Signal to Noise Ratio : 80dB
Signal to Noise Ratio : 30dB Total Harmonic Distortion : 0.05%
MW BAND Channel Separation : 75dB
Frequency Range: : 522KHz~1611KHz D/A Conversion : 16 bits
Usable Sensitivit : 600pV
Sue Noise aaiio ; 408 AUDIO SECTION
FM BAND Shear power (THD 10%): pie 2
P oe requency response : ~20,000Hz
(nse pe tion ae ites PRESET EQ : JAZZ,VOCAL,CLASSIC POP
Signal to Noise Ratio : 65dB ana = , Oe
Total Harmonic Distortion : 0.3%
Separation : 40dB
* Design and specifications are subject to change upon improvement without prior notice.
* Frequency range in radio section can be a little different from the above in accordance with frequency step or region.
