SIMATIC NET
Network components

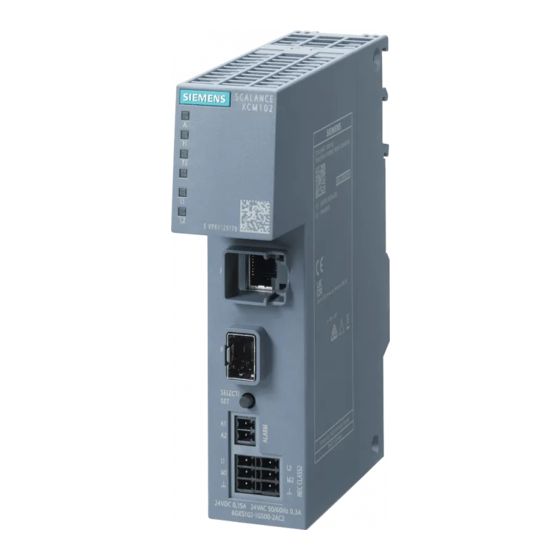

SCALANCE XCM-100 Media
Converter
Equipment Manual
12/2023
C79000-G8976-C659-03
Introduction
Safety instructions
Area of application
Device description
Installation and
disassembly
Connecting
Maintenance and cleaning
Technical specifications
Dimension drawings
Approvals
1
2
3
4
5
6
7
8
9
10

Advertisement

Table of Contents
loading

Related Manuals for Siemens SCALANCE XCM-100

Summary of Contents for Siemens SCALANCE XCM-100

  • Page 1 Introduction Safety instructions Area of application SIMATIC NET Device description Network components SCALANCE XCM-100 Media Installation and disassembly Converter Connecting Equipment Manual Maintenance and cleaning Technical specifications Dimension drawings Approvals 12/2023 C79000-G8976-C659-03...
  • Page 2 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.

  • Page 3: Table Of Contents

    Safety instructions ..........................9 Area of application ..........................11 Modes ..........................11 Throughput times ......................11 Standalone operation of a SCALANCE XCM-100..............12 Cascade (series connection) of two SCALANCE XCM-100 ............ 13 Network topologies......................14 3.5.1 Bus topology........................14 3.5.2 Star topology ........................
  • Page 4 Technical specifications of SCALANCE XCM102 ..............55 Mechanical stability (in operation) ..................57 RF radiation according to NAMUR NE21................57 Cable lengths........................57 Dimension drawings ..........................59 Approvals ............................. 61 Index ..............................69 SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 5: Introduction

    • SCALANCE XCM102 Unless mentioned otherwise, the descriptions in these operating instructions refer to all devices of the SCALANCE XCM-100 product group specified in the scope of validity. Designations used This section describes the conventions used in this document to clearly and efficiently portray information.

  • Page 6: Cybersecurity Information

    Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure...

  • Page 7: Electrostatic Discharge

    • Place the modules only on conductive surfaces. • Pack, store and transport electronic modules and components only in conductive packaging such as metalized plastic or metal containers, conductive foam or household aluminum foil. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 8 Introduction 1.6 Electrostatic discharge SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 9: Safety Instructions

    This equipment is suitable for use in Class I, Division 2, Groups A, B, C and D or non-hazardous locations only. This equipment is suitable for use in Class I, Zone 2, Group IIC or non-hazardous locations only. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 10 Safety instructions SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 11: Area Of Application

    • Port 2 for optical connections (100/1000 Mbps SFP transceiver) Individual, remote end devices or network segments can be connected via the optical port of a SCALANCE XCM-100. With two coupled media converters, it is possible to integrate an optical link into a redundant ring.

  • Page 12: Standalone Operation Of A Scalance Xcm-100

    Gigabit Ethernet In both directions 1640 ns +/- 120 ns 550 ns +/- 40 ns Standalone operation of a SCALANCE XCM-100 In standalone operation, a SCALANCE XCM-100 connects two partner devices with different transmission media: ① SCALANCE XCM102 ② Partner device (optical connection) ③...

  • Page 13: Cascade (Series Connection) Of Two Scalance Xcm-100

    Partner device (electrical connection) The same SFP transceiver must be plugged into both media converters. A maximum of two SCALANCE XCM-100 can be connected in series. Mixed operation of SCALANCE XCM-100 with SCALANCE X101-1/X101-1LD is not possible. Because the SFP ports are connected to each other, both media converters switch the connection status (link up or link down) at almost the same time.

  • Page 14: Network Topologies

    • Make sure that an 8-core copper cable is used in each case. • The media converter only establishes one Gigabit Ethernet link via autonegotiation. Network topologies You can build the following topologies with the SCALANCE XCM-100 series media converters: • Line • Star •...

  • Page 15: Star Topology

    Use an SFP transceiver of the type SFP992-1* in the media converter . The media converter is then in Gigabit Ethernet mode. Use an SFP transceiver of the type SFP992-1* in ③ the connected SCALANCE XM408-8C also. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 16: Ring Topology

    XCM-100 type devices in a ring topology, you can only exchange the devices in pairs. Mixed operation of SCALANCE X101-1 or SCALANCE X101-1LD with SCALANCE XCM-100 type devices is not possible. SCALANCE X101-1 and SCALANCE X101-1LD devices use a proprietary protocol to exchange link status information, which is not supported by SCALANCE XCM-100.

  • Page 17: Standby Coupling

    In this example, the media converters are connected with Gigabit-capable devices ( ③ ). Use an SFP transceiver of the type SFP992-1* in the two media converters. Use a ② suitable SFP992-1* in the connected SCALANCE XM408-8C SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 18 Area of application 3.5 Network topologies SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 19: Device Description

    Purpose The devices of the SCALANCE XCM-100 product group enable cost-effective setup of Industrial Ethernet networks with media transitions. The use of a SCALANCE XCM-100 Media Converter is especially recommended for the following tasks: • In a network with twisted pair cables, a connection is to be made with fiber-optic cables, but the device in question does not have an FO port.

  • Page 20: Scope Of Delivery

    Log table SNTP + SICLOCK Cut Through Scope of delivery The following parts are included in the scope of delivery of the SCALANCE XCM-100 Media Converter: • One SCALANCE XCM-100 Media Converter • One 2-pin plug-in terminal block (signaling contact) •...

  • Page 21: Device View

    SFP port for fiber-optic cable ④ "SELECT/SET" button ⑤ Signaling contact ⑥ Redundant power supply and grounding ⑦ Spring-loaded securing bar for mounting on a DIN rail, S7-300 mounting rail or S7-1500 mount‐ ing rail SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 22: Led Display

    Device description 4.6 LED display LED display The following figure shows the arrangement of the LEDs on the SCALANCE XCM-100. SCALANCE SIEMENS XCM102 SIEM SELECT/ LED "A" (red alarm LED) The "A" LED indicates an alarm status of the device. LED color...

  • Page 23: Select/Set Button

    The changed settings remain after cycling power to the device. Different settings are displayed or made depending on how long you hold down the SET button, as described in the following table: SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 24: Accessories

    Make sure that the components are used corresponding to the SFP transceiver (LC connection technology) and the operating mode of the media converter. You can find an overview of the passive components from Siemens in the Siemens Industry Mall (https:// mall.industry.siemens.com/mall/en/WW/Catalog/Products/10028477?tree=CatalogTree).
  • Page 25 • Gigabit Ethernet For example, with a plugged-in SFP992-1+ The transmission speed and the transmission method of the SFP in the media converter and the optical interface of the partner device must match. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 26 The optical interface of a SCALANCE XC206-2 (Fast Ethernet with the Multimode transmission method) should be connected to the SFP interface of the SCALANCE XCM-100. A suitable plug-in transceiver for the SCALANCE XCM-100 in this case is the SFP991-1. Pluggable transceiver SFP (100 Mbps)
  • Page 27 10 km, transmits at 1550 nm, receives at 1310 nm SFP992-1BX10R 1 x 1000 Mbps LC port optical for glass FO (single 6GK5 992-1AM00-8RA0 mode) with max. 10 km, transmits at 1310 nm, receives at 1550 nm SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 28 Device description 4.8 Accessories SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 29: Installation And Disassembly

    General safety notices relating to protection against explosion WARNING EXPLOSION HAZARD Replacing components may impair suitability for Class 1, Division 2 or Zone 2. WARNING The device is intended for indoor use only. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 30 30 °C higher than maximum ambient temperature. WARNING If the equipment is installed within an ultimate enclosure, the inner service temperature of the enclosure corresponds to the ambient temperature of the module. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 31 Warming and premature aging of the network component due to direct sunlight Direct sunlight can heat up the device and can lead to premature aging of the network component and its cabling. Provide suitable shade to protect the network component against direct sunlight. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 32: Mounting Types

    Installation and disassembly 5.2 Mounting types Mounting types The following mounting types are provided for the SCALANCE XCM-100: • DIN rail • S7-300 mounting rail • S7-1500 mounting rail • Wall mounting Installation clearance Observe the following minimum clearances so that the convection ventilation of the device is not blocked: •...

  • Page 33: Din Rail Mounting

    Figure 5-1 Installing a SCALANCE XCM-100 on a DIN rail To mount a SCALANCE XCM-100 to a DIN rail, follow the steps below: 1. Place the third enclosure guide of the device on the top edge of the DIN rail. 2. Press the device down against the DIN rail until the spring-loaded securing bar engages.
  • Page 34 Figure 5-2 Removing a SCALANCE XCM-100 from a DIN rail To remove a SCALANCE XCM-100 from a DIN rail, follow the steps below: 1. Lever the spring-loaded securing bar down using a screwdriver as far as it will go. 2. Release the device from the lower edge of the DIN rail with the securing bar pulled down.

  • Page 35: Installing On An S7-300 Mounting Rail

    Installing a SCALANCE XCM-100 on an S7-300 mounting rail To mount a SCALANCE XCM-100 to an S7-300 mounting rail, follow the steps below: 1. Place the second enclosure guide of the device on the top edge of the S7-300 mounting rail.
  • Page 36 Figure 5-4 Removing a SCALANCE XCM-100 on an S7-300 mounting rail To remove a SCALANCE XCM-100 from an S7-300 mounting rail, follow the steps below: 1. Lever the spring-loaded securing bar down using a screwdriver as far as it will go.

  • Page 37: Installing On An S7-1500 Mounting Rail

    Installing a SCALANCE XCM-100 on an S7-1500 mounting rail To mount a SCALANCE XCM-100 to an S7-1500 mounting rail, follow the steps below: 1. Place the upper enclosure guide of the device on the top edge of the S7-1500 mounting rail.
  • Page 38 Figure 5-6 Removing a SCALANCE XCM-100 on an S7-1500 mounting rail To remove a SCALANCE XCM-100 from an S7-1500 mounting rail, follow the steps below: 1. Lever the spring-loaded securing bar down using a screwdriver as far as it will go.

  • Page 39: Wall Mounting

    To mount the device on a wall, follow the steps below: 1. Prepare the drill holes. Use suitable dowels for walls made of masonry or concrete. 2. Secure the device to the wall with two screws. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 40: Removal

    • Before starting work, ensure that the electricity is switched off. • Secure remaining connections so that no damage can occur as a result of disassembly if the system is accidentally started up. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 41: Connecting

    The device is designed for operation with a directly connectable safety extra-low voltage (SELV) according to UL/IEC 61010-1 and UL/IEC 61010-2-201 whose output power corresponds to "Limited Energy" according to UL/IEC 61010-1. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 42: Safety Instructions For Operation With A Power Supply According To Selv

    Safety instructions for operation with a power supply according to SELV Operate the device with a power supply according to SELV. When connecting up the device, keep to the safety notices listed below. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 43: Safety Instructions On Use In Hazardous Areas

    If there is no equipotential bonding in hazardous areas, there is a risk of explosion due to equalizing current or ignition sparks. • Ensure that equipotential bonding is available for the device. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 44 At an ambient temperature of ≥ 60 °C, use heat-resistant cables designed for an ambient temperature at least 20 °C higher. The cable entries used on the housing must comply with the IP degree of protection required by EN IEC / IEC 60079-0, GB/T 3836.1. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 45: Additional Notes

    Do not remove or replace while circuit is live when a flammable or combustible atmosphere is present. Additional notes WARNING Insulation of external power supplies Ext. circuits intended to be connected to this device shall be galv. separated from hazardous live voltage by reinforced or double insulation. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 46: Wiring Rules

    ** See note "Wire end ferrules" Note Wire end ferrules Use crimp shapes with smooth surfaces, such as provided by square and trapeze shaped crimp cross sections. Crimp shapes with wave-shaped profile are unsuitable. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 47: Power Supply 24 V Ac / 24 V Dc And Grounding

    One of the tests used to attest the immunity of the SCALANCE XCM-100 to electromagnetic interference is the "surge immunity test" according to EN 61000-4-5. This test requires overvoltage protection for the power supply lines.
  • Page 48 DIN rail terminal. Position and assignment SCALANCE SIEMENS XCM102 SELECT/ Figure 6-1 Position of the power supply and grounding with SCALANCE XCM-100 and assignment of the terminal block Contact Assignment 24 V DC/AC Ground Grounding...

  • Page 49: Signaling Contact

    • The signaling contact remains activated until the error/fault is eliminated or until the current status is applied as the new stepoint state using the SELECT/SET button. • When the device is turned off, the signaling contact is always activated (open). SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 50: Tp Port (Twisted Pair Port)

    The SCALANCE XCM-100 establishes a 100 Mb link via autonegotiation in Fast Ethernet mode. The SCALANCE XCM-100 establishes a Gigabit link in Gigabit mode. Autopolarity If the cores are mixed up within a core pair (incorrect wiring), SCALANCE XCM-100 automatically adjusts the polarity. SCALANCE XCM-100 Media Converter...

  • Page 51: Sfp Port

    WARNING Use only approved SFP transceivers If you use SFP transceivers that have not been approved by Siemens AG, there is no guarantee that the device will function according to its specifications. If you use unapproved SFP transceivers, this can lead to the following problems: •...
  • Page 52 Connecting 6.9 SFP port SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 53: Maintenance And Cleaning

    Maintenance and cleaning WARNING Unauthorized repair of devices in explosion-proof design Risk of explosion in hazardous areas • Repair work may only be performed by personnel authorized by Siemens. WARNING Impermissible accessories and spare parts Risk of explosion in hazardous areas •...
  • Page 54 Maintenance and cleaning SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 55: Technical Specifications

    Active power loss DC   Max. 2.5 W (depending on the SFP transceiver) Active power loss AC   Max. 5 V (depending on the SFP transceiver) Overvoltage category   CAT II Permissible ambient conditions SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 56 The derating values depend on the maximum ambient temperatures during operation up to 2000 m. Degree of protection The degree of protection was not examined in the context of FM certification.  Transmission speed The transmission speed is based on the plugged SFP transceiver. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 57: Mechanical Stability (In Operation)

    IE FC RJ45 Plug 180 IE FC TP Standard Cable 0 ... 90 m with IE FC Outlet RJ45 + 10 m TP Cord + 10 m TP Cord IE FC TP Standard Cable 0 ... 100 m with IE FC RJ45 Plug 180 SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 58 Technical specifications 8.4 Cable lengths SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 59: Dimension Drawings

    Dimension drawings Note Dimensions are specified in millimeters. Front view SCALANCE SIEMENS XCM102 SELECT/ SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 60 Dimension drawings Side view ‡ 4,5 13,9 ‡ 4,5 SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 61: Approvals

    Current approvals on the Internet You will find the current approvals for the product on the Internet pages of Siemens Industry Online Support (https://support.industry.siemens.com/cs/ww/en/ps/15270/cert). Notes for the manufacturers of machines This product is not a machine in the sense of the EC Machinery Directive or the Supply of Machinery (Safety) Regulations (UK).
  • Page 62 DE-76181 Karlsruhe Germany Importer UK: Siemens plc, Manchester M20 2UR You can find the current UK Declaration of Conformity for these products on the Internet pages under Siemens Industry Online Support (https:// support.industry.siemens.com/cs/ww/en/ps/15270/cert). SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 63 You will find this document • on the data medium that ships with some devices. • on the Internet pages under Siemens Industry Online Support. Enter the document identification number "C234" as the search term. The markings of the electrical devices are:  ...
  • Page 64 Listed IND. CONT. EQ. Underwriters Laboratories Inc. complying with • UL 61010-2-201 • CAN/CSA-IEC 61010-2-201 Report no. E85972 cULus Approval for Information Technology Equipment cULus Listed I. T. E. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 65 You will find the current versions of the standards in the currently valid RCM SDoCs (Self- Declaration of Conformity). MSIP 요구사항 ‑ For Korea only A급 기기(업무용 방송통신기자재) 이 기기는 업무용(A급) 전자파 적합기기로서 판매자 또는 사용자는 이 점을 주의하시기 바라 며, 가정 외의 지역에서 사용하는것을 목적으로 합니다. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 66 • "Industrial Ethernet / PROFINET Industrial Ethernet" System Manual (https:// support.industry.siemens.com/cs/ww/en/view//27069465) • "Industrial Ethernet / PROFINET - Passive Network Components" System Manual (https:// support.industry.siemens.com/cs/ww/en/view/84922825) • "EMC Installation Guidelines" configuration manual (https:// support.industry.siemens.com/cs/ww/en/view/60612658) SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 67 The test was performed with a device and a connected communications partner that also meets the requirements of the standards listed above. When operating the device with a communications partner that does not comply with these standards, adherence to the corresponding values cannot be guaranteed. SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 68 Approvals SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...

  • Page 69: Index

    Electrical data, 55 Star, 15 Enclosure, 56 ESD directives, 7 Pluggable transceiver SFP, 26 Fault mask, 23 Plug-in transceiver Changing the setting, 23 SFP bidirectional, 27 Error/fault, 24 Power supply, 21, 47 Factory setting, 23 Terminal block, 48 Fault status, 22 Product properties, 19, 20 Firmware, 22 SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
  • Page 70 Use in hazardous areas, 9, 29 Scope of delivery, 20 SET/SELECT, 23 SFP port, 21, 51 SFP transceiver, 26 SFP transceivers, 51 Signaling contact, 21, 22, 49 Spring-loaded terminal, 47 Startup phase, 22 System manual, 66 Weight, 56 Wiring, 46 Wiring rules, 47 SCALANCE XCM-100 Media Converter Equipment Manual, 12/2023, C79000-G8976-C659-03...
