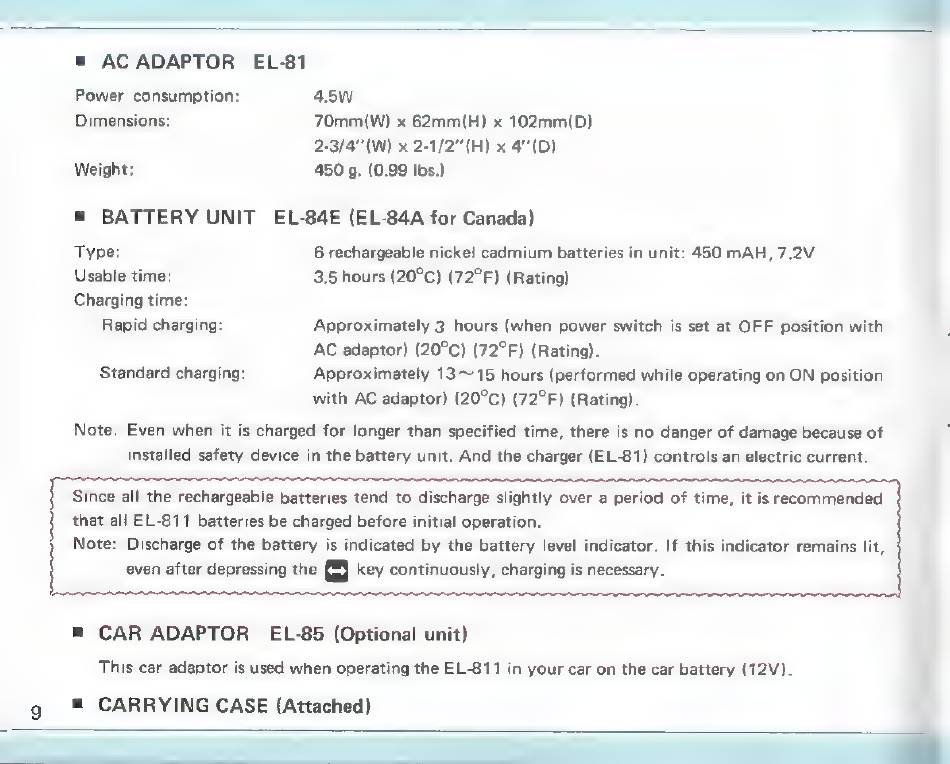

= AC ADAPTOR
EL-81
Power consumption:
4.5w
Dimensions:
70mm(W) x 62mm(H) x 102mm(D)
2-3/4''(W) x 2-1/2'(H) x 4'(D)
Weight:
450 g. (0.99 Ibs.)
= BATTERY UNIT
EL-84E (EL-84A for Canada)
Type:
6 rechargeable nickel cadmium batteries in unit: 450 mAH, 7.2V
Usable time:
3.5 hours (20°C) (72°F) (Rating)
Charging time:
Rapid charging:
Approximately 3 hours (when power switch is set at OFF
position with
AC adaptor) (20°C) (72°F) (Rating).
Standard charging:
Approximately 13~15 hours (performed while operating on ON position
with AC adaptor) (20°C) (72°F) (Rating).
Note:
Even when
it is charged for longer than specified time, there is no danger of damage because of
installed safety device in the battery unit. And the charger (EL-81) controls an electric current.
Since all the rechargeable batteries tend to discharge slightly over a period of time, it is recommended
{ that all EL-811
batteries be charged before initial operation.
Note:
Discharge of the battery is indicated by the battery level indicator. If this indicator remains lit,
even after depressing the i+} key continuously, charging is necessary.
= CAR ADAPTOR
EL-85 (Optional unit)
This car adaptor is used when operating the EL-811 in your car on the car battery (12V).
g
| CARRYING CASE (Attached)
