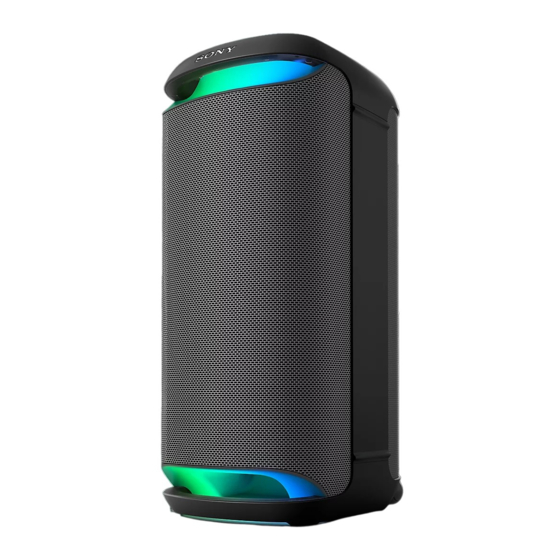

Sony SRS-XV800 Reference Manual

Home Audio System
SRS-XV800 Model, Modelo: YY7854E
©2023 Sony Corporation
Printed in China
https://www.sony.net/
English Home Audio System
Model: YY7854E
The term "product" in this document refers to the unit or its accessories.
To reduce the risk of fire, do not cover the ventilation opening of the unit with newspapers, tablecloths,
curtains, etc. Do not expose the unit to naked flame sources (for example, lighted candles).
Do not install the product in a confined space, such as a bookcase or built-in cabinet.
The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall
outlet, even if the unit itself has been turned off.
As the power cord is used to disconnect the unit from the mains, connect the unit to an easily accessible
AC outlet. Should you notice an abnormality in the unit, disconnect the power cord from the AC outlet
immediately.
This product has magnet(s) which may interfere with pacemakers, programmable shunt valves for
hydrocephalus treatment, or other medical devices. Do not place this product close to persons who use
such medical devices. Consult your doctor before using this product if you use any such medical device.
Do not dismantle, open or shred secondary batteries.
Do not expose secondary batteries to heat or fire. Avoid storage in direct sunlight.
In the event of a secondary battery leaking, do not allow the liquid to come in contact with the skin
or eyes. If contact has been made, wash the affected area with copious amounts of water and seek
medical advice.
Secondary batteries need to be charged before use. Always refer to the manufacturer's instructions or
product manual for proper charging instructions.
After extended periods of storage, it may be necessary to charge and discharge the secondary batteries
several times to obtain maximum performance.
Dispose of properly.
Do not expose the batteries (battery pack or batteries installed) to excessive heat, such as sunshine, fire
or the like for a long time.
Inserting the USB plug or AC plug while it is wet may cause a short circuit due to foreign matter or liquid
(tap water, seawater, soft drinks, etc.) getting on the main unit or charging cable.
This may cause malfunctions or abnormal overheating.
Never insert the USB plug or AC plug while the main unit or charging cable is wet.
Licenses
• This product contains software that Sony uses under a licensing agreement with the owner of
its copyright. We are obligated to announce the contents of the agreement to customers under
requirement by the owner of copyright for the software. Please access the following URL and
read the contents of the license.
https://rd1.sony.net/help/speaker/sl/23/
• Use of the Made for Apple badge means that an accessory has been designed to connect
specifically to the Apple product(s) identified in the badge, and has been certified by the
developer to meet Apple performance standards. Apple is not responsible for the operation of
this device or its compliance with safety and regulatory standards.
Please note that the use of this accessory with an Apple product may affect wireless
performance.
• This product is protected by certain intellectual property rights of Microsoft Corporation. Use
or distribution of such technology outside of this product is prohibited without a license from
Microsoft or an authorized Microsoft subsidiary.
• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and Thomson.
Disclaimer regarding services offered by third parties
• Services offered by third parties may be changed, suspended, or terminated without prior notice.
Sony does not bear any responsibility in these sorts of situations.
Notes on water resistant feature
(Read before using the unit)
The supplied accessories are not water resistant.
On water resistant performance of the unit
With the cap securely closed, this unit has a drip-proof performance equivalent to IPX4 (when placed
vertically)/IPX2 (when placed horizontally), which are "protection against ingress of water" ratings
defined by IEC 60529 "Degrees of protection provided by enclosures (IP Code)" for electrical equipment.
• The supplied accessories and the connectors of this unit (AC IN/USB/AUDIO IN/OPTICAL IN/MIC/
GUITAR) are neither water resistant nor dustproof. To reduce the risk of fires or electric shocks, do not
expose the unit to water or droplets while using any connectors (AC IN/USB/AUDIO IN/OPTICAL IN/
MIC/GUITAR).
Note that malfunctions as a result of water immersion or dust intrusion caused by misuse by the
customer are not covered by the warranty.
5-047-066-81(1) To maintain water resistant performance
Carefully note the precautions below to ensure proper use of the unit.
• This unit does not have a design that is resistant to water pressure. Do not put the unit in the water or
directly under the water gushing out of the faucet to avoid a malfunction.
• Do not pour high-temperature water or blow hot air from a hair dryer or any other appliance on the
unit directly. Also never use the unit in a place subject to high temperatures, such as in a sauna or
near a heat source.
CAUTION : Handle the cap with care. The cap plays a very important role in maintenance of the
water resistant performance. When using the unit, make sure that the cap is closed completely.
When closing the cap, be careful not to allow foreign objects inside. If the cap is not closed completely
Reference Guide the water resistant performance may deteriorate and may cause a malfunction of the unit as a result of
water entering the unit.
Guía de referencia
How to care for the unit
You can use the unit more comfortably and for a longer period of time by following the maintenance
procedure below.
• If the surface becomes dirty, wipe the surface using a soft, dry cloth or a cloth soaked in water or
lukewarm water and wrung well. Depending on the type of dirt, it may not be possible to remove it.
Note
• If the surface of the unit gets dirty, do not use detergent, thinner, benzine, alcohol, etc. to clean the
unit because it will affect the water repellent function of the unit.
• Especially in cold regions, be sure to wipe off the moisture after using the unit. Leaving moisture on
its surface may cause the unit to freeze and malfunction.
Precautions
About the power cord
If the unit is not used for an extended period, unplug the AC power cord from the AC outlet. When
unplugging the unit, be sure to grasp the plug. Never pull on the cord itself.
On placement
• Do not insert foreign objects from the opening of the speaker unit.
• To eliminate the risk of malfunctions, avoid the following locations when placing or leaving this unit.
– A place subject to high temperatures, such as under direct sunlight or lighting equipment, near a
heat source, or in a sauna
– Inside a vehicle with the windows closed (especially in summertime)
– A place exposed to hot air, such as from a hair dryer
• Place this unit on a flat, level surface. When placed on a sloped surface, the unit may fall over or
fall off the surface due to its own vibration, resulting in injuries, malfunctions, or performance
degradation.
• Depending on the conditions where this unit is placed, it may fall over or fall off the surface. Do not
leave any valuables near the unit.
• This unit is not anti-magnetic. Keep objects susceptible to magnetism (recorded tapes, watches, cash
cards and credit cards with magnetic coding, etc.) away from the unit. When you carry around the
unit, keep this in mind as well.
• If your skin remains in contact with the handle for a long time while the light is turned on, there is
a risk of low-temperature burns. To carry a speaker while it is powered on, turn the light (lighting
function) off.
Other notes
• Do not use or leave the unit in an extremely cold or hot environment (temperature outside the range
of 5 °C – 35 °C). If the unit is used or left in outside the above range, the unit may automatically stop to
protect internal circuitry.
• If you use this unit for a long time, the temperature of this unit may rise, but it is not a malfunction.
• At high temperature, the charging may stop or the volume may reduce to protect the battery.
• When the unit's light seems bright or glaring, turn up the room lights or turn off the lighting function.
• Put your fingertip directly onto the touch sensor for operations.
• Do not operate the touch sensor with a wet hand to avoid a malfunction.
• Even if you do not intend to use the unit for a long time, charge the battery to its full capacity once
every 6 months to maintain its performance.
About the Voice Guidance
IMPORTANT: THE SOUND GUIDANCE IS AVAILABLE IN THIS PRODUCT ONLY IN ENGLISH
Depending on the status of the unit, the voice guidance outputs from the unit as followings.
• When entering pairing mode: "Pairing"
• When pressing the BATTERY button to check the battery power during the unit is turned on: "Battery
fully charged/Battery Care Mode, Fully Charged, Battery About 90%/Battery about 80%/Battery about
60%/Battery about 40%/Low Battery"
• When the remaining battery power falls to the level where the unit is unable to start, the voice
guidance "Battery is empty." is output and the unit turns off.
• When pressing and holding the BATTERY button to change the charge mode while the unit is
powered: "Battery Care mode, ON/Battery Care mode, OFF"
• When a Stereo Pair connection is established by the application (Sony | Music Center): "Left/Right"
Trademarks
• Android and Google Play are trademarks of Google LLC.
• The LDAC™ name is a trademark of Sony Group Corporation or its affiliates.
• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United
States and/or other countries.
• The BLUETOOTH® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and
any use of such marks by Sony Group Corporation and its subsidiaries is under license.
• Apple, the Apple logo, iPhone, iPod and iPod touch are trademarks of Apple Inc., registered in the U.S.
and other countries.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
• IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under
license.
All other trademarks and registered trademarks are trademarks or registered trademarks of their
respective holders. In this manual, ™ and ® marks are not specified.
Specifications
BLUETOOTH®
Frequency band 2.4 GHz band (2.400 0 GHz - 2.483 5 GHz)
General
Inputs • Type A USB port: Supported USB Device (Mass Storage Class)
• AUDIO IN jack (Φ 3.5 mm)
• OPTICAL IN connector (PCM)
• MIC1 jack (Φ 6.3 mm)
• MIC2/GUITAR jack (Φ 6.3 mm)
DC OUT Type A USB port (for charging the battery of a connected device) (DC 5 V/MAX.
1.5 A)
Power AC 120 V - 240 V, 50/60 Hz or, using built-in lithium-ion battery
Power consumption Approx. 77 W
Standby power consumption
When BLUETOOTH standby mode is set to on: Approx. 2 W
When BLUETOOTH standby mode is set to off: Approx. 0.5 W
Lithium-ion battery life (while Battery Care mode*
With playback via a BLUETOOTH connection
Approx. 25 hours*
– Volume level: 14
– Sound: MEGA BASS on
– Lighting: off
Approx. 15 hours (default)*
– Volume level: 14
– Sound: MEGA BASS on
– Lighting: on
Approx. 5 hours*
– Volume level: 50 (MAX.)
– Sound: MEGA BASS on
– Lighting: off
Approx. 3.5 hours*
– Volume level: 50 (MAX.)
– Sound: MEGA BASS on
– Lighting: on
Time required for charging the built-in rechargeable battery (while Battery Care mode*
Approx. 3 hours*
(10 minutes of charging provide approximately 3 hours*
– Volume level: 14
– Sound: MEGA BASS on
– Lighting: off
Operating temperatures
5 °C – 35 °C
Battery charging temperatures
5 °C – 35 °C
Dimensions (including projecting parts and controls)
Approx. 317 mm × 720 mm × 375 mm (w/h/d)
Mass (including battery)
Approx. 18.5 kg
Included items Home Audio System (1)
AC power cord (mains lead) (1)
Optical digital cable (optical rectangular plug  optical rectangular plug) (1)
AC plug adaptor (1)*
Documents (1 set)
* 1 Mode for prolonging the durability life of the built-in rechargeable battery by limiting the charging
capacity up to approximately 90%. The unit in this mode is capable of playing for a shorter period of
time than stated.
* 2 The built-in battery life above is measured using our specified music source. Actual performance time
may vary from the listed time due to the volume, songs played, surrounding temperature, and usage
conditions.
* 3 Time required for the empty battery to be fully charged (100%) while the unit is powered off.
* 4 This plug adaptor is not for the use in Chile, Paraguay and Uruguay. Use this plug adaptor in the
countries/regions where it is necessary.
Design and specifications are subject to change without notice.
Cap
1 is not activated)
2
2
2
2
1 is not activated)
3
2 of music playback.)
4
Español Reproductor de audio
Modelo: YY7854E
El término "producto" en este documento se refiere a la unidad o sus
accesorios.
POR FAVOR LEA DETALLADAMENTE ESTE MANUAL DE INSTRUCCIONES
ANTES DE CONECTAR Y OPERAR ESTE EQUIPO.
RECUERDE QUE UN MAL USO DE SU APARATO PODRÍA ANULAR LA
GARANTÍA.
Para reducir el riesgo de incendio, no cubra la abertura de ventilación de la
unidad con periódicos, paños de cocina, cortinas, etc. No exponga la unidad
a fuentes de llama viva (por ejemplo, velas encendidas).
No instale el producto en un espacio reducido, como una estantería o un
armario empotrado.
La unidad no se desconecta de la fuente de alimentación de ca (red
eléctrica) siempre que esté conectada a la toma de pared, aunque se haya
apagado la propia unidad.
Teniendo en cuenta que el cable de alimentación se utiliza para desconectar
la unidad de la red eléctrica, conecte la unidad a una salida de ca de fácil
acceso. Si observa una anomalía en la unidad, desconecte el cable de
alimentación de la salida de ca inmediatamente.
Este producto contiene un imán (o imanes) que puede interferir con
marcapasos, válvulas de derivación programables para tratamientos para
la hidrocefalia u otros productos sanitarios. No coloque el dispositivo cerca
de personas que usen tales dispositivos médicos. Consulte con su médico
antes de usar este producto si usa un dispositivo médico tal.
No desmonte, abra ni corte las baterías secundarias.
No exponga las baterías secundarias al calor o el fuego. Evite guardarlas en
contacto directo con la luz del sol.
En caso de fuga de una batería secundaria, no deje que el líquido entre en
contacto con la piel o los ojos. Si se ha producido contacto, lave la zona
afectada con abundante agua y busque asistencia médica.
Hay que cargar las baterías secundarias antes de utilizarlas. Consulte
siempre las instrucciones del fabricante o el manual del producto para
conocer las instrucciones de carga adecuadas.
Después de periodos prolongados de almacenamiento, es posible que
se deba cargar y descargar las baterías secundarias varias veces a fin de
alcanzar su rendimiento máximo.
Deséchelas correctamente.
No exponga las baterías (paquete de baterías o baterías instaladas) a un
calor excesivo, como la luz del sol, el fuego o similares durante un periodo
prolongado.
AVISO IMPORTANTE PARA MÉXICO
La operación de este equipo está sujeta a las siguientes dos condiciones:
(1) es posible que este equipo o dispositivo no cause interferencia
perjudicial y (2) este equipo o dispositivo debe aceptar cualquier
interferencia, incluyendo la que pueda causar su operación no deseada.
Para consultar la información relacionada al número del certificado, refiérase
a la etiqueta del empaque y/o del producto.
Nota
Información de dispositivo(s) para funcionalidades inalámbricas:
Modelo: BMS002
Marca: Sunitec
Si se inserta la clavija USB o el enchufe de ca mientras están húmedos,
puede producirse un cortocircuito si entran sustancias extrañas o líquido
(agua del grifo, agua del mar, refresco, etc.) en la unidad principal o en el
cable de carga.
Esto puede causar fallos de funcionamiento o un sobrecalentamiento
anómalo.
Nunca inserte la clavija USB ni el enchufe de ca si la unidad principal o el
cable de carga están húmedos.
Licencias
• El producto contiene software que Sony utiliza en virtud de un acuerdo
de licencia con el propietario del copyright correspondiente. Tenemos
la obligación de anunciar el contenido del acuerdo a los clientes
a petición del titular del copyright del software. Acceda a la URL
siguiente y lea el contenido de la licencia.
https://rd1.sony.net/help/speaker/sl/23/
• El uso de la insignia Made for Apple significa que un accesorio ha
sido diseñado para conectarse específicamente al producto o a los
productos Apple identificados en la insignia, y ha sido certificado por el
fabricante de que cumple las normas de rendimiento de Apple. Apple
no se hace responsable por el funcionamiento de este dispositivo o su
cumplimiento con normas de seguridad y regulatorias.
Tenga en cuenta que el uso de este accesorio con un producto Apple
puede afectar el rendimiento inalámbrico.
• Este producto está protegido por los derechos de propiedad intelectual
de Microsoft Corporation. Queda prohibido el uso o la distribución de
esta tecnología fuera de este producto si no se dispone de una licencia
de Microsoft o una división autorizada de Microsoft.
• Tecnología de codificación de audio MPEG Layer-3 y patentes bajo
licencia de Fraunhofer IIS y Thomson.
Exención de responsabilidad en relación con los servicios
ofrecidos por terceros
• Los servicios prestados por otros proveedores están sujetos a
cambios, anulaciones o interrupciones sin previo aviso. Sony no asume
responsabilidad alguna en estas situaciones.
Notas acerca de la resistencia al agua
(Léalo antes de utilizar la unidad)
Los accesorios suministrados no son resistentes al agua.
Sobre el rendimiento de resistencia al agua de la unidad
Con la cubierta bien cerrada, esta unidad tiene un rendimiento a prueba
de goteo equivalente a IPX4 (cuando se coloca verticalmente)/IPX2
(cuando se coloca horizontalmente), que son clasificaciones de "protección
contra la entrada de agua" definidas por IEC 60529 "Grados de protección
proporcionados por contenedores (Código IP)" para equipos eléctricos.
• Los accesorios suministrados y los conectores de esta unidad (AC IN/USB/
AUDIO IN/OPTICAL IN/MIC/GUITAR) no son resistentes al agua ni a prueba
de polvo. Para reducir el riesgo de incendios o descargas eléctricas, no
exponga la unidad a agua ni a gotas mientras utilice cualquier conector
(AC IN/USB/AUDIO IN/OPTICAL IN/MIC/GUITAR).
Tenga en cuenta que las averías resultantes de inmersiones en agua o
intrusion de polvo producidas por el mal uso que haga el cliente no las
cubre la garantía.
