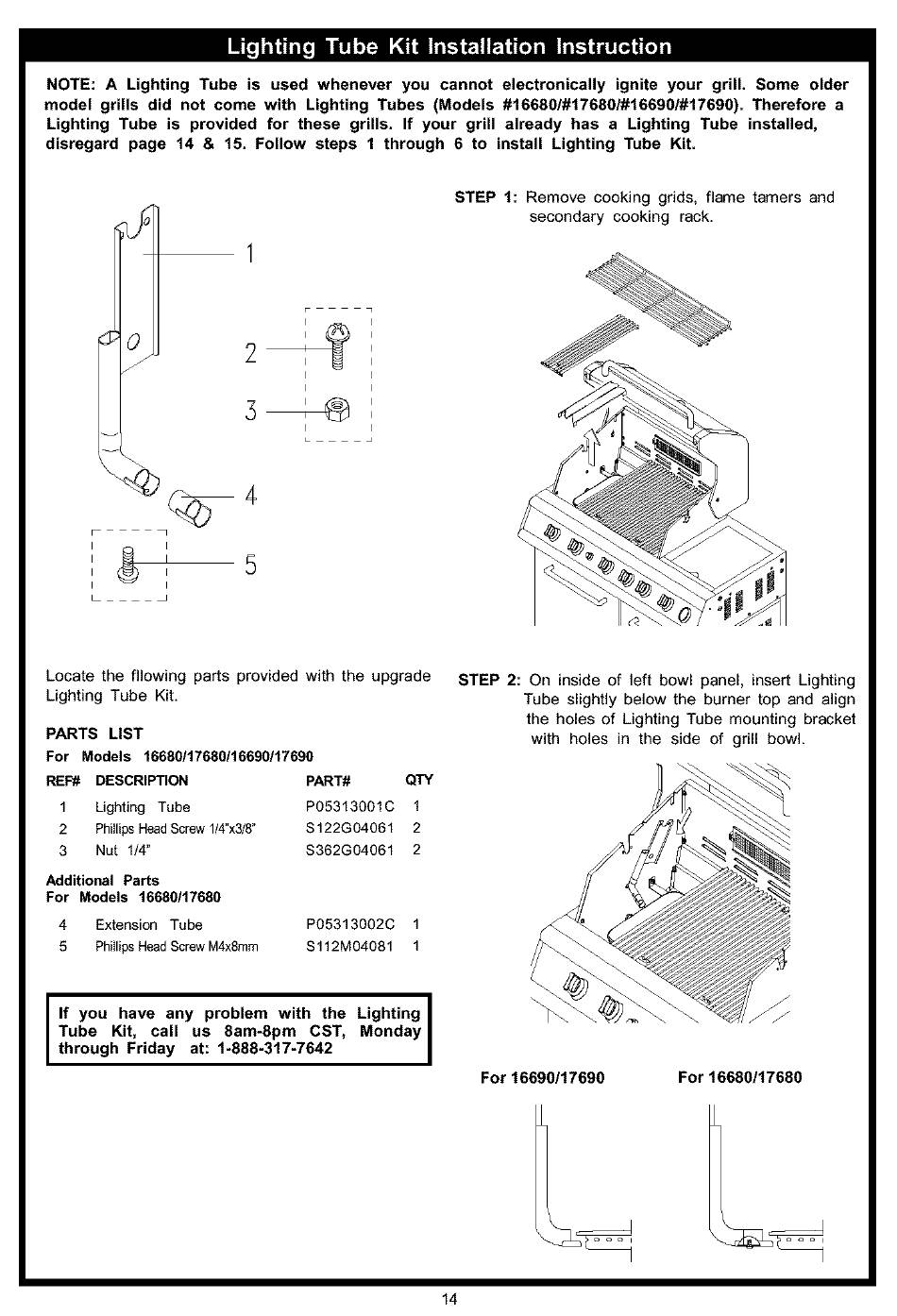

NOTE:
A Lighting
Tube
is used whenever
you
cannot
electronically
ignite
your
grill.
Some
older
model
grills did not come with Lighting
Tubes
(Models
#16680/#17680/#16690/#17690).
Therefore
a
Lighting
Tube
is provided
for these
grills.
If your
grill already
has a Lighting
Tube
installed,
disregard
page
14 & 15. Follow
steps
1 through
6 to install
Lighting
Tube
Kit.
STEP 1: Remove
cooking
grids, flame
tamers and
secondary
cooking
rack.
I
I
I
I
Locate the fllowing parts provided with the upgrade
Lighting Tube Kit.
PARTS
LIST
For
Models
16680117680116690117690
REP#
DESCRIPTION
PART#
QTY
1
Lighting
Tube
P05313001C
1
2
Phitlips Head Screw 1/4_x3/8"
$122G04061
2
3
Nut 1/4"
$362G04061
2
Additional Parts
For Models 16680/17680
4
Extension
Tube
P05313002C
5
Phitlips Head Screw M4x8rnrn
$112M04081
I
If you
have
any problem
with
the
Lighting
Tube
Kit,
call
us
8am-8pm
CST,
Monday
through
Friday
at: 1-888-317-7642
STEP 2: On inside of left bowl panel, insert Lighting
Tube slightly
below the burner
top and align
the holes of Lighting
Tube mounting
bracket
with
holes
in the side of grill bowl.
For 16690/17690
For 16680/17680
