Operator's Manual

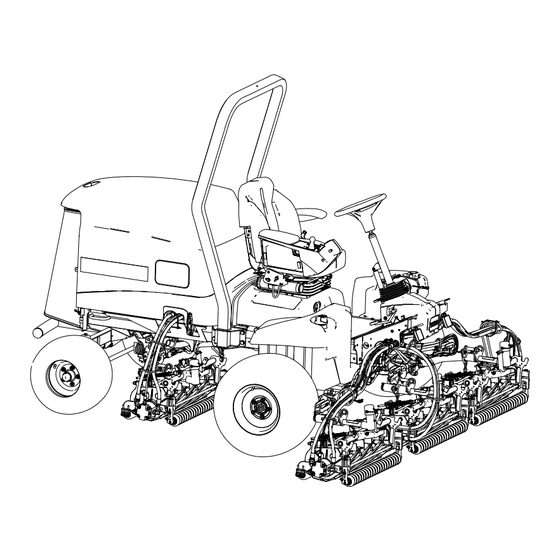

Reelmaster® 5610-D Traction Unit
Model—Serial Range
03966—400000000 and Up
*3464-493* A
3464-493A
Original Instructions (EN)

Advertisement

Table of Contents
loading

Related Manuals for Toro Reelmaster 5610-D

Summary of Contents for Toro Reelmaster 5610-D

  • Page 1 Operator’s Manual Reelmaster® 5610-D Traction Unit Model—Serial Range 03966—400000000 and Up *3464-493* A 3464-493A Original Instructions (EN)

  • Page 2: Table Of Contents

    Chapter 4: Product Overview ......................4–1 Controls............................... 4–1 Key Switch ............................. 4–2 Lower Mow/Raise Control Lever....................4–2 Parking-Brake Switch ........................4–2 © 2024—The Toro ® Company Contact us at www.Toro.com 8111 Lyndale Ave So Printed in the USA Bloomington, MN 55044 All rights reserved...

  • Page 3: Disclaimers And Regulatory Information

    Cruise-Control Switch........................4–3 Power-Takeoff (PTO) Switch ..................... 4–3 Headlight Switch........................... 4–4 Throttle-Control Lever ......................... 4–4 InfoCenter Display........................4–4 Tilt-Steering Pedal........................4–5 Traction Pedal ..........................4–5 Hydraulic-Filter-Restriction Indicator ..................4–6 Power Point............................ 4–6 Seat Controls..........................4–6 Backlap Levers..........................4–8 Specifications ............................ 4–8 Attachments/Accessories.......................
  • Page 4 Greasing the Bearings and Bushings ..................6–8 Grease Fitting Locations......................... 6–9 Engine Maintenance........................6–10 Checking the Air Cleaner......................6–10 Resetting the Air Filter Service Indicator................6–11 Servicing the Air Cleaner ......................6–11 Engine Oil Specifications......................6–12 Checking the Engine Oil Level ....................6–13 Changing the Engine Oil and Filter ..................
  • Page 5 Storing the Battery..........................7–2 The Toro Warranty California Proposition 65 Warning Information 3464-493 A Disclaimers and Regulatory Information:...

  • Page 6: Chapter 1: Introduction

    Whenever you need service, genuine Toro parts, or additional information, contact an Authorized Service Dealer or Toro Customer Service and have the model and serial numbers of your product ready. These numbers are located on the serial plate on your product .

  • Page 7: Manual Conventions

    Manual Conventions This manual identifies potential hazards and has safety messages identified by the safety- alert symbol, which signals a hazard that may cause serious injury or death if you do not follow the recommended precautions. G405934 This manual uses 2 words to highlight information. Important calls attention to special mechanical information and Note emphasizes general information worthy of special attention.

  • Page 8: Chapter 2: Safety

    Chapter 2 Safety General Safety • This product is capable of amputating hands and feet and of throwing objects. • Read and understand the contents of this Operator’s Manual before starting the engine. • Use your full attention while operating the machine. Do not engage in any activity that causes distractions;...

  • Page 9: Fuel Safety

    • Before mowing, always inspect the machine to ensure that the cutting units are in good working condition. • Inspect the area where you will use the machine and remove all objects that the machine could throw. • This product generates an electromagnetic field. If you wear an implantable electronic medical device, consult your health care professional before using this product.

  • Page 10: Rollover Protection System (Rops) Safety

    • Operate the engine only in well-ventilated areas. Exhaust gasses contain carbon monoxide, which is lethal if inhaled. • Do not leave a running machine unattended. • Before you leave the operator’s position, do the following: – Park the machine on a level surface. –...

  • Page 11: After Operation Safety

    Slope Safety (continued) – Remove or mark obstructions such as ditches, holes, ruts, bumps, rocks, or other hidden hazards. Tall grass can hide obstructions. Uneven terrain could overturn the machine. – Be aware that operating the machine on wet grass, across slopes, or downhill may cause the machine to lose traction.

  • Page 12: Engine Safety

    • Keep all parts of the machine in good working condition and all hardware tightened. • Replace all worn or damaged decals. • To ensure safe, optimal performance of the machine, use only genuine Toro replacement parts. Replacement parts made by other manufacturers could be dangerous, and such use could void the product warranty.

  • Page 13: Blade Safety

    Hydraulic System Safety (continued) • Keep your body and hands away from pinhole leaks or nozzles that eject high-pressure hydraulic fluid. • Use cardboard or paper to find hydraulic leaks. • Safely relieve all pressure in the hydraulic system before performing any work on the hydraulic system.

  • Page 14: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. Battery Symbols Some or all of these symbols are on your battery. s_batterysymbols2 Wear eye protection;...
  • Page 15 Decal Part: 106-6755 Engine coolant under pressure. Explosion hazard—read the Operator's Manual. Warning—do not touch the hot surface. Warning—read the Operator's Manual. s_decal106-6755 Decal Part: 110-9642 Stored energy hazard—read the Operator's Manual. Move the cotter pin to the hole closest to the rod bracket and then remove the lift arm and pivot yoke.
  • Page 16 Decal Part: 133-2930 s_decal133-2930 Warning—do not park on slopes; engage the Warning—do not operate this machine unless you parking brake, lower the cutting units, shut off the are trained. engine, and remove the ignition key before leaving Warning—wear hearing protection. the machine.
  • Page 17 Decal Part: 136-3702 Warning—Read the Operator’s Manual; wear a seatbelt; do not remove the roll bar. Warning—Do not modify the roll bar. s_decal136-3702 Decal Part: 137-8127 Attention—do not spray with high- pressure water. s_decal137-8127 3464-493A Page 2–10 Safety: Safety and Instructional Decals...
  • Page 18 Decal Part: 145-2484 Parking brake Cruise control Lower the cutting units Fast Slow Raise the cutting units PTO—Off PTO—On Read the Operator’s Manual. s_decal145-2484 Decal Part: 145-2519 TEC power relay Electrical power relay Read the Operator’s Manual for fuse information. Key switch Air-ride seat Electrical power...
  • Page 19 Decal Part: 145-2572 s_decal145-2572 Engine coolant Read the Operator’s Manual for lubrication information. Engine oil level Check every 8 hours. Fuel Brake functions Read the Operator’s Manual. Hydraulic fluid Fuel/Water separator Tire pressure Fluids Engine air filter Capacity Engine oil Fluid interval (hours) Fan belt Filter interval (hours)

  • Page 20: Chapter 3: Setup

    Chapter 3 Setup Preparing the Machine 1. Park the machine on a level surface, lower the cutting units, and engage the parking brake. 2. Shut off the engine, remove the key, and wait for all moving parts to stop. 3. Check the tire air pressure before use. Note: The tires are overinflated for shipping.

  • Page 21: Installing The Cutting Units

    Installing the Cutting Units Parts Required Right front hose guide Left front hose guide Preparing the Machine 1. Remove and discard the shipping brackets from the reel motors. 2. Remove the snapper pin and cap from each cutting-unit lift arm. G409088 Preparing the Cutting Units 1.

  • Page 22: Positioning The Turf Compensating Spring And Installing The Hose Guide

    Positioning the Turf Compensating Spring and Installing the Hose Guide Cutting Unit 4 G410291 Cutting unit 3 Cutting unit 5 Weight Cutting unit 1 Reel motor Cutting unit 2 Cutting unit 4 1. If the hairpin is installed in the rear hole of the compensation-spring rod, remove the hairpin and insert it in the hole next to the bracket.
  • Page 23 Positioning the Turf Compensating Spring and Installing the Hose Guide (continued) 3. Remove the flange locknut (3/8 inch) securing the bolt to the right tab of the carrier frame, and remove the compensation spring from the cutting unit. Note: Do not remove the flange serrated nut from the bolt.

  • Page 24: Installing The Hose Guide

    Installing the Hose Guide Cutting Unit 5 G410309 Cutting unit 3 Cutting unit 5 Weight Cutting unit 1 Reel motor Cutting unit 2 Cutting unit 4 1. If the hairpin is installed in the rear hole of the compensation-spring rod, remove the hairpin and insert it in the hole next to the bracket.

  • Page 25: Positioning The Turf Compensating Spring

    Installing the Hose Guide (continued) 3. Align the studs of the right hose guide with the holes in the cutting-unit frame and the turf- compensator bracket Note: Ensure that the support loop of the hose guide aligns toward the center of the machine.
  • Page 26 Positioning the Turf Compensating Spring (continued) 2. Remove the 2 flange locknuts (3/8 inch) and 2 carriage bolts (3/8 x 1-1/4 inches) that secure the turf-compensator bracket the cutting-unit frame. G410293 3. Remove the flange locknut (3/8 inch) that secures the bolt of the turf compensation spring to the right tab of the carrier frame,...

  • Page 27: Installing The Kickstand

    Installing the Kickstand For each cutting unit, secure the kickstand the chain bracket with the snapper pin G411001 Installing the Front Cutting Units to the Lift Arms 1. Install the front cutting units to the lift arms as shown. 2. Lock the cutting-unit pivot for cutting grass on a hill side.

  • Page 28: Installing The Rear Cutting Units To The Lift Arms

    Installing the Rear Cutting Units to the Lift Arms Cutting Units adjusted for a 1.2 cm (3/4 inch) or Higher Height of Cut 1. Install the rear cutting units to the lift arms as shown. 2. Lock the cutting-unit pivot for cutting grass on a hill side.

  • Page 29: Locking The Cutting-Unit Pivot For Cutting Grass On A Hill Side

    Locking the Cutting-Unit Pivot for Cutting Grass on a Hill Side Lock the cutting-unit pivots with snapper pins prevent the cutting units from rotating downhill when cutting across the face of a hill. Note: Use the hole in the pivot yoke to lock the cutting unit.

  • Page 30: Installing The Reel Motors

    Installing the Reel Motors 1. Grease the reel-motor spline shaft. 2. Oil the reel motor O-ring and install it onto the motor flange. 3. Install the motor by rotating it clockwise so that the motor flanges clear the bolts G411002 4.

  • Page 31: Using The Cutting-Unit Kickstand

    Using the Cutting-Unit Kickstand Parts Required Cutting-unit kickstand 1. When tipping a cutting unit to expose the bedknife/reel, prop up the rear of the cutting unit with the kickstand to ensure that the nuts on the back end of the bedbar adjusting screws are not resting on the work surface.

  • Page 32: Applying The Production Year Decal

    Applying the Production Year Decal Parts Required Production year decal 1. Use rubbing alcohol and a clean rag to clean the floor bracket area next to the serial plate , and allow the bracket to dry. 2. Remove the backing from the year of production decal.

  • Page 33: Chapter 4: Product Overview

    Chapter 4 Product Overview Engine hood Operator's seat Control arm Steering wheel Seat-adjustment lever Front cutting units Rear cutting units G403840 Controls G461342 Headlight switch Key switch InfoCenter display Cruise-control switch Lower mow/raise control lever Tilt-steering pedal Parking-brake switch Throttle lever Traction pedal PTO switch 3464-493 A...

  • Page 34: Key Switch

    Key Switch On/preheat Start G453721 Lower Mow/Raise Control Lever Lower the cutting units—Engage the PTO first for cutting units to spin (Mow mode). Raise the cutting units—Disengage the PTO first for cutting units to stop spinning (Transport mode). Note: To partially raise the cutting units to the turnaround position, briefly pull the lever backward.

  • Page 35: Cruise-Control Switch

    Cruise-Control Switch Engage cruise control—briefly pivot the switch forward. Note: Use the display buttons to adjust the cruise control speed in 0.8 km/h (0.5 mph) increments. Turn on cruise control—pivot the switch to the middle position. Turn off cruise control—pivot the switch backward.

  • Page 36: Headlight Switch

    Headlight Switch G461395 Throttle-Control Lever Move the throttle-control lever forward to increase the engine speed and rearward to decrease speed. G447509 InfoCenter Display The InfoCenter display shows information about your machine, such as the operating status, various diagnostics, and other information about the machine.

  • Page 37: Tilt-Steering Pedal

    Tilt-Steering Pedal Press the tilt-steering pedal and raise or lower the steering tower to a comfortable operating position. G453181 Traction Pedal Move forward—press the top of the pedal. Note: To achieve no load, maximum ground speed, fully press the top of the pedal while the throttle is in the F position.

  • Page 38: Hydraulic-Filter-Restriction Indicator

    Hydraulic-Filter-Restriction Indicator The hydraulic-filter-restriction indicator alerts you when the hydraulic filters must be changed. G453944 Power Point The power point is a 12 V power supply for electronic devices. G453945 Seat Controls G446491 Height-adjustment knob Weight gauge Weight-adjustment knob Forward/backward lever Product Overview: Controls Page 4–6 3464-493 A...
  • Page 39 Seat Controls (continued) Weight-Adjustment Knob Rotate the weight-adjustment knob until your weight is displayed in the window of the weight gauge. Decrease Increase G446496 Height-Adjustment Knob Raise Lower G446494 Forward/Backward Lever Lock Unlock G446495 3464-493A Page 4–7 Product Overview: Controls...

  • Page 40: Backlap Levers

    0 to 13 km/h (0 to 8 mph) Attachments/Accessories A selection of Toro approved attachments and accessories is available for use with the machine to enhance and expand its capabilities. Contact your Authorized Service Dealer or authorized Toro distributor or go to www.Toro.com...

  • Page 41: Chapter 5: Operation

    Chapter 5 Operation Before Operation Performing Daily Maintenance Before starting the machine each day, perform the Each Use/Daily procedures listed in the Maintenance Schedule. Fuel Fuel Specifications IMPORTANT Never use kerosene or gasoline instead of diesel fuel. Petroleum Diesel Type Use summer grade diesel fuel (No.
  • Page 42 Monitor seals, hoses, gaskets in contact with fuel as they may degrade over time. Fuel filter plugging may be expected for a time after converting to biodiesel blended. For more information on biodiesel, contact your authorized Toro distributor. Storage Acquire only enough clean, fresh diesel fuel or biodiesel fuel that you will consume within 180 days.

  • Page 43: Checking The Interlock Switches

    • Check the operation of the interlock switches daily and replace any damaged switches before operating the machine. IMPORTANT If your machine fails any of the interlock switch checks, contact your authorized Toro distributor. Preparing the Machine 1. Drive the machine slowly to an open area.

  • Page 44: Overview Of The Infocenter Display

    Checking the Interlock Switches (continued) Checking the Parking Brake and Traction Pedal Run-Interlock 1. Sit in the operator’s seat. 2. Engage the parking brake. 3. Press the PTO switch to the D position. ISENGAGE 4. Start the engine. 5. Press the traction pedal. Note: There should be no machine response when you press the traction pedal while the parking brake is engaged.
  • Page 45 Overview of the InfoCenter Display (continued) G471371s Navigation button Navigation button Navigation button Indicator light —up —decrease/left —increase/right Display brightness Navigation button sensor Back button Enter button —down Note: The purpose of each button may change depending on what is required at the time. Each button is labeled with an icon displaying its current function.
  • Page 46 Description Faults The Faults menu contains a list of the recent machine faults. Refer to the Service Manual or contact your authorized Toro distributor for more information on the Faults menu and the information contained there. Service The Service menu contains information on the machine such as hours of use, counters, and other similar numbers.
  • Page 47 Overview of the InfoCenter Display (continued) Main Menu (continued) Menu Item Description issues as it quickly tells you which machine controls are on and which are off. Settings The Settings menu allows you to customize and modify configuration variables on the display. Machine Settings The Machine Settings menu allows you to adjust the acceleration, speed, and...
  • Page 48 Overview of the InfoCenter Display (continued) Settings Menu Item Description Enter PIN Allows a person (superintendent/mechanic) authorized by your company with the PIN code to access protected menus. Backlight Controls the brightness of the LCD display. Language Controls the language used on the display*. Font Size Controls the size of the font on the display.
  • Page 49 Note: The factory default PIN code for you machine is either 0000 or 1234. If you changed the PIN code and forgot the code, contact your authorized Toro distributor for assistance. 1. From the Main Menu, scroll down to Settings and press the select button.
  • Page 50 Overview of the InfoCenter Display (continued) 2. In Settings, scroll to Enter PIN and press the select button 3. To enter the PIN code, press the up/down navigation buttons until the correct first digit appears, then press the right navigation button to move on to the next digit.
  • Page 51 Overview of the InfoCenter Display (continued) 7. After you select Y , the interval screen clears and reverts back to the service hours selections. Setting the Blade Count 1. In Machine Settings, scroll down to Blade Count. 2. Press the right navigation button to change the blade count between 8 or 11 blade reels. Setting the Height of Cut (HOC) 1.
  • Page 52 4. Check if the machine stops within 0.6 m (2 ft) of the end mark (3.7 m or 12 ft). 5. Contact your Toro distributor if the stopping distance of the machine is not within 0.6 m (2 ft) of this distance.

  • Page 53: During Operation

    During Operation Overview of the Machine Operating Characteristics • When you remove your foot from the traction pedal, the machine dynamically brakes to a stop. • The pedal controls are optimized to provide a reactive yet stable response, allowing you to maintain consistent control over rough terrain, while still allowing for quick, smooth braking.

  • Page 54: Overview Of The Traction Pedal

    Overview of the Traction Pedal The traction pedal controls the forward and reverse speed of the machine and the dynamic braking when you return it to neutral. • The further you push the traction pedal in forward or reverse, the faster the machine moves.

  • Page 55: Cruise Control

    Overview of the Virtual Pedal Stop (VPS) Feature (continued) Tips for Using Virtual Pedal Stop (VPS) • Set the max speed temporarily lower for mowing the cleanup pass on the fairway. • Set the max speed temporarily lower for improved control operating in or near the maintenance shop.

  • Page 56: Overview Of The Acceleration Mode

    Cruise Control (continued) G462143s Indicates the maximum This speed is locked out Indicates the cruise control traction speed (pedal stop) under the protected PIN speed menu. Tips for Using the Cruise Control • Set a cruising speed for long distances without many obstacles. •...

  • Page 57: Overview Of The Warm-Up Mode

    Overview of the Warm-Up Mode When starting the machine in cold weather, a message and a snowflake icon appear on the InfoCenter screen. Do not operate the machine above low idle until after the warm-up period. Starting the Engine IMPORTANT You must bleed the fuel system before starting the engine if you are starting the engine for the first time, the engine has stopped due to lack of fuel, or you have performed maintenance on the fuel system.

  • Page 58: Adjusting The Lift-Arm Counterbalance

    Adjusting the Lift-Arm Counterbalance Rear Cutting Units CAUTION The springs are under tension, and adjusting them could result in minor or moderate personal injury. Use caution when adjusting the springs. Adjust the amount of counterbalance force applied to the rear cutting-units to help compensate for different turf conditions, and to maintain a uniform height of cut in rough conditions or in areas of thatch buildup.

  • Page 59: Adjusting The Turf-Compensation Spring

    Adjusting the Lift-Arm Turnaround Position (continued) 3. Loosen the jam nut that secures lift-arm switch to the switch plate 4. Adjust the lift-arm switch as follows: • To increase the lift-arm turnaround height, move the switch down. • To decrease the lift-arm turnaround height, move the switch up.

  • Page 60: Cutting Grass With The Machine

    Adjusting the Turf-Compensation Spring (continued) Note: When operating on rough terrain decrease the spring length by 13 mm (1/2 inch). Ground following will be slightly decreased. Note: The turf compensation setting will need to be reset if the HOC setting or the Aggressiveness of Cut setting is changed.

  • Page 61: Setting The Reel Speed

    Setting the Reel Speed IMPORTANT It is important that proper reel speeds are used for your mowing application. • Reel speeds that are too slow may result in a wave pattern in the turf, also known as clip marks, marcelling, or bobbing. If this is observed, try increasing the reel speeds or reducing the mowing speed.

  • Page 62: Overview Of The Indicator Lights

    Overview of the Indicator Lights G461477 Indicator light • Flashing red—active fault • Solid red—active advisory • Solid blue—calibration/dialog messages • Solid green—normal operation Operating Tips Becoming Familiar with the Machine • Before mowing grass, practice operating the machine in an open area. •...
  • Page 63 Operating Tips (continued) Proper Mowing Techniques • To achieve the professional straight-line cut and striping that is desirable for some applications, find a tree or other object in the distance and drive straight toward it. • Maintain reel and bedknife sharpness. •...
  • Page 64 Operating Tips (continued) – Frequently check the rear radiator screen and the air cleaner air inlet screen above the radiator for chaff build up. – If the engine overheats, park the machine in a shaded area with good air flow to let the components cool.

  • Page 65: After Operation

    After Operation Tie-Down Point Locations • Front of the machine—the hole in the rectangular pad, under the axle tube, inside each front tire. G439095 Front tie-down • Rear of the machine—each side of the machine on the rear frame. G439096 Rear tie-down 3464-493A Page 5–25...

  • Page 66: Hauling The Machine

    Hauling the Machine Follow the tips below when hauling the machine. • Use full-width ramps for loading the machine onto a trailer or truck. • Tie the machine down securely. Pushing or Towing the Machine In an emergency, you can move the machine forward by actuating the bypass valve in the variable-displacement hydraulic pump and pushing or towing the machine.
  • Page 67 Note: Because the fluid is bypassed, the machine can be moved slowly without damaging the transmission. 4. Locate the brake release manifold near the front right tire and behind the hydraulic tank. 5. Insert a tube or similar object, hold the black knob in on the manifold, and pump manifold 3 times.

  • Page 68: Chapter 6: Maintenance

    Determine the left and right sides of the machine from the normal operating position. Note: Download a free copy of the electrical or hydraulic schematic by visiting www.Toro.com searching for your machine from the Manuals link on the home page. IMPORTANT Refer to your engine owner’s manual and cutting unit Operator's Manual for...
  • Page 69 Maintenance Qty Description Maintenance Procedure Part No. Service Interval 15W-40 Premium Engine Oil (5 121-6395 gallons) 15W-40 Premium Engine Oil (55 121-6394 gallons) Drain the water separator. Inspect the electrical cables. Check the tire pressure. Check the engine coolant level. Clean the engine cooling system.
  • Page 70 Maintenance Qty Description Maintenance Procedure Part No. Service Interval Service the air cleaner (more frequently in extremely dirty or dusty conditions). Service the air 108-3812 Air cleaner filter cleaner earlier if the air-cleaner indicator shows red. Replace the fuel/water separator Fuel system water filter 110-9049 Every 400 hours...

  • Page 71: Daily Maintenance Checklist

    Maintenance Qty Description Maintenance Procedure Part No. Service Interval Replace the hydraulic hoses (take the machine to an Authorized Service Dealer or Distributor or refer to the Service Manual. Replace the coolant hoses (take the machine to an Authorized Service Dealer or Distributor or refer to the Service Manual.

  • Page 72: Pre-Maintenance Procedures

    Maintenance Check Item For the week of: Mon. Tues. Wed. Thurs. Fri. Sat. Sun. Check the glow plug and injector nozzles if the engine starts hard, produces excess smoke, or runs rough. Check with the engine running and the oil at operating temperature. Immediately after every washing, regardless of the interval listed IMPORTANT Refer to your engine operator’s manual for additional maintenance procedures.

  • Page 73: Opening The Hood

    Opening the Hood Release the 2 hood latches and rotate open the hood. G424259 Closing the Hood Carefully rotate the hood closed and secure it with the 2 hood latches G424260 3464-493A Page 6–6 Maintenance: Pre-Maintenance Procedures...

  • Page 74: Opening The Screen

    Opening the Screen 1. Remove the ball pin from the screen latch 2. Unlatch and open the screen. G437863 Closing the Screen 1. Close and latch the screen. 2. Insert the ball pin through the screen latch G414734 Tilting the Seat 1.

  • Page 75: Lowering The Seat

    Lowering the Seat 1. Rotate the seat slightly, and lift the front prop rod out of the dent of the seat-support slot. 2. Carefully lower the seat until it latches securely. Jacking Point Locations Note: Support the machine with jack stands whenever you work under the machine. Use the following as machine-lift points: •...

  • Page 76: Grease Fitting Locations

    Greasing the Bearings and Bushings (continued) Grease Fitting Locations Grease Specification: No. 2 lithium grease Pump driveshaft (3) G452381 Cutting-unit lift-arm cylinders (2 each) Lift-arm pivots (1 each) G452355 Cutting-unit carrier-frame and pivot (2 each) G452356 Lift-arm-pivot shaft (1 each) G452357 Maintenance: Lubrication Page 6–9...

  • Page 77: Engine Maintenance

    Greasing the Bearings and Bushings (continued) Axle-steering pivot (1) G452379 Steering-cylinder ball joints (2) G452380 Engine Maintenance Checking the Air Cleaner 1. Prepare the machine for maintenance. 2. Open the hood. 3. Check the service indicator at the end of the air filter housing.

  • Page 78: Resetting The Air Filter Service Indicator

    Checking the Air Cleaner (continued) 4. If a red band displays in the service indicator, change the air filter. 5. Squeeze the dust-ejector valve. 6. Close and latch the hood. G414762 Resetting the Air Filter Service Indicator 1. If a red band displays in the service indicator, press the reset button at the end of the indicator.

  • Page 79: Engine Oil Specifications

    Use the following engine oil viscosity grade: • Preferred oil: SAE 15W-40 [-17°C (above 0°F)] • Alternate oil: SAE 10W-30 or 5W-30 (all temperatures) Toro Premium Engine Oil is available from your authorized Toro distributor in either 15W-40 or 10W-30 viscosity grades. Crankcase Capacity Approximately 5.2 L (5.5 US qt) with the filter...

  • Page 80: Checking The Engine Oil Level

    Checking the Engine Oil Level Note: Check the oil when the engine is cool. If the engine is warm, wait 10 minutes before checking. IMPORTANT Check the engine oil daily. If the engine-oil level is above the Full mark on the dipstick, the engine oil may be diluted with fuel.

  • Page 81: Changing The Engine Oil And Filter

    Changing the Engine Oil and Filter 1. Prepare the machine for maintenance. 2. Drain the oil and change the filter. G437921 G437922 IMPORTANT Do not overtighten the filter. 3. Open the hood. 4. Add oil to the crankcase. 3464-493A Page 6–14 Maintenance: Engine Maintenance...

  • Page 82: Fuel System Maintenance

    Changing the Engine Oil and Filter (continued) 5. Close and latch the hood. Fuel System Maintenance This Operator’s Manual contains more detailed fuel and fuel system maintenance information than the engine Owner’s Manual, which is a general-purpose reference relating to fuel and fuel maintenance. Ensure that you understand that the fuel system maintenance, fuel storage, and fuel quality require your attention to avoid downtime and extensive engine repairs.

  • Page 83: Servicing The Fuel/Water Separator

    Servicing the Fuel/Water Separator Draining Water from the Fuel/Water Separator 1. Drain water from the fuel/water separator as shown. G452998 2. Prime the filter and the lines to the high pressure pump. Replacing the Fuel/Water Separator Filter 1. Replace the filter as shown. 3464-493A Page 6–16 Maintenance: Fuel System Maintenance...

  • Page 84: Bleeding The Fuel System

    Servicing the Fuel/Water Separator (continued) G452996 2. Prime the filter and the lines to the high pressure pump. Bleeding the Fuel System 1. Prepare the machine for maintenance. 2. Ensure that the fuel tank is at least half full. 3. Open the hood. Maintenance: Fuel System Maintenance Page 6–17 3464-493 A...

  • Page 85: Draining And Cleaning The Fuel Tank

    Bleeding the Fuel System (continued) 4. Open the air-bleed screw on the fuel- injection pump. 5. Turn the ignition key to the O position. Note: The electric fuel pump runs, forcing air out around the air-bleed screw. 6. Tighten the screw and turn the ignition key to the O position.

  • Page 86: Cleaning The Fuel-Pickup Tube Screen

    Cleaning the Fuel-Pickup Tube Screen Removing the Fuel-Pickup Tube The fuel-pickup tube, located inside the fuel tank, is equipped with a screen to help prevent debris from entering the fuel system. Remove the fuel-pickup tube and clean the screen as required.
  • Page 87 Cleaning the Fuel-Pickup Tube Screen (continued) 5. Loosen the fuel-sender cap 6. Carefully lift the fuel sender from the tank. Note: Do not bend the pick-up tube, return tube, or float arm. G415058 Cleaning the Installing the Fuel-Pickup Tube 1. Clean the screen at the end of the fuel pick-up tube.

  • Page 88: Priming The Fuel System

    Cleaning the Fuel-Pickup Tube Screen (continued) 5. Assemble the hose onto the fittings the fuel sender, and secure the hoses to the fittings with the clamps G415057 6. Plug the connector of the fuel-sender harness into the connector of the machine wire harness G415056 7.

  • Page 89: Electrical System Maintenance

    Priming the Fuel System (continued) IMPORTANT Do not use the engine-starter motor to crank the engine for fuel-system priming. 1. Ensure that fuel is in the fuel tank. 2. Perform the following steps to prime the filter and the lines to the high-pressure pump to prevent wear or damage to the pump: A.

  • Page 90: Connecting The Battery

    2. Install the negative battery cable (black) the negative (-) battery post. 3. Apply a coat of Grafo 112X (skin-over) grease, Toro Part No. 505-47 to the battery posts and battery-cable clamps. 4. Slide the rubber boot over the positive battery- cable clamp.

  • Page 91: Servicing The Battery

    Servicing the Battery Note: Keep the terminals and the entire battery case clean because a dirty battery will discharge slowly. 1. Prepare the machine for maintenance. 2. Open the hood. 3. Check the condition of the battery. Note: Replace a worn or damaged battery. 4.

  • Page 92: Replacing The Tec Fuse

    Replacing the TEC Fuse 1. Prepare the machine for maintenance. 2. Unlatch and open the hood. 3. At the front, left side of the engine, remove the cover of the in-line fuse holder 4. Replace the open fuse with a fuse of the same type and amperage rating.

  • Page 93: Torquing The Wheel Nuts

    Torquing the Wheel Nuts Torque the wheel nuts to 94 to 122 N∙m (70 to 90 ft-lb) in a crossing pattern. WARNING Failing to maintain proper torque of the wheel nuts could result in death or serious injury. Maintain proper torque of the wheel nuts. Checking the Rear-Wheel Alignment 1.

  • Page 94: Adjusting The Rear Wheel Toe-In

    Adjusting the Rear Wheel Toe-in 1. Loosen the jam nut on each end of the tie Note: The end of the tie rod with the external groove is a left-hand thread. 2. Use the wrench flat to rotate the tie rod. 3.
  • Page 95 Coolant Specifications (continued) Coolant Type Table Ethylene-Glycol Coolant Type Corrosion Inhibitor Type Extended-life antifreeze Organic-acid technology (OAT) IMPORTANT Do not rely on the color of the coolant to identify the difference between conventional (green) inorganic-acid technology (IAT) coolant and extended-life coolant. Coolant manufacturers may dye extended-life coolant in one of the following colors: red, pink, orange, yellow, blue, teal, violet, and green.

  • Page 96: Checking The Coolant Level

    Checking the Coolant Level CAUTION If the engine has been running, the pressurized, hot coolant can escape, which could result in minor or moderate injury. • Do not open the radiator cap when the engine is running. • Use a rag when opening the radiator cap, and open the cap slowly to allow steam to escape.
  • Page 97 Cleaning the Engine Cooling System (continued) 5. Unlatch the rear screen and pivot it open. 6. Thoroughly clean the screen with compressed air. G416241 7. Rotate the 2 oil-cooler latches inward and tilt the oil cooler G416245 8. Thoroughly clean both sides of the oil cooler and the radiator with compressed air.

  • Page 98: Belt Maintenance

    The reservoir is filled at the factory with high-quality hydraulic fluid. Check the level of the hydraulic fluid before you first start the engine and daily thereafter. Recommended hydraulic fluid: Toro PX Extended Life Hydraulic Fluid; available in 19 L (5 US gallon) pails or 208 L (55 US gallon) drums.

  • Page 99: Checking The Hydraulic-Fluid Level

    Toro Premium Synthetic Biodegradable Hydraulic Fluid is the only synthetic biodegradable fluid approved by Toro. This fluid is compatible with the elastomers used in Toro hydraulic systems and is suitable for a wide-range of temperature conditions. This fluid is compatible with conventional mineral oils, but for maximum biodegradability and performance, the hydraulic system should be thoroughly flushed of conventional fluid.

  • Page 100: Inspecting The Hydraulic Lines And Hoses

    Checking the Hydraulic-Fluid Level (continued) IMPORTANT Do not overfill the tank. G417019 Add mark (dipstick) Full mark (dipstick) 5. If the level is low, add the appropriate amount of the specified fluid to raise the level to the full mark. 6.
  • Page 101 Replacing the Hydraulic Filters (continued) Changing the Return Filter The hydraulic system is equipped with a return filter-service indicator . You view the filter- service indicator through the hole in the floor plate. With the engine running at operating temperature, check the color of the indicator as follows: •...

  • Page 102: Changing The Hydraulic Fluid

    Repair all hydraulic leaks. Changing the Hydraulic Fluid If the fluid becomes contaminated, contact your Toro Distributor because the system must be flushed. Contaminated fluid looks milky or black when compared to clean fluid. 1. Prepare the machine for maintenance.
  • Page 103 Changing the Hydraulic Fluid (continued) G439327 90° fitting Manifold Loosen fitting here 3. Disconnect the 90° fitting from the manifold and allow the tank to drain. 4. When hydraulic fluid stops draining from the tank, connect the 90° fitting to the manifold. 5.

  • Page 104: Cutting Unit Maintenance

    • Never attempt to turn the cutting units by hand or foot while the engine is running. Note: Additional instructions and procedures on backlapping are available in the Toro Reel Mower Basics (with sharpening guidelines), Form 09168SL. Preparing the Machine 1.
  • Page 105 Backlapping the Cutting Units (continued) G439326 Backlap lever (backlap position—rear cutting Backlap lever (backlap position—front cutting units) units) Mower manifold 5. Move the backlap levers to the R (backlap) position. Note: Select either the front, rear, or both backlap levers to control which cutting units to backlap.
  • Page 106 Backlapping the Cutting Units (continued) DANGER Contacting the cutting units when they are moving will result in death or serious injury. To avoid personal injury, ensure that you are clear of the cutting units before proceeding. IMPORTANT Never use a short-handled brush. 4.

  • Page 107: Chassis Maintenance

    Backlapping the Cutting Units (continued) 4. Lower and latch the operator’s seat. 5. Wash all lapping compound off from the cutting units. 6. For a better cutting edge, run a file across the front face of the bedknife after lapping. Note: This removes any burrs or rough edges that may have built up on the cutting edge.

  • Page 108: Chapter 7: Storage

    A. Remove the battery terminals from the battery posts. B. Clean the battery, terminals, and posts with a wire brush and baking-soda solution. C. Coat the cable terminals and battery posts with Grafo 112X skin-over grease (Toro Part No. 505-47) or petroleum jelly to prevent corrosion.
  • Page 109 E. Shut off the engine and remove the key. F. Flush the fuel tank with fresh, clean fuel. G. Secure all the fuel-system fittings. H. Thoroughly clean and service the air-cleaner assembly. Seal the air-cleaner inlet and the exhaust outlet with weatherproof tape. J.
  • Page 110 Conditions and Products Covered Toro. Toro will make the final decision whether to repair any existing part or assembly or replace it. Toro may use remanufactured parts for warranty repairs.
  • Page 111 Toro has chosen to provide consumers with as much information as possible so that they can make informed decisions about the products they buy and use. Toro provides warnings in certain cases based on its knowledge of the presence of one or more listed chemicals without evaluating the level of exposure, as not all the listed chemicals provide exposure limit requirements.
