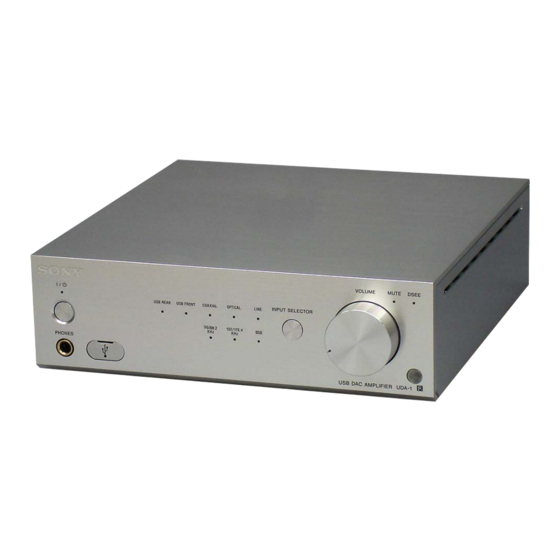

Sony UDA-1 Service Manual

Usb dac amplifier
Hide thumbs Also See for UDA-1:

Advertisement

Quick Links

SERVICE MANUAL
Ver. 1.1 2013.10
AUDIO POW ER SPECIFICATIONS (US and Canadian models)
POWER OUTPUT AND TOTAL HARMONIC DISTORTION:
With 4 ohm loads, both channels driven, from 20 - 20,00 0 Hz; rated
20 watts per channel minimum RMS power, with no more than 10% total
harmonic distortion from 250 milliwatts to rated output.
Amplifier section (US, Canadian and Taiwan models)
Reference Power Output
23 W + 23 W (4 ohms, 1 kHz, THD 10%)
Rated Power Output
20 W + 20 W (4 ohms, 20 Hz - 20 kHz, THD 10 %)
Speaker impedance match
4 ohms - 16 ohms
S/N ratio
LINE IN: 100 dB (short-circuit input, 20 kHz LPF, A Network)
USB IN: 100 dB (20 kHz LPF, A Network)
Frequency response
10 Hz - 100 kHz (+0 dB, –3 dB) (4 ohms, LINE IN)
Amplifier section (AEP, UK and Chinese models)
Reference Power Output
23 W + 23 W (4 ohms, 1 kHz, THD 10%)
Rated Power Output
20 W + 20 W (4 ohms, 1 kHz, THD 0 .9%)
Speaker impedance match
4 ohms - 16 ohms
S/N ratio
LINE IN: 100 dB (short-circuit input, 20 kHz LPF, A Network)
USB IN: 100 dB (20 kHz LPF, A Network)
Frequency response
10 Hz - 100 kHz (+0 dB, –3 dB) (4 ohms, LINE IN)
Input section (digital)
USB REA R (USB-B jack)
US B 2.0 compatible
Supported format
PCM (Sampling frequency: 44.1 k/ 48 k/ 88.2 k/ 96 k/ 176.4 k/
192 kHz, data bit length: 16/ 24/3 2 bits)
DSD (2.8 M/ 5.6 MHz)
USB FRONT (USB-A jack)
USB 2.0 compatible
Supported format
PCM (Sampling frequency: 32 k/ 44.1 k/ 48 kHz,
data bit length: 16 bits)
COAXIAL jack
Input impe dance: 75 ohms
Supported format
PCM (Sampling frequency: 32 k/ 44.1 k/ 48 k/ 88.2 k/ 96 k/ 176.4 k/
192 kHz, data bit length: 16/ 24 bits)
9-893-834-02
Sony Corporation
2013J33-1
©
2013.10
Published by Sony Techno Create Corporation
SPECIFICATIONS
OPTICAL jack
Supported format
PCM (Sampling frequency: 32 k/ 44.1 k/ 48 k/ 88.2 k/ 96 kHz, data
bit length: 16/2 4 bits)
Input section (analog)
Input sensitivity: 500 mV
Input impedance: 100 kilohms
Output section
LINE OUT
Output voltage: 2 V
Output impedance: 2.2 kilohms
2 Hz - 80 kHz (–3 dB)
PHONES
17 mW + 17 mW (8 ohms, THD 1%)
55 mW + 55 mW (32 ohms, THD 1%)
170 mW + 170 mW (300 ohms, THD 1%)
General and others
Power requirements
AC 120 V 60 Hz (US, Canadian and Taiwan models)
AC 220-240 V 50/ 60 Hz (AEP, UK and Chinese models)
Power consumption
On: 65 W
During standby mode: 0 .3 W
Dimensions (approx.) (w/h/ d)
225 mm × 74 mm × 262 mm (8 7/ 8 inch × 3 inch × 10 3/ 8 inch)
including projecting parts and controls
Mass (approx.)
4.0 kg (8 lbs 14 oz)
Supplied accessories
AC power cord (1)
Remote control (RM-ANU182) (1)
USB cable (1)
Quick Start Guide (1)
Reference Guide (1)
Design and specifications are subject to change without notice.
Standby power consumption: 0. 3W
UDA-1
US Model
Canadian Model
AEP Model
UK Model
Chinese Model
Taiwan Model
Copyrights
Microsoft, Windows, Windows Vista and Windows Media are either
trademarks or registered trademarks of Microsoft Corporation in the
United States and/or other countries.
This product is protected by certain intellectual property rights of
Microsoft Corporation. Use or distribution of such technology outside of
this product is prohibited without a license from Microsoft or an authorized
Microsoft subsidiary.
Mac, Mac OS and iTunes are trademarks of Apple Inc., registered in the
U.S. and other countries.
iOS is a trademark or registered trademarks of Cisco in the U.S. and other
countries and is used under license.
Android and its respective logos are trademarks of Google Inc.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of
Apple Inc., registered in the U.S. and other countries.
All other trademarks and registered trademarks are of their respective
holders. In this manual, ™ and ® marks are not speci ed.
"Made for iPod," and "Made for iPhone" mean that an electronic accessory
has been designed to connect speci cally to iPod or iPhone, respectively,
and has been certi ed by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or its
compli ance with safety and regulatory standards. Please note that the use
of this accessory with iPod or iPhone may a ect wireless performance.
Made for iPod/ iPhone models
The compatible iPod/iPh one models are as follows. Update your iPod/
iPhone with the latest software before using with the unit.
USB works with:
iPhone
iPhone 5/ iPhone 4S/iPhone 4/ iPhone 3GS/ iPhone 3G
iPod touch
iPod touch (5th generation)/iPo d touch (4th generation)/
iPod touch (3rd generation)/iPo d touch (2nd generation)
iPod
iPod classic
iPod nano
iPod nano (7th generation)/ iPod nano (6th generation)/ iPod nano (5th
generation)/ iPod nano (4th generation)/ iPod nano (3rd generation)
Other trademarks and trade names are those of their respective owners.
USB DAC AMPLIFIER
