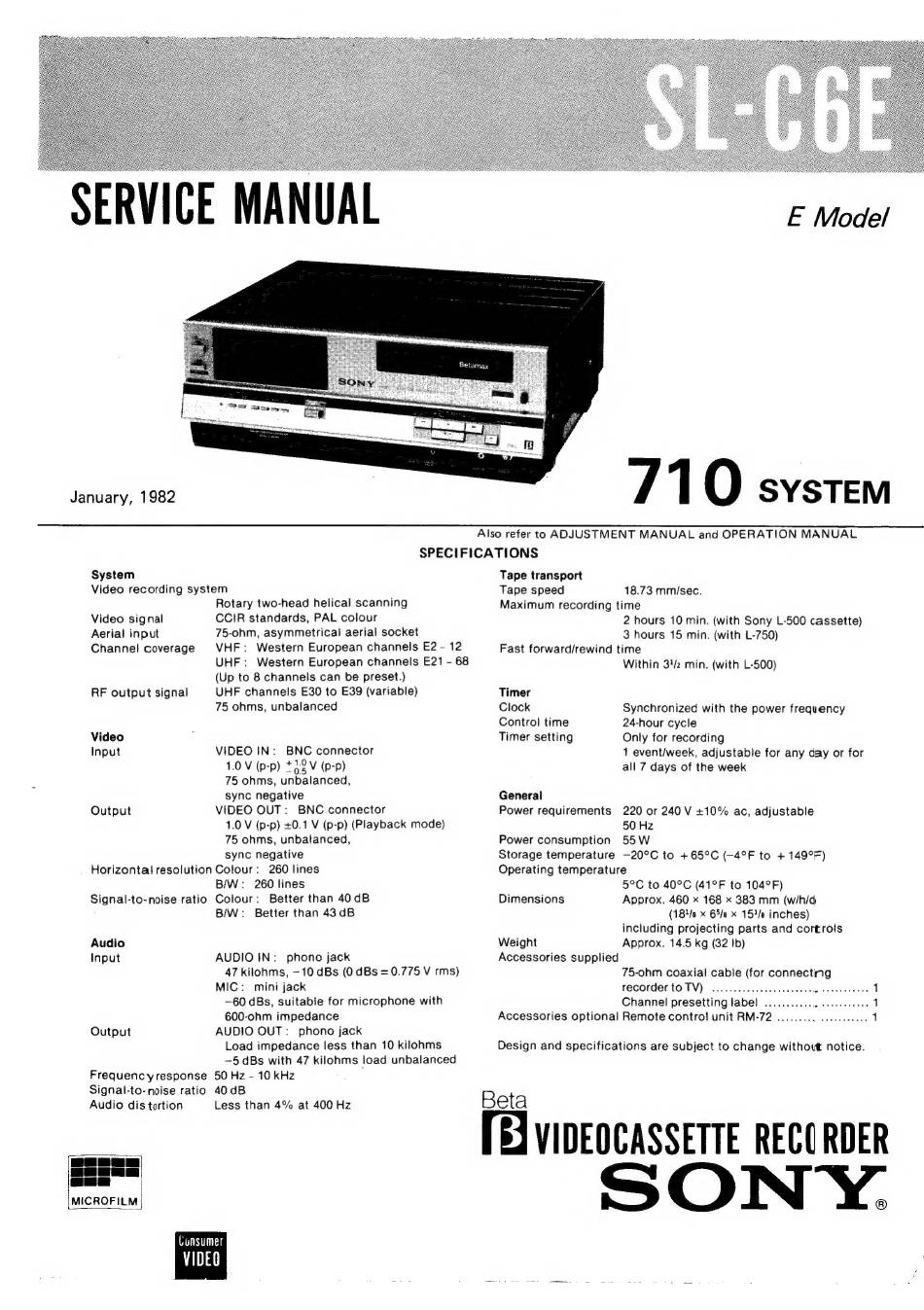

January, 1982
E Model
710
system
Also refer to ADJUSTMENT
MANUAL
and OPERATION
MANUAL
SPECIFICATIONS
System
Video recording system
Rotary two-head helical scanning
CCIR standards, PAL colour
75-ohm, asymmetrical aerial socket
VHF:
Western European channels E2 - 12
UHF:
Western European channels E21 - 68
(Up to 8 channels can be preset.)
UHF channels E30 to E39 (variable)
75 ohms, unbalanced
Video signal
Aerial input
Channel coverage
RF output signal
Video
Input
VIDEO IN:
BNC connector
1.0 V (p-p) +42 V (p-p)
75 ohms,
unbalanced,
sync negative
Output
VIDEO OUT:
BNC connector
1.0 V (p-p) +0.1 V (p-p) (Playback mode)
75 ohms, unbalanced,
sync negative
Horizontal! resolution Colour:
260 lines
B/W:
260 lines
Signal-to-noise ratio
Colour:
Better than 40 dB
BIW:
Better than 43 dB
Audio
Input
AUDIO IN:
phono jack
47 kilohms, —-10 dBs (0 dBs =0.775 V rms)
MIC:
mini jack
-60 dBs, suitable for microphone with
600-ohm impedance
Output
AUDIO OUT:
phono jack
Load impedance less than 10 kilohms
—5 dBs with 47 kilohms load unbalanced
Frequencyresponse
50 Hz - 10 kHz
Signal-to-noise ratio
40 dB
Audio dis tortion
Less than 4% at 400 Hz
=
ass
MICROFILM |
Bet
Tape transport
Tape speed
18.73 mm/sec.
Maximum
recording time
2 hours 10 min. (with Sony L-500 cassette)
3 hours 15 min. (with L-750)
Fast forward/rewind time
Within 34/2 min. (with L-500)
Timer
Clock
Synchronized with the power frequency
Control time
24-hour cycle
Timer setting
Only for recording
1 event/week, adjustable for any day or for
all 7 days of the week
General
Power requirements
220 or 240 V +10%
ac, adjustable
50 Hz
Power consumption
55W
Storage temperature
—20°C to + 65°C (—4°F to + 149°F)
Operating temperature
5°C to 40°C (41°F to 104°F)
Dimensions
Approx. 460 x 168 x 383 mm (wih/d
(18%/e x 65/s x 151/s inches)
including projecting parts and cortrols
Weight
Approx. 14.5 kg (32 Ib)
Accessories supplied
75-ohm coaxial cable (for connecting
FECO'der. tO TV): a2 eeceeiiien
ieee tet
Channel presetting label ....
ie
Accessories optional Remote control unit RM-72 ......... .......0005
Design and specifications are subject to change without notice.
VIDEOCASSETTE RECORDER
