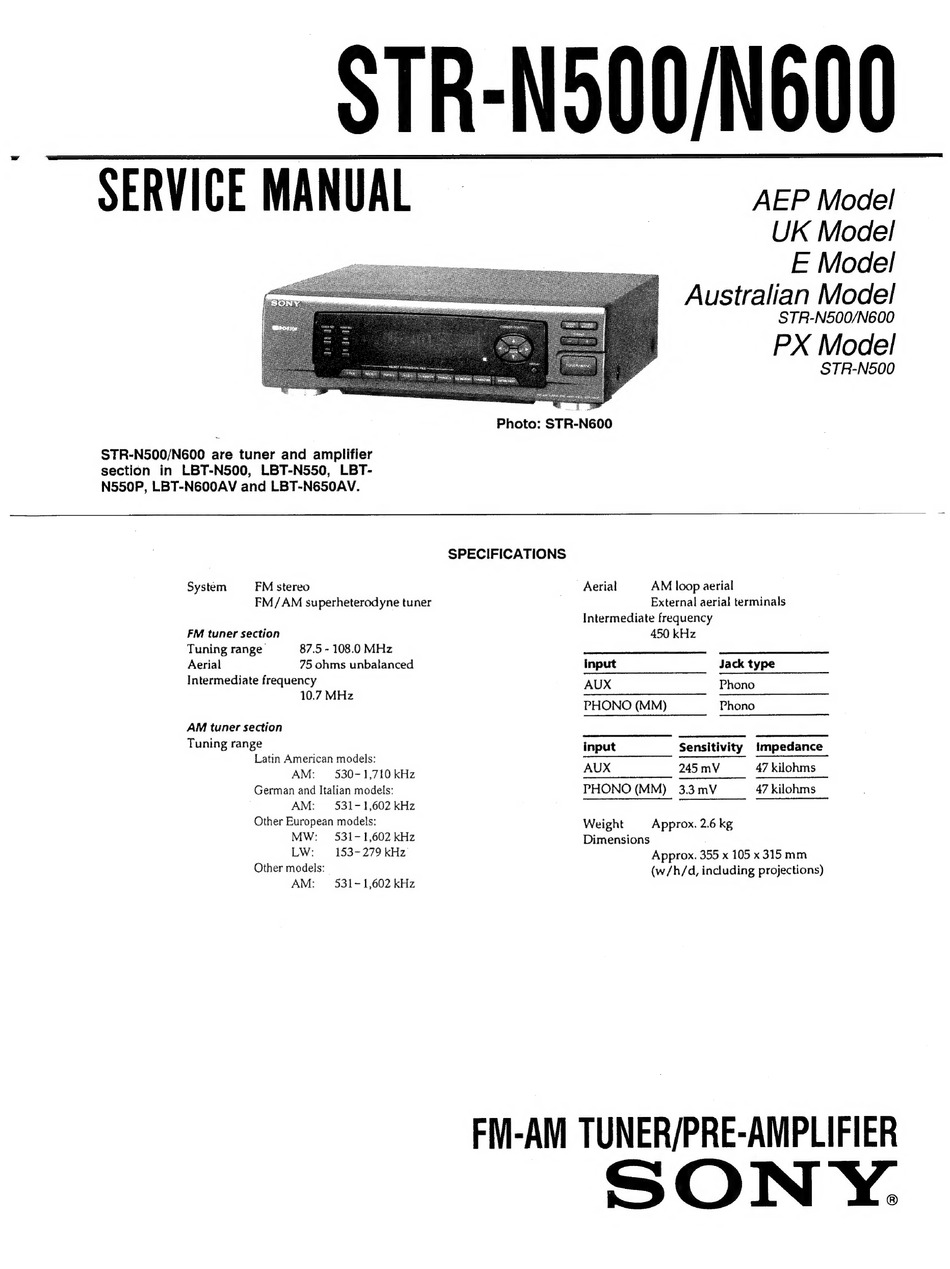

STR-N500/N600
SERVICE MANUAL
STR-N500/N600 are tuner and amplifier
section in LBT-N500, LBT-N550, LBT-
N550P, LBT-N600AV and LBT-N650AV.
System FM stereo
FM/AM superheterodyne tuner
FM tuner section
Tuning range 87.5 - 108.0 MHz
Aerial 75 ohms unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
Latin American models:
AM: 530-1,710 kHz
German and Italian models:
AM: 531-1,602 kHz
Other European models:
MW: 531-1,602 kHz
LW: 153-279 kHz
Other models:
AM: 531~-1,602 kHz
AEP Model
UK Model
E Model
Australian Model
STR-N500/N600
PX Model
STR-N500
Photo: STR-N600
SPECIFICATIONS
AM loop aerial
External aerial terminals
Intermediate frequency
Aerial
450 kHz
input Jack type
AUX Phono
PHONO (MM) Phono
input Sensitivity impedance
AUX 245 mV 47 kilohms
PHONO (MM) 3.3mV 47 kilohms
Weight
Dimensions
Approx. 355 x 105 x 315 mm
(w/h/d, including projections)
Approx. 2.6 kg
FM-AM TUNER/PRE-AMPLIFIER
