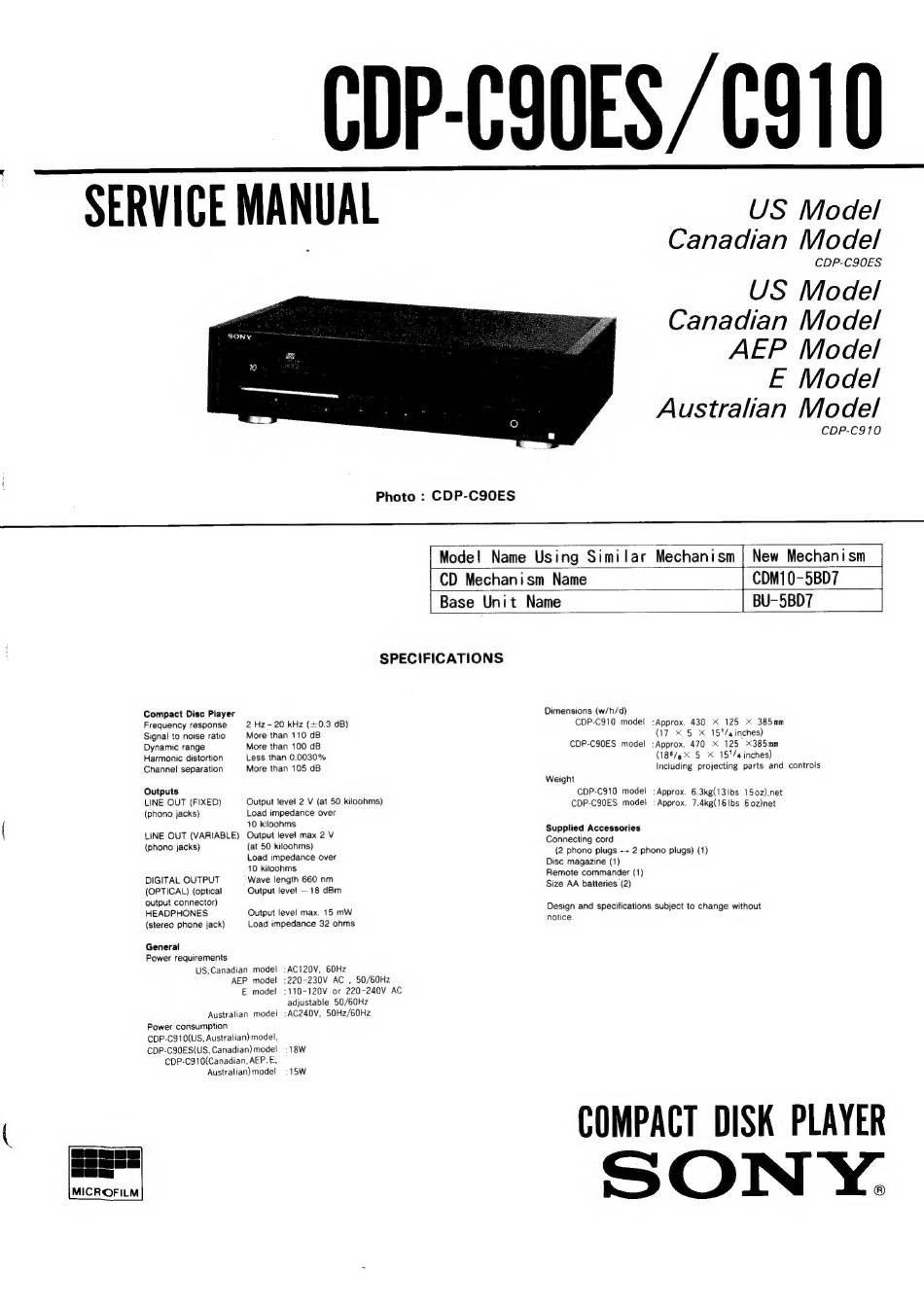

Sony CDP-C90ES Service Manual

CDP-CS0ES/C910
Canadian Model
CDP-C90ES
US Model
Canadian Model
AEP Model
E Model
Australian Model
CDP-C910
Photo : CDP-C9O0ES
Mode! Name Using Similar Mechanism | New Mechanism
CD Mechanism Name CDM10-5BD7
| Base Unit Name BU-5BD7
SPECIFICATIONS
Compact Disc Player
Dimensions (w/h/d)
Frequency response
2 Hz- 20 kHz (+0.3 dB)
CDP-C910 mode!
:Approx. 430 X 125 & 385mm
Signal to noise ratio
More than 110 dB
(17 X 5 X 15'/« inches)
Dynamic range
More than 100 dB
CDP-C90ES
model :Approx. 470 X 125
X385mm
Harmonic distortion
Less than 0.0030%
(188/gx 5 X 15'/4 inches)
Channel separation
More than 105 dB
Including projecting parts and controis
Weight
Outputs CDP-C910 modei :A Approx. 6.3kg(13lbs 150z),net
FI
I
$
eee fed eecanics ae kiloohms) CDP-C90ES mode! : Approx. 7.4kg(16Ibs 6 0z)net
10 kiloohms Suppli .
LINE OUT (VARIABLE) Output level max 2 V Euan
(phono jacks) (at 50 kiloohms)
onnecting cord
Load impedance over (2 phono plugs ++ 2 phono plugs) (1)
10 kiloohms Disc magazine (1)
DIGITAL OUTPUT —- Wave length 660 nm
on ee
(OPTICAL) (optical
Output level — 18 dBm
iz A pattenes (2)
Qutput connector) 2
HEADPHONES Output level max. 15 mW Design and specifications subject to change without
(stereo phone jack) Load impedance 32 ohms nonee:
General
Power requirements
US,Canadian model :ACi20V, 60Hz
AEP model :220-230V AC , 50/60Hz
E model :110-120V or 220-240V AC
adjustable 50/60Hz
Australian model :AC240V, 50Hz/60Hz
Power consumption
CDP-C910(US, Australian) model,
CDP-C90ES(US, Canadian) model :18W
CDP-C910(Canadian, AEP, E,
Australian) model :15W
COMPACT DISK PLAYER
