Panasonic EverVolt EVPV K Series General Installation Manual
Hide thumbs
Also See for EverVolt EVPV K Series:
- General installation manual (26 pages) ,
- General installation manual (26 pages)
Related Manuals for Panasonic EverVolt EVPV K Series
Summary of Contents for Panasonic EverVolt EVPV K Series

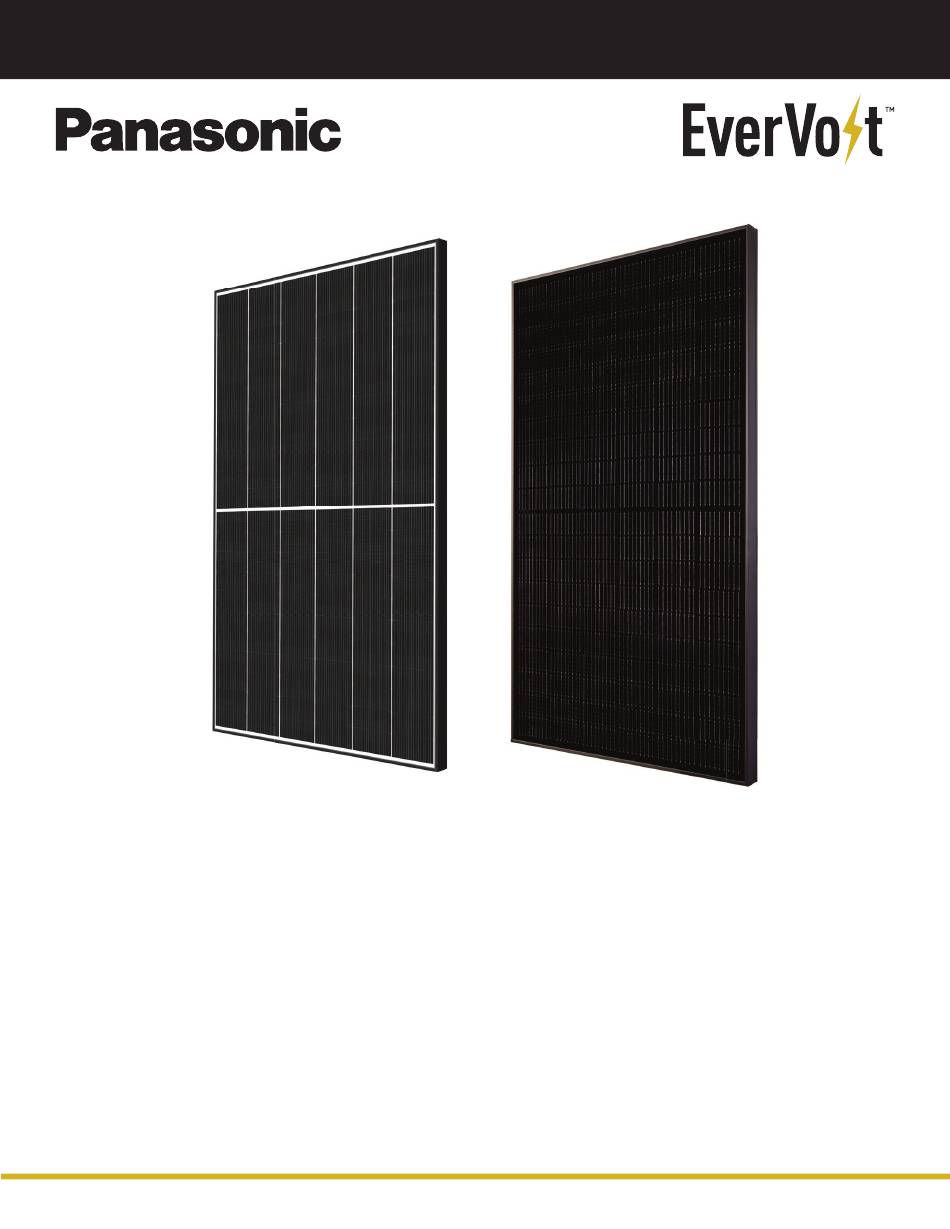

- Page 1 General Installation Manual EVPVXXX SERIES (WHITE BACKSHEET) EVPVXXXK SERIES (BLACK BACKSHEET) EVPVXXXH SERIES (WHITE BACKSHEET) EVPVXXXPK SERIES (BLACK BACKSHEET)
-
Page 2: Table Of Contents
Contact Information Revision History Annex 1: Installations Using Module Level Power Electronics “EverVolt™” is a trademark of the Panasonic Group. Other product and service names listed in this manual are trademarks or registered trademarks of respective companies. General Installation Manual... -
Page 3: Safety Precautions
Do not junction box cover, nor remove Additional devices such as ground use the PV module and make any parts installed by Panasonic. fault, fuses, and disconnects may a replacement, when scratch There are no user serviceable parts be required. -
Page 4: Module Specifications
Module Specifications • Module specifications are shown in Table 1, 2 and Figure 1, 2, 3. (Electrical specifications, mechanical specifications, module dimensions) • Under real conditions, a photovoltaic module may experience conditions that produce more current and/or voltage than reported at Standard Test Conditions. Therefore, the Isc value of modules should be multiplied by a factor of 1.25 to determine ampacity. - Page 5 71.7±0.1 [1821±2.5] 18.1 [460] 1.1 [28] 35.5 [901] 6.05 [153.7] 43.3 [1100] 0.24±0.01 [6.0±0.2] 0.43±0.008 [11±0.2] 0.81±0.02 [20.5±0.5] 47.2 [1200] 6.05 [153.7] 26.4±0.12 [671±3] 0.9 [22.5] 1.8 [45] 1.18 [30] Measurements in in [mm] Figure 2. Module Dimension for EVPVxxxH Series 69.10 ±0.1 [1755±2.5] 33.27 [845] 17.91 [455]...
- Page 6 Table 1. EVPVxxxH, EVPVXXX, EVPVXXXK SERIES Electrical Specifications Model EVPV410H EVPV400H EVPV390H EVPV380 EVPV370 EVPV360 EVPV370K EVPV360K Back sheet color White White White White White White Black Black Rated Power, 410W 400W 390W 380W 370W 360W 370W 360W Watts (P Watt Class -0/+10W -0/+10W...
- Page 7 Table 2. EVPVXXXPK SERIES Electrical Specifications Model EVPV370PK EVPV360PK Back sheet color Black Black Rated Power, Watts (P 370W 360W Watt Class Sorting -0/+10W -0/+10W Maximum Power Voltage (V 34.7V 33.9V Maximum Power Current (I 10.68A 10.62A Open Circuit Voltage (V 41.0V 40.6V Short Circuit Current (I...
-
Page 8: Standards
STANDARDS it can be easily accessed in the event only, i.e. male (+) to female (-) EVPVxxx, EVPVxxxK, EVPVxxxH and of a building fire. interconnections. When making EVPVxxxPK series are rated for use in • Check with relevant authorities for field wiring connections to the Electrical Application Class A, Protection applicable regulations concerning... -
Page 9: Bypass Diode
Operating Conditions of circulation all around. This allows Panasonic modules are as follows: the connector to dry effectively and avoids the risk of damage or 1) The modules should be operated degradation of the connection. -
Page 10: Module Installation
Mounting up to 7000 Pa (4666 Pa design load*) of the four marked zones shown hardware is not supplied by Panasonic. and upward pressure, e.g., wind, of below (Figure. 8). Ensure the mounting structure can... - Page 11 INSTALLATION OF EVPVXXX AND EVPVXXXK SERIES MODULES MOUNTING EVPXXX SERIES AND EVPVXXXK SERIES WITH CONTINUES RAILS PARALLEL TO SHORT SIDE OF THE MODULE A continuous rail spans the complete underside of the module. 27.4 in [695 mm] 27.4 in [695 mm] 23.8 in [605 mm] 23.8 in [605 mm] 22.2 in [565 mm]...
- Page 12 MOUNTING EVPVXXX AND EVPVXXXK SERIES WITH CONTINOUS RAILS PARALLEL TO LONG SIDE OF THE MODULE A continous rail spans the complete underside of the module. 25.6 in [650 mm] 25.6 in [650 mm] Figure 10. Clamping of EVPVxxx and EVPVxxxK Series modules with rails parallel to long side of the module 0.8 - 1.6 in (20-40 mm) 1.6 - 2.4 in (40-60 mm) >2.4 in (>60 mm)
- Page 13 MOUNTING EVPVXXX AND EVPVXXXK SERIES WITH SHORT RAILS A short rail is a rail with a min. length of 2 in (50 mm) that does not span the complete underside of a module. 27.4 in [695 mm] 27.4 in [695 mm] 23.8 in [605 mm] 23.8 in [605 mm] 22.2 in [565 mm]...
- Page 14 INSTALLATION OF EVPVXXXH SERIES MODULES MOUNTING EVPVXXXH SERIES MODULES WITH CONTINOUS RAILS PARALLEL TO SHORT SIDE OF THE MODULE A continous rail (or other support structure) spans the complete underside of the module. 27.5 in [700 mm] 27.5 in [700 mm] 24.0 in [610 mm] 24.0 in [610 mm] 15.9 in [505 mm]...
- Page 15 MOUNTING EVPVXXXH SERIES MODULES WITH CONTINOUS RAILS PARALLEL TO LONG SIDE OF THE MODULE A continous rail (or other support structure) spans the complete underside of the module. 27.5 in [700mm] 27.5 in [700mm] Figure 13. Clamping of EVPVxxxH Series modules with rails parallel to long side of the module 0.8 - 1.6 in (20-40 mm) 1.6 - 2.4 in (40-60 mm) >2.4 in (>60 mm)
- Page 16 MOUNTING EVPVXXXH SERIES MODULES WITH SHORT RAILS A short rail (or other short support structure) has a minimum length of 25 mm and does not span the complete underside of a module. 27.5 in [700 mm] 27.5 in [700 mm] 24.0 in [610 mm] 24.0 in [610 mm] 15.9 in [505 mm]...
- Page 17 INSTALLATION OF EVPXXXXPK SERIES MODULES MOUNTING EVPXXXXPK SERIES MODULES WITH CONTINOUS RAILS PARALLEL TO SHORT SIDE OF THE MODULE A continous rail (or other support structure) spans the complete underside of the module. 28.0 in [712 mm] 28.0 in [712 mm] 24.5 in [622 mm] 24.5 in [622 mm] 22.9 in [582 mm]...
- Page 18 MOUNTING EVPXXXXPK SERIES MODULES WITH CONTINOUS RAILS PARALLEL TO LONG SIDE OF THE MODULE A continous rail (or other support structure) spans the complete underside of the module. 25.6 in [650 mm] 25.6 in [650 mm] Figure 16. Clamping of EVPVxxxPK Series modules with rails parallel to long side of the panel 0.8 - 1.6 in (20-40 mm) 1.6 - 2.4 in (40-60 mm) >2.4 in (>60 mm)
- Page 19 MOUNTING EVPXXXXPK SERIES MODULES WITH SHORT RAILS A short rail (or other short support structure) has a minimum length of 25 mm and does not span the complete underside of a module. 28.0 in [712 mm] 28.0 in [712 mm] 24.5 in [622 mm] 24.5 in [622 mm] 22.9 in [582 mm]...
-
Page 20: Mounting Methods: Mounting Holes
• Panasonic does not provide a Scale: up to 5400 Pa (3600 Pa design load*) steel, and appropriate for the local warranty for clamps. The module 1:1.57... -
Page 21: Wiring
• Please contact your Panasonic • Do not insert PV cable between Authorized Representative back side and mounting structure with questions regarding other rail. When snow weight is applied electrical connections if needed. -
Page 22: Drainage Holes
DRAINAGE HOLES connection from the module frame. • Length of bolt should be carefully Local regulations may require selected in order to avoid • In each corner of the EverVolt grounding of the modules. contacting the back-sheet of the module frame small drainage •... -
Page 23: Maintenance
The return of any modules will not be water from the module glass. the hazards of electric shock or accepted by Panasonic unless prior • Take care not to scratch the surface injury. written authorization has been given by or introduce foreign elements that Panasonic. -
Page 24: Revision History
REVISION HISTORY Edition Revision Date Revised Item Revised Content 10.13.2020 Addition of EVPVxxxH and 12.1.2021 EVPVxxxPK Series General Installation Manual... -
Page 25: Annex 1: Installations Using Module Level Power Electronics
ANNEX 1: INSTALLATIONS USING manufacturer and the instructions in the diagram below (Figure 24): MODULE LEVEL POWER specific for EverVolt modules ELECTRONICS given below. Failure to follow the • To avoid damage to the module and manufacturer and the EverVolt to allow for thermal expansion, This section is applicable to EverVolt instructions may invalidate the... - Page 26 Panasonic Life Solutions Company of America All Rights Reserved © 2020 COPYRIGHT Panasonic Corporation Two Riverfront Plaza, Newark, NJ 07102 Specifications are subject to change without notice panasonicHIT@us.panasonic.com RS21452BRO-r7 na.panasonic.com/us/solar...
