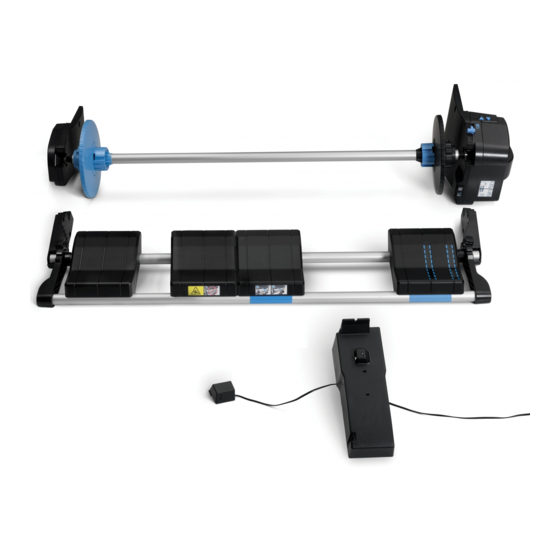

- Page 1 HP Designjet 8000s Take-Up Reel Kit Installation Guide...
- Page 2 Legal notices The information contained in this document is subject to change without notice. Hewlett-Packard makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 Installing the take-up reel This Installation Guide contains information necessary to install and set up the HP Designjet 8000s Take-up Reel Kit (Model Q6681A). For information about using the take-up reel, refer to the HP Designjet 8000s Printer User's Guide.
- Page 4 Install the right end plate as follows: Insert the lip (1) on the right end plate into the slot (2) on the right leg on the printer stand. Install three screws (1) to fix the right end plate to the right printer leg stand. Install the left end plate as follows: Insert the lip on the left end plate into the slot on the left leg on the printer stand.
- Page 5 Install the take-up reel assembly as follows: Place the take-up reel assembly (3) onto the printer stand crossbar. Rest the ends of the support bar (2) on the ledges (1) on each end plate. Install the holding bracket (1) at each end to secure the support bar as follows: ENWW...
- Page 6 Install the bottom of the holding bracket into the slot (2) on the end plate. Install one screw (1) into each holding bracket to secure it to the end plate. Turn the take-up reel stop screws (1) anti-clockwise to release the right and left assemblies. Installing the take-up reel ENWW...
- Page 7 Slide the left (1) and right (2) take-up reel assemblies to the right and left ends of the support bar. Remove the assembly packaging (3). Turn the take-up reel stop screws (1) clockwise to lock the right and left take-up reel assemblies. Install one screw (2) to secure the take-up reel media sensor assembly (1) to the right stand.
- Page 8 Insert the connector on the other end of the motor cable (1) into the rear of the printer. Secure the motor cable with the three cable clips (1) on the rear of the printer. Installing the take-up reel ENWW...
- Page 9 Load the tension bar (1) into the take-up reel. The height of the take-up reel may require adjustment as it must be horizontally aligned to the media output from the printer. Refer to the next section to verify alignment of the take-up reel height. Take-up reel horizontal alignment The height of the take-up reel may require adjustment as it must be horizontally aligned to the media output from the printer.
- Page 10 The printer automatically feeds the media through the printer so that the pattern reaches the take-up reel tension bar. If the pattern (2) on the right and left edge of the media is aligned with the same groove (1) on the tension bar, no height adjustment is required.
- Page 11 Adjust the height of the take-up reel as follows: If the take-up reel pattern on the left edge of the media is not aligned with the groove, do one of the following: If the take-up reel pattern on the left side is higher than the groove (1), turn the take-up reel height screw clockwise to raise the left side of the take-up reel.
- Page 12 Installing the take-up reel ENWW...
