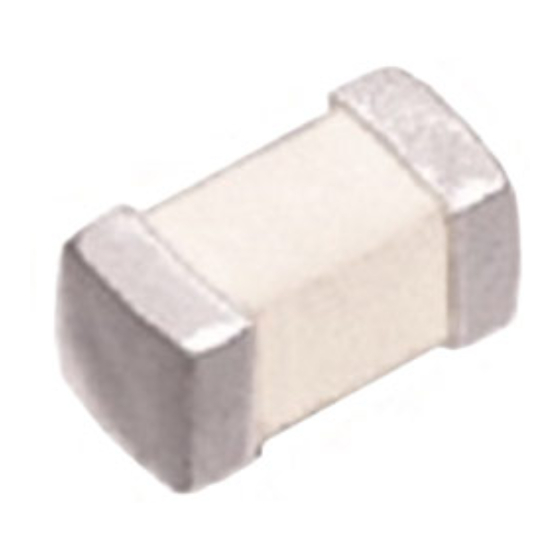

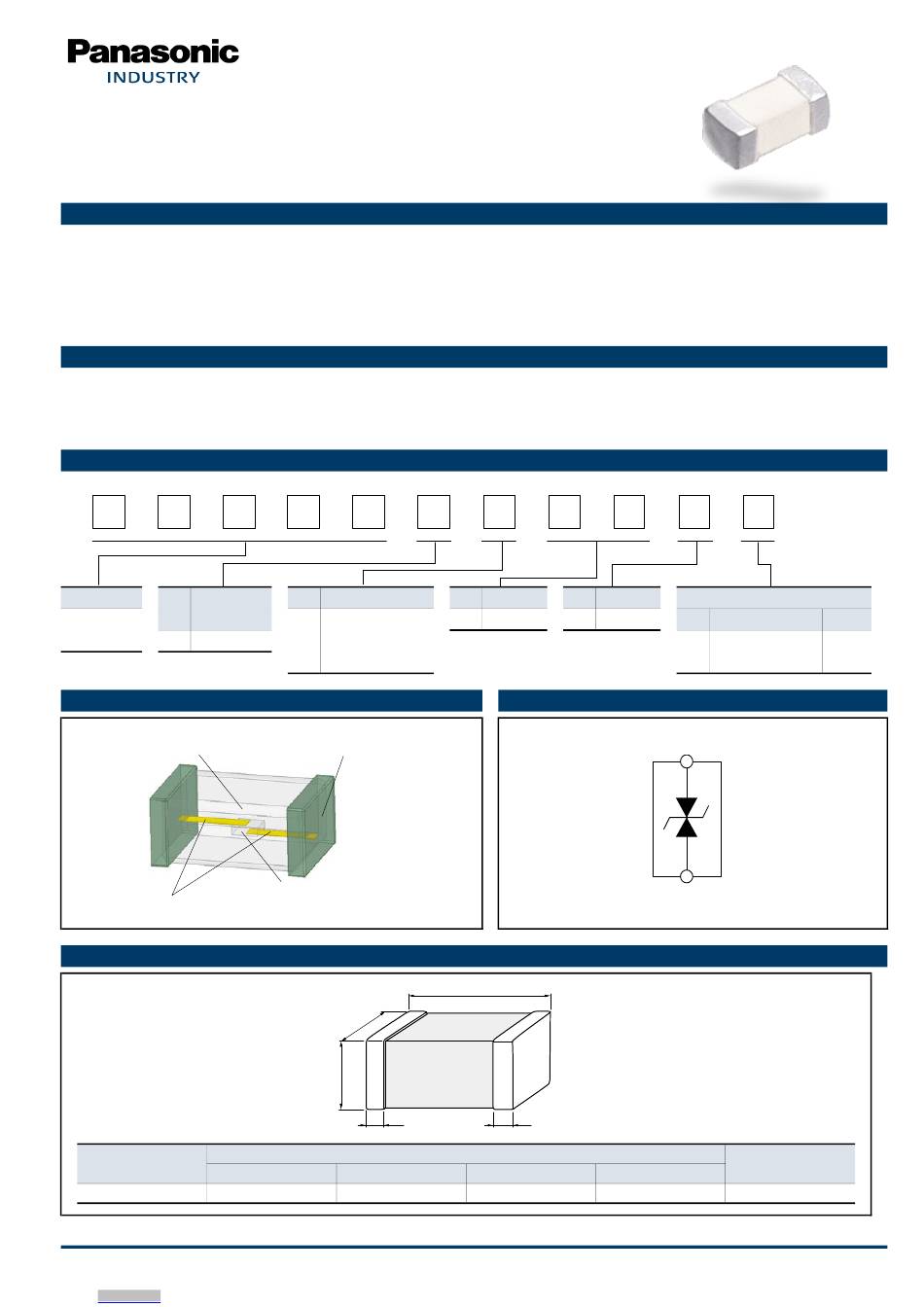

ESD Suppressor / High withstanding products EZAEG 3W type Features ● Excellent ESD withstanding(Conforms with automotive ESD standards (ISO10605,air discharge 25 kV) ● Low capacitance 1608 (0603) size:0.10 pF ● High rated voltage (DC 50 V) contributes to reduce the risk of communication error ●...
High withstanding products / EZAEG 3W type Ratings Part number Rated voltage Category temperature range Capacitance (pF) +0.10 EZAEG3W11AV 0.10 50 V max. –55 ℃ to +125 ℃ -0.08 *1: Capacitance = The capacitance value shall be measured under the conditions specified below. Frequency:1 MHz ±...
ESD Suppressor・Array / Packaging methods Packaging methods (Taping) ●Standard quantity Pitch (P ) (mm) Part number Size (inch) Type Kind of taping Quantity (pcs / reel) EZAEG1N 0201 15000 Pressed carrier taping EZAEG2A,2N 0402 10000 Single EZAEG3A 0603 5000 EZAEG3W 0603 Punched carrier taping 4000...
Page 4
■ The technical information contained in this catalog is intended to show only typical operation and application circuit examples of this product. This catalog does not guarantee that such information does not infringe upon the intellectual property rights of Panasonic or any third party, nor imply that the license of such rights has been granted.
Page 5
Matters to Be Observed When Using This Product Matters to Be Observed When Using This Product (ESD Suppressor) Use environments and cleaning conditions ■ This product (fixed resistor) is not designed for use in specific environments. Using the resistor in the following specific environments or service conditions may affect the performance/reliability of the resistor.
Matters to Be Observed When Using This Product Circuit design and circuit board design ■ To prevent a case where an excessively large load the suppressor cannot handle, such as surge larger than the ESD energy, is applied to the suppressor, make sure to evaluate and confirm the operation of the suppressor when the suppressor is incorporated in your product.
