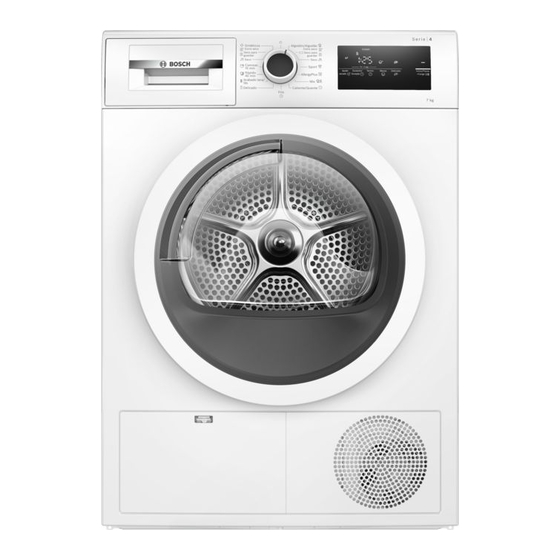

- Page 1 Tumble dryer WTN85201ES [en] User manual and installation instructions...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 9 Programmes ...... 24 1.1 General information.... 4 9.1 Automatic programmes... 24 1.2 Intended use...... 4 9.2 Timed programmes .... 25 1.3 Restriction on user group.. 4 10 Accessories...... 27 1.4 Safe installation ...... - Page 3 15 Cleaning and servicing ... 34 15.1 Tips on cleaning and care .. 34 15.2 Base unit ....... 35 15.3 Moisture sensor..... 37 16 Troubleshooting...... 38 17 Transportation, storage and disposal ........ 42 17.1 Preparing the appliance for transportation ...... 42 17.2 Disposing of old appliance ... 42 18 Customer Service.... 43 18.1 Product number (E-Nr.) and production number (FD)..
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... -
Page 5: Safe Installation
Safety en 1.4 Safe installation WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing. ▶... - Page 6 en Safety ▶ If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted. WARNING ‒ Risk of injury! The high weight of the appliance may result in injury when lifted. ▶...
-
Page 7: Safe Use
Safety en CAUTION ‒ Risk of cutting! Touching sharp edges on the appliance may lead to cuts. ▶ Do not touch the sharp edges on the appliance. ▶ Wear protective gloves when installing and transporting the ap- pliance. 1.5 Safe use WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. - Page 8 en Safety WARNING ‒ Risk of explosion! If there is coal dust or flour in the air around the appliance, this may cause an explosion. ▶ Keep the area around the appliance clean during operation. WARNING ‒ Risk of poisoning! Condensation water from this appliance is not suitable for drinking and may be contaminated with fluff.
-
Page 9: Safe Cleaning And Maintenance
Safety en ▶ If drying is interrupted early, remove the laundry immediately and spread it out. CAUTION ‒ Risk of injury! The covering plate may break if you stand on or climb onto the appliance. ▶ Do not stand on or climb onto the appliance. The appliance may tip over if you sit on or lean against the open door. - Page 10 en Safety ▶ Do not use steam- or high-pressure cleaners, hoses or sprays to clean the appliance. WARNING ‒ Risk of injury! The use of non-original spare parts and non-original accessories is dangerous. ▶ Only use the manufacturer's original spare parts and original ac- cessories.
-
Page 11: Preventing Material Damage
Preventing material damage en Clean the appliance with nothing ▶ Preventing material damage 2 Preventing material but water and a soft, damp cloth. Remove all detergent residue, damage ▶ spray residue or other residues im- mediately if they come into contact Preventing material damage ATTENTION! with the appliance. -
Page 12: Energy Saving Mode
en Installation and connection Check the appliance for visible After drying, clean the fluff filter damage. → Page 29. Open the door. a If the fluff filter is dirty, this reduces Remove any accessories from the the air flow in the appliance, ex- drum. -
Page 13: Requirements For The Install- Ation Location
Installation and connection en 4.3 Requirements for the in- Installation loca- Requirements tion stallation location In a washer-dryer Only use the ori- ATTENTION! stack ginal connection If the appliance is tilted at an angle set from the greater than 40°, residual water may dryer manufac- leak out of the appliance and cause turer when set-... - Page 14 en Installation and connection container. Use the water outlet hose Pull out the condensation hose to drain away excess condensation from the connecting piece. directly into the waste water system. Notes ¡ Operate this appliance using the water outlet hose provided. → "Connecting the water drain hose", Page 14 If you connect the water outlet...
- Page 15 Installation and connection en Push the water drain hose as far Water outlet connection types as it will go into the connecting ATTENTION! piece. In the event of a blocked or covered outlet, accumulated wastewater can flow back into the appliance. Before operating the appliance, en- ▶...
-
Page 16: Aligning The Appliance
en Installation and connection and secure it us- ing fixing mater- ial. Secure the elbow to the gully. 4.5 Aligning the appliance In order to reduce vibrations and noises, align the appliance correctly. To align the appliance, turn the ap- ▶ pliance feet. Check that the appli- ance is level using a spirit level. -
Page 17: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. On certain models, specific details such as the colour and shape may differ from those pictured. -
Page 18: Control Panel
en Familiarising yourself with your appliance 5.2 Control panel You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. Programmes → Page 24 Programme selector → Page 28 Display → Page 19 Buttons → Page 21... -
Page 19: Display
Display en Display 6 Display The display shows the current settings, options or relevant information. Display Display Description 0:40 Expected programme duration or programme time re- maining in hours and minutes. 1:25 The timed programme is set. → "Timed programmes", Page 25 Program end time → "Buttons", Page 22 ¡... - Page 20 en Display Display Description The cooling process cools the laundry for a few minutes while the drum is rotating, in order to avoid damage to the laundry. The cooling process can be cancelled by open- ing the door. Note: Do not change the set programme. Drying Programme status Dryness level: Iron Dry...
-
Page 21: Buttons
Buttons en Buttons 7 Buttons Below is an overview of the buttons and their setting options. Buttons Button Selection Description Inicio/Pausa + Carga ¡ Start Start, cancel or pause the programme. ¡ Cancel ¡ Pause 3 seg ¡ Activate Activate or deactivate the childproof lock. - Page 22 en Buttons Button Selection Description Termin. Up to 24 hours Set the programme end time. The programme duration is already included in the set number of hours. Once the programme has started, the pro- gramme duration is dis- played. Duración / Duração Multiple selection Set the programme dura- tion for timed pro-...
-
Page 23: Dryness Level
Dryness level en Dryness level 8 Dryness level Each automatic programme has a specified dryness level. The dryness level Dryness level defines how dry or damp your laundry is after the programme ends. Programme Laundry Drying result Algodón / Al- Multi-layered, thick laundry The laundry is dry. -
Page 24: Programmes
en Programmes Programmes 9 Programmes You can dry your fabrics using either an automatic programme or a timed pro- Programmes gramme. 9.1 Automatic programmes Automatic programmes are pro- Tips grammes in which humidity sensors ¡ Select the dryness level according measure the residual moisture in the to the type of fabric or the desired laundry during the drying cycle. -
Page 25: Timed Programmes
Programmes en Programme Description Max. load (kg) Sintéticos Seco Dry items made of synthetic materials or blended fabrics. The dryness level is not defined in this programme. → "Dryness level", Page 23 Dry items made of cotton and synthetics. Delicado Dry delicate items made of satin, synthet- ics or blended fabrics. - Page 26 en Programmes Programme Description Max. load (kg) Remove laundry once the programme has ended and allow it to dry. Frio Fluff/loosen all fabric types except for wool and silk. This programme is suitable for fluffing dry laundry only. Also suitable for freshening up or airing dry clothing that has hardly been worn.
-
Page 27: Accessories
Accessories en Accessories 10 Accessories Use original accessories. These have Accessories been made especially for your appli- ance. Note: Some accessories are avail- able in other colours. Contact → "Customer Service", Page 43. Order number Connection kit To save space, stack the WTZ20410 appliance on a suitable washing machine of the same width and depth and that is from the... -
Page 28: Laundry
en Laundry Turn the programme selector and Laundry 11 Laundry set the required programme. → "Programmes", Page 24 Laundry If required, adjust the programme 11.1 Preparing the laundry settings. → "Adjusting the programme set- ATTENTION! tings", Page 28 Objects remaining in the laundry may damage the laundry and the drum. 12.3 Adjusting the pro- Remove all items from any pock- ▶... -
Page 29: Changing The Activated Programme End Time
Basic operation en a The display shows the programme Close the door. duration or the programme end Press Inicio/Pausa + Carga time. a After the programme has ended, 12.8 Cancelling the pro- the display shows: "End". gramme Note: If "Hot" appears, the appliance Press Inicio/Pausa + Carga cools the laundry. - Page 30 en Basic operation Remove the fluff from the door. Open the fluff filter. Remove the fluff filter. Remove the fluff. Remove the fluff from the recess. Clean the fluff filter thoroughly un- der warm, running water and then dry it off. Ensure that no fluff falls into the air channel.
-
Page 31: Condensation Container
Basic operation en Close the fluff filter. Emptying the condensation container If the drying programme has finished or the display shows a notification while the appliance is in operation, empty the condensation container. Requirements ¡ The display shows the following after drying: "End" ¡... -
Page 32: Childproof Lock
en Childproof lock So that the programme currently Inserting the condensation running is not cancelled, the pro- container gramme selector must be set to Push the condensation container ▶ the initial programme. in as far as it will go. goes out in the display. Childproof lock 13 Childproof lock Secure your appliance against being... -
Page 33: Basic Settings
Basic settings en Basic settings 14 Basic settings You can configure the basic settings for your appliance to meet your needs. Basic settings 14.1 Overview of the basic settings Basic setting Programme Value Description position End signal 0 (off) Set the volume of the signal at the 1 (quiet) end of the programme. -
Page 34: Changing The Basic Set- Tings
en Cleaning and servicing Basic setting Programme Value Description position 13 A. If the installation protection is changed to 10 A, the pro- gramme duration and energy con- sumption will be increased. → "Consumption values", Page 44 14.2 Changing the basic set- Cleaning and servicing 15 Cleaning and servi- tings cing Set the programme selector to po-... -
Page 35: Base Unit
Cleaning and servicing en Pull out the heat exchanger cover 15.2 Base unit by the handle. The base unit is the accessible area at the bottom of the appliance in which you will find the heat ex- changer. Opening the base unit Requirements ¡... - Page 36 en Cleaning and servicing Pull out the heat exchanger hori- Slide the heat exchanger in hori- zontally. zontally as far as it will go. Ensure that the heat exchanger is Clean the heat exchanger from all inserted with its handle pointing sides under running water and dry downwards.
-
Page 37: Moisture Sensor
Cleaning and servicing en Close the lever for the heat ex- Note: If you do not clean the appli- changer. ance as described, the appliance's functionality may be impaired. Open the door. Clean the moisture sensor with a sponge. Close the maintenance flap. 15.3 Moisture sensor The moisture sensor in this appliance measures how damp the laundry is... -
Page 38: Troubleshooting
en Troubleshooting Troubleshooting 16 Troubleshooting You can rectify minor faults on your appliance yourself. Read the troubleshoot- Troubleshooting ing information before contacting after-sales service. This will avoid unneces- sary costs. WARNING Risk of electric shock! Incorrect repairs are dangerous. Repairs to the appliance should only be carried out by trained specialist ▶... - Page 39 Troubleshooting en Fault Cause and troubleshooting Creasing. The laundry lies in the drum for too long after drying. Remove the laundry from the drum as soon as the drying programme has finished. Spread the items of laundry for cooling. Unsuitable programme for the type of fabric. Set the suitable programme for the type of fabric.
- Page 40 en Troubleshooting Fault Cause and troubleshooting The programme does Childproof lock is activated. not start. → "Deactivating the childproof lock", Page 32 ▶ has not been pressed. Inicio/Pausa + Carga Press Inicio/Pausa + Carga ▶ No programme set. → "Setting a programme", Page 28. → "Starting the programme", Page 28. The length of the pro- The programme operation is optimised electronically.
- Page 41 Troubleshooting en Fault Cause and troubleshooting Water is leaking from Ensure that the water drain hose is connected cor- ▶ the appliance. rectly. → "Connecting the water drain hose", Page 14 The laundry is too Unsuitable programme for the type of fabric. damp. Set a timed programme for the subsequent drying.
-
Page 42: Transportation, Storage And Disposal
en Transportation, storage and disposal 17.2 Disposing of old appli- Transportation, storage and disposal 17 Transportation, stor- ance age and disposal Valuable raw materials can be re- Transportation, storage and disposal used by recycling. 17.1 Preparing the appliance for transportation WARNING Risk of harm to health! Tip: The appliance may contain re- Children can lock themselves in the sidual water, which may drip out of it... -
Page 43: Customer Service
Customer Service en Customer Service 18 Customer Service Function-relevant genuine spare parts Customer Service according to the corresponding Eco- design Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Eco- nomic Area. -
Page 44: Consumption Values
en Consumption values Consumption values 19 Consumption values Algodón / Algodão The actual values may deviate from Consumption values Seco programme (denoted the indicated values depending on para guardar by the arrow symbol) is suitable for the type of fabric, composition of drying cotton laundry with a normal laundry to be dried, residual moisture dampness level, and is the most effi-... -
Page 45: Technical Data
Technical data en Programme Final Load Spin Initial Pro- Energy mois- (kg) speed mois- gramm con- ture (rpm) ture e dura- sump- level level tion tion (h:min) (kWh/ cycle) Algodón / Al- 01:52 / 2.69 / godão Seco para 01:27 2.65 guardar Algodón / Algodão... - Page 46 en Technical data Ambient temper- ¡ Minimum: ature 5 °C ¡ Maximum: 35 °C Length of the 145 cm power cord Setting the higher value results in the appliance having a higher nominal power. You can find more information about your model online at https:// eprel.ec.europa.eu/ .
- Page 48 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
