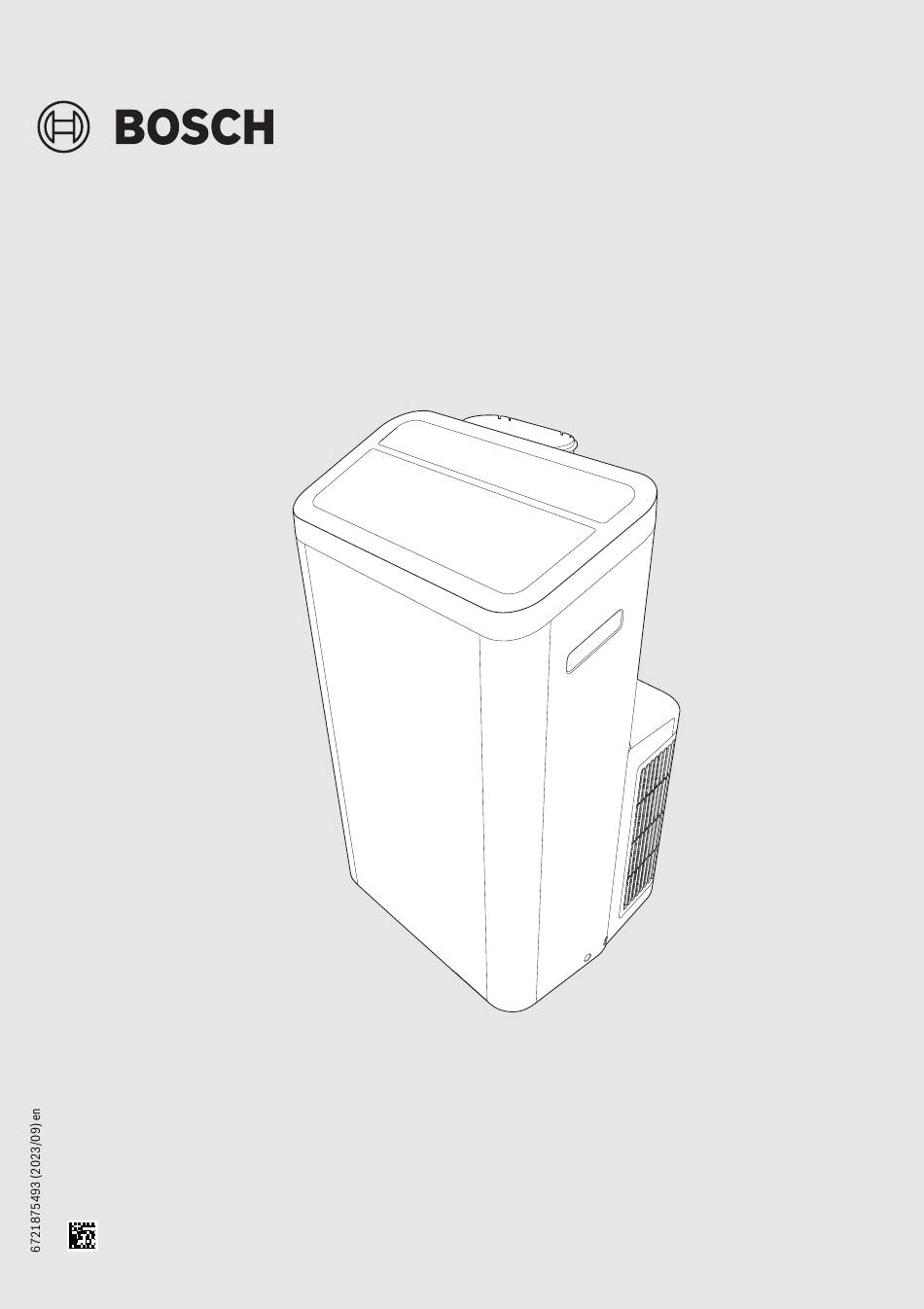

  • Page 1 Installation and operating instructions Local air conditioner Cool 4000...

  • Page 2: Table Of Contents

    5.2.8 Swing function......16 5.2.9 Timer function ......16 Cool 4000 – 6721875493 (2023/09)

  • Page 3: Explanation Of Symbols And Safety Instructions

    Do not sit or stand on the appliance. Do not place anything – a list entry (second level) on top of the appliance. Table 1 • Avoid hitting the appliance (the air inlet and outlet in particular) with hard objects. Cool 4000 – 6721875493 (2023/09)

  • Page 4: Notices Regarding These Instructions

    Any damage that may result from misuse is excluded from liability. The manufacturer shall not be held liable for any damage caused by improper, erroneous and irresponsible use, and/or due to repairs made by unqualified personnel. Cool 4000 – 6721875493 (2023/09)

  • Page 5: Scope Of Delivery

    [4] Non adhesive foam strip [5] Remote control Remote controller [6] Window slider kit [7] Technical documentation Battery (AAA type) Self adhesive foam strips Non adhesive foam strip Table 3 Accessories included in the scope of delivery Cool 4000 – 6721875493 (2023/09)

  • Page 6: Product Overview

    [6] Lower air intake grille and lower air filter (behind the grille) [7] Lower drain outlet [8] Power cord [9] Exhaust hose [10] Remote control holder Clearances The clearance distance on all sides must be at least 60 cm. 0010047556-001 Fig. 3 Cool 4000 – 6721875493 (2023/09)

  • Page 7: Product Identification

    • Avoid places subject to noise and resonance. • Avoid places subject to strong artificial electric/magnetic fields. • Avoid severe natural conditions (e.g. heavy lampblack, strong sandy wind, direct sunshine or high temperature heat sources). Cool 4000 – 6721875493 (2023/09)

  • Page 8: Casement Window

    1. Depending on the need, cut the self-adhesive foam strips to the desired length and attach them to the window sash and frame. 0010048882-001 Fig. 7 Hung window 0010048881-001 Fig. 8 Sliding window 0010048793-001 Fig. 6 Cool 4000 – 6721875493 (2023/09)
  • Page 9 0010048823-001 Fig. 11 Sliding window 0010047563-001 Fig. 9 5. Connect the exhaust to the hole of the window slider. 0010048824-001 Fig. 10 Hung window Cool 4000 – 6721875493 (2023/09)

  • Page 10: Operation

    Swing indicator The swing icon is displayed when the option is selected Digit display Displays the temperature setting or room temperature Light ring Light is displayed as white during operation and flashes blue while pressing any button Cool 4000 – 6721875493 (2023/09)

  • Page 11: Button Names And Functions

    Power button Switch on/off the appliance (On/Stand-by) • In this mode, the air exhaust hose must be used to let the hot air out. Table 5 Button names and functions Cool 4000 – 6721875493 (2023/09)

  • Page 12: Standard Modes

    – Maximum air flow: for maximum air flow. • In this mode, the exhaust hose must be used to let the hot air out. • The display will show the room temperature. Cool 4000 – 6721875493 (2023/09)

  • Page 13: Swing Function

    If something blocks the transmission and reception path of the Silent mode Turn on the silent mode appliance and the remote controller, such as curtains for button example, it does not work. Cool 4000 – 6721875493 (2023/09)

  • Page 14: Icons On The Display Screen And Their Display Function

    Timer Displays the selected timer setting four minutes for safety. and if the timer is on/off Fan speed Displays the current fan speed (SPEED + AUTO or I (low) or III (medium) or IIIII (high) Cool 4000 – 6721875493 (2023/09)

  • Page 15: Smart Cool Select Modes

    This new temperature will be automatically maintained for 6 hours before it returns to the originally selected temperature in Auto mode. • In this mode, the exhaust hose must be used to let the hot air out. Cool 4000 – 6721875493 (2023/09)

  • Page 16: Swing Function

    The temperature can be displayed in °C or °F. ▶ To change the temperature unit of measure, press the °C/F° button. The selected scale °C or °F will appear on the display of the controller and on the control panel. Cool 4000 – 6721875493 (2023/09)

  • Page 17: Storing Of The Remote Control

    Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or around the controls may cause damage to the appliance. For safety reasons, never wash the appliance with water. Cool 4000 – 6721875493 (2023/09)

  • Page 18: Draining The Appliance

    Mild detergent can also be used, if necessary. 0010047638-001 0010048075-001 Fig. 22 Cleaning of the lower filter and upper filter Make sure the water does not overflow onto the floor and the drainage tube is not obstructed. Cool 4000 – 6721875493 (2023/09)

  • Page 19: Draining The Internal Tank

    ▶ Remove the cap from the lower drainage outlet turning it counter clockwise. ▶ Remove the plug. 0010047640-001 Fig. 23 Be sure to reinstall the plug and cap firmly to prevent leakage before using the appliance. 0010047641-001 Fig. 24 Cool 4000 – 6721875493 (2023/09)

  • Page 20: Moving And Storage

    ▶ Make sure the power cable and socket are in perfect condition and the earthing system is efficient. ▶ Make sure the filters and drain caps are in place and that the filters are cleaned. ▶ Install the appliance as described in this manual. Cool 4000 – 6721875493 (2023/09)

  • Page 21: Troubleshooting

    The appliance is noisy and vibrates too The ground is not level. Place the appliance on a flat, level surface. much. The air filter is soiled. Turn off the appliance and clean the filter. Cool 4000 – 6721875493 (2023/09)

  • Page 22: Self-Diagnosis

    Sensor failure Please contact an authorized service technician. Sensor failure Please contact an authorized service technician. Motor failure Please contact an authorized service technician. PCB failure Please contact an authorized service technician. Table 9 Self-diagnosis Cool 4000 – 6721875493 (2023/09)

  • Page 23: Environmental Protection And Disposal

    You can find more information here: www.bosch-homecomfortgroup.com/en/company/legal- topics/weee/ 1) Based on ANNEX I of REGULATION (EU) No 517/2014 of the European Parliament and of the Council of 16 April 2014. Cool 4000 – 6721875493 (2023/09)

  • Page 24: Data Protection Notice

    Data Protection Officer under: Data Protection Officer, Information Security and Privacy (C/ISP), Robert Bosch GmbH, Postfach 30 02 20, 70442 Stuttgart, GERMANY. You have the right to object, on grounds relating to your Refrigerant leakage contributes to climate change. Refrigerant...

  • Page 25: Service Addresses

    EN: For all detailed product related information (technical specifications, detailed user/operation manual, installation instructions, etc.) and warranty card please scan the QR Code on the left side with your mobile device or visit: www.docs.bosch-thermotechnology.com/download/pdf/file/6721850726. 0010049042-001 Cool 4000 – 6721875493 (2023/09)
