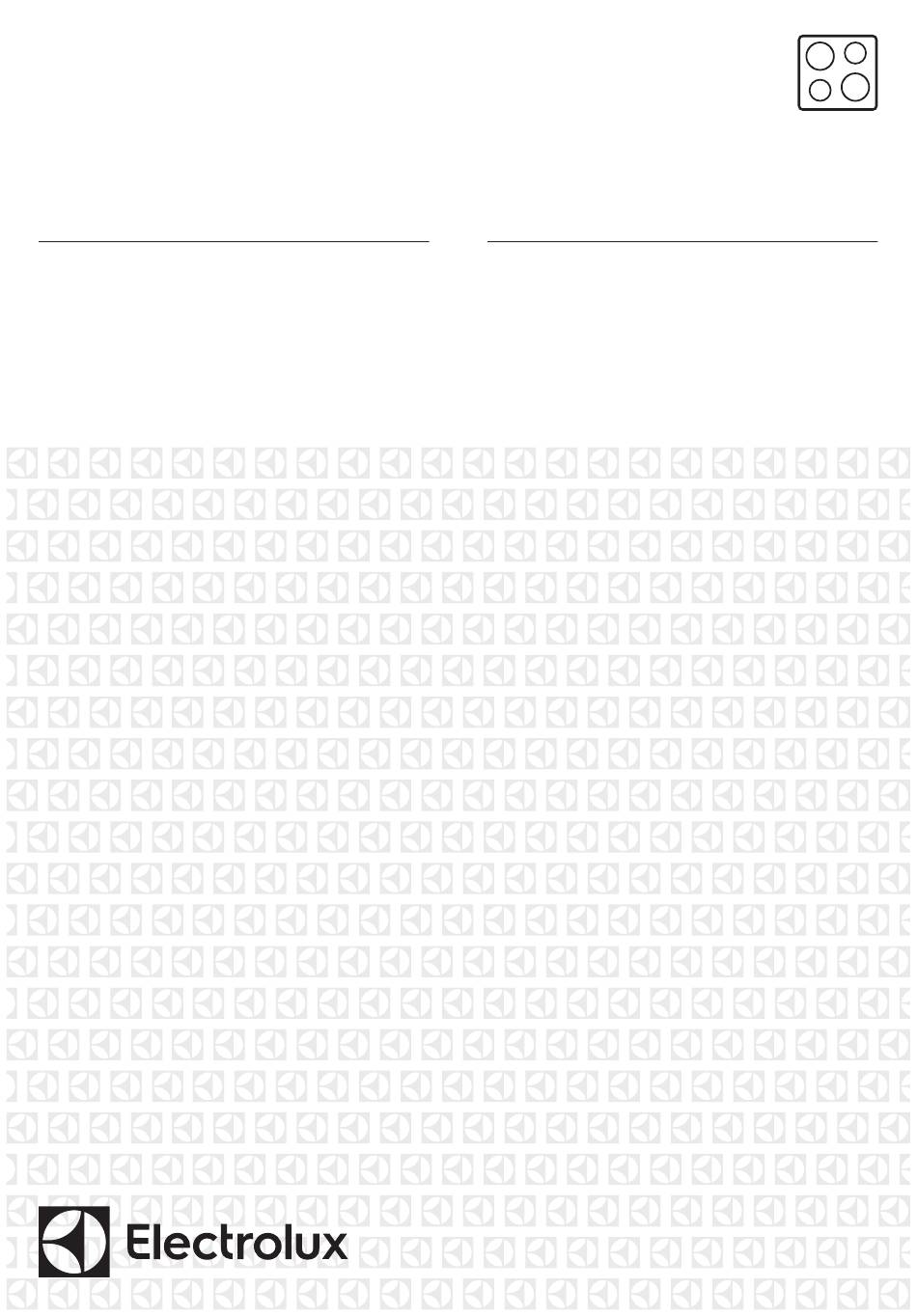

  • Page 1 EIV634 User Manual...

  • Page 2: Table Of Contents

    10. ENERGY EFFICIENCY.................. 19 WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
  • Page 3 ENGLISH instructions in a safe and accessible location for future reference. 1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 • years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.

  • Page 4: Safety Instructions

    CAUTION: The cooking process has to be supervised. • A short term cooking process has to be supervised continuously. WARNING: Danger of fire: Do not store items on the • cooking surfaces. Metallic objects such as knives, forks, spoons and lids •...
  • Page 5 ENGLISH • Each appliance has cooling fans on • The shock protection of live and the bottom. insulated parts must be fastened in • If the appliance is installed above a such a way that it cannot be removed drawer: without tools.
  • Page 6 2.4 Care and cleaning appliance from the power supply. This to prevent an electrical shock. • Clean the appliance regularly to • Users with a pacemaker must keep a prevent the deterioration of the distance of minimum 30 cm from the surface material.

  • Page 7: Installation

    ENGLISH 3. INSTALLATION WARNING! Refer to Safety chapters. 3.1 Before the installation Before you install the hob, write down the information bellow from the rating plate. R 5mm The rating plate is on the bottom of the hob. Serial number ......min.

  • Page 8: Product Description

    If the appliance is installed above a drawer, the hob ventilation can warm up the items stored in the drawer during the cooking process. min. 60mm 4. PRODUCT DESCRIPTION 4.1 Cooking surface layout Induction cooking zone Control panel 4.2 Control panel layout Use the sensor fields to operate the appliance.
  • Page 9 ENGLISH Sen‐ Function Comment field ON / OFF To activate and deactivate the hob. Lock / Child Safety De‐ To lock / unlock the control panel. vice Pause To activate and deactivate the function. Bridge To activate and deactivate the function. Heat setting display To show the heat setting.

  • Page 10: Daily Use

    Display Description Incorrect or too small cookware or no cookware on the cooking zone. Automatic Switch Off operates. 4.4 OptiHeat Control (3 step The induction cooking zones make the heat necessary for cooking process Residual heat indicator) directly in the bottom of the cookware.
  • Page 11 ENGLISH 5.7 Timer This function connects two left side cooking zones and they operate as one. Count Down Timer First set the heat setting for one of the You can use this function to set how long left side cooking zones. the cooking zone should operate for a single cooking session.
  • Page 12 The display shows how To deactivate the function: touch long the zone operates. The previous heat setting comes on. To deactivate the function: set the When you deactivate the cooking zone with and touch hob, you also deactivate this function.
  • Page 13 ENGLISH 5.12 Power management Operating the function automatically To operate the function automatically set • Cooking zones are grouped according the automatic mode to H1 – H6. The hob to the location and number of the is originally set to H5. The hood reacts phases in the hob.

  • Page 14: Hints And Tips

    To operate the hood directly one. When you reach an intensive level on the hood panel deactivate the automatic mode of the and press again you will set fan speed function.
  • Page 15 ENGLISH • hissing, buzzing: the fan operates. is not linear. When you increase the heat The noises are normal and do not setting, it is not proportional to the refer to hob malfunction. increase of the consumption of power. It means that a cooking zone with the 6.3 Öko Timer (Eco Timer) medium heat setting uses less than a...

  • Page 16: Care And Cleaning

    (for example which work with this function refer to our with a hand or a cookware handle). consumer website. The Electrolux cooker See the picture. hoods that work with this function must The hood in the picture is only have the symbol exemplary.

  • Page 17: Troubleshooting

    ENGLISH 8. TROUBLESHOOTING WARNING! Refer to Safety chapters. 8.1 What to do if... Problem Possible cause Remedy You cannot activate or op‐ The hob is not connected Check if the hob is correct‐ erate the hob. to an electrical supply or it ly connected to the electri‐...
  • Page 18 Problem Possible cause Remedy The heat setting changes Power management oper‐ Refer to "Daily use". between two levels. ates. The sensor fields become The cookware is too large Put large cookware on the hot. or you put it too near to the rear zones if possible.

  • Page 19: Technical Data

    ENGLISH 9. TECHNICAL DATA 9.1 Rating plate Model EIV634 PNC 949 596 718 00 Typ 61 B4A 01 AA 220 - 240 V / 400 V 2N 50 - 60 Hz Induction 7.35 kW Made in Germany Ser.Nr....7.35 kW ELECTROLUX 9.2 Cooking zones specification...
  • Page 20 EN 60350-2 - Household electric cooking • When you heat up water, use only the appliances - Part 2: Hobs - Methods for amount you need. measuring performance • If it is possible, always put the lids on the cookware.
