SPECIFICATIONS
Power
Requirements:
AC
120V
60Hz
(US, Canadian
model)
AC 110, 120, 220 or 240V—50/60 Hz
(AEP, E model)
DC 6V
four batteries of size D (IEC designation
R20)
Sony
Rechargeable
Battery Pack BP-8H
(optional)
US Model
Canadian Model
AEP Mode!
E. Model
STEREO CASSETTE-CORDER
Fast Forward and
Rewind Time:
Approx. 90 sec. (C-60, at 6V)
Recording System:
4-track 2-channel stereo
Speaker:
10cm
(4 inches)
dia.
Power
Output:
700 mw
Bias Frequency:
105 kHz
Cord DCC-129
(optional)
Power
Consumption:
12W
Dimensions:
Approx.
350 (w) x 100 (h) x 240 (d} mm
133/4 (w) x 4 (h) x 93/g (d) inches
including projecting parts and controls
Weight:
Approx. 4.8kg, 10 lb 9 0z with batteries
*'Dolby'
and
the double-D
symbol
are
the trade
marks
of
Dalby
Laboratory
Inc.
Noise
reduction
system
manufac-
tured under license from Doiby Laboratory Inc.
"0dB =0.775V
SAFETY-RELATED
COMPONENT
WARNING!!
COMPONENTS
IDENTIFIED
BY
SHADING
ON
THE
SCHEMATIC
DIAGRAMS
AND
IN THE PARTS
LIST ARE.
CRITICAL
TO
SAFE
OPERATION.
REPLACE
THESE:
COMPONENTS
WITH
SONY
PARTS
WHOSE
PART
NUMBERS
APPEAR
AS SHOWN
IN THIS MANUAL
OR
IN SUPPLEMENTS
PUBLISHED
BY
SONY.
With Ferri-Chrome Cassette
59 dB at peak level (NAB)
57 dB (DIN, 1975 rev.)
49 dB (DIN, old)
With
chromium
dioxide cassette
55 dB at peak level (NAB)
DOLBY
NR ON
Improved by 5dB at 1kHz, 10dB above SkHz
Total
Harmonic
Distortion:
1.3%
* Contistued on —
2-
> CUATION OF VOLTAGE SELECTOR SETTING
i) 5O

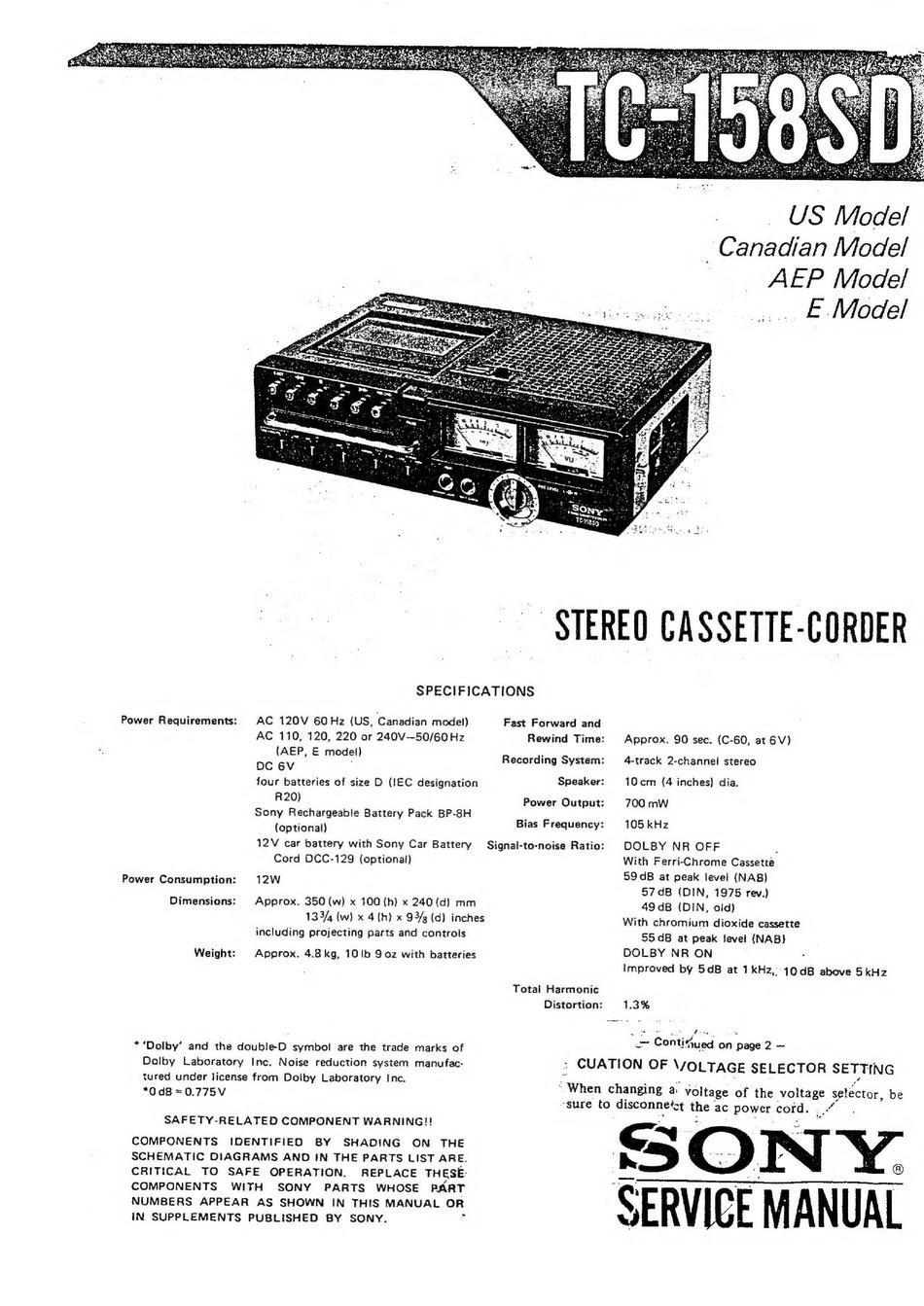

SERVICE MANUAL
