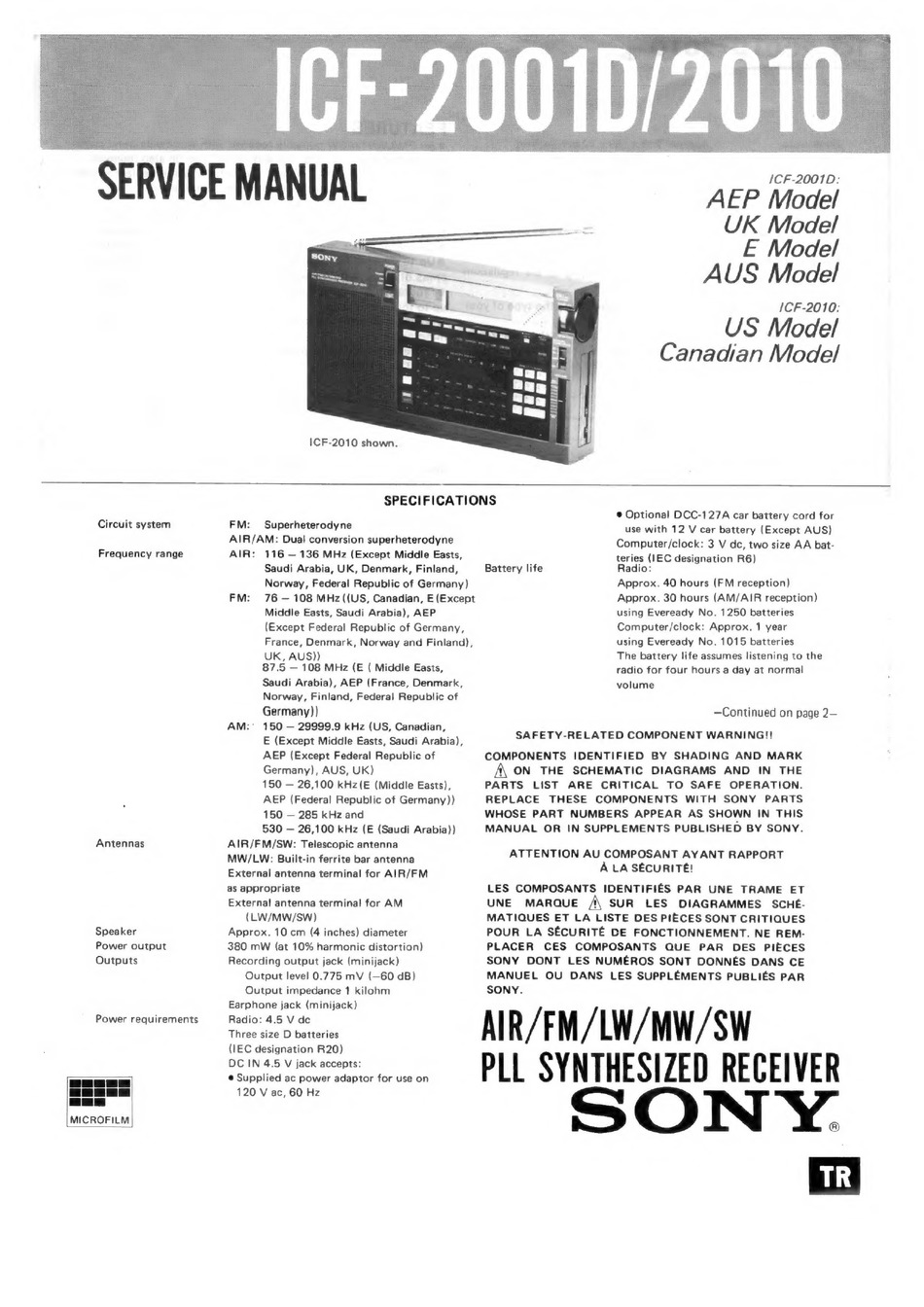

Sony ICF-2001D Service Manual

SERVICE MANUAL
ICF-2010 shown.
Circuit system
Frequency range
Antennas
Speaker
Power output
Outputs
Power requirements
MICROFILM
SPECIFICATIONS
FM: Superheterodyne
AIR/AM: Dual conversion superheterodyne
AIR: 116 — 136 MHz (Except Middle Easts,
Saudi Arabia, UK, Denmark, Finland,
Norway, Federal Republic of Germany)
FM: 76 — 108 MHz ((US, Canadian, E (Except
Middle Easts, Saudi Arabia), AEP
(Except Federal Republic of Germany,
France, Denmark, Norway and Finland),
UK, AUS))
87.5 — 108 MHz (E ( Middle Easts,
Saudi Arabia), AEP (France, Denmark,
Norway, Finland, Federal Republic of
Germany))
AM: 150 — 29999.9 kHz (US, Canadian,
E (Except Middle Easts, Saudi Arabia),
AEP (Except Federal Republic of
Germany), AUS, UK)
150 — 26,100 kHz(E (Middle Easts),
AEP (Federal Republic of Germany))
150 — 285 kHz and
530 — 26,100 kHz (E (Saudi Arabia))
AIR/FM/SW: Telescopic antenna
MW/LW: Built-in ferrite bar antenna
External antenna terminal for AIR/FM
as appropriate
External antenna terminal for AM
(LW/MW/sSW)
Approx. 10 cm (4 inches) diameter
380 mW (at 10% harmonic distortion)
Recording output jack (minijack)
Output level 0.775 mV (—60 dB)
Output impedance 1 kilohm
Earphone jack (minijack)
Radio: 4.5 V de
Three size D batteries
(IEC designation R20)
DC IN 4.5 V jack accepts:
e@ Supplied ac power adaptor for use on
120 V ac, 60 Hz
/CF-2001D:
AEP Madel
UK Model
E Model
AUS Model
ICF-2010:
US Model
Canadian Model
@ Optional DCC-127A car battery cord for
use with 12 V car battery (Except AUS)
Computer/clock: 3 V dc, two size AA bat-
teries (IEC designation R6)
Radio:
Approx. 40 hours (FM reception)
Approx. 30 hours (AM/AIR reception)
using Eveready No. 1250 batteries
Computer/clock: Approx. 1 year
using Eveready No. 1015 batteries
The battery life assumes listening to the
radio for four hours a day at normal
volume
Battery life
—Continued on page 2—
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY SHADING AND MARK
A ON THE SCHEMATIC DIAGRAMS AND IN THE
PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS
WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS
MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
A LA SECURITE!
LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET
UNE MARQUE /\ SUR LES DIAGRAMMES SCHE-
MATIQUES ET LA LISTE DES PIECES SONT CRITIQUES
POUR LA SECURITE DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS QUE PAR DES PIECES
SONY DONT LES NUMEROS SONT DONNES DANS CE
MANUEL OU DANS LES SUPPLEMENTS PUBLIES PAR
SONY.
AIR/FM/LW/MW/SW
PLL SYNTHESIZED RECEIVER
SONY.
