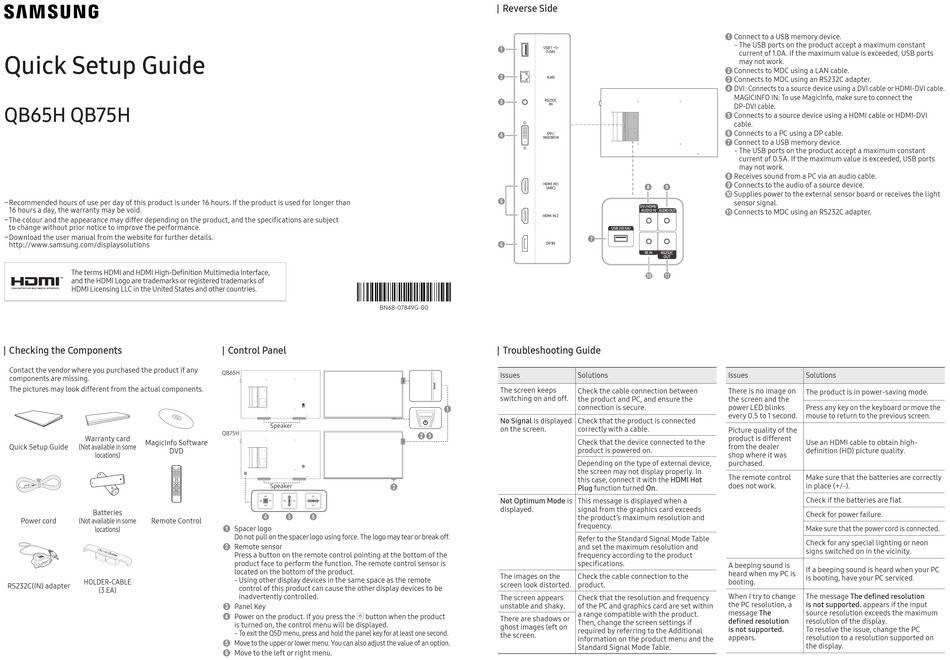

Quick Setup Guide
QB65H QB75H
− Recommended hours of use per day of this product is under 16 hours. If the product is used for longer than
16 hours a day, the warranty may be void.
− The colour and the appearance may differ depending on the product, and the specifications are subject
to change without prior notice to improve the performance.
− Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.
Checking the Components
Contact the vendor where you purchased the product if any
components are missing.
The pictures may look different from the actual components.
Warranty card
MagicInfo Software
Quick Setup Guide (Not available in some
DVD
locations)
Batteries
Power cord (Not available in some Remote Control
locations)
HOLDER-CABLE
RS232C(IN) adapter
(3 EA)
BN68-07849G-00
Control Panel
QB65H
Speaker
QB75H
Speaker
Spacer logo
1
Do not pull on the spacer logo using force. The logo may tear or break off.
Remote sensor
2
Press a button on the remote control pointing at the bottom of the
product face to perform the function. The remote control sensor is
located on the bottom of the product.
- Using other display devices in the same space as the remote
control of this product can cause the other display devices to be
inadvertently controlled.
Panel Key
3
Power on the product. If you press the button when the product
4
is turned on, the control menu will be displayed.
- To exit the OSD menu, press and hold the panel key for at least one second.
Move to the upper or lower menu. You can also adjust the value of an option.
5
Move to the left or right menu.
6
Reverse Side
Troubleshooting Guide
Issues Solutions
The screen keeps Check the cable connection between
switching on and off.
the product and PC, and ensure the
connection is secure.
No Signal is displayed Check that the product is connected
on the screen. correctly with a cable.
Check that the device connected to the
product is powered on.
Depending on the type of external device,
the screen may not display properly. In
this case, connect it with the HDMI Hot
Plug function turned On.
Not Optimum Mode is This message is displayed when a
displayed. signal from the graphics card exceeds
the product's maximum resolution and
frequency.
Refer to the Standard Signal Mode Table
and set the maximum resolution and
frequency according to the product
specifications.
The images on the Check the cable connection to the
screen look distorted. product.
The screen appears Check that the resolution and frequency
unstable and shaky. of the PC and graphics card are set within
a range compatible with the product.
There are shadows or
Then, change the screen settings if
ghost images left on
required by referring to the Additional
the screen.
Information on the product menu and the
Standard Signal Mode Table.
Connect to a USB memory device.
1
‐ The USB ports on the product accept a maximum constant
current of 1.0A. If the maximum value is exceeded, USB ports
may not work.
Connects to MDC using a LAN cable.
2
Connects to MDC using an RS232C adapter.
3
DVI: Connects to a source device using a DVI cable or HDMI-DVI cable.
4
MAGICINFO IN: To use MagicInfo, make sure to connect the
DP-DVI cable.
Connects to a source device using a HDMI cable or HDMI-DVI
5
cable.
Connects to a PC using a DP cable.
6
Connect to a USB memory device.
7
‐ The USB ports on the product accept a maximum constant
current of 0.5A. If the maximum value is exceeded, USB ports
may not work.
Receives sound from a PC via an audio cable.
8
Connects to the audio of a source device.
9
Supplies power to the external sensor board or receives the light
0
sensor signal.
Connects to MDC using an RS232C adapter.
!
Issues Solutions
There is no image on
The product is in power-saving mode.
the screen and the
power LED blinks Press any key on the keyboard or move the
every 0.5 to 1 second. mouse to return to the previous screen.
Picture quality of the
product is different
Use an HDMI cable to obtain high-
from the dealer
definition (HD) picture quality.
shop where it was
purchased.
The remote control Make sure that the batteries are correctly
does not work. in place (+/-).
Check if the batteries are flat.
Check for power failure.
Make sure that the power cord is connected.
Check for any special lighting or neon
signs switched on in the vicinity.
A beeping sound is
If a beeping sound is heard when your PC
heard when my PC is
is booting, have your PC serviced.
booting.
When I try to change The message The defined resolution
the PC resolution, a is not supported. appears if the input
message The source resolution exceeds the maximum
defined resolution resolution of the display.
is not supported. To resolve the issue, change the PC
appears. resolution to a resolution supported on
the display.
