Samsung QH65H Quick Setup Manual

Quick Setup Guide
QH55H QH65H
− Recommended hours of use per day of this product is under 16 hours.
If the product is used for longer than 16 hours a day, the warranty may be void.
− The colour and the appearance may differ depending on the product, and the
specifications are subject to change without prior notice to improve the performance.
− Download the user manual from the website for further details.
http://www.samsung.com/displaysolutions
The terms HDMI and HDMI High-Definition Multimedia Interface,
and the HDMI Logo are trademarks or registered trademarks of
HDMI Licensing LLC in the United States and other countries.

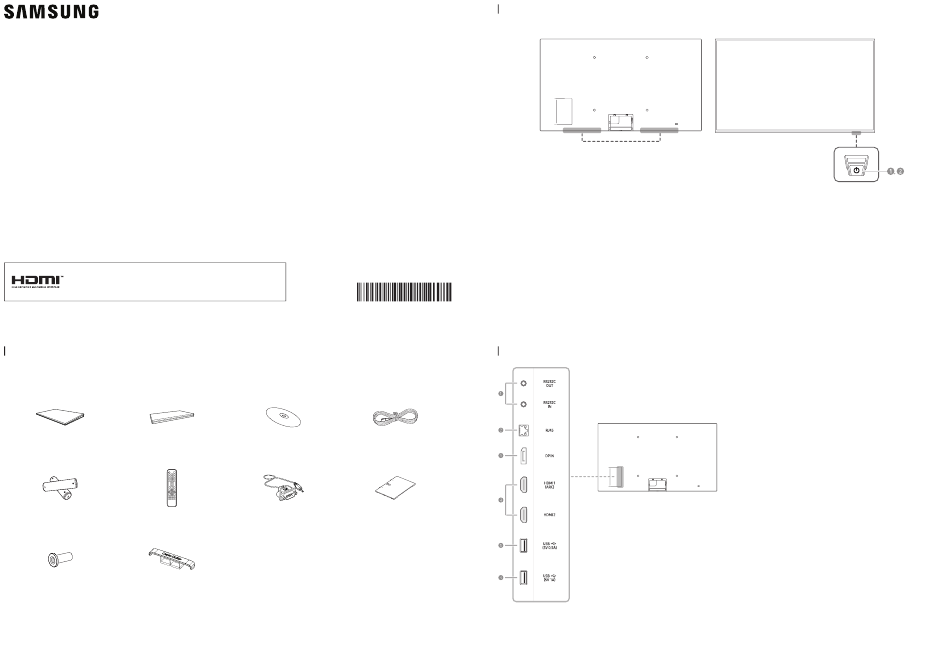

Checking the Components
Contact the vendor where you purchased the product if any components are missing.
The pictures may look different from the actual components.
Warranty card
Quick Setup Guide
(Not available in some locations)
Batteries
Remote Control
(Not available in some locations)
HOLDER-CABLE (3 EA)
Wall Mount Adapter (4 EA)
(Model QH65H is only supported.)
BN68-08827H-00
MagicInfo Software DVD Power cord
RS232C(IN) adapter Cover Terminal
Control Panel
Speaker
Remote sensor
1
Press a button on the remote control pointing at the bottom of the product face to perform the function. The remote control sensor is
located on the bottom of the product.
- Using other display devices in the same space as the remote control of this product can cause the other display devices to be
inadvertently controlled.
To use remote/eco sensor, make sure the sliding panel key is protruding from the bottom of the product.
Panel Key
2
To use the panel key, make sure the sliding panel key is not protruding from the bottom of the product.
Reverse Side
Connects to MDC using an RS232C adapter.
1
Connects to MDC using a LAN cable.
2
Connects to a PC using a DP cable.
3
Connects to a source device using a HDMI cable or HDMI-DVI
4
cable.
Connect to a USB memory device.
5
- The USB ports on the product accept a maximum constant
current of 0.5A. If the maximum value is exceeded, USB ports
may not work.
Connect to a USB memory device.
6
- The USB ports on the product accept a maximum constant
current of 1.0A. If the maximum value is exceeded, USB ports
may not work.
