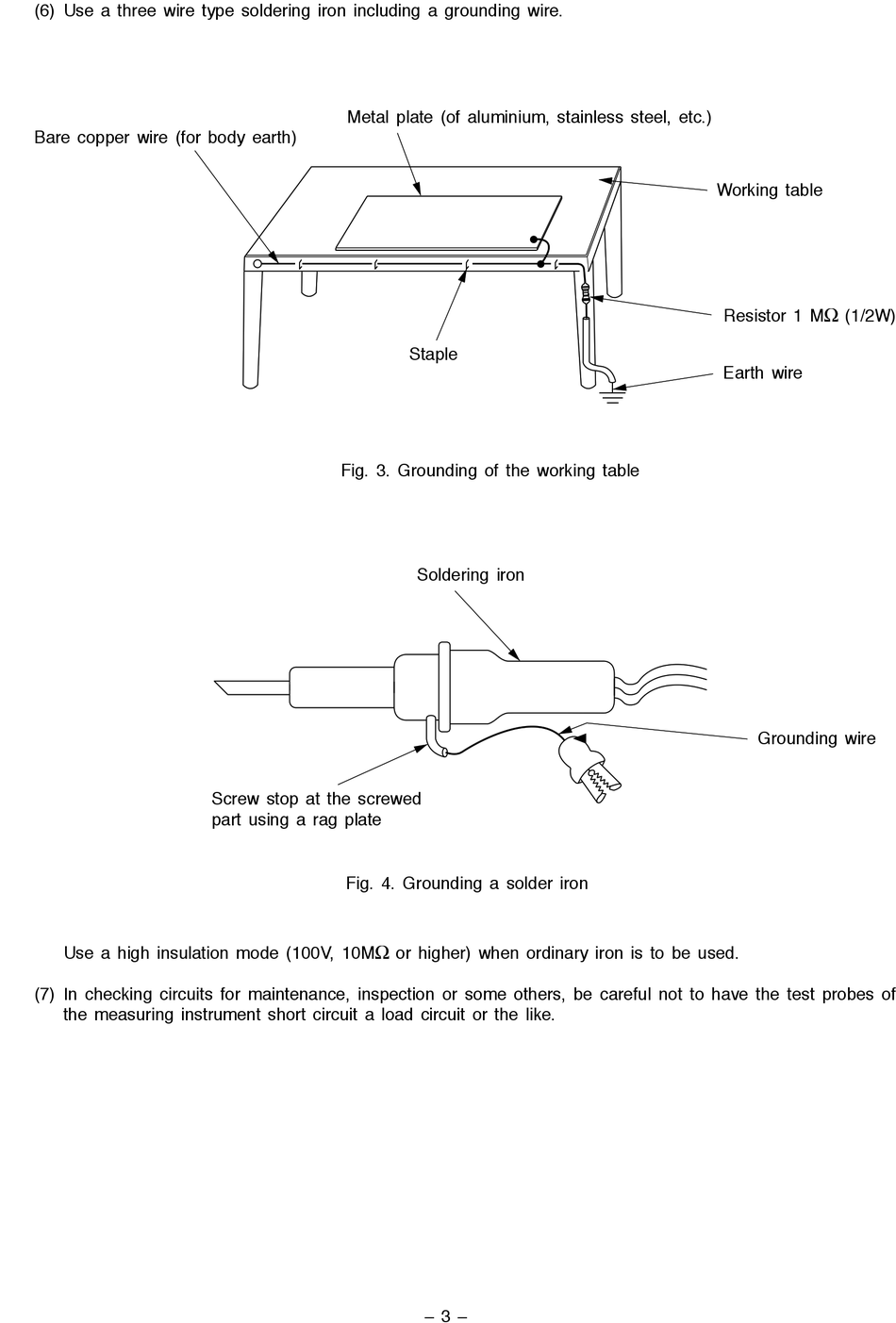

(6) Use a three wire type soldering iron including a grounding wire.
Bare copper wire (for body earth)
Use a high insulation mode (100V, 10M
(7) In checking circuits for maintenance, inspection or some others, be careful not to have the test probes of
the measuring instrument short circuit a load circuit or the like.
Metal plate (of aluminium, stainless steel, etc.)
Fig. 3. Grounding of the working table
Screw stop at the screwed
part using a rag plate
Fig. 4. Grounding a solder iron
Staple
Soldering iron
or higher) when ordinary iron is to be used.
– 3 –
Working table
Resistor 1 M
Earth wire
2
(1/2W)
Grounding wire
