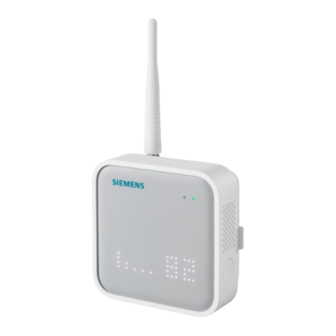

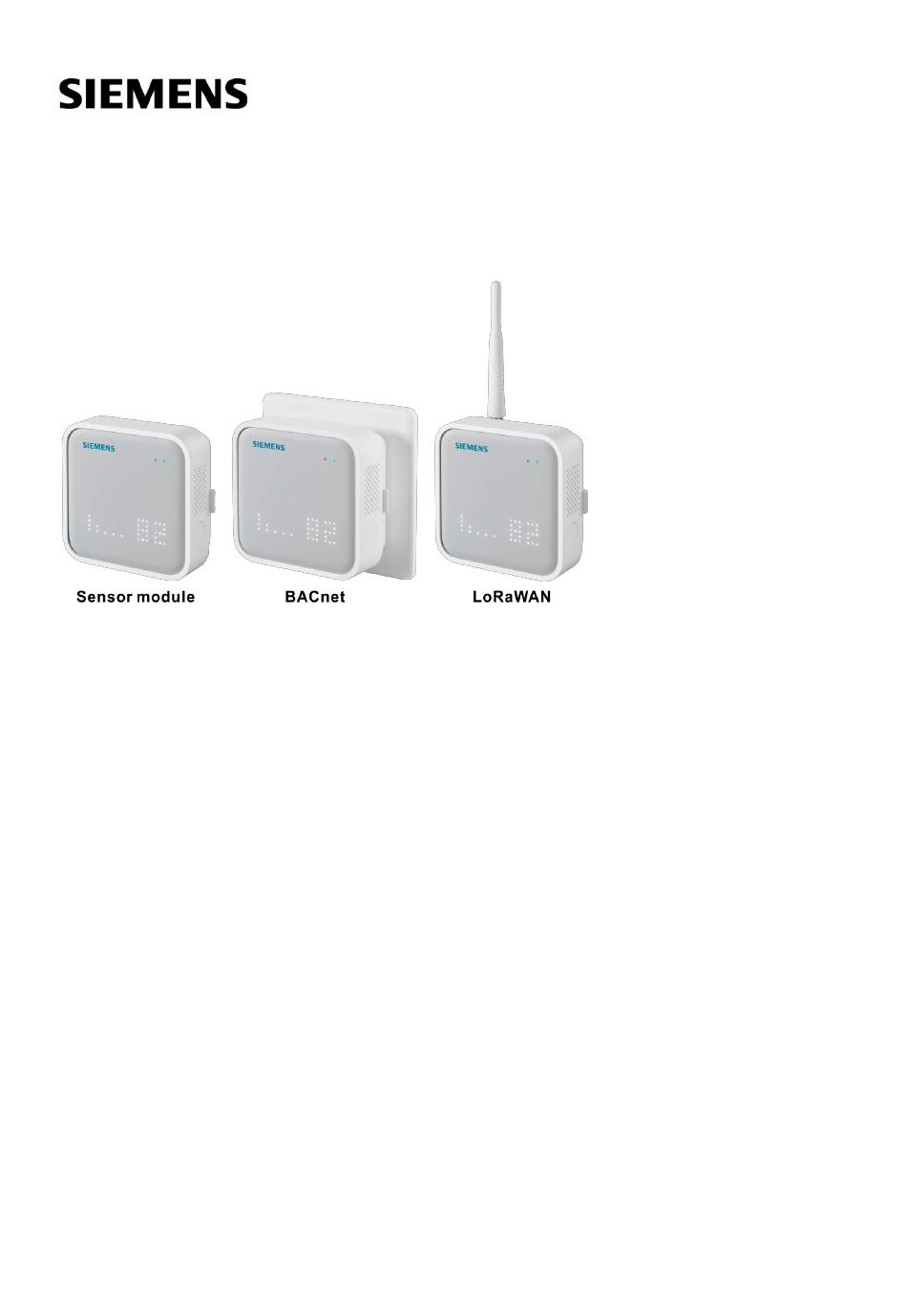

- Page 1 QNA2..D Indoor air quality multi-sensor Commissioning A6V13589457_en--_b Smart Infrastructure 2023-03-30...
-
Page 2: Table Of Contents
Table of Contents Overview ..............................3 Notes ..............................4 Safety ..............................4 Display colors ............................4 Power button ............................4 Reset button ............................5 BACnet IP setup .............................6 Edit surface mount Ethernet and BACnet settings ..................6 BACnet MSTP setup ..........................10 LoRaWAN setup ...........................13 Appendix ..............................15 Support ..............................15 Cyber security disclaimer ........................15 2 | 16 A6V13589457_en--_b... -
Page 3: Overview
Overview 1 Overview Multi-sensor tracks air quality and notifies users of any issues to create healthy, comfortable, and productive indoor environments. A6V13589457_en--_b 3 | 16... -
Page 4: Notes
4. Maintain at least a 2-inch clearance for each vent hole when mounted near walls or any objects. 5. Do not replace the IAQ Multi-sensor battery, contact Siemens or authorized service provider to replace the battery. Improper replacement or repair may damage the battery, cause overheating or injury. Properly dispose or recycle the battery that must be recycled separately from household waste. -
Page 5: Reset Button
Notes Reset button 2.4 Reset button The reset button resets or reboots the device. ● Press the button for 10 s until progress bar reaches the end to factory reset ● Press the button for 1 s to force reboot before progress bar reaches the end A6V13589457_en--_b 5 | 16... -
Page 6: Bacnet Ip Setup
BACnet IP setup Edit surface mount Ethernet and BACnet settings 3 BACnet IP setup 3.1 Edit surface mount Ethernet and BACnet settings Scenario 1: Edit the default configuration First time configuration: 1. Connect the PC directly to the Ethernet port on the Surface Mount. 2. - Page 7 BACnet IP setup Edit surface mount Ethernet and BACnet settings Scenario 3: Change an invalid IP address to new, valid one To change an invalid IP address to new valid one when users forget the IP address assigned to the IAQ Multi- sensor + Surface Mount or enter an incorrect IP address: 1.
- Page 8 BACnet IP setup Edit surface mount Ethernet and BACnet settings 5. Enter the IP address to access the BACnet IP Configuration page from the router administrator page device list, and then navigate to the BACnet Settings page and choose Static IP Mode 3. 6.
- Page 9 BACnet IP setup Edit surface mount Ethernet and BACnet settings Configuration web page ● Data Connectivity Settings page ● BACnet Settings page A6V13589457_en--_b 9 | 16...
-
Page 10: Bacnet Mstp Setup
BACnet MSTP setup 4 BACnet MSTP setup Proceed as follows: 1. Enter the IP address from the router administrator page device list to access BACnet MSTP Configuration page and go to the BACnet Settings page. 2. Switch your Surface Mount back to Mode 2 (DHCP mode). 3. - Page 11 BACnet MSTP setup Configuration web page ● Data Connectivity Settings page RS-485 daisy chain A6V13589457_en--_b 11 | 16...
- Page 12 BACnet MSTP setup Daisy chain wiring Using terminals A+ and B-, connect the in-wall mounts to the BACnet router (or other BACnet devices) in a daisy chain topology. Ensure that the power is shut off during wiring. A+, B- Twisted pair 120 Ohm Bus terminating resistor (½...
-
Page 13: Lorawan Setup
Proceed as follows for each sensor: 1. Log in to user console (available at console) and go to Equipment. 2. Add multi-sensors by searching Siemens - IAQ-Multi-sensor from equipment list. A6V13589457_en--_b 13 | 16... - Page 14 LoRaWAN setup 3. Enter device info from the label on the front of surface mount. 4. Power on sensor and wait for connection. 14 | 16 A6V13589457_en--_b...
-
Page 15: Appendix
6.2 Cyber security disclaimer Siemens provides a portfolio of products, solutions, systems and services that includes security functions that support the secure operation of plants, systems, machines and networks. In the field of Building Technologies, this includes building automation and control, fire safety, security management as well as physical security systems. - Page 16 Issued by Siemens Switzerland Ltd Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies © Siemens Switzerland Ltd, 2022 Technical specifications and availability subject to change without notice. A6V13589457_en--_b...
