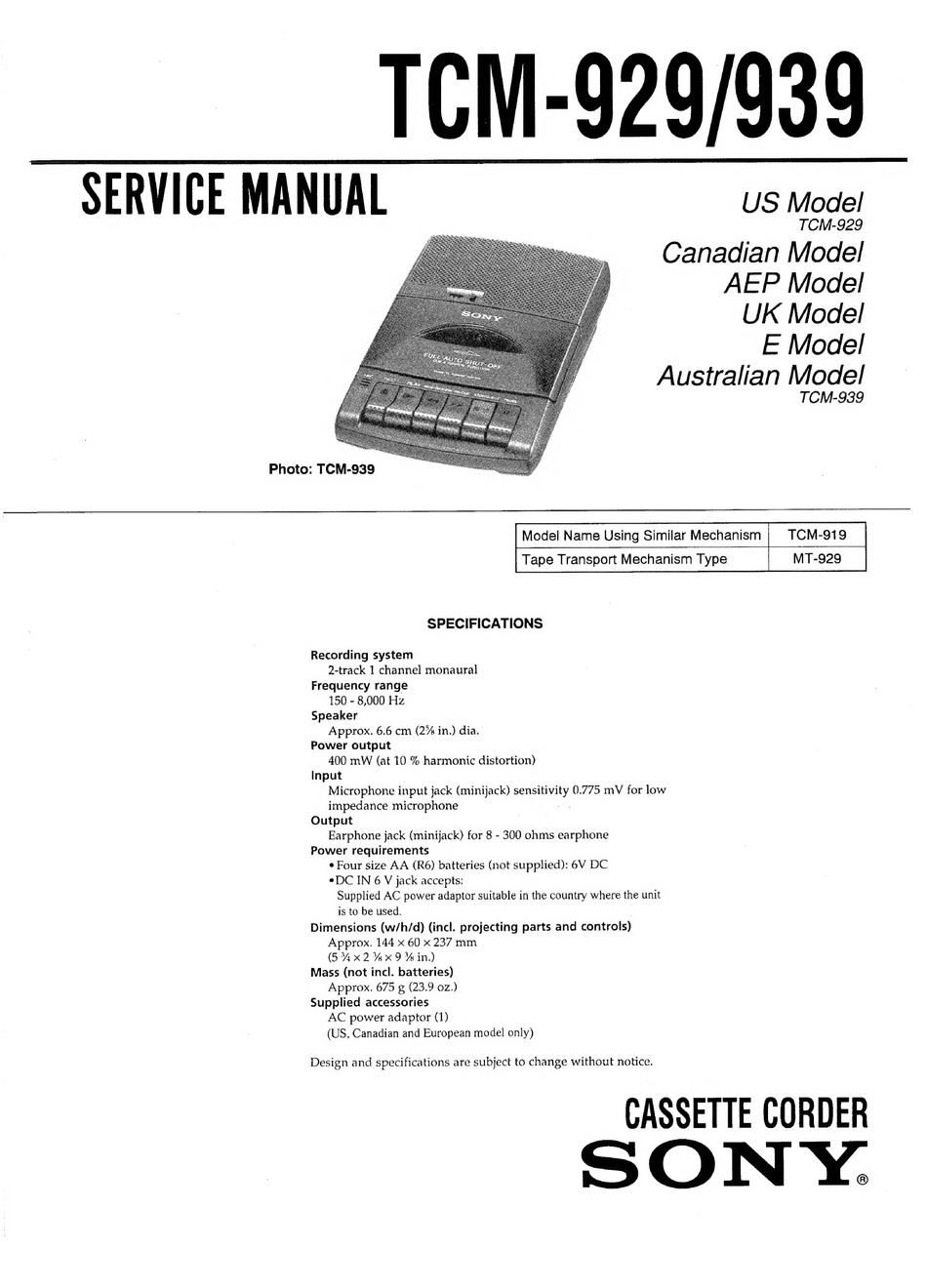

Sony TCM-929 Service Manual

TCM-929/939
TCM-929
Canadian Model
AEP Model
UK Model
E Model
Australian Model
TCM-939

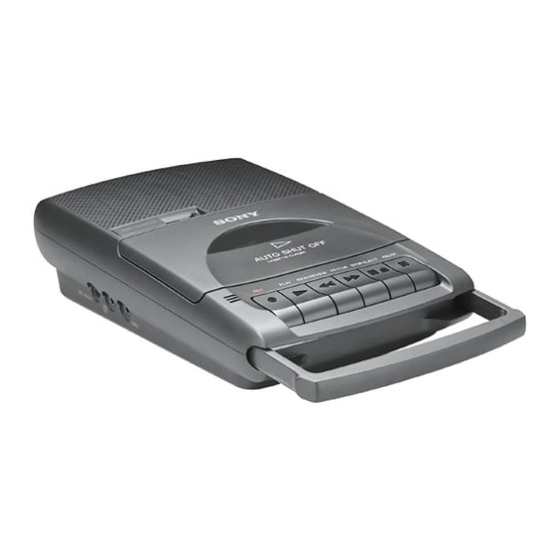

Photo: TCM-939
TCM-919
MT-929
Model Name Using Similar Mechanism
Tape Transport Mechanism Type
SPECIFICATIONS
Recording system
2-track 1 channel monaural
Frequency range
150 - 8,000 Hz
Speaker
Approx. 6.6 cm (2% in.) dia.
Power output
400 mW (at 10 % harmonic distortion)
Input
Microphone input jack (minijack) sensitivity 0.775 mV for low
impedance microphone
Output
Earphone jack (minijack) for 8 - 300 ohms earphone
Power requirements
¢ Four size AA (R6) batteries (not supplied): 6V DC
¢DC IN 6 V jack accepts:
Supplied AC power adaptor suitable in the country where the unit
is to be used.
Dimensions (w/h/d) (incl. projecting parts and controls)
Approx. 144 x 60 x 237 mm
5%A~x2%x9I ¥%in.)
Mass (not incl. batteries)
Approx. 675 g (23.9 oz.)
Supplied accessories
AC power adaptor (1)
(US, Canadian and European model only)
Design and specifications are subject to change without notice.
CASSETTE CORDER
SONY.
