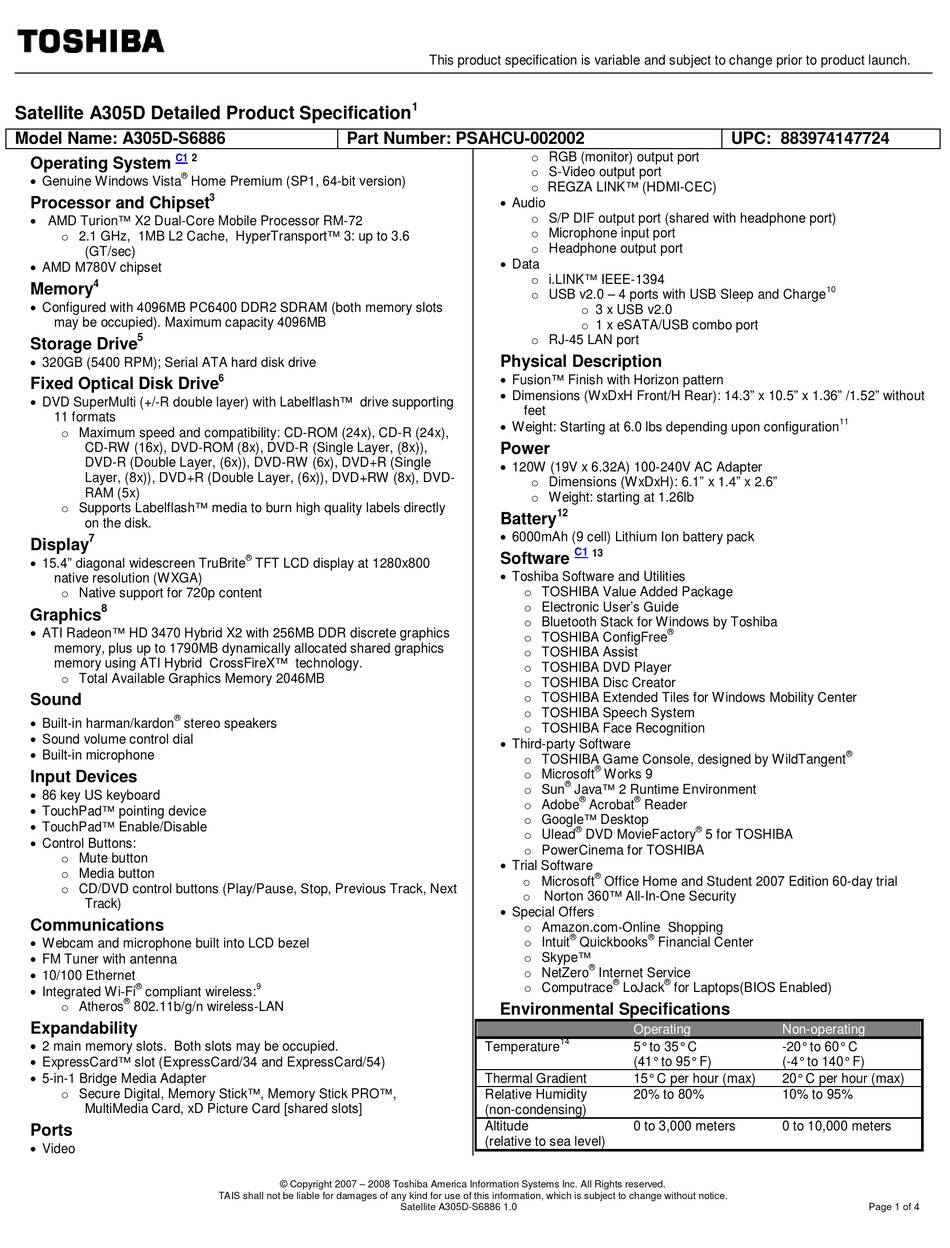

Satellite A305D Detailed Product Specification
Model Name: A305D-S6886
C1
2
Operating System
®
Genuine Windows Vista
Home Premium (SP1, 64-bit version)
Processor and Chipset
AMD Turion™ X2 Dual-Core Mobile Processor RM-72
o 2.1 GHz, 1MB L2 Cache, HyperTransport™ 3: up to 3.6
(GT/sec)
AMD M780V chipset
4
Memory
Configured with 4096MB PC6400 DDR2 SDRAM (both memory slots
may be occupied). Maximum capacity 4096MB
5
Storage Drive
320GB (5400 RPM); Serial ATA hard disk drive
Fixed Optical Disk Drive
DVD SuperMulti (+/-R double layer) with Labelflash™ drive supporting
11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R (24x),
CD-RW (16x), DVD-ROM (8x), DVD-R (Single Layer, (8x)),
DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R (Single
Layer, (8x)), DVD+R (Double Layer, (6x)), DVD+RW (8x), DVD-
RAM (5x)
o Supports Labelflash™ media to burn high quality labels directly
on the disk.
7
Display
15.4" diagonal widescreen TruBrite
native resolution (WXGA)
o Native support for 720p content
8
Graphics
ATI Radeon™ HD 3470 Hybrid X2 with 256MB DDR discrete graphics
memory, plus up to 1790MB dynamically allocated shared graphics
memory using ATI Hybrid CrossFireX™ technology.
o Total Available Graphics Memory 2046MB
Sound
®
Built-in harman/kardon
stereo speakers
Sound volume control dial
Built-in microphone
Input Devices
86 key US keyboard
TouchPad™ pointing device
TouchPad™ Enable/Disable
Control Buttons:
o Mute button
o Media button
o CD/DVD control buttons (Play/Pause, Stop, Previous Track, Next
Track)
Communications
Webcam and microphone built into LCD bezel
FM Tuner with antenna
10/100 Ethernet
®
Integrated Wi-Fi
compliant wireless:
®
o Atheros
802.11b/g/n wireless-LAN
Expandability
2 main memory slots. Both slots may be occupied.
ExpressCard™ slot (ExpressCard/34 and ExpressCard/54)
5-in-1 Bridge Media Adapter
o Secure Digital, Memory Stick™, Memory Stick PRO™,
MultiMedia Card, xD Picture Card [shared slots]
Ports
Video
Part Number: PSAHCU-002002
3
6
®
TFT LCD display at 1280x800
9
© Copyright 2007 – 2008 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
This product specification is variable and subject to change prior to product launch.
1
o RGB (monitor) output port
o S-Video output port
o REGZA LINK™ (HDMI-CEC)
Audio
o S/P DIF output port (shared with headphone port)
o Microphone input port
o Headphone output port
Data
o i.LINK™ IEEE-1394
o USB v2.0 – 4 ports with USB Sleep and Charge
o RJ-45 LAN port
Physical Description
Fusion™ Finish with Horizon pattern
Dimensions (WxDxH Front/H Rear): 14.3" x 10.5" x 1.36" /1.52" without
feet
Weight: Starting at 6.0 lbs depending upon configuration
Power
120W (19V x 6.32A) 100-240V AC Adapter
o Dimensions (WxDxH): 6.1" x 1.4" x 2.6"
o Weight: starting at 1.26lb
12
Battery
6000mAh (9 cell) Lithium Ion battery pack
C1
Software
Toshiba Software and Utilities
o TOSHIBA Value Added Package
o Electronic User's Guide
o Bluetooth Stack for Windows by Toshiba
o TOSHIBA ConfigFree
o TOSHIBA Assist
o TOSHIBA DVD Player
o TOSHIBA Disc Creator
o TOSHIBA Extended Tiles for Windows Mobility Center
o TOSHIBA Speech System
o TOSHIBA Face Recognition
Third-party Software
o TOSHIBA Game Console, designed by WildTangent
o Microsoft
®
o Sun
Java™ 2 Runtime Environment
o Adobe
o Google™ Desktop
®
o Ulead
o PowerCinema for TOSHIBA
Trial Software
o Microsoft
o Norton 360™ All-In-One Security
Special Offers
o Amazon.com-Online Shopping
®
o Intuit
o Skype™
o NetZero
o Computrace
Environmental Specifications
14
Temperature
Thermal Gradient
Relative Humidity
(non-condensing)
Altitude
(relative to sea level)
Satellite A305D-S6886 1.0
UPC: 883974147724
o 3 x USB v2.0
o 1 x eSATA/USB combo port
13
®
®
Works 9
®
®
Acrobat
Reader
®
DVD MovieFactory
5 for TOSHIBA
®
Office Home and Student 2007 Edition 60-day trial
®
Quickbooks
Financial Center
®
Internet Service
®
®
LoJack
for Laptops(BIOS Enabled)
Operating
5° to 35° C
(41° to 95° F)
15° C per hour (max)
20% to 80%
0 to 3,000 meters
10
11
®
Non-operating
-20° to 60° C
(-4° to 140° F)
20° C per hour (max)
10% to 95%
0 to 10,000 meters
Page 1 of 4
