Toshiba Satellite A210-10W User Manual

Portable personal computer
Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual
A210
computers.toshiba-europe.com

Advertisement

Table of Contents
loading

Related Manuals for Toshiba Satellite A210-10W

Summary of Contents for Toshiba Satellite A210-10W

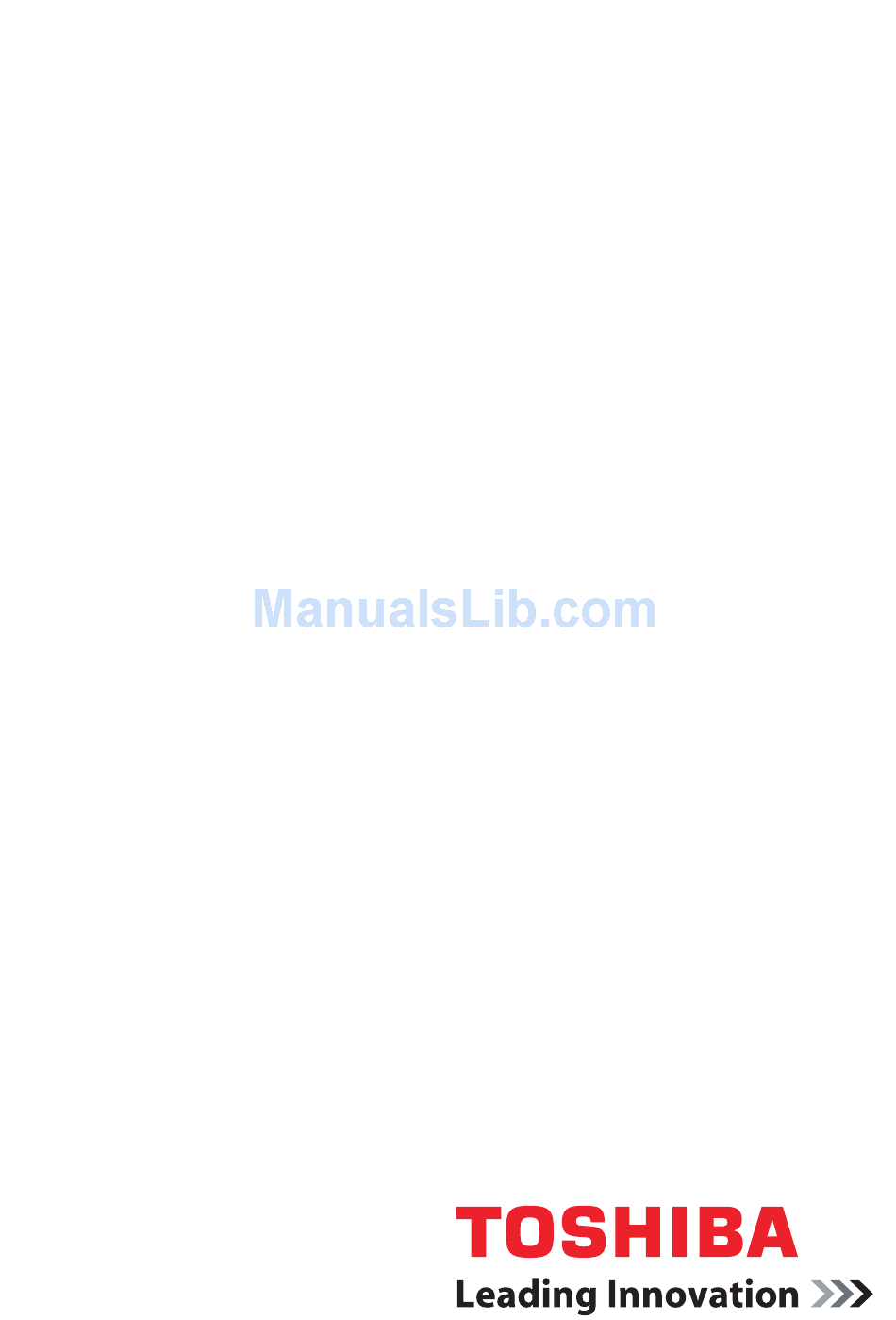

  • Page 1 User’s Manual A210 computers.toshiba-europe.com...
  • Page 2 © 2007 by TOSHIBA Corporation. All rights reserved. Under copyright law, this manual cannot be reproduced in any form without the prior written permission of TOSHIBA. No patent liability is assumed, with respect to the use of the information contained herein.

  • Page 3: When Using Your Computer

    Other trademarks and registered trademarks not listed above may be used in this manual. Macrovision License of Notice This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.
  • Page 4 To reduce the risk of fire, use only No. 26 AWG or larger telecommunication line cord. Use only the battery pack that came with the computer or an optional battery pack. Use of the wrong battery could damage your computer. TOSHIBA assumes no liability for any damage in such case. User’s Manual...
  • Page 5 Low Voltage Directive 73/23/EEC for the supplied power adapter. CE Marking is the responsibility of TOSHIBA EUROPE GmbH, Hammfelddamm 8, 41460 Neuss, Germany. For a copy of the related CE Declaration of Conformity please refer to the following website: http://epps.toshiba-teg.com.
  • Page 6 Optical Disc Drive Safety Instruction Your A210 computer is equipped with one of the following drives: DVD Super Multi (+-R DL) drive, HD DVD ROM drive or HD DVD-R drive. ■ The optical disc drive employs a laser system. To ensure proper use of this product, please read this instruction manual carefully and retain for future reference.
  • Page 7 In other countries, the drive is certified to comply with the requirement pursant to IEC 825 and EN60825 on class 1 laser product. This computer is equipped with one of the optical drives in the following list: Manufacturer Pioneer Toshiba Samsung Hitachi Panasonic Teac Toshiba Toshiba User’s Manual...
  • Page 8 Modem warning notice Conformity Statement The equipment has been approved to [Commission Decision “CTR21”] for pan- European single terminal connection to the Public Switched Telephone Network (PSTN). However, due to differences between the individual PSTNs provided in different countries/regions the approval does not, of itself, give an unconditional assurance of successful operation on every PSTN network termination point.

  • Page 9: General Precautions

    General Precautions TOSHIBA computers are designed to optimize safety, minimize strain and withstand the rigors of portability. However, certain precautions should be observed to further reduce the risk of personal injury or damage to the computer. Be certain to read the general precautions below and to note the cautions included in the text of the manual.

  • Page 10: Instruction Manual For Safety And Comfort

    Heat injury ■ Avoid prolonged physical contact with the computer. If the computer is used for long periods, its surface can become very warm. While the temperature will not feel hot to the touch, if you maintain physical contact with the computer for a long time, for example if you rest the computer on your lap or if you keep your hands on the palm rest, your skin might suffer a low-heat injury.

  • Page 11: Table Of Contents

    Special features ......... 1-10 TOSHIBA Value Added Package ......1-11 Utilities and Applications.
  • Page 12 TOSHIBA Disc Creator ........4-27...
  • Page 13 TOSHIBA support ........
  • Page 14 A210 User’s Manual...

  • Page 15: Preface

    Preface Congratulations on your purchase of the A210 computer. This powerful notebook computer provides excellent expansion capability, including multimedia devices, and it is designed to provide years of reliable, high-performance computing. This manual tells how to set up and begin using your computer. It also provides detailed information on configuring your computer, basic operations and care, using optional devices and troubleshooting.

  • Page 16: Manual Contents

    Basics, includes instructions on using the following Keyboard, describes special keyboard functions including Modes, gives details on the computer’s Setup, introduces you to the TOSHIBA Hardware Setup Devices, describes the optional hardware available. provide technical information about your computer. defines general computer terminology and includes a list of...
  • Page 17 Keys The keyboard keys are used in the text to describe many computer operations. A distinctive typeface identifies the key top symbols as they appear on the keyboard. For example, Enter identifies the Enter key. Key operation Some operations require you to simultaneously use two or more keys. We identify such operations by the key top symbols separated by a plus sign (+).

  • Page 18: Equipment Checklist

    TOSHIBA. SD Memory Card Format Utility and other SD functions are packaged into TOSHIBA SD Memory Utilities. When uninstalling the SD utilities, click Start -> Control Panel -> Uninstall a program, and select TOSHIBA SD Memory Utilities. xviii Windows Vista™...
  • Page 19 Documentation ■ Your computer’s documentation: ■ A210 Personal Computer User’s Manual ■ A210 Quickstart ■ Microsoft (provided with some models) ■ Instruction Manual for Safety & Comfort ■ Warranty Information Backup media ■ Product Recovery DVD-ROM If any of the items are missing or damaged, contact your dealer immediately.
  • Page 20 A210 User’s Manual...

  • Page 21: Chapter 1 Features, Utilities And Options

    Features, Utilities and Options This chapter identifies the computer’s special features, options and accessories. Some of the features described in this manual may not function properly if you use an operating system that was not pre-installed by TOSHIBA. Features Processor Disclaimer (CPU) For more information on the Disclaimer regarding CPU, please refer toChapter 10, Disclaimers.
  • Page 22 Memory The graphics system in your computer may use part of the main system memory for graphics performance and therefore reduce the amount of system memory available for other computing activities. The amount of system memory allocated to support graphics may vary depending on the graphics system, applications utilized, system memory size and other factors.
  • Page 23 Power Battery Pack Disclaimer (Battery Life) For more information on the Disclaimer regarding Battery Life, please refer to Chapter 10, Disclaimers. RTC Battery AC adapter TouchPad/Dual Mode Pad The volume control on the right side of the TouchPad and print button may not function with some applications.
  • Page 24 Display Disclaimer (LCD) For more information on the Disclaimer regarding LCD, please refer to Chapter 10, Disclaimers. Graphics controller Disclaimer (Graphics Processor Unit (“GPU”) For more information on the Disclaimer regarding Graphic Processor Unit (“GPU”), please refer to Chapter 10, Disclaimers. Drives Fixed hard disk drive Depending on the model you purchased: 15.4"...
  • Page 25 Disclaimer (HDD Drive Capacity) For more information on the Disclaimer regarding HDD Drive Capacity, please refer to Chapter 10, Disclaimers. DVD Super Multi drive supporting ±R Double Layer User’s Manual Some models are equipped with a full-size DVD Super Multi drive supporting ±R Double Layer module with dual layer support that lets you record data to rewritable CD/DVDs as well as run either 12cm (4.72") or 8cm (3.15") CD/DVDs...
  • Page 26 HD DVD-ROM drive Some models are equipped with a full-size HD DVD-ROM drive that reads HD DVD-ROMs at maximum 1x speed DVD-ROMs at maximum 8x speed and CD-ROMs at maximum 24x speed. It writes CD-Rs at up to 16x speed, CD-RWs at up to 10x speed, DVD-Rs at maximum 4x speed, DVD-RWs at maximum 6x speed, DVD+RWs at maximum 4x speed, DVD+Rs at maximum...
  • Page 27 HD DVD-R drive Slots (depending on configuration) Multiple Digital Media Card (SD/SDHC/MMC/MS/ MS Pro/xD) Express Card User’s Manual Some models are equipped with a full-size HD DVD-R drive that reads HD DVD-ROMs at maximum 1x speed HD DVD-Rs at maximum 1x speed DVD-ROMs at maximum 8x speed and CD-ROMs at maximum 24x speed.
  • Page 28 Ports (depending on configuration) External monitor Universal Serial Bus i.LINK (IEEE1394a) HDMI TV Out Multimedia Web Camera (depending on configuration) Sound system Headphone jack Microphone jack 15-pin analog VGA port supports VESA DDC2B compatible functions. The computer has four Universal Serial Bus (USB) ports that comply with the USB 2.0 standard, which enables data transfer speeds more than 40 times faster than USB 1.1 (which...

  • Page 29: Security Lock Slot

    Communications (depending on configuration) Modem Wireless LAN Bluetooth Security Security Lock Slot User’s Manual An internal modem provides capability for data and fax communication. It supports the V.90 or V.92 standards depending on the region and provides a modem jack for connection to a telephone line.

  • Page 30: Special Features

    Special features The following features are either unique to TOSHIBA computers or are advanced features, which make the computer more convenient to use. TOSHIBA Value Added Package Display Automatic Power off Hard Disk Drive Automatic Power Off System Automatic Sleep/Hibernation...

  • Page 31: Toshiba Value Added Package

    ■ Do not remove the battery pack while the computer is in Sleep mode. Data in memory will be lost. TOSHIBA Value Added Package This section describes the TOSHIBA Component features pre-installed on the computer. TOSHIBA Power Saver TOSHIBA Button...

  • Page 32: Utilities And Applications

    TOSHIBA Flash Cards When you start or resume your computer, the TOSHIBA Flash Cards may take a moment to become available and may display several times before completely activating. The hot key functions will be available once the TOSHIBA Cards are completely active.
  • Page 33 TOSHIBA ConfigFree ConfigFree is a suite of utilities to allow easy TOSHIBA Disc Creator TOSHIBA DVD-RAM Utility TOSHIBA Hardware Setup CD/DVD Drive Acoustic Silencer Ulead DVD MovieFactory TOSHIBA The availability of Labelflash™ function depends on the model you purchased. User’s Manual control of communication devices and network connections.

  • Page 34: Options

    You can add a number of options to make your computer even more powerful and convenient to use. The following options are available: Memory Modules Use only PC5300 compatible DDRII memory modules. See your TOSHIBA dealer for details. Battery Pack...

  • Page 35: Chapter 2 The Grand Tour

    The Grand Tour This chapter identifies the various components of your computer. Become familiar with each component before you operate the computer. Your selected model may not have all the features and specifications corresponding to all of the features shown below. Front with the display closed The following figure shows the computer front with its display panel in the closed position.
  • Page 36 DC IN LED Power LED Battery LED Hard Disk Drive LED Multiple Digital Media Card Slot Access LED* Wireless Communication Switch* Wireless Communication LED* Infrared Reception Window* Multiple Digital Media Card Slot* The DC IN LED indicates the computer is connected to the AC adapter and it is plugged into an AC power source.

  • Page 37: Right Side

    Microphone Jack Headphone Jack Volume Control Right side The following figure shows the computer’s right side. Universal Serial Bus (USB) Ports Modem Jack* Optical Disc Drive Optical Disc Drive LED * The availability of this feature is dependent on the model you purchased. Univesal Serial Bus (USB) Ports Modem Jack...

  • Page 38: Left Side

    Optical Disc Drive Optical Disc Drive Eject Button Emergency Eject Hole DC IN Jack Security Lock Left side The following figure shows the computer’s left side. RGB Monitor Port Fan Vents TV Out Port* LAN Jack * The availability of this feature is dependent on the model you purchased. RGB Monitor Port Fan Vents The computer is configured with a full-size optical...
  • Page 39 To prevent possible over heating of the CPU, never block the fan vent. TV Out Port* LAN Jack Universal Serial Bus (USB) Ports Express Card Slot for Cardbus Card Slot* HDMI V1.2 Port* i.LINK (IEEE1394a) Port* User’s Manual Connect a 4-pin S- video cable into this connector in order to output either an NTSC or PAL television signal.

  • Page 40: Back Side

    Back side The following figure shows the computer’s back side. Fan Vents To prevent possible overheating of the CPU, never block the fan vents. Fan Vents The back side of the computer The fan vents help prevent the CPU from overheating.

  • Page 41: Underside

    Underside The following figure shows the underside of the computer. Make sure the display is closed before turning over your computer. Expansion Memory Socket Fan Vent Expansion Memory Socket Fan Vent To prevent possible overheating of the CPU, never block the fan vents. Battery Pack Latch Battery Pack User’s Manual...

  • Page 42: Front With The Display Open

    Battery Pack Lock Front with the display open The following figure shows the front of the computer with the display open. To open the display, push the latch on the front of the display and lift it up. Position the display at a comfortable viewing angle. Display Screen Left and Right Speakers TouchPad/Dual Mode Pad...
  • Page 43 To prolong the life of your display screen, use a screen saver when you’re not using the computer and it is idle. Left and Right Speakers TouchPad/Dual Mode Pad TouchPad Control Buttons Power Button Internet Button* CD/ DVD button* Play/Pause Button* Stop* User’s Manual The computer provides two speakers for stereo...

  • Page 44: Keyboard Indicators

    Previous Button* Next Button* Web Camera Power LED* Web Camera* Microphone* If Random or Shuffle is selected in Windows or Previous advances to a random selection. Keyboard Indicators Arrow Mode 2-10 Skips backwards to the previous track, chapter or digital file. Refer to Chapter 4, for details.

  • Page 45: Optical Disc Drive

    Code Writable discs This section describes the types of writable discs. Check the specifications for your drive to for the type of discs it can write. Use TOSHIBA Disc Creator to write compact discs. Refer to Chapter 4, ■ CD-R discs can be written only once. The recorded data cannot be erased or changed.
  • Page 46 DVDs ■ DVD-R and DVD+R discs can be written only once. The recorded data cannot be erased or changed. ■ DVD-RW, DVD+RW and DVD-RAM discs can be recorded more than once. DVD Super Multi drive supporting ±R Double Layer The full-size DVD Super Multi drive supporting ±R Double Layer module lets you record data to rewritable discs as well as run either 12cm (4.72") or 8cm (3.15") discs without using an adapter.
  • Page 47 HD DVD-ROM drive The HD DVD-ROM supporting ±R Double Layer module lets you record data to rewritable discs as well as run either 12cm (4.72") or 8cm (3.15") discs without using an adapter. The read speed is slower at the centre of a disc and faster at the other edge.
  • Page 48 To recharge the battery, simply connect the AC adapter to a power source and the computer. See Chapter 6, Use of the wrong adapter could damage your computer. TOSHIBA assumes no liability for any damage in such case. The output rating for the computer is 19 volts DC.

  • Page 49: Chapter 3 Getting Started

    Getting Started This chapter provides basic information to get you started using your computer. It covers the following topics: Be sure also to read Instruction Manual for Safety & Comfort. This guide, which is included with the computer, explains product liability. ■...

  • Page 50: Connecting The Ac Adapter

    AC adapter to charge the battery pack, refer to Chapter 6, Power-Up Modes. Use of the wrong adapter could damage your computer. TOSHIBA assumes no liability for any damage in such case. The output rating for the computer is 19 volts DC.

  • Page 51: Opening The Display

    Opening the display The display panel can be rotated in a wide range of angles for optimal viewing. 1. Slide the display latch on the front of the computer. 2. Lift the panel up and adjust it to the best viewing angle for you. Use reasonable care when opening and closing the display panel.

  • Page 52: Starting Up For The First Time

    Starting up for the first time When you first turn on the power, the computer’s initial screen is the Windows Vista™ Startup Screen Logo. Follow the on-screen directions for each screen. During setup, you can click the Back button to return to the previous screen.

  • Page 53: Sleep Mode

    Sleep Mode If you do have to interrupt your work, you are able to turn off the power without exiting from your software by placing the computer into Sleep Mode. In this mode data is maintained in the computer’s main memory so that, when you turn on the power again, you can continue working right where you left off.

  • Page 54: Hibernation Mode

    Executing Sleep Mode You can enter also Sleep Mode by pressing Fn + F3 - please refer to Chapter 5, Youu can enter Sleep Mode in one of three ways: 1. Click Start then click the sleep button ( management buttons ( and select Sleep from the menu.

  • Page 55: Starting Hibernation Mode

    Benefits of Hibernation Mode The Hibernation Mode feature provides the following benefits: ■ Saves Data to the hard disk drive when the computer automatically shutsdown because of a low battery condition. ■ You can return to your previous working environment immediately when you turn on the computer.

  • Page 56: Restarting The Computer

    Restarting the computer Certain conditions require that you reset the computer, for example if: ■ You change certain computer settings. ■ An error occurs and the computer does not respond to your keyboard commands. If you need to restart the computer, there are three ways this can be achieved: 1.

  • Page 57: Restoring The Pre-Installed Software

    2. Switch on the computer and, when the In Touch with Tomorrow TOSHIBA prompt appears, press the F12 key to display the Boot Menu. 3. Use the up or down cursor key to select the CD-ROM/DVD drive in the display menu.
  • Page 58 A210 3-10 User’s Manual...

  • Page 59: Chapter 4 Operating Basics

    Operating Basics This chapter gives information on basic operations including using the TouchPad/Dual Mode Pad, optical disc drives, the internal modem, LAN and wireless LAN. It also provides tips on caring for your computer and on heat dispersal. Using the TouchPad/Dual Mode Pad To use the TouchPad/Dual Mode Pad, simply move your finger tip across it in the direction you want the on-screen pointer to go.

  • Page 60: Dual Mode Pad Button Function (Dual Mode Pad Is Provided With Some Models)

    Do not press on the TouchPad/Dual Mode Pad too hard or press a sharp object such as a ball point pen against it. The TouchPad/Dual Mode Pad could be damaged. The TouchPad/Dual Mode Pad has similar functions to a two-button mouse with a scroll wheel.

  • Page 61: Using The Web Camera (Depending On The Model Purchased)

    ConfigFree Windows Photo Gallery Application buttons Please refer to “Properties for synaptics Dual Mode Pad” for details. Using the Web Camera (depending on the model purchased) This section describes the optional Web Camera feature, which can snapshot images and record videos. Wen Camera Led User’s Manual ConfigFree is a suite of utilities to allow easy...

  • Page 62: Using The Software

    Using the software The Web Camera software is pre-configured to start when you turn on Windows Vista; if you need to restart it go to Start -> All Programs -> Camera Assistant Software -> Camera Assistant Software. Snapshot Video Recording Audio Recording Functions Snapshot...

  • Page 63: Using The Internal Modem

    Settings Help Using the internal modem This section describes how to setup the modem and use it to connect to other computer systems. Refer to the computer’s online help files and the online help files for your modem software, for more information. The internal modem does not support the voice functions described in the help files.

  • Page 64: Region Selection

    1. Open the Modem Region Select application. It is located on the Programs menu at TOSHIBA > Networking. Do not use the Country/Region Select function in the Modem setup utility in the Control Panel if the function is available. If you change the Country/ Region in the Control Panel, the change may not take effect.

  • Page 65: Modem Selection

    Settings You can enable or disable the following settings: AutoRun Mode Region Select Utility starts automatically when you start up the operating system. Open the Dialing Properties dialog box after selecting region. The dialing properties dialog box will be displayed automatically after you select the region.

  • Page 66: Lan

    Connecting To connect the internal modem cable, follow the steps below. ■ In case of a lightning storm, unplug the modem cable from the telephone jack. ■ Do not connect the modem to a digital telephone line. A digital line will damage the modem.

  • Page 67: Connecting The Lan Cable

    Connecting the LAN cable The computer must be configured properly before connecting to a LAN. Logging onto a LAN using the computer’s default settings could cause a malfunction in LAN operation. Check with your LAN administrator regarding set-up procedures. If you are using Ethernet LAN (10 Mbps, 10BASE-T), you can connect using either a CAT5 or a CAT3 cable.

  • Page 68: Wireless Lan

    Internet is an open invitation for outsiders to abuse your ISP account and privileges. 2. TOSHIBA is not liable for the eavesdropping on your data due to the use of the wireless LAN connection and any damage that may occur thereof.

  • Page 69: Bluetooth Wireless Technology

    Please refer also to the electronic information which is included with each software. This Bluetooth specification. TOSHIBA cannot confirm compatibility between any PC products and/or other electronic devices that use Bluetooth™ other than TOSHIBA mobile PCs. Release Notes related to the Bluetooth by TOSHIBA 1.

  • Page 70: Using Optical Disc Drives

    Wireless communications It may not be possible to make a network connection to a specified network name using the ad hoc network function. If this occurs, the new network(*) will have to be configured for all computers connected to the same network in order to re-enable network connections.
  • Page 71 Loading optical disc media To load a disc, follow the steps below. 1. Turn on the power. 2. a. Press the eject button to open the drawer slightly. b. Pressing the eject button will not open the drawer when the computer’s power is off.
  • Page 72 4. Lay the disc, label side up, in the drawer. Be careful not to touch the lens or the area around it. Doing so could cause the drive to malfunction. 5. Press gently at the center of the disc until you feel it click into place. The disc should lie below the top of the spindle, flush with its base.

  • Page 73: Removing Compact Discs

    Removing compact discs To remove the disc, follow the steps below. Do not press the eject button while the computer is accessing the disc drive. Wait for the optical disc indicator to go out before you open the drawer. Also, if the disc is spinning when you open it, wait for it to stop before you remove it.
  • Page 74 Previous If Random or Shuffle is selected in Windows Media Player, selecting Next or Previous advances to a random selection. 4-16 TOSHIBA Button Support Starts or pauses play Stops play Advances to the next track, chapter or data Returns to the previous track, chapter or data...

  • Page 75: Writing Cds/Dvds On A Dvd Super Multi Drive Or Hd Dvd-Rom Drive Supporting Double Layer Disc Recording

    Based on TOSHIBA’s limited compatibility testing, we suggest the following manufacturers of CD-R/RW and DVD-R/+R/-RW/+RW/-RAM media. However, in no event does TOSHIBA guarantee the operation, quality or performance of any disc. Disc quality can affect write or rewrite success rates.
  • Page 76 CD-RW: DVD-R: DVD-RW: DVD+R: DVD+RW: *DVD-RAM DVD+R (Double Layer) DVD-R (Dual Layer) DVD-R Labelflash™ DVD+R Labelflash™ ■ If the disc is poor in quality, dirty or damaged, writing or rewriting errors may occur. Be careful to check the disc for dirt or damage before you use it.
  • Page 77 Write from the computer’s hard disk drive to the CD. Do not try to write from shared devices such as a LAN server or any other network device. ■ Writing with software other than TOSHIBA Disc Creator or Ulead DVD MovieFactory operation with other software cannot be guaranteed.

  • Page 78: When Writing Or Rewriting

    Simplified steps for making a Labelflash™ DVD: 1. Insert a Labelflash™ disc in DVD drive. Set printable surface for underside. 2. Click Start -> All Programs -> DVD MovieFactory for TOSHIBA -> Ulead DVD MovieFactory for TOSHIBA Launcher to launch DVD MovieFactory.

  • Page 79: Writing Cds/Dvds/Hd Dvds On A Hd Dvd-R Drive

    Based on TOSHIBA’s limited compatibility testing, we suggest the following manufacturers of CD-R/RW, DVD-R/+R/-RW/+RW/-RAM and HD DVD-R media. However, in no event does TOSHIBA guarantee the operation, quality or performance of any disc. Disc quality can affect write or rewrite success rates.
  • Page 80 DVD-R: DVD-RW: DVD+R: DVD+RW: *DVD-RAM DVD+R (Double Layer) DVD-R (Dual Layer) HD DVD-R HD DVD-R (Double Label) ■ If the disc is poor in quality, dirty or damaged, writing or rewriting errors may occur. Be careful to check the disc for dirt or damage before you use it.
  • Page 81 Write from the computer’s hard disk drive to the CD. Do not try to write from shared devices such as a LAN server or any other network device. ■ Writing with software other than TOSHIBA Disc Creator or Ulead DVD MovieFactory operation with other software cannot be guaranteed.

  • Page 82: Using Ulead Dvd Moviefactory For Toshiba

    How to make a DVD-Video Simplified steps for making a DVD-Video from video data captured from a DV-Camcorder: 1. Click Start -> All Programs -> DVD MovieFactory for TOSHIBA -> Ulead DVD MovieFactory for TOSHIBA Launcher to launch DVD MovieFactory.

  • Page 83: Important Information For Use

    Simplified steps for making a DVD-Video from adding a video source: 1. Click Start -> All Programs -> DVD MovieFactory for TOSHIBA -> Ulead DVD MovieFactory for TOSHIBA Launcher to launch DVD MovieFactory. 2. Click Video Disc -> New Project to invoke 2nd Launcher, choose your project type, then invoke DVD MovieFactory.
  • Page 84 2. Before recording the video to DVD ■ When you record to DVD disc, please use only discs recommended by the Drive manufacturer. ■ Do not set the working drive to a slow device like a USB 1.1 hard disk drive or it will fail to write DVD. ■...

  • Page 85: Toshiba Disc Creator

    DVD-R/-RW or DVD+R/+RW media. ■ Do not use the “Disc Backup” function of TOSHIBA Disc Ceator to copy DVD-Video and DVD-ROM with copyright protection.DVD-RAM media cannot be backed up with the “Disc Backup” finction of TOSHIBA Disc Ceator ■...

  • Page 86: Media Care

    Data Verification To verify that data is written or rewritten correctly, follow the steps below before you write or rewrite a Data CD/DVD. 1. Display the setting dialog box by one of the following two steps: ■ Click the setting button ( Data CD/DVD mode.

  • Page 87: Tv-Out & Hdmi

    TV-Out & HDMI Use the TV-Out port to connect to a television. Be sure to use a 4 pin type S-video cable. Use the HDMI port to connect to an HDTV. For more details, see Appendix B. Setting up more than one display You can set up your computer to utilize more than one display, effectively spreading a single desktop screen across two monitors.

  • Page 88: Cleaning The Computer

    If an external display will not be connected next time you use your computer, you should cancel any extended desktop or clone display settings before shutting down your computer. Clone display settings are those where more than one device has been selected and is simultaneously applicable.

  • Page 89: Chapter 5 The Keyboard

    The Keyboard The computer’s keyboard layouts are compatible with a 104/105-key enhanced keyboard. By pressing some keys in combination, all the 104/105-key keyboard functions can be executed on the computer. The number of keys on your keyboard depends on which country/region’s keyboard layout your computer is configured with.

  • Page 90: F1 ... F12 Function Keys

    Soft keys: Fn key combinations The Fn (function) is unique to TOSHIBA computers and is used in combination with other keys to form soft keys. Soft keys are key combinations that enable, disable or configure specific features.

  • Page 91: Hotkeys

    Hotkeys Fn + ESC Fn + F1 Fn + F2 Fn + F3 Fn + F4 Fn + F5 Default resolution for simultaneous mode is set to WXGA (1280x800). If you connect an RGB (Monitor) that is not WXGA resolution, change it in “Display Properties”.

  • Page 92: Windows Special Keys

    Windows special keys The keyboard provides two keys that have special functions in Windows Vista™. One activates the Start menu and the other has the same function as the secondary mouse button. This key activates the Windows Vista™ Start menu. This key has the same function as the Right mouse button.

  • Page 93: Numeric Mode

    Numeric mode To turn on the Numeric mode, press Fn + F11 (Numeric mode indicator lights). Now try numeric data entry using the keys below. Press Fn + F11 again to turn off the overlay. Temporarily using normal keyboard (overlay on) While using the overlay, you can temporarily access the normal keyboard without turning off the overlay: 1.

  • Page 94: Generating Ascii Characters

    Temporarily using overlay (overlay off) While using the normal keyboard, you can temporarily use the keypad overlay without turning it on: 1. Press and hold down Fn. 2. Check the keyboard indicators. Pressing Fn turns on the most recently used overlay. If the Numeric mode indicator lights, you can use the overlay for numeric entry.

  • Page 95: Chapter 6 Power And Power-Up Modes

    Power and Power-Up Modes The computer’s power resources include the AC adapter and internal batteries. This chapter gives details on making the most effective use of these resources including charging and changing batteries, tips for saving battery power, and power up modes. Power conditions The computer’s operating capability and battery charge status are affected by the power conditions: whether an AC adapter is connected, whether a...

  • Page 96: Power Indicators

    • LED: Battery flashes amber DC IN off Computer goes into Hibernation or shuts down (depending on the TOSHIBA Power Saver setting) • No operation • LED: Battery off DC IN off The battery charge is low. The AC adapter must...

  • Page 97: Battery

    DC IN indicator Check the DC IN indicator to determine the power status with the AC adapter connected: Blue No light Power indicator Check the Power indicator to determine the power status with the AC adapter connected: Blue Blinking Amber No light Battery Battery types...

  • Page 98: Real Time Clock Battery

    Press <F1> to resume, <F2> to Setup. The computer’s RTC battery is a lithium battery and should be replaced only by your dealer or by a TOSHIBA service representative. The battery can explode if not properly replaced, used, handled or disposed of.

  • Page 99: Care And Use Of The Battery Pack

    Care and use of the battery pack The battery pack is a vital component of portable computing. Taking proper care of it will help ensure longer operating time on battery power as well as a longer life for your battery pack. Follow the instructions in this section carefully to ensure safe operation and maximum performance.
  • Page 100 Never use the computer again until it has been checked by a TOSHIBA service provider. It might generate smoke or fire, or the battery pack might rupture. 3. Make sure the battery is securely installed in the computer before attempting to charge the battery pack.

  • Page 101: Charging The Batteries

    6. Be sure to monitor the remaining battery power. If the battery pack or real time clock battery discharge completely, Sleep Mode will not function, and data in memory will be lost, and the computer might register an incorrect time and date. In this case, connect the AC adapter to recharge the batteries.

  • Page 102: Battery Charging Notice

    Charging time (hours) Battery type Battery pack RTC battery The charging time when the computer is on is affected by ambient temperature, the temperature of the computer and how you use the computer. If you make heavy use of external devices the battery might scarcely charge at all during operation.

  • Page 103: Monitoring Battery Capacity

    Monitoring battery capacity Remaining battery power can be monitored using the following methods. ■ Clicking the battery icon on the task bar ■ Via the Battery Stats in the Windows Mobility Center Window ■ You should wait at least 16 seconds after turning on the computer before trying to monitor the remaining operating time.

  • Page 104: Replacing The Battery Pack

    Retaining data with power off (Sleep mode) When you turn off your computer with fully charged batteries, the batteries retain data/charge for the following approximate time periods: Battery RTC battery * The availability of this battery is dependent on the model you purchased. Extending battery life To maximize the life of your battery pack: ■...
  • Page 105 5. Unlock the Battery Pack Lock. 6. Slide the battery pack latch to the left, then pull the battery out of the battery bay. User’s Manual Removing the battery pack-1 Removing the battery pack-2 6-11...

  • Page 106: Installing The Battery Pack

    The battery pack is a lithium ion battery, which can explode if not properly replaced, used, handled or disposed of. Dispose of the battery as required by local ordinances or regulations. Use only batteries recommended by TOSHIBA as replacements. 1. Turn the computer’s power off. 2. Disconnect all cables connected to the computer.

  • Page 107: Toshiba Password Utility

    TOSHIBA Password Utility The TOSHIBA Supervisor Password Utility provides two levels of password security: User and Supervisor. Passwords set in TOSHIBA Supervisor Password Utility are different from the Windows User Password To start the utility, point to or click the following items: Launch TOSHIBA Assist ->...

  • Page 108: Power-Up Modes

    3. Press Enter. If you enter the password incorrectly three consecutive times, the computer shuts down. You must turn on the computer again and re-enter the password. Power-up modes The computer has three power-up modes: ■ Hibernation (saves data in memory to the hard disk) ■...

  • Page 109: Chapter 7 Hw Setup

    General, Password, Display, Boot Priority, Keyboard, LAN, and USB. Accessing HW Setup Click Start, point to All Programs, point to TOSHIBA, point to Utilities and click HW Setup HW Setup Window The HW Setup window contains the following tabs: General, Password, Display, Boot Priority, Keyboard, LAN, and USB.

  • Page 110: Boot Priority

    Password This tab allows you to set or reset the user password for power on. Display This tab lets you customize your computer’s display settings for either the internal LCD screen or for an external monitor. Power On Display This option allows you to select the display to be used when the computer is switched on.
  • Page 111 Keyboard Wake-up on Keyboard When this feature is enabled and the computer is in Sleep mode, you can turn on the computer by pressing any key. It is effective only for the internal keyboard and only when the computer is in Sleep mode. Enabled Disabled Legacy USB Support...
  • Page 112 A210 User’s Manual...

  • Page 113: Chapter 8 Optional Devices

    Optional Devices Optional devices can expand the computer’s capabilities and its versatility. This chapter describes connection or installation of the following types of devices, which are available from your TOSHIBA dealer: Cards/Memory ■ Express Card Support 54/34 Express Card ■...

  • Page 114: Express Card

    Express Card The computer (depending on the model) is equipped with an Express Card expansion slot that can accommodate two standard module formats; an Express Card/34 module and an Express Card/54 module. An Express Card module is a small, modular add-in card technology based on PCI Express and Universal Serial Bus (USB) interfaces.

  • Page 115: Sd/Sdhc/Mmc/Ms/Ms Pro/Xd Memory Cards

    SD/SDHC/MMC/MS/MS Pro/xD Memory cards The computer is equipped with a multiple digital media card slot that can accommodate SD/SDHC/MMC/MS/MS Pro/xD memory cards. These memory cards let you easily transfer data from devices, such as digital cameras and Personal Digital Assistants, which use flash-memory. Card Type SDHC MS Pro...

  • Page 116: Installing A Memory Card

    Installing a memory card To install a memory card: 1. Insert the memory card. 2. Press gently to ensure a firm connection. Make sure the memory card is oriented properly before you insert it. If Windows ® ■ The multiple digital media card slot only accepts one type of card at a time.

  • Page 117: Memory Expansion

    In this case the computer will issue a warning. CAUTION: If you want to upgrade system memory, you should only use certified modules. Ask your vendor or check the TOSHIBA web site for a list of approved memory products. User’s Manual...
  • Page 118 Insert the two memory modules of the same specifications and capacity into Slot A (Upper) and Slot B (Bottom) respectively. The computer will operate in dual channel mode. You can access the inserted memory modules efficiently in dual channel. Installing Memory on Bottom Side If you use the computer for a long time, the memory modules will become hot.
  • Page 119 6. Fit the module’s connectors into the computer’s connectors at about a 45 degree angle and press the module carefully to ensure a firm connection. Do not touch the connectors on the memory module or on the computer. Debris on the connectors may cause memory access problems. 7.

  • Page 120: Additional Battery Pack

    4. Push the latches to the outside to release the module. A spring will force one end of the module up. 5. Grasp the module and pull it out. Do not touch the connectors on the memory module or on the computer. Debris on the connectors may cause memory access problems.

  • Page 121: External Monitor

    External monitor An external analog monitor can be connected to the external monitor port on the computer. To connect a monitor, follow the steps below. 1. Turn the computer off. 2. Connect the monitor to the external monitor port. 3. Turn the monitor’s power on. 4.
  • Page 122 A210 For ATI Radeon™ X1200 and ATI Mobility Radeon™ HD2400/HD2600* 1. Click Start > Control Panel > Personalization. 2. Choose Display Settings to change resolution and colors. 3. Click Start and All Programs. 4. Click Catalyst Control Center 5. Select CCC. 6.

  • Page 123: Hdmi

    HDMI A HDMI monitor can be connected to the HDMI out put on the computer. To connect monitor, follow the steps as detailed below: As the port operation of all HDMI (High-Definition Multimedia Interface) monitors has not be confirmed, some HDMI monitors may not function properly.
  • Page 124 Connecting the HDMI out port 1. Plug one end of the HDMI out cable into the HDMI out port of the HDMI device. 2. Plug one end of the HDMI out cable into the HDMI out port on your computer. Settings for display video on HDMI To view video on the HDMI device, be sure to configure the following settings otherwise you may find that nothing is displayed.
  • Page 125 Settings for audio on HDMI To set the audio device to use the HDMI, follow the steps below. 1. Go to Start then select Control Panel. 2. Click Hardware and Sound then select Sound. If you are in control panel classic view, select Sound directly. 3.

  • Page 126: I.link (Ieee1394A)

    i.LINK (IEEE1394a) i.LINK (IEEE1394a) is used for high-speed data transfer for a range of compatible devices such as: ■ Digital video cameras ■ Hard disk drives ■ MO drives ■ Optical disc drives i.LINK uses a four-pin connector, which does not carry electric current. External devices will need their own power supply.

  • Page 127: Security Lock

    Security lock A security lock enables you to anchor your computer to a desk or other heavy object to help prevent unauthorized removal of the computer. Attach one end of a cable to the desk and the other end to the security lock slot on the right side of the computer.
  • Page 128 A210 8-16 User’s Manual...

  • Page 129: Troubleshooting

    Troubleshooting TOSHIBA designed the computer for durability. However, should problems occur, following the procedures in this chapter can help to determine the cause. All readers should become familiar with this chapter. Knowing what might go wrong can help prevent problems from occurring.

  • Page 130: Preliminary Checklist

    Preliminary checklist Consider the simplest solution first. The items in this checklist are easy to fix and yet can cause what appears to be a serious problem. ■ Make sure you turn on all peripheral devices before you turn on the computer.

  • Page 131: Hardware And System Checklist

    Software Hardware Hardware and system checklist This section discusses problems caused by your computer’s hardware or attached peripherals. Basic problems may occur in the following areas: ■ System start-up ■ Self test ■ Power ■ Battery ■ Keyboard ■ LCD panel ■...

  • Page 132: Self Test

    If any of the following conditions are present, the self test failed: ■ The computer stops and does not proceed to display information or messages except the TOSHIBA logo. ■ Random characters appear on the screen, and the system does not function normally.

  • Page 133: Overheating Power Down

    Power When the computer is not plugged into an AC outlet, the battery pack is the primary power source. However, your computer has a number of other power resources, including an intelligent power supply and Real Time Clock battery. These resources are interrelated and any one could affect apparent power problems.
  • Page 134 Battery If you suspect a problem with the battery, check the DC IN indicator as well as the indicators for the battery. For information on indicators and battery operation see Chapter 6, Problem Battery doesn’t power the computer. Battery doesn’t charge when the AC power cord is attached.

  • Page 135: Lcd Panel

    Keyboard Keyboard problems can be caused by your setup configuration. For more information refer to Chapter 5, Problem Some letter keys produce numbers. Output to screen is garbled. LCD panel Problem Lines appear broken. No display Problems above remain unresolved or other problems occur.
  • Page 136 Hard disk drive Problem Computer does not boot from hard drive. Slow performance Password Problem Cannot enter password i.LINK (IEEE1394a) Problem i.LINK device does not function Procedure Insert a system disk and reboot. There may be a problem with your operating system files.
  • Page 137 Wireless LAN If the following procedures do not restore LAN access, consult your LAN administrator. For more information on wireless communication, refer to Chapter 4, Operating Problem Cannot access Wireless LAN Monitor Refer also to Chapter 8, documentation. Problem Monitor does not turn on No display Display error occurs...

  • Page 138: Sound System

    Sound system Problem No sound is heard Pointing device If you are using a USB mouse, also refer to the and to your mouse documentation. TouchPad/Dual Mode Pad Problem On-screen pointer does not respond to Pad operation Double-tapping does not work The mouse pointer moves too fast or too slow...

  • Page 139: Usb Mouse

    USB mouse Problem On-screen pointer does not respond to mouse movement Double-clicking does not work The mouse pointer moves too fast or too slow The mouse pointer moves erratically Refer also to your USB device’s documentation. Problem USB device does not work User’s Manual Procedure...

  • Page 140: Tv Output Signal

    TV output signal Problem Display on TV is poor No display If you turn the computer off in Sleep Mode while the display is on a TV, the computer will select either the internal LCD or an external computer CRT as the display device the next time it is switched on.
  • Page 141 Memory expansion Refer also to Chapter 8, memory modules. Problem The computer hangs up and issues beep sounds. (A long beep, three short beeps, three short beeps, and then a long beep.) Modem Problem Communication software can’t initialize the modem You can hear a dial tone but can’t make a call...
  • Page 142 Problem Character display becomes garbled during a communication You cannot receive an incoming call DVD Super Multi drive supporting double layer disc recording For more information, refer to Chapter 4, Problem You cannot access a disc in the drive 9-14 Procedure In data transmission, make sure the parity bit and stop bit settings correspond with those of the...
  • Page 143 Check the region code on the DVD. It must match that on the DVD Super Multi drive. If you have trouble writing, make sure you are observing the following precautions: ■ Use only media recommended by TOSHIBA. ■ Do not use the mouse or keyboard during writing. ■...

  • Page 144: Toshiba Support

    [F2] to Setup. TOSHIBA support If you require any additional help using your computer or if you are having problems operating the computer, you may need to contact TOSHIBA for additional technical assistance. Before you call Some problems you experience may be related to software or the operating system, it is important to investigate other sources of assistance first.

  • Page 145: Disclaimers

    Disclaimers This chapter states the Disclaimer(s) information applicable to TOSHIBA computers. Central Processing Unit (“CPU”) Performance Disclaimer. CPU performance in your computer product may vary from specifications under the following conditions: ■ use of certain external peripheral products ■ use of battery power instead of AC power ■...

  • Page 146: Battery Life

    Published battery life numbers are achieved on select models and configurations tested by Toshiba at the time of publication. Recharge time varies depending on usage. Battery may not charge while computer is consuming full power.

  • Page 147: Hdd Drive Capacity

    HDD Drive Capacity 1 Gigabyte (GB) means 10 The computer operating system, however, reports storage capacity using powers of 2 for the definition of 1 GB = 2 therefore shows less storage capacity. Available storage capacity will also be less if the product includes one or more pre-installed operating systems, such as Microsoft Operating System and/or pre-installed software applications, or media content.

  • Page 148: Copy Protection

    Copy Protection Copy protection technology included in certain media may prevent or limit recording or viewing of the media. Images All images are simulated for purposes of illustration. LCD Brightness and Eye Strain Your LCD display has a brightness approaching that of a TV device. We recommend that you adjust the brightness of your LCD to a comfortable level to prevent possible strain on your eyes.

  • Page 149: Specifications

    Specifications This appendix summarizes the computer’s technical specifications. Dimensions 362mm (W) x 267.8mm (D) x 39.3mm (H. Max.) 39.3mm 39.3mm User’s Manual Appendix A 267.8mm 267.8mm...

  • Page 150: Environmental Requirements

    Weight Starting at 2.72kg / 5.99lbs* * Weight may vary depending on product configuration, vendor components, manufacturing variability and options selected. Environmental Requirements Conditions Operating Non-operating Conditions Operating Non-operating Built-in Modem Network control unit (NCU) Type of NCU Type of line Type of dialling Control command Monitor function...
  • Page 151 Communication Protocol Communication Speed Error correcting Data compression User’s Manual Data: ITU-T-Rec V.21/V.22/V.22bis/V.32/ (Former CCITT) V.32bis/V.34/V.90/ V.92(only for USA and Canada) Bell 103/212A Fax: ITU-T-Rec V.17/V.29/V.27ter /V.21 (Former CCITT) Data transmission and reception 300/1200/2400/4800/7200/9600/12000/14400/ 16800/19200/21600/24000/26400/28800/31200/ 33600 bps Data reception only with V.90/V.92 28000/29333/30666/32000/33333/34666/36000/ 37333/38666/40000/41333/42666/44000/45333/ 46666/48000/49333/50666/52000/53333/54666/...
  • Page 152 A210 User’s Manual...

  • Page 153: Display Modes

    Display Modes This appendix contains a table listing all the display modes when the display is set to an external monitor. If you are running some applications (for example a 3D application or video playback and so on), you may see some disturbance, flickering or frame dropping on your screen.

  • Page 154: Displaying Movies On A Tv Or Crt

    Displaying movies on a TV or CRT This section describes how to set up your system to display movies simultaneously on your computer’s LCD and on an external TV or CRT monitor. To connect a television, follow the steps below. 1.
  • Page 155 6. In Catalyst Control Center window, setup your television or CRT and Notebook displays. * The availability of this feature is dependent on the model you purchased. Displaying movies on a HDMI Monitor This section describes how to set up your system to display movies a HDMI monitor.
  • Page 156 A210 7. After system applying the display mode to HDMI, click Force then select Desktop area to select the HDMI mode. * The availability of this feature is dependent on the model you purchased. User’s Manual...

  • Page 157: Ac Power Cord And Connectors

    AC Power Cord and Connectors The power cord’s AC input plug must be compatible with the various international AC power outlets and the cord must meet the standards for the country/region in which it is used. All cords must meet the following specifications: Length: Wire size:...
  • Page 158 A210 For the United States and Canada, two pin plug configuration must be a 2-15P (250V) or 1-15P (125V) and three pin plug coniguration must be 6-15P (250V) or 5-15P (125V) as designated in the U. S. National Electrical code handbook and the Canadian Electrical Code Part II. The following illustrations show the plug shapes for the U.

  • Page 159: If Your Computer Is Stolen

    What is your address, phone, and fax number? To register the theft on paper, please follow these procedures: ■ Fill in the TOSHIBA Theft Registration form (or a copy of it) below. ■ Attach a copy of your receipt showing where your computer was purchased.

  • Page 160: Toshiba Theft Registration

    TOSHIBA Theft Registration Send to: Fax number: Country stolen: Machine type: (e.g. A210) Model number: (e.g. PSA21YXT) Serial number: (e.g. 12345678G) Date stolen: Owner’s details Last name, first name: Company: Street: Postal Code/City: Country: Phone: Fax: TOSHIBA Europe GmbH Technical Service and Support Leibnizstr.
  • Page 161 Glossary The terms in this glossary cover topics related to this manual. Alternate naming is included for reference. Abbreviations AC: alternating current AGP: accelerated graphics port BIOS: basic input output system CD-ROM: Compact Disc-Read Only Memory CD-RW: Compact Disc-Read/Write CMOS: complementary metal-oxide semiconductor CPU: central processing unit CRT: cathode ray tube DC: direct current...
  • Page 162 RTC: real time clock SCSI: small computer system interface TFT: thin-film transistor USB: Universal Serial Bus VESA: Video Electronic Standards Association VGA: video graphics array WXGA: wide extended graphics array adaptor: A device that provides an interface between two dissimilar electronic devices.
  • Page 163 cache memory: High speed memory which stores data that increases processor speed and data transfer rate. When the CPU reads data from main memory, it stores a copy of this data in cache memory. The next time the CPU needs that same data, it looks for it in the cache memory rather than the main memory, which saves time.
  • Page 164 controller: Built-in hardware and software that controls the functions of a specific internal or peripheral device (e.g. keyboard controller). CPU: Central Processing Unit. The portion of the computer that interprets and executes instructions. CRT: Cathode Ray Tube. A vacuum tube in which beams projected on a fluorescent screen-producing luminous spots.
  • Page 165 execute: To interpret and execute an instruction. floppy disk: A removable disk that stores magnetically encoded data. floppy disk drive (FDD): An electromechanical device that reads and writes to floppy disks. folder: An icon in Windows used to store documents or other folders. format: The process of readying a blank disk for its first use.
  • Page 166 I/O: Input/output. Refers to acceptance and transfer of data to and from a computer. I/O devices: Equipment used to communicate with the computer and transfer data to and from it. jumper: A small clip or wire that allows you to change the hardware characteristics by electrically connecting two points of a circuit.
  • Page 167 MP3: An audio compression standard that enables high-quality transmission and real-time playback of sound files. numeric keypad overlay: A feature that allows you to use certain keys on the keyboard to perform numeric entry, or to control cursor and page movement. operating system: A group of programs that controls the basic operation of a computer.
  • Page 168 (TFT) to drive each cell. TouchPad/Dual Mode Pad: A pointing device integrated into the TOSHIBA computer palm rest. Universal Serial Bus: This serial interface lets you communicate with several devices connected in a chain to a single port on the computer.
  • Page 169 VGA: Video Graphics Array is an industry standard video adaptor that lets you run any popular software. warm start: Restarting or resetting a computer without turning it off. write protection: A method for protecting a floppy disk from accidental erasure. User’s Manual Glossary-9...
  • Page 170 A210 Glossary-10 User’s Manual...

This manual is also suitable for:

Satellite a210-sp6811Satellite a210-131Satellite a210-sp6812Satellite a215-s5807Satellite a215-s5837Satellite a215-s5850 ... Show all

Table of Contents
