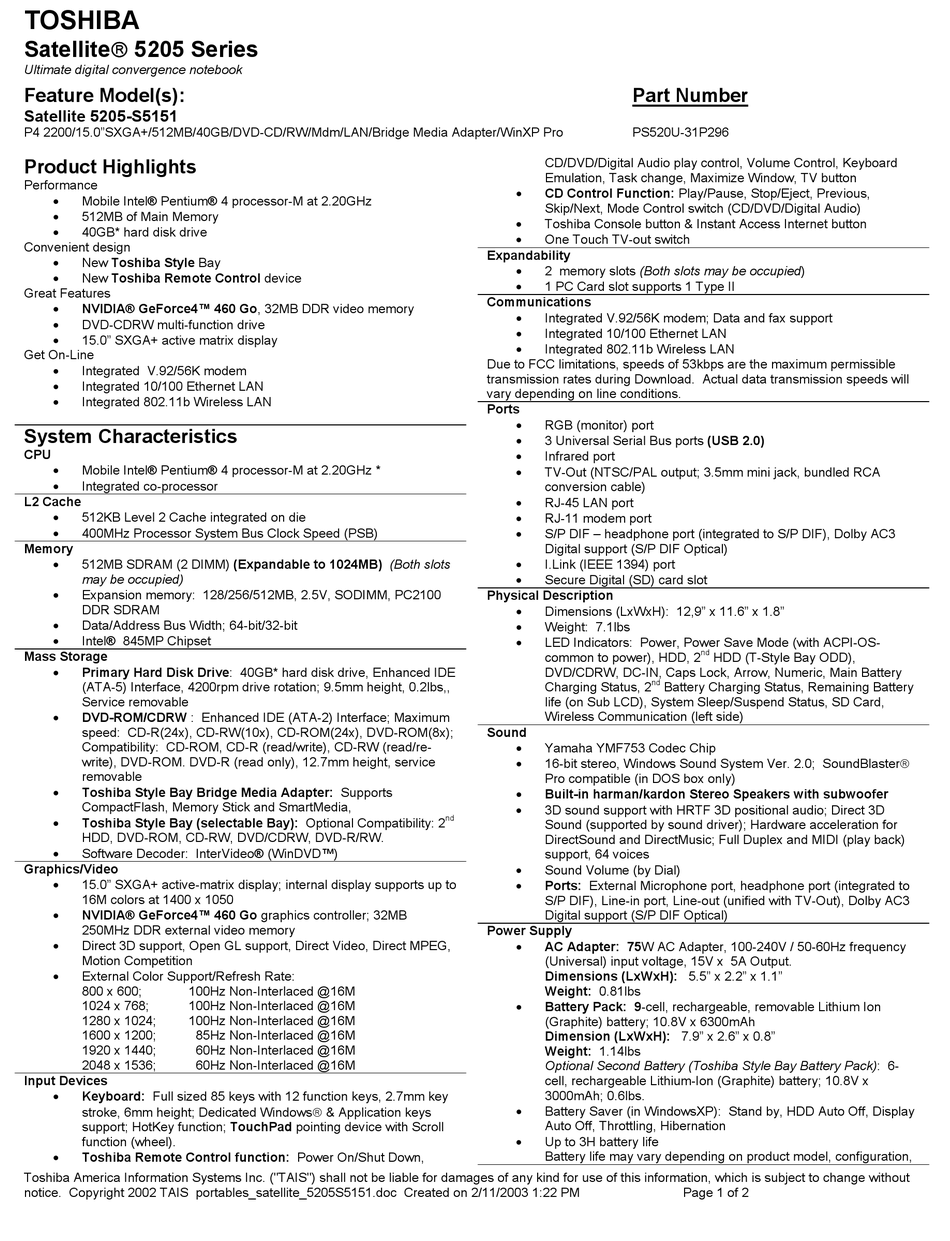

Toshiba Satellite 5205-S5151 Specifications

TOSHIBA
Satellite 5205 Series
Ultimate digital convergence notebook
Feature Model(s):
Satellite 5205-S5151
P4 2200/15.0"SXGA+/512MB/40GB/DVD-CD/RW/Mdm/LAN/Bridge Media Adapter/WinXP Pro

Product Highlights

Performance
• Mobile Intel® Pentium® 4 processor-M at 2.20GHz
•
512MB of Main Memory
•
40GB* hard disk drive
Convenient design
• New Toshiba Style Bay
• New Toshiba Remote Control device
Great Features
•
NVIDIA® GeForce4™ 460 Go, 32MB DDR video memory
•
DVD-CDRW multi-function drive
• 15.0" SXGA+ active matrix display
Get On-Line
•
Integrated V.92/56K modem
•
Integrated 10/100 Ethernet LAN
• Integrated 802.11b Wireless LAN
System Characteristics
CPU
•
Mobile Intel® Pentium® 4 processor-M at 2.20GHz *
•
Integrated co-processor
L2 Cache
• 512KB Level 2 Cache integrated on die
•
400MHz Processor System Bus Clock Speed (PSB)
Memory
• 512MB SDRAM (2 DIMM) (Expandable to 1024MB) (Both slots
may be occupied)
•
Expansion memory: 128/256/512MB, 2.5V, SODIMM, PC2100
DDR SDRAM
•
Data/Address Bus Width; 64-bit/32-bit
• Intel® 845MP Chipset
Mass Storage
•
Primary Hard Disk Drive: 40GB* hard disk drive, Enhanced IDE
(ATA-5) Interface, 4200rpm drive rotation; 9.5mm height, 0.2lbs,,
Service removable
• DVD-ROM/CDRW : Enhanced IDE (ATA-2) Interface; Maximum
speed: CD-R(24x), CD-RW(10x), CD-ROM(24x), DVD-ROM(8x);
Compatibility: CD-ROM, CD-R (read/write), CD-RW (read/re-
write), DVD-ROM. DVD-R (read only), 12.7mm height, service
removable
•
Toshiba Style Bay Bridge Media Adapter: Supports
CompactFlash, Memory Stick and SmartMedia,
• Toshiba Style Bay (selectable Bay): Optional Compatibility: 2
HDD, DVD-ROM, CD-RW, DVD/CDRW, DVD-R/RW.
•
Software Decoder: InterVideo® (WinDVD™)
Graphics/Video
• 15.0" SXGA+ active-matrix display; internal display supports up to
16M colors at 1400 x 1050
•
NVIDIA® GeForce4™ 460 Go graphics controller; 32MB
250MHz DDR external video memory
• Direct 3D support, Open GL support, Direct Video, Direct MPEG,
Motion Competition
• External Color Support/Refresh Rate:
800 x 600; 100Hz Non-Interlaced @16M
1024 x 768; 100Hz Non-Interlaced @16M
1280 x 1024; 100Hz Non-Interlaced @16M
1600 x 1200; 85Hz Non-Interlaced @16M
1920 x 1440; 60Hz Non-Interlaced @16M
2048 x 1536; 60Hz Non-Interlaced @16M
Input Devices
•
Keyboard: Full sized 85 keys with 12 function keys, 2.7mm key
stroke, 6mm height; Dedicated Windows & Application keys
support; HotKey function; TouchPad pointing device with Scroll
function (wheel).
• Toshiba Remote Control function: Power On/Shut Down,
Toshiba America Information Systems Inc. ("TAIS") shall not be liable for damages of any kind for use of this information, which is subject to change without
notice. Copyright 2002 TAIS portables_satellite_5205S5151.doc Created on 2/11/2003 1:22 PM
CD/DVD/Digital Audio play control, Volume Control, Keyboard
Emulation, Task change, Maximize Window, TV button
•
CD Control Function: Play/Pause, Stop/Eject, Previous,
Skip/Next, Mode Control switch (CD/DVD/Digital Audio)
•
Toshiba Console button & Instant Access Internet button
• One Touch TV-out switch
Expandability
•
2 memory slots (Both slots may be occupied)
• 1 PC Card slot supports 1 Type II
Communications
•
Integrated V.92/56K modem; Data and fax support
•
Integrated 10/100 Ethernet LAN
• Integrated 802.11b Wireless LAN
Due to FCC limitations, speeds of 53kbps are the maximum permissible
transmission rates during Download. Actual data transmission speeds will
vary depending on line conditions.
Ports
• RGB (monitor) port
• 3 Universal Serial Bus ports (USB 2.0)
•
Infrared port
•
TV-Out (NTSC/PAL output; 3.5mm mini jack, bundled RCA
conversion cable)
• RJ-45 LAN port
•
RJ-11 modem port
•
S/P DIF – headphone port (integrated to S/P DIF), Dolby AC3
Digital support (S/P DIF Optical)
• I.Link (IEEE 1394) port
• Secure Digital (SD) card slot
Physical Description
•
Dimensions (LxWxH): 12,9" x 11.6" x 1.8"
• Weight: 7.1lbs
• LED Indicators: Power, Power Save Mode (with ACPI-OS-
common to power), HDD, 2
DVD/CDRW, DC-IN, Caps Lock, Arrow, Numeric, Main Battery
Charging Status, 2
life (on Sub LCD), System Sleep/Suspend Status, SD Card,
Wireless Communication (left side)
Sound
•
Yamaha YMF753 Codec Chip
•
16-bit stereo, Windows Sound System Ver. 2.0; SoundBlaster
Pro compatible (in DOS box only)
• Built-in harman/kardon Stereo Speakers with subwoofer
•
3D sound support with HRTF 3D positional audio; Direct 3D
nd
Sound (supported by sound driver); Hardware acceleration for
DirectSound and DirectMusic; Full Duplex and MIDI (play back)
support, 64 voices
• Sound Volume (by Dial)
• Ports: External Microphone port, headphone port (integrated to
S/P DIF), Line-in port, Line-out (unified with TV-Out), Dolby AC3
Digital support (S/P DIF Optical)
Power Supply
• AC Adapter: 75W AC Adapter, 100-240V / 50-60Hz frequency
(Universal) input voltage, 15V x 5A Output.
Dimensions (LxWxH): 5.5" x 2.2" x 1.1"
Weight: 0.81lbs
•
Battery Pack: 9-cell, rechargeable, removable Lithium Ion
(Graphite) battery; 10.8V x 6300mAh
Dimension (LxWxH): 7.9" x 2.6" x 0.8"
Weight: 1.14lbs
Optional Second Battery (Toshiba Style Bay Battery Pack): 6-
cell, rechargeable Lithium-Ion (Graphite) battery; 10.8V x
3000mAh; 0.6lbs.
•
Battery Saver (in WindowsXP): Stand by, HDD Auto Off, Display
Auto Off, Throttling, Hibernation
• Up to 3H battery life
Battery life may vary depending on product model, configuration,
Part Number
PS520U-31P296
nd
HDD (T-Style Bay ODD),
nd
Battery Charging Status, Remaining Battery
