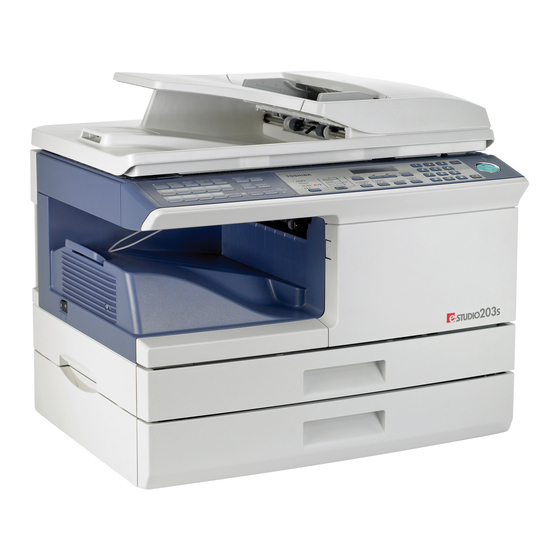

Toshiba e-STUDIO 203S Operator's Manual

Multifunctional digital systems
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Get other manuals https://www.bkmanuals.com

Advertisement

Table of Contents
loading

Related Manuals for Toshiba e-STUDIO 203S

Summary of Contents for Toshiba e-STUDIO 203S

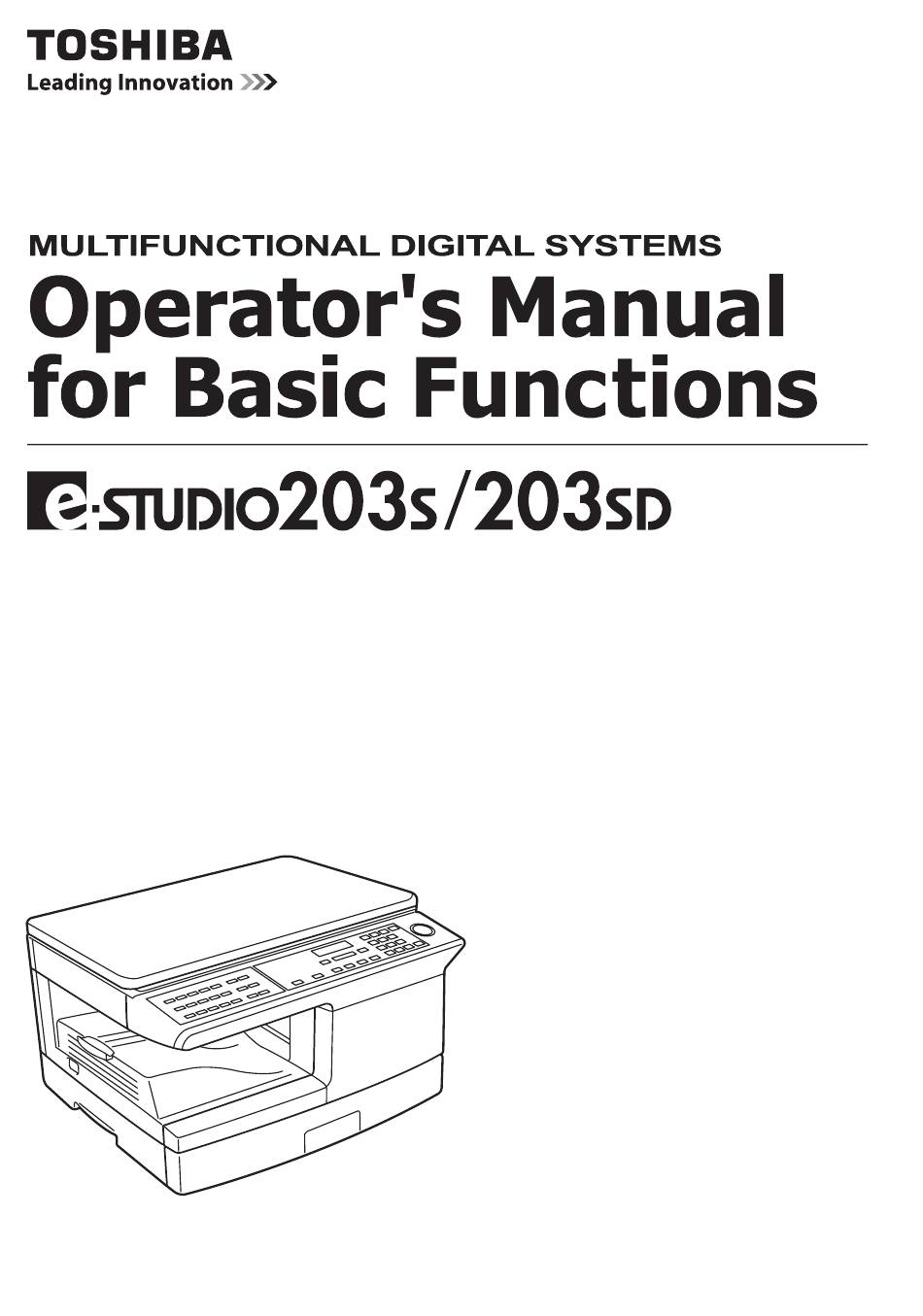

  • Page 1 Get other manuals https://www.bkmanuals.com...
  • Page 2 Toshiba Tec Corporation. You should be aware, however, that Toshiba Tec Corporation does not itself extend any warranties, either express or implied, directly to you, the end-user, and no one is authorized to make any representations or warranties on behalf of Toshiba Tec Corporation.

  • Page 3: Table Of Contents

    CONTENTS CAUTIONS ........................ 3 SOFTWARE LICENSE ....................4 ENVIRONMENTAL INFORMATION ................4 INTRODUCTION ....................... 6 MAIN FEATURES...................... 7 1 PREPARATIONS PART NAMES....................9 POWER ON AND OFF ..................12 2 LOADING PAPER PAPER......................14 LOADING THE PAPER TRAY ................. 15 BYPASS FEED (including special paper) ............
  • Page 4 6 PRINTER/SCANNER FUNCTIONS USING THE PRINTER MODE ................ 50 BASIC PROCEDURE FOR PRINTING ............50 USING THE SCANNER MODE............... 51 SCANNING USING THE KEYS ON THE MACHINE ........51 SCANNING FROM YOUR COMPUTER ............52 OPERATION IN COPY, PRINTER, AND SCANNER MODES ......52 HOW TO USE THE ONLINE MANUAL ............

  • Page 5: Cautions

    CAUTIONS Caution label on the machine The label ( ) in the fusing area of the machine indicates the following: : Caution, risk of danger : Caution, hot surface Cautions on using the machine Follow the cautions below when using this machine. Warning: •...

  • Page 6: Software License

    Cautions on handling the machine Be careful in handling the machine as follows to maintain the performance of this machine. Do not drop the machine, subject it to shock or strike it against any object. Store spare toner cartridges in a cool dry place without removing from the package before use.
  • Page 7 Caution Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This Digital Equipment is CLASS 1 LASER PRODUCT (IEC 60825-1 Edition 1.2-2001) SAFETY PRECAUTIONS This Digital Copier is rated Class 1 and complies with 21 CFR 1040.10 and 1040.11 of the CDRH standards.

  • Page 8: Introduction

    INTRODUCTION Note Some model may not be available in some countries. Using the manual This machine has been designed to provide convenient copying features in a minimum amount of office space and with maximum operational ease. To get full use of all machine features, be sure to familiarize yourself with this manual and the machine.

  • Page 9: Main Features

    MAIN FEATURES High-speed laser copying First-copy time* is only 8.0* seconds. Copying speed is 20 copies per minute. This is ideal for business use and provides a big boost to workplace productivity. The first-copy time is measured after the power save indicator turns off following power on, using the document glass with the polygon rotating in the copy ready state and "LSU SETTING"...
  • Page 10 LCD panel displays messages • The LCD panel displays messages that show function settings and the status of the machine. Laser printer function • The accompanying printer driver can be installed to enable use of the machine as a printer. Color scanner function •...

  • Page 11: Preparations

    Chapter 1 PREPARATIONS This chapter provides basic information that you should know before using the machine. PART NAMES Original cover RADF (Option) Original guides Document feeder cover Exit area Document feeder tray Bypass tray Interface Toner cartridge connector Photoconductive drum Document glass Paper output tray extension Operation panel...
  • Page 12 PREPARATIONS Operation panel e-STUDIO203S 10 11 [MODE SELECT] key / Mode indicators Error indicator Press this key to select the mode. The This lights steadily or blinks when a indicator of the selected mode lights (copy, paper misfeed or other error occurs. printer, scanner, fax mode indicators).
  • Page 13 PREPARATIONS Display READY TO COPY. 100% 8.5x11 [EXPOSURE] key Shows the current copy ratio. Use to switch from auto exposure Shows the selected paper size. adjustment to text mode or photo mode. Shows the number of copies that has [COPY RATIO] key been entered with the numeric keys.

  • Page 14: Power On And Off

    POWER ON AND OFF The power switch is located on the left side of the machine. If you use the machine in a country other than the country Warning where the machine was purchased, you will need to make sure that your local power supply is compatible with your model.
  • Page 15 PREPARATIONS Power off Make sure that the machine is not in operation and then turn the power switch to the "OFF" position. If the power switch is turned off while the machine is in operation, a misfeed may occur and the job that was in progress will be canceled.

  • Page 16: Loading Paper

    The tray location indicator will blink when there is no paper in the selected paper tray, or when the selected paper tray is not closed or is improperly closed. PAPER For best results, use only TOSHIBA recommended paper. Paper tray type Paper type...

  • Page 17: Loading The Paper Tray

    ● There are many varieties of special paper available on the market, and some cannot be used with this machine. Before using special paper, contact your service technician. ● Before using other than TOSHIBA recommended paper, make a test copy to see if the paper is suitable. LOADING THE PAPER TRAY...
  • Page 18 LOADING PAPER Gently push the paper tray back into the machine. • If you loaded a paper size that is different from the previously loaded Note paper size, change the paper size setting as explained in "CHANGING A TRAY'S PAPER SIZE SETTING" (p.19) •...

  • Page 19: Bypass Feed (Including Special Paper)

    • When loading envelopes, make sure that they are straight and flat and do not have loosely glued construction flaps (not the closure flap). • Special papers such as TOSHIBA recommended transparency film, labels, and envelopes must be fed one sheet at a time through the bypass tray.
  • Page 20 LOADING PAPER Loading paper in the bypass tray • Paper must be fed narrow side first into the feed slot. Note • Special papers such as transparency film, labels, and envelopes must be fed one sheet at a time through the bypass tray. •...

  • Page 21: Changing A Tray's Paper Size Setting

    CHANGING A TRAY'S PAPER SIZE SETTING Follow these steps to change a tray's paper size setting. • The paper size setting cannot be changed when the machine has Note stopped temporarily due to running out of paper or a misfeed. •...

  • Page 22: Making Copies

    Chapter 3 MAKING COPIES This chapter explains basic copying functions. NORMAL COPYING Using the document glass • The document glass can scan up to 8-1/2" x 14" original. Note • When a copy is made, the edges will not be copied (image loss). For the image loss, see the "SPECIFICATIONS"...
  • Page 23 MAKING COPIES Setting a large original The original cover can be removed to allow copying of bulky objects. Simply lift the original cover straight To reattach the original cover, reverse the above procedure. Check RADF open function When enabled, this function may help prevent wasteful use of toner that occurs when the document cover/RADF cover is not completely closed.
  • Page 24 MAKING COPIES Place the original(s) face up in the Original face up document feeder tray without trying to force them in. The RADF indicator on the operation panel will light up. If this indicator does not light up, the originals are not properly set or the RADF is not properly closed.

  • Page 25: Selecting The Tray

    MAKING COPIES Paper output tray extension When copying onto paper larger than 8-1/2" x 11" size, pull out the paper output tray extension. Paper holder arm The paper output tray has a paper holder arm. The paper holder arm presses gently on the output paper to stack it (p.9).

  • Page 26: Making A Copy Darker Or Lighter

    MAKING A COPY DARKER OR LIGHTER Automatic exposure adjustment is initially enabled. This function automatically adjusts the copy image according to the original being copied. If you wish to select the exposure level yourself, follow the steps below. (Select from 2 original types and 5 exposure levels for each original type.) The exposure level used in automatic exposure adjustment can also be changed with "AE LEVEL ADJUST"...

  • Page 27: Reduction/Enlargement/Zoom

    REDUCTION/ENLARGEMENT/ZOOM Copies can be reduced down to 25% or enlarged up to 400%. (When the RADF is being used, the zoom copy ratio range is 50% to 200%.) The [COPY RATIO] key can be pressed to quickly select a ratio from among eight preset ratios. In addition, the ] key ( ) and [ ] key (...

  • Page 28: Convenient Copy Functions

    Chapter 4 CONVENIENT COPY FUNCTIONS AUTOMATIC TWO-SIDED COPYING Two originals can be automatically copied onto both sides of a single sheet of paper. When the RADF is used, two-sided copies of two-sided originals can easily be made. (On the e-STUDIO203S, only two-sided original → one sided copy is possible.) Original →...
  • Page 29 CONVENIENT COPY FUNCTIONS Using the document glass (e-STUDIO203SD only) Place the original that you wish to copy onto the front side of the paper on the document glass and close the document cover/RADF. Press the [2-SIDED COPY] key until "1 TO 2-SIDED COPY 2"...
  • Page 30 CONVENIENT COPY FUNCTIONS Using the RADF (Option) Place the original(s) in the RADF. (p.21) If you place an odd number of originals for one-sided to two-sided copying, the last page will be one-sided. Press the [2-SIDED COPY] key* and select 2-SIDED COPY the two-sided copy mode that you wish to 2 TO 1...

  • Page 31: Sort Copy

    SORT COPY Copies of multiple original pages can be sorted into sets. The number of pages that can be scanned varies depending on the Note original type (photo, text, etc.) and the amount of memory allocated to the printer. The amount of memory allocated to the printer can be changed with "MEM.
  • Page 32 CONVENIENT COPY FUNCTIONS Using the RADF (Option) Place the originals. (p.21) • If "SORT AUTO SELECT" is enabled in the user programs, the default output Note mode for copying from the RADF is sort mode (p.57). In this case go directly to step 4.

  • Page 33: Copying Multiple Originals Onto A Single Sheet Of Paper (2 In 1 Copy)

    COPYING MULTIPLE ORIGINALS ONTO A SINGLE SHEET OF PAPER (2 IN 1 copy) Multiple originals can be copied onto a single sheet of paper in a selected layout pattern. This function is convenient for compiling multi-page reference materials into a compact format, or for providing an overview of all pages of a document on a single page.
  • Page 34 CONVENIENT COPY FUNCTIONS Press the [ ] key ( ) or [ ] key ( ) to ORIG. SIZE ENTER select the original size and then press the 5.5x8.5 [ENTER] key. The following original sizes can be selected: "8.5x14", "8.5x13", "8.5x11", "5.5x8.5", "A4", "B5", "A5"...
  • Page 35 CONVENIENT COPY FUNCTIONS Using the RADF (Option) Place the originals. (p.21) Press the [E-SORT/SP.FUN] key until SPECIAL FUNCTION "2IN1" appears and then press the 2IN1 [ENTER] key. Press the [ ] key ( ) to move " " to 2IN1 the "ON"...

  • Page 36: Creating Margins When Copying (Margin Shift)

    CREATING MARGINS WHEN COPYING (Margin shift) The margin shift function is used to automatically shift the text or image or the copy paper approximately 1/2". As shown below, LONG EDGE or SHORT EDGE can be selected. SHORT EDGE LONG EDGE RADF (Option) Margin Margin...
  • Page 37 CONVENIENT COPY FUNCTIONS Press the [ ] key ( ) to move " " to MARGIN SHIFT the "ON" position and then press the [ENTER] key. Press the [ ] key ( ) or [ ] key ( ) to MARGIN SHIFT select the margin position and then press LONG EDGE...

  • Page 38: Software

    Chapter 5 INSTALLING THE SOFTWARE This chapter explains how to install and configure the software that is required for the printer and scanner functions of the machine. The procedure for viewing the Online Manual is also explained. This manual refers to the CD-ROM that accompanied the machine Note simply as "CD-ROM".

  • Page 39: Before Installation

    BEFORE INSTALLATION Hardware and software requirements Check the following hardware and software requirements in order to install the software. Computer type IBM PC/AT or compatible computer equipped with a USB2.0* /1.1* Windows 98, Windows Me, Windows 2000 Professional* Operating system* Windows XP* , Windows Vista* Display...

  • Page 40: Installing The Software

    INSTALLING THE SOFTWARE • The screen images in this manual are mainly for Windows XP. With Note other versions of Windows, some screen images may be different from those in this manual. • In the following explanations it is assumed that the mouse is configured for right hand operation.
  • Page 41 INSTALLING THE SOFTWARE To install all of the software, click the "Standard" button and go to step 12. To install particular packages, click the "Custom" button and go to next step. Click the "MFP Driver" button. Click the "Display Readme" button to show information on packages that are selected.
  • Page 42 INSTALLING THE SOFTWARE You will return to the window of step 8. If you wish to install Button Manager or Desktop Document Manager, click the "Utility Software" button. If you do not wish to install the Utility Software, click the "Close" button and go to step 12.
  • Page 43 INSTALLING THE SOFTWARE When installing is finished, click the "Close" button. • If you are using Windows Vista and a security warning window Caution appears, be sure to click "Install this driver software anyway". • If you are running Windows 2000/XP and a warning message appears regarding the Windows logo test or digital signature, be sure to click "Continue Anyway"...
  • Page 44 INSTALLING THE SOFTWARE Connecting a USB cable Follow the procedure below to connect the machine to your computer. A USB cable for connecting the machine to your computer is not included with the machine. Please purchase the appropriate cable for your computer. •...
  • Page 45 INSTALLING THE SOFTWARE Using the machine as a shared printer If the machine will be used as a shared printer on a network, follow these steps to install the printer driver in the client computer. To configure the appropriate settings in the print server, see the Note operation manual or help file of your operating system.
  • Page 46 INSTALLING THE SOFTWARE Click the "Add Network Port" button. In Windows Vista, the "Add Network Port" button does not appear. Select the network printer that is shared and click the "OK" button. Ask your network administrator for the server name and printer name of the machine on the network.

  • Page 47: Setting Up Button Manager

    In Windows Vista, click the "Start" button, select "Control Panel" and click "Hardware and Sound", and then click "Scanners and Cameras". Click the "TOSHIBA e-STUDIOXXXX" icon and select "Properties" from the "File" menu. In Windows Vista, select "Properties" from the "Organize" menu.
  • Page 48 Repeat Steps 4 through 6 to link Button Manager to "SC2:" through "SC6:". Select "SC2:" from the "Select an event" pull-down menu. Select "Start this program", select "TOSHIBA Button Manager T" from the pull-down menu, and then click the "Apply" button. Do the same for each ScanMenu through "SC6:".
  • Page 49 "view all Control Panel options". Select "TOSHIBA e-STUDIOXXXX" and click the "Properties" button. In Windows Me, right click "TOSHIBA e-STUDIOXXXX" and click "Properties" in the pop-up menu. In the "Properties" screen, click the "Events" tab. Select "SC1:" from the "Scanner events"...
  • Page 50 Repeat Steps 5 through 7 to link Button Manager to "SC2:" through "SC6:". Select "SC2:" from the "Scanner events" pull-down menu. Select "TOSHIBA Button Manager T" in "Send to this application" and click the "Apply" button. Do the same for each ScanMenu through "SC6:".

  • Page 51: Printer/Scanner Functions

    Chapter 6 PRINTER/SCANNER FUNCTIONS The machine includes a USB connector as standard equipment. The machine has the following features: • High-speed data transfer (when connected to a USB 2.0 connector) • ROPM* function * ROPM is an acronym for "Rip Once Print Many" processing. The ROPM function stores multiple pages of print data in memory before printing.

  • Page 52: Using The Printer Mode

    USING THE PRINTER MODE The procedure for loading paper for printing is the same as for loading copy paper. See "LOADING PAPER" (p.14). • Print jobs received while the machine is copying will be stored in Note memory. When the copy job is finished, the print jobs will begin printing.

  • Page 53: Using The Scanner Mode

    USING THE SCANNER MODE The procedure for placing the original is the same as for copying. See "NORMAL COPYING" (p.20). Scanner mode cannot be used at the following times: Note • A misfeed has occurred (paper misfeed or original misfeed in the RADF).

  • Page 54: Scanning From Your Computer

    PRINTER/SCANNER FUNCTIONS Button Manager scan menu For information on Button Manager settings, see the Button Manager help file. The names in the Button Manager menu ("xxxx" in "SC1:xxxx", etc.) can be changed. See the online manual. SCANNING FROM YOUR COMPUTER The machine supports the TWAIN standard, making it possible to scan from TWAIN- compliant applications.

  • Page 55: How To Use The Online Manual

    HOW TO USE THE ONLINE MANUAL The online manual provides detailed instructions for operating the unit as a printer and scanner. It also provides methods for dealing with printing or scanner problems. Turn on your computer. Insert the supplied CD-ROM into your CD-ROM drive. Click the "start"...

  • Page 56: User Settings

    Chapter 7 USER SETTINGS The user settings allow you to customize machine settings to better meet your needs. USER PROGRAMS The user settings consist of the following items. To change a user program setting, see "SELECTING A SETTING FOR A USER PROGRAM"...
  • Page 57 USER SETTINGS Setting codes Progra (factory default Program name Explanation setting appears number in bold) • This function automatically switches the machine to a state that consumes even less power than preheat mode if the set duration of time elapses without the machine being used when the power is on.
  • Page 58 USER SETTINGS Setting codes Progra (factory default Program name Explanation setting appears number in bold) • If the memory fills up when two- sided copying is performed, "NORMAL" can be selected to make copying possible. However, 2-SIDED COPY 1: HI-SPEED MODE* 2: NORMAL "NORMAL"...
  • Page 59 USER SETTINGS Setting codes Progra (factory default Program name Explanation setting appears number in bold) • This is used to adjust the exposure level. 1: ADF/RADF (Adjustment to • The automatic exposure level can 5 levels is be adjusted separately for the possible.) document glass and the RADF.
  • Page 60 USER SETTINGS Print mode Setting codes Program (factory default Program name Explanation number setting appears in bold) • When this function is enabled, printing in printer mode will automatically continue using a FORCED 1: ON different size of paper if the OUTPUT 2: OFF specified size of paper runs...

  • Page 61: Selecting A Setting For A User Program

    SELECTING A SETTING FOR A USER PROGRAM Press the [MENU] key and then press the MAIN MENU [ENTER] key. 1:USER PROGRAM In printer mode, the user programs are accessed by simply pressing the [MENU] key. Press the [ ] key ( ) or [ ] key ( ) to...
  • Page 62 USER SETTINGS Audible signals (key entry beep, invalid key beep, base setting beep) The machine sounds three different types of beep signals: a key entry beep that sounds when a valid key is pressed, an invalid key beep that sounds when an invalid key is pressed, and a base setting beep that sounds when a setting is the same as the base setting (base settings are explained below).

  • Page 63: Troubleshooting And Maintenance

    When the following indicators light up or blink on the operation panel or the following alphanumeric codes appear in the display, solve the problem immediately referring to both the table below and the indicated page. Note Be sure to use only genuine TOSHIBA parts and supplies. Indication Cause and remedy Page...
  • Page 64 CARTRIDGE IS needed soon. Prepare a new cartridge. indicator NEAR EMPTY. Steadily MAINTENANCE Service by an authorized TOSHIBA REQUIRED CALL service technician is required. FOR SERVICE MEMORY FULL, PRESS START TO Data is being held in memory. Print the RESUME.

  • Page 65: Troubleshooting The Machine

    TROUBLESHOOTING THE MACHINE The following problems are related to the general operation of the machine and copying. Problem Cause and solution Page The machine is not plugged into a power outlet. → Plug the machine into a grounded outlet. Power switch OFF. →...
  • Page 66 TROUBLESHOOTING AND MAINTENANCE Problem Cause and solution Page The original was not placed in the correct position. 20, 21 → Place the original correctly. An appropriate ratio was not used for the size of the original and the size of the paper.
  • Page 67 TROUBLESHOOTING AND MAINTENANCE Problem Cause and solution Page Misfeed occur. → To remove the misfeed, see "MISFEED REMOVAL". The paper is outside of the specified size and weight range. → Use copy paper within the specified range. Paper curled or damp. →...
  • Page 68 TROUBLESHOOTING AND MAINTENANCE Problem Cause and solution Page Copying or printing is performed. → Set the paper size after copying or printing is complete. Paper size for a paper The machine has stopped temporarily tray cannot be set. due to running out of paper or a 15, 19, misfeed.

  • Page 69: Problems During Setup Of The Software

    PROBLEMS DURING SETUP OF THE SOFTWARE If the software does not install correctly, check the following items on your computer. To remove the software, see "Removing the software" (p.69). MFP driver cannot be installed (Windows 2000/XP) If the MFP driver cannot be installed in Windows 2000/XP, follow these steps to check your computer's settings.
  • Page 70 TROUBLESHOOTING AND MAINTENANCE Plug and play screen does not appear If the Plug and Play screen does not appear after you connect the machine to your computer with a USB cable and turn on the machine, follow the steps below to verify that the USB port is available.
  • Page 71 • In Windows Vista, click the "Uninstall a program". • In Windows 98/Me/2000, double-click the "Add/Remove Programs" icon. Select "TOSHIBA e-STUDIO203S Series MFP Driver" and Button Manager from the list, and remove the software. For more information, refer to your operating manual or to the help files for your operating system.

  • Page 72: Misfeed Removal

    MISFEED REMOVAL When a misfeed occurs, the error indicator blinks, "CLEAR PAPER JAM" appears in the display, and the machine stops operating. If a misfeed occurs when using the RADF, "RETURN X ORIGINAL(S) START TO RESUME" will appear in the display. ("X"...
  • Page 73 TROUBLESHOOTING AND MAINTENANCE A: Misfeed in the paper feed area Gently remove the misfed paper from the paper feed area as shown in the illustration. If the error indicator blinks and the misfed paper is not visible in the paper feed area, pull out the paper tray and remove the misfed paper.
  • Page 74 TROUBLESHOOTING AND MAINTENANCE Gently remove the misfed paper from under the fusing unit as shown in the illustration. If the paper cannot be removed, proceed to "C: Misfeed in the transport area". The fusing unit is hot. Do not touch the fusing unit when Warning removing misfed paper.
  • Page 75 TROUBLESHOOTING AND MAINTENANCE Raise the fusing unit release lever, close the front cover and then close the side cover by pressing the round projections near the side cover open button. The error indicator will go out and the ready indicator will light up. When closing the covers, be sure to close the front cover securely and Caution then close the side cover.

  • Page 76: Toner Cartridge Replacement

    TONER CARTRIDGE REPLACEMENT When toner is low, the error indicator will light up and "TONER CARTRIDGE IS NEAR EMPTY." will appear in the display to alert you to purchase a new toner cartridge. If copying is continued while the indicator is lit, copies will gradually become lighter until the toner runs out.
  • Page 77 TROUBLESHOOTING AND MAINTENANCE Gently pull the toner Toner cartridge lock release lever cartridge out while pressing the lock release lever. • After removing the toner cartridge, do not shake it or tap on it. Doing Note so may cause toner to leak from the cartridge. Put the old cartridge immediately in the bag contained in the box of the new cartridge.

  • Page 78: Scan Head Locking Switch

    TROUBLESHOOTING AND MAINTENANCE Close the front cover and then the side cover by pressing the round projections near the side cover open button. The error indicator will go out and the ready indicator will light up. When closing the covers, be sure to close the front cover securely and Caution then close the side cover.

  • Page 79: Checking The Total Count

    MAINTENANCE REQUIRED When the error indicator will blink and "MAINTENANCE REQUIRED CALL FOR SERVICE" will appear in the display, service by an authorized TOSHIBA service technician is required. Contact your service center as soon as possible. Get other manuals https://www.bkmanuals.com...

  • Page 80: Cleaning The Machine

    CLEANING THE MACHINE Proper care is essential in order to get clean, TOSHIBA copies. Be sure to take a few minutes to clean the machine on a regular basis. Do not spray flammable cleaner gas. Gas from the spray may...
  • Page 81 TROUBLESHOOTING AND MAINTENANCE Transfer charger Turn the power switch off. (p.13) Ensure that the bypass tray is open and then open the side cover while pressing the side cover open button. Take the charger cleaner out by holding the tab. Set the charger cleaner onto the right end of the transfer charger, gently slide the cleaner to the left end, and then remove it.

  • Page 82: Optional Equipment

    Note Be sure to use only genuine TOSHIBA parts and supplies. For best copying results, be sure to use only TOSHIBA Genuine Supplies which are designed, engineered and tested to maximize the life and performance of TOSHIBA copiers. Look for the Genuine Supplies label on the toner package.

  • Page 83: 250-Sheet Paper Feed Unit (My-1034)

    Click the "TOSHIBA e-STUDIOXXXX" printer driver icon and from the "File" menu select "Properties". • In Windows Vista, from the "Organize" menu select "Properties". • In Windows 98/Me, click the "TOSHIBA e-STUDIOXXXX" printer driver icon, select "Properties" from the "File" menu, and then click the "Setup" tab.

  • Page 84: Appendix

    Chapter 10 APPENDIX SPECIFICATIONS Model DP-2031 DP-2032 Type Multifunctional Digital Systems, Desktop Photoconductive OPC drum type Document glass Fixed type Copy/printing Dry, electrostatic transfer system Originals Sheets, bound documents Originals size Max. 8-1/2" x 14" Max. 8-1/2" x 14" Min. 3-1/2" x 5-1/2" Copy size Image loss: Max.
  • Page 85 APPENDIX Fusing system Heat rollers Developer system Magnetic brush development Cold cathode fluorescent lamp Light source (CCD: 3 components; R, G, and B) Scan: 600 x 300 dpi Output: 600 x 600 dpi(AUTO/TEXT mode) Resolution Scan: 600 x 600 dpi Output: 600 x 600 dpi(PHOTO mode) Gradation 256 tones (8 bits) Power supply...
  • Page 86 APPENDIX Printer Function Print speed* 20 ppm Resolution 600 dpi Memory Approx. 30 MB Emulation SPLC Interface USB 2.0 (Full-Speed/Hi-Speed compatible interface) [USB cable] Interface cables USB cable that supports USB 2.0. Please purchase a commercially available USB cable. * When printing same document continuously on 8-1/2" x 11" plain paper in non- offset mode, excluding processing time.
  • Page 87 APPENDIX Scanner Function Type Flatbed scanner Scanning method Document glass/RADF Cold cathode fluorescent lamp Light source (CCD: 3 components; R, G, and B) Basic: 600 dpi x 1200 dpi Resolution Setting range: 50dpi - 9600dpi Original types Sheet media, books Effective scanning 8.5"...
  • Page 88 (495 mm (W) x 395 mm (D) x 88 mm (H)) Power supply Drawn from the unit As a part of our policy of continuous improvement, TOSHIBA Note reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units.

  • Page 89: Index

    INDEX Symbols [CLEAR] key ....10, 20, 21, 23, 29, 30, 50, 70 ] key......10, 27, 29, 32 Connecting the machine to your computer ] key ........... 10 - USB cable ........42 ] key ........... 10 Convenient copy functions ....26 Numerics Conventions used in this manual and online manual ........
  • Page 90 Loading paper ........14 Power cord .......... 9 Loading paper in the bypass tray ..18 Power off ........... 13 Loading the paper tray ...... 15 Power on ........... 12 Long edge ......... 26 Power save indicator ......10 Power save modes......13 Power switch ......
  • Page 91 Tray location indicator ....10, 61 [TRAY SELECT] key ..... 10, 18, 23 Troubleshooting......... 61 USB connector ......9, 42 User programs - Copy mode ........54 - Print mode ........58 User settings ........54 Using the manual ........ 6 Using the printer mode ......
  • Page 92 INDEX BY PURPOSE Preparations Connecting the computer Paper, loading Basic procedure for printing ....50 - Bypass tray........18 Button Manager, setting up - Paper tray........15 - Windows 98/Me/2000....47 Power, turn off ........13 - Windows XP/Vista ......45 Power, turn on ........
  • Page 93 At the production line, the output power Caution of the scanner unit is adjusted to 0.57 This product contains a low power laser MILLI-WATT PLUS 20 PCTS and is device. To ensure continued safety do not maintained constant by the operation of remove any cover or attempt to gain access the Automatic Power Control (APC).
  • Page 94 Get other manuals https://www.bkmanuals.com...
  • Page 95 ♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠♠ For users in the USA This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 96 TINSE1889QSZZ R080520F8400-TTEC 2008-07 Get other manuals https://www.bkmanuals.com...
