Page 2

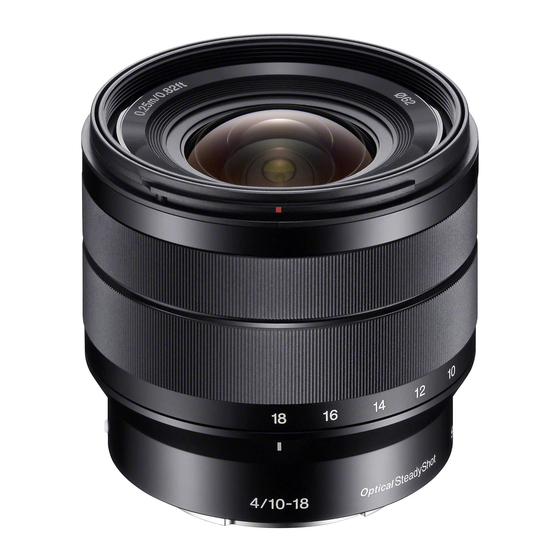

Lens (1), Front lens cap (1), Rear lens cap (1), Lens hood (1), Set of printed documentation 同梱物 レンズ (1) 、レンズフロントキャップ (1) 、レンズリヤキャップ (1) 、レンズフード (1) 、印刷物一式 Design and specifications are subject to change without notice. 仕様および外観は、改良のため予告なく変更することがありますが、ご了承ください。 is a trademark of Sony Corporation. はソニー株式会社の商標です。 SEL1018 (E 4/10-18 OSS) (E 10-18mm F4 OSS) – 2 –...
• Implement [Service Flag OFF (S)] of E-Mount Lens Adjustment ( Adjustment Application for Service ) for SEL18200. Note: The lens cannot be detected when the E-mount lens is connected to the NEX-3/5/C3 without releasing the specified flag. Displayed as “ F-- ” SEL1018 (E 4/10-18 OSS) (E 10-18mm F4 OSS)
Universal wrench to the width of holes or notches. Chip-A Notches Chip-B Chip Chip Chip-B Holes SERVICE TOOLS B-110 Bond (B-110) J-6082-617-A LOCTITE 460 or LOCTITE 460 or the equivalent the equivalent SEL1018 (E 4/10-18 OSS) (E 10-18mm F4 OSS)
Page 5
(Note) Notes for Removing the Fixed Tube Section. Front Tube Assy (Note) F Lock Pin When the Fixed Tube Section is removed, the Optical block may be disassembled. HELP03 Be careful not to be disassemble the Optical block. B-110 SEL1018 (E 4/10-18 OSS) (E 10-18mm F4 OSS)
Page 6
2. Check operation of the Zoom Ring Assy. Zoom Ring Assy Groove Groove Zoom Ring Assy (inside) Entrance part of groove B Cam Tube Coma Screw Cam Tube Coma Screw Zoom potentio lever SEL1018 (E 4/10-18 OSS) (E 10-18mm F4 OSS)
Page 7
Install the Filter Screw Frame, aligning the projection of the Filter Screw Frame (back side) with cutout of the optical block, and then tighten three screws. Cutout Projection Optical Block Filter Screw Frame Filter Screw Frame (back side) Optical Block SEL1018 (E 4/10-18 OSS) (E 10-18mm F4 OSS)
Page 16
1. PREPARATIONS 4. Click [Open] to connect communication with the B-L Control Box. Note: When the B-L Control Box or personal computer to be used is started for the first time, a password must be entered. Equipment used • Personal Computer (Note 1) •...
2. PROJECTIVE RESOLVING POWER CHECK 2-2. Projective Resolving Power Checking Method Note: With respect to focal length and projection distance when checking the projection resolution, check “ Projective Resolving Power Check ” in the ser- 2-1. Setting of Lens Test Projector vice manual of each model.
Page 18
Focus Setting: 7. To change the zoom position with the zoom lens, set the zoom position to the specified value. Note: Manual zoom: Set the zoom position manually. The focus setting buttons vary with model. Refer to the following figure for selecting either of the buttons. Motorized zoom: Set the focal length and zoom speed from the lens adjustment program, and click [Zoom(Focal Dist.)].
12. Change the focal length and projection distance of the lens to be tested (in the case of zoom), and confirm that the number of projective 3. FLANGE BACK CHECK resolving power lines of the S image and M image meets the reference value at each focus and projection distance using the same pro- cedure.
