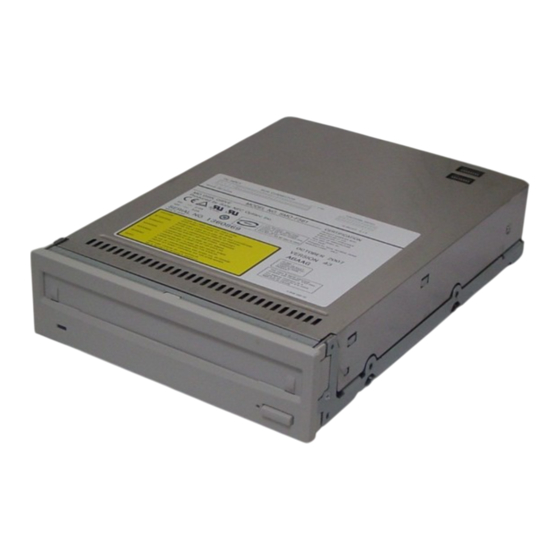

Sony SMO-F561 User Manual

Safety Regulations
Owner's Record
The model and serial numbers are located on the top of the
drive. Record the serial number in the space provided
below.
Refer to them whenever you call upon your Sony dealer
regarding this product.
Model No. SMO-F561
Serial No._________________________
Information
You are cautioned that any changes or modifications not
expressly approved in this manual could void your
authority to operate this equipment.
WARNING
To prevent fire or shock hazard, do not expose the
unit to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
CAUTION
As the laser beam used in the SMO-F561 is harmful to
the eyes, do not attempt to disassemble the unit.
Refer servicing to qualified personnel only.
The use of optical instruments with this product will
increase eye hazard.
The use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation.
This label is located
DANGER
LASER RADIATION WHEN OPEN. on the drive unit's
AVOID DIRECT EXPOSURE TO BEAM.
internal chassis.
DANGER
RADIATIONS DU LASER EN CAS D'OUVERTURE.
EVITER TOUTE EXPOSITION DIRECTE AU FAISCEAU. Dieses Etikett
VORSICHT befindet sich auf dem
LASERSTRAHLUNG. WENN ABDECKUNG
GEöFFNET. NICHT DEM STRAHL AUSSETZEN.
inneren Chassis des
Laufwerkes.
This MO drive is classified as a CLASS 1 LASER
PRODUCT.
This label is located on the
CLASS 1
top of the drive unit
LASER PRODUCT
enclosure.
Dieses Etikett befindet sich
LASER KLASSE 1
auf der Oberseite des
PRODUKT
Laufwerksgehäuses.
DANGER LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.
DANGER RADIATIONS DU LASER EN CAS D'OUVERTURE, EVITER TOUTE EXPOSITION DIRECTE AU FAISCEAU.
VORSICHT
LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
ADVARSEL LASERSTRÅLING VED ÅBNING, UNDGÅ UDS/ETTELSE FOR STRÅLING.
ADVARSEL LASERSTRÅLING NÅR DEKSEL ÅPNES, UNNGÅ EKSPONERING FOR STRÅLEN.
VARNING
LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD, STRÅLEN ÄR FARLIG.
VARO! AVATTAESSA OLET ALTTIINA LASERSÄTEILYLLE, ÄLÄ KATSO SÄTEESEN.
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
VAROITUS!
Laitteen käyttäminen muulla kuin tässä käyttöohjeessa
mainitulla tavalla saattaa altistaa käyttäjän
turvallisuusluokan 1 ylittävälle näkymättömälle
lasersäteilylle.
VARNING
Om apparaten används på annat sätt än i denna
bruksanvisning specificerats, kan användaren utsättas för
osynlig laserstrålning, som överskrider gränsen för
laserklass 1.
DANGER LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM.
DANGER
RADIATIONS DU LASER EN CAS D'OUVERTURE, EVITER TOUTE EXPOSITION DIRECTE AU FAISCEAU.
VORSICHT
LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.
ADVARSEL LASERSTRÅLING VED ÅBNING, UNDGÅ UDS/ETTELSE FOR STRÅLING.
ADVARSEL LASERSTRÅLING NÅR DEKSEL ÅPNES, UNNGÅ EKSPONERING FOR STRÅLEN.
VARNING
LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD, STRÅLEN ÄR FARLIG.
VARO! AVATTAESSA OLET ALTTIINA LASERSÄTEILYLLE, ÄLÄ KATSO SÄTEESEN.
Denne merkelappen er festet på apparatets innside.
Denna varningsskylt finns inuti apparaten.
Denne mærkat sidder indeni apparatet.
Tmä tarra on kiinnitetty laitteen sisään.
Tekniske Data
Laser
Type Halveder AlGaInP
laser
Bølgelengde 661 nm ± 6 nm
Maksimum utgang 40 mW CW
60 mW Puls
Specifikationer
Laser
Typ Halvledarlaser av typ
AlGaInP
Våglängd 661 nm ± 6 nm
Maximal uteffekt 40 mW CW
60 mW Puls
Specifikationer
Laser
Type Halvlederlaser
AlGaInP laser
Bølgelængde 661 nm ± 6 nm
Max. udgangseffekt 40 mW CW
60 mW Puls
Diese Ausrüstung erfüllt die Europäischen EMC-
Bestimmungen für die Verwendung in folgender /
folgenden Umgebung(en):
• Wohngegenden
• Gewerbegebiete
• Leichtindustriegebiete
(Diese Austüstung erfüllt die Bestimmungen der Norm
EN55022, Klasse B.)
Precautions
Safety Considerations
Power supply
• Be sure to use +5 V, +12 V DC.
Damage Prevention
Do not subject the drive to shock or vibration
Location requirements
Careful consideration should be given to the following in
selecting a site to install or store your drive.
Avoid the following conditions:
• High humidity
• High temperatures
• Direct sunlight
• Dust
• Strong vibration
• Wide temperature fluctuations
Moving the drive
Be sure to remove the disk cartridge when the drive is not
being used. Also never move or transport the drive with the
disk cartridge still inserted.
If problems occur
If any problems occur, turn off the power and unplug the
drive, contact your dealer.
Warning about Cleaning
In the drive, preventive measures are taken to guard against
dust. It is unnecessary to clean the optical lens of your
drive. Using a lens cleaning cartridge may damage the
drive.
Cooling Requirements
Forced-air cooling is required throughout the drive,
preventing overheat of the drive mechanism and electrical
components. Forced-air cooling must be provided as a
system integration.
This maximum temperature is applicable to all operating
conditions specified in this manual.
Measuring Point Maximum Temperature
Disk Cartridge 55 °C (131 °F)
The temperature conditions specified in this
manual must always be met for the SMO-F561 to
function properly.
4-647-672-12(1)
MO Disk Drive
User's Guide
SMO-F561
© 2000 Sony Corporation
Printed in Japan
