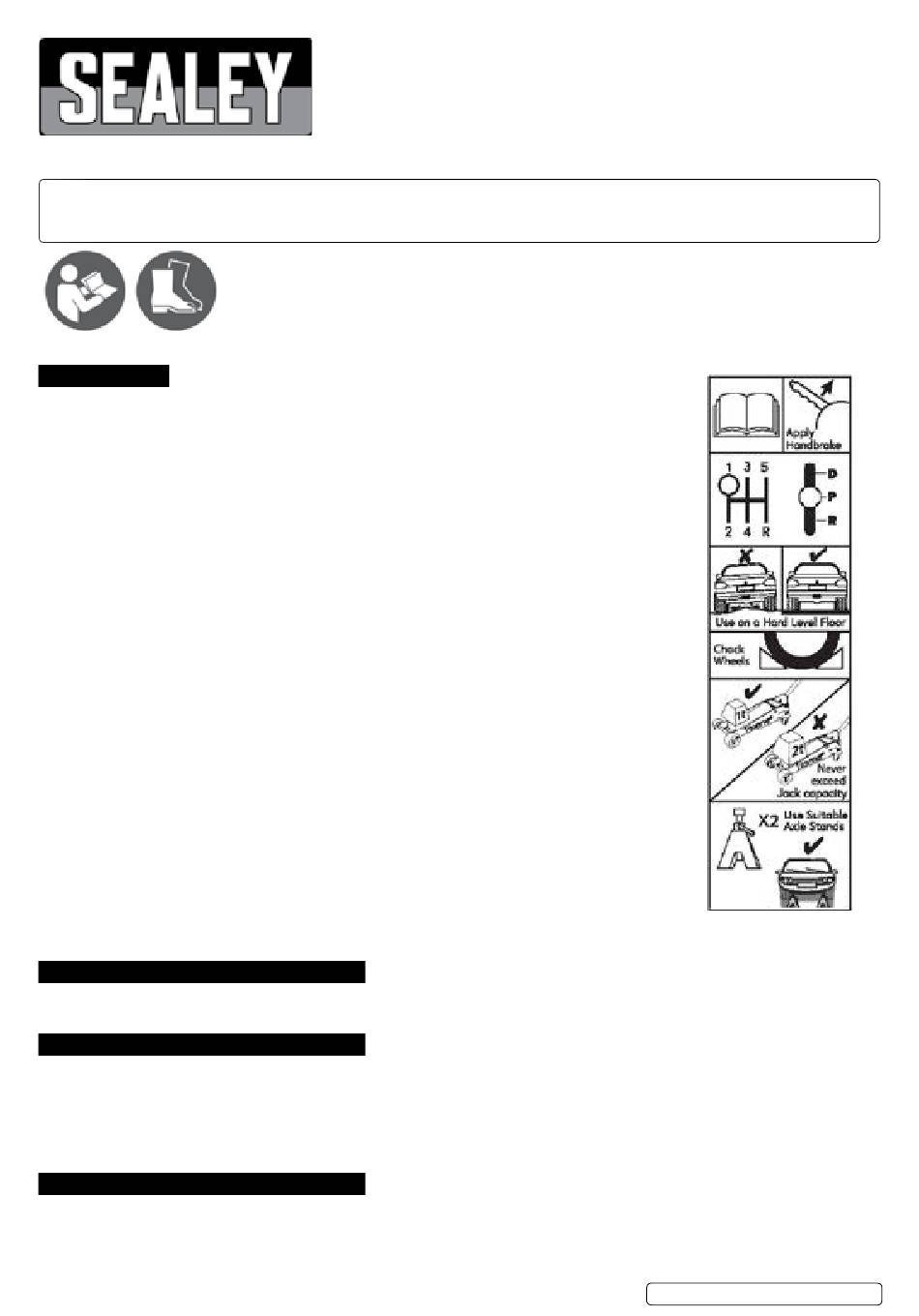

Sealey 1015cX.V2 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
refer to
Wear safety
instructions
footwear
1. saFety
ensure the jack is in sound condition and good working order. take action for immediate repair
9
or replacement of damaged parts. use genuine parts only. the use of unapproved parts may be
dangerous and will invalidate the warranty.
locate the jack in a suitable, well lit working area. Keep working area clean and tidy and free from
9
unrelated materials.
use jack on level and solid ground, preferably concrete. Avoid tarmacadam as jack may sink in.
9
Place wedges under wheels of vehicle (but ensure wheels of jack can freely move).
9
ensure the vehicle handbrake is engaged, engine is switched off and transmission is in gear (or
9
"PArK" if automatic).
ensure minimum distance of 0.5m between vehicle and static objects such as doors, walls, etc., to
9
allow for vehicle tilting.
ensure there are no passengers in the vehicle.
9
ensure all non-essential persons keep a safe distance whilst the jack is in use.
9
only place jack under those lifting points recommended by vehicle manufacturer (see vehicle hand
9
book).
check the lifting point is stable and centred on the jack saddle.
9
ensure the jack wheels are free to move and that there are no obstructions.
9
DanGer: use the jack for lifting only, not for supporting the lifted load.
▲
use suitable capacity axle stands under the vehicle before proceeding with any task.
9
ensure there are no persons or obstructions beneath the vehicle before lowering.
9
Use a qualified person to maintain or repair the jack hydraulic system.
9
Do not operate the jack if damaged.
8
Do not allow untrained persons to operate the jack.
8
Do not exceed the rated capacity of the jack (1.5tonne).
8
When lifting a load of maximum capacity or close to it, it is recommended that the effort be reduced
9
by the use of assistance during this operation.
Do not allow the vehicle to move while supported by the jack, or use the jack to move the vehicle.
8
Do not jack vehicle if there is a risk of spillage of fuel, battery acid, or other dangerous substances.
8
Do not work under the vehicle until axle stands have been correctly positioned.
8
Do not use the jack for purposes other than which it is intended.
8
Do not top up hydraulic system with brake fluid. Use hydraulic jack oil only.
8
Do not adjust the safety overload valve.
8
When not in use store jack, fully lowered, in a safe, dry, childproof area.
9
2. introDuction
Steel chassis with welded supports and one piece hydraulic unit. Fitted with overload valve and finger cover for extra safety. Suitable
for hobby user or as an emergency mobile jack. includes one piece pumping handle and carry handle.
3. speciFication
model no: .............................................................1015cX.V2
capacity: .................................................................. 1.5tonne
minimum saddle height: ............................................. 130mm
maximum saddle height: ............................................ 300mm
length: ....................................................................... 415mm
Weight: ............................................................................. 7kg
4. asseMbly
4.1. To pump place the handle into the jacking socket and turn it to engage the pin, see fig.1.
4.2. To operate the release valve, engage the cross pin in the open end of the handle with the slot at the end of the release valve, see fig.1.
© Jack sealey limited
instructions for
trolley jack 1.5tonne short chassis
1015cX.V2
model no:
Original Language Version 1015cX.V2 | issue 2 (1, f) 19/06/18
