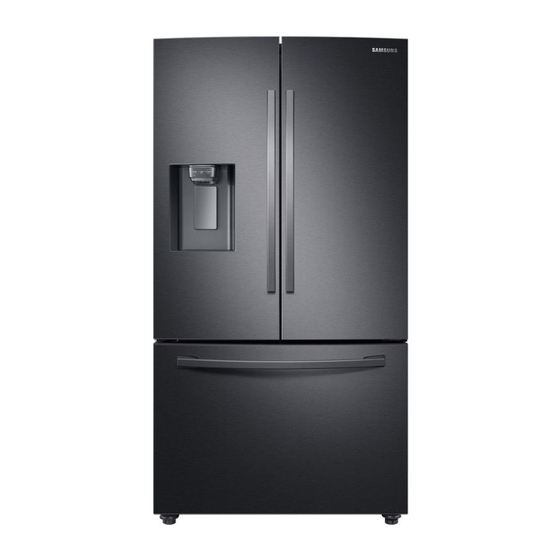

Samsung RF23R62E3B1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Questo manuale d'istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per
RF23R62E3B1
Refrigerator
User manual
Free Standing Appliance
Untitled-10 1
o cerca il tuo prodotto tra le
migliori offerte di Frigoriferi e Congelatori
Samsung
2021-06-08
5:56:45

Advertisement

Table of Contents
loading

Related Manuals for Samsung RF23R62E3B1

Summary of Contents for Samsung RF23R62E3B1

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Samsung RF23R62E3B1 o cerca il tuo prodotto tra le migliori offerte di Frigoriferi e Congelatori Refrigerator User manual Free Standing Appliance Untitled-10 1 2021-06-08 5:56:45...

  • Page 2: Table Of Contents

    Contents Safety information What you need to know about the safety instructions Important safety symbols and precautions: Important safety precautions Severe warning signs for transportation and site Critical installation warnings Installation cautions Critical usage warnings Usage cautions Cleaning cautions Critical disposal warnings Additional tips for proper usage Instructions about the WEEE Installation...

  • Page 3: Safety Information

    Safety information Before using your new Samsung Refrigerator, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers safely and efficiently. What you need to know about the safety instructions •...
  • Page 4 Safety information • Never start up an appliance showing any signs of damage. If in doubt, consult your dealer. The room must be 1 m in size for every 8 g of R-600a refrigerant inside the appliance. The amount of refrigerant in your particular appliance is shown on the identification plate inside the appliance.

  • Page 5: Important Safety Symbols And Precautions

    - If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. Important safety symbols and precautions: Please follow all safety instructions in this manual. This manual uses the following safety symbols.

  • Page 6: Important Safety Precautions

    Safety information Important safety precautions Warning; Risk of fire / flammable materials WARNING • When positioning the appliance, ensure the supply cord is not trapped or damaged. • Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. •...
  • Page 7 • If the product is equipped with LED lamps, do not disassemble the Lamp Covers and LED lamps yourself. - Contact a Samsung service center. - Use only the LED Lamps provided by the manufacturer or its service agents.
  • Page 8 Safety information • For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves on the position supplied by manufacturer. • To get the best energy efficiency of this product, please leave all shelves, drawers and baskets on their original position.

  • Page 9: Severe Warning Signs For Transportation And Site

    - Allow clearance to the right, left, back and top when installing. This will help reduce power consumption and keep your energy bills lower. • We recommend the value of clearance to be : - Right, left, and back side: more than 50 mm - Top side: more than 100 mm This appliance is intended to be used in household and similar applications such as...

  • Page 10: Critical Installation Warnings

    Safety information - This appliance contains a small amount of isobutane refrigerant (R-600a), a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.
  • Page 11 • If the wall socket is loose, do not insert the power plug. - There is a risk of electric shock of fire. • Do not use a power cord that has cracks or abrasion damage along its length or at either end. •...
  • Page 12 • If any dust or water is in the refrigerator, pull out power plug and contact your Samsung Electronics service center. - Otherwise there is a risk of fire. • Do not stand on top of the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
  • Page 13 • Children should be supervised to ensure that they do not play with the snap rings used for door adjustment or the water tube clips. - There is risk of death by suffocation if a child swallows a snap ring or water tube clip. Keep the snap rings and water tube clips out of children’s reach.

  • Page 14: Installation Cautions

    Safety information Installation cautions CAUTION • Allow sufficient space around the refrigerator and install it on a flat surface. - If your refrigerator is not level, cooling efficiency and durability can be declined. • Allow the appliance to stand for 2-3 hours before loading foods after installation and turning on.
  • Page 15 • Do not touch the inside walls of the freezer or products stored in the freezer with wet hands. - This may cause frostbite. • Do not put a container filled with water on the refrigerator. - If spilled, there is a risk of fire or electric shock. •...
  • Page 16 - Products that require strict temperature controls must not be stored in the refrigerator. • If you smell pharmaceutical or smoke, pull out power plug immediately and contact your Samsung Electronics service center. • If any dust or water is in Refrigerator, pull out power plug and contact your Samsung Electronics service center.
  • Page 17 • Do not use or place any substances sensitive to temperature such as flammable sprays, flammable objects, dry ice, medicine, or chemicals near or inside of the refrigerator. • Do not use a hair dryer to dry the inside of the refrigerator.
  • Page 18 • If the refrigerator emits a burning smell or smoke, unplug the refrigerator immediately and contact your Samsung Electronics service center. - Failing to do so may result in an electric or fire hazards.

  • Page 19: Usage Cautions

    • Plug the power plug into the wall socket firmly. • Do not use a damaged power plug, damaged power cord or loose wall socket. - This may result in an electric shock or fire. Usage cautions CAUTION • Do not refreeze thawed food. - Frozen and thawed food will develop harmful bacteria faster than fresh.
  • Page 20 • Service Warranty and Modification. - Any changes or modifications performed by a 3rd party on this finished appliance are not covered under Samsung warranty service, nor is Samsung responsible for safety issues that result from 3rd party modifications. English...
  • Page 21 • When the refrigerator got wet by water, pull out the power plug and contact your Samsung Electronics service center. • Do not strike or apply excessive force to any glass surface. - Broken glass may result in a personal injury and/or property damage.

  • Page 22: Cleaning Cautions

    Safety information • Do not keep vegetable oil in your refrigerator’s door bins. The oil can solidify, making it foul-tasting and difficult to use. In addition, the open container can leak and the leaked oil can cause the door bin to crack. After opening an oil container, it is best to keep the container in a cool and shaded place such as a cupboard or pantry.
  • Page 23 • Use a clean, dry cloth to remove any foreign matter or dust from the power plug blades. Do not use a wet or damp cloth when cleaning the plug. - Otherwise, there is a risk of fire or electric shock. •...

  • Page 24: Critical Disposal Warnings

    Safety information Critical disposal warnings WARNING • Please dispose of the packaging material from this product in an environmentally friendly manner. • Ensure that none of the pipes on the back of the refrigerator are damaged prior to disposal. • R-600a or R-134a is used as a refrigerant. Check the compressor label on the rear of the appliance or the rating label inside the fridge to see which refrigerant is used for your refrigerator.

  • Page 25: Additional Tips For Proper Usage

    Additional tips for proper usage • In the event of a power failure, call the local office of your electric company and ask how long the failure is going to last. - Most power failures that are corrected in an hour or two will not affect your refrigerator temperatures.

  • Page 26: Instructions About The Weee

    This product and its electronic accessories should not be mixed with other commercial wastes for disposal. For information on Samsung’s environmental commitments and product regulatory obligations, e.g. REACH, WEEE or Batteries, visit our sustainability page available via www.

  • Page 27: Installation

    Installation Follow these instructions carefully to ensure a proper installation of this refrigerator and to prevent accidents before using it. WARNING • Use the refrigerator only for its intended purpose as described in this manual. • Any servicing must be performed by a qualified technician. •...
  • Page 28 • When a door is opened, the interlock switch automatically disables the auger motor of the ice maker for safety reasons. • If the internal or external LED lamp is out of order, contact a local Samsung service center. • If the door is left open for too long, the top internal LED will blink. This is normal.

  • Page 29: Step-By-Step Installation

    Step-by-step installation STEP 1 Select a site Select a site that: • Has a solid, level surface without carpeting or flooring that may obstruct ventilation • Is away from direct sunlight • Has adequate room for opening and closing the door •...
  • Page 30 Installation Clearance See the following figures and tables for space requirements for installation. Model RF23* Depth “A” 726 mm Width “B” 908 mm Height “C” 1749 mm Overall Height “D” 1777 mm Depth “E” 788 mm Model RF23* more than 50 mm recommended 125°...
  • Page 31 STEP 2 Flooring If the refrigerator cannot pass through the entrance due to its size, see Door removal for entrance. NOTE To prevent floor damage, make sure the front leveling legs are in the upright position. • The surface you install the refrigerator on must support a fully loaded refrigerator.
  • Page 32 Installation STEP 3 Door removal for entrance If the refrigerator cannot pass through the entrance to your home or kitchen due to its size, follow these instructions to remove and then re-install the refrigerator's doors. If you do not need to remove the doors, go to page 39 to continue the installation procedure. WARNING Unplug the power cord of the refrigerator before removing the doors.
  • Page 33 Detach the fridge doors Left door 1. With the doors closed, use a Phillips head screwdriver to remove the screws (x3) in the top cover. 2. Disconnect the wires and the water tube from the left-side door. Do the following sequentially: •...
  • Page 34 Installation 4. Pull the clamp to remove it. NOTE Be careful not to drop the clamp on the floor. 5. Open the door 90 degrees. While holding the door, pull up and remove the top hinge. Be careful not to damage the connector wires when you remove the hinge.
  • Page 35 Right door 1. Disconnect the wire connectors (x2) on the right door. The position of the connectors differs with the model. CAUTION • Do not remove both doors simultaneously. Make sure to remove one door at a time. Otherwise, one of the doors may fall and cause physical injury.
  • Page 36 Installation 5. Gently pull up the door vertically to remove. Do not apply excessive force to the door. The door may fall, causing physical injury. 6. Lay the door down on a flat surface. To reattach the fridge door After you have moved the refrigerator to its final location, reattach the doors by following the removal instructions in reverse order.
  • Page 37 To detach the freezer drawer 1. Lift up the front of the upper basket and pull to remove. 2. Then, pull up to remove the lower basket from the rail assembly. 3. Press down the hooks to unlock the rail assembly.
  • Page 38 Installation CAUTION • Be careful not to scratch or dent the rail assembly. • Make sure you mount the freezer baskets in the correct position. Otherwise, the door will not open or close properly, which causes frost to build up. •...
  • Page 39 STEP 4 Leveling the refrigerator CAUTION • When installed, the refrigerator must be leveled on a flat, solid floor. Not leveling the refrigerator can cause damage to the refrigerator or physical injury. • Leveling must be performed with the refrigerator empty. Make sure no food items are inside the refrigerator.
  • Page 40 Installation STEP 5 Adjust the door height and the door gap Snap rings The height of a door can be adjusted using the provided snap rings, which come in 4 different sizes (1 mm, 1.5 mm, 2 mm, and 2.5 mm). To adjust the height of a door 1.
  • Page 41 STEP 6 Attach the handles CAUTION The refrigerator handles must be oriented in the correct direction. • The fridge handles must be attached so that the holes on each face each other. • The freezer handle must be attached so that its hole faces downwards.
  • Page 42 Installation 4. Insert the supplied wrench into the handle hole, and then turn it clockwise to tighten. 5. Repeat Steps 2 through 4 with the second refrigerator door handle. 6. To attach the freezer handle to the refrigerator, first place the left side of the freezer handle onto the left handle screw, and then push it to the left.
  • Page 43 • Samsung takes no responsibility for the water line installation. If water leaks occur, contact the installer of the water line.
  • Page 44 This may damage the refrigerator. To repair the water line CAUTION The waterline must be repaired by a qualified professional. If you encounter a water leak, contact a local Samsung service centre or the installer of the waterline. English Untitled-10 44 2021-06-08 5:56:50...
  • Page 45 STEP 8 Initial settings By completing the following steps, the refrigerator should be fully functioning. 1. Plug the power cord into the wall socket to turn the refrigerator on. 2. Open the door, and check if the interior light lights up. 3.

  • Page 46: Operations

    Operations Main panel 01 Fridge / °F  °C 02 Power Cool 03 Freezer / Power Freeze 04 Ice Maker / Filter Reset 05 Water/Ice / Dispenser Lock 06 Door Alarm / Control Lock English Untitled-10 46 2021-06-08 5:56:50...
  • Page 47 • If a communication error occurs between the temperature display and the main controller, this blinking continues for an extended time. Contact a local Samsung service center for technical assistance.
  • Page 48 Operations 02 Power Cool Power Cool speeds up the cooling process at maximum fan speed. This is useful to quickly cool food that spoils quickly, or after the door is left open for some time. The fridge keeps running at full speed for several hours and then returns to the previous temperature. Press and hold Power Cool for 3 seconds.
  • Page 49 04 Ice Maker / Filter Reset (3 sec) Press Ice Maker to turn the ice maker on or off. The ice maker has 2 indicators ( to indicate its operating status. • When the ice maker operates, the corresponding indicator ) turns on.
  • Page 50 Operations 05 Water/Ice / Dispenser Lock (3 sec) You can dispense chilled water, cubed ice, or crushed ice. To Water/Ice dispense, press Water/Ice. The corresponding indicator turns on. To prevent use of the dispenser panel buttons and the dispenser lever, press and hold Water/Ice for more than 3 seconds. If you press and hold the button again for more than 3 seconds, the dispenser lock will be deactivated.

  • Page 51: Dispenser Panel

    Dispenser panel 01 Water / Lock 02 Cubed Ice 03 Crushed Ice 01 Water / Lock (3 sec) To dispense chilled water, press Water. The corresponding Water indicator turns on. To prevent the use of the dispenser panel buttons and the dispenser lever, press and hold Water for more than 3 seconds.

  • Page 52: Special Features

    Operations Special features Water/Ice dispenser Using the dispenser, you can dispense water with or without ice. The water dispenser offers 3 options: chilled water, cubed ice, and crushed ice. To dispense chilled water, press Water on the dispenser panel. Put a water glass under the dispenser, and then push the dispenser lever.
  • Page 53 CAUTION • If the ice making chime rings repeatedly, contact your waterline installer or a local Samsung service center. • Do not press Test repeatedly after the ice tray is filled with ice or water. Water may overflow or ice may jam.
  • Page 54 Operations If You Turn the Ice Maker Off If you press and hold Ice Maker for more than 3 seconds to turn the ice maker off, make sure to remove all ice cubes from the ice bucket. Remaining ice cubes may clump together, making it difficult to remove them.

  • Page 55: Maintenance

    Maintenance Handling and care Ice bucket (applicable models only) If you do not dispense ice for an extended period, ice may form clumps inside the bucket. If this happens, remove and empty the ice bucket. 1. To remove the ice bucket, gently lift it up, and then pull it out slowly while holding the bottom of the bucket with one hand and the side with the other...
  • Page 56 Maintenance NOTE • The water pressure required for ice making is between 206 to 827 kPa. • Noise from the ice maker as it produces ice during the ice making process is normal. • While the door is open, neither the ice maker nor the water dispenser operates. Fridge shelves The appearance of the shelves differs by model.
  • Page 57 Slide in shelf You may slide-in the front half of the slide- in shelf to store more tall items. Gently pull the front half of the shelf in order to use it as a whole shelf again. Foldable shelf The foldable shelf gives you more room in the fridge for tall items.
  • Page 58 Maintenance Door bins • To remove the door bin, hold the front sides of the bin, and then gently lift up to remove. • To reinsert, insert the door bin slightly above its final location making sure that the back of the bin is against the door. Hold the rear of the door bin with both hands, and then press down so that it fits snugly.
  • Page 59 Fridge drawers Vegetable / fruit drawers Gently lift up the front of the drawer and slide out. • We recommend that you remove the door bins before removing the drawer. This is to prevent damage to the door bins. • To reinsert, insert the drawer into the frame rails and then slide inward.
  • Page 60 Maintenance Freezer baskets Lower ice bucket (applicable models only) 1. Fully open the freezer drawer. 2. Lift the lower ice bucket to remove. Upper basket • To remove, fully slide open the freezer drawer. Lift up the front of the upper basket and pull to remove.
  • Page 61 Lower basket • To remove, first remove the upper basket. Then, tilt up the front of the lower basket to pull out. • To reinsert, put the basket onto the rail assembly rear side first. CAUTION • Do not twist the basket when removing or reinserting the basket. The basket can be scratched.
  • Page 62 Maintenance Freezer basket divider (Type B, applicable models only) 1. Remove the lower basket. 2. Use a Phillips screwdriver to unscrew the two screws affixing the rear fixer at the rear side of the basket. 3. Pull the rear fixer and the divider upward to remove.

  • Page 63: Cleaning

    Cleaning Interior and exterior WARNING • Do not use benzene, thinner, home/car detergent, or Clorox™ to clean the refrigerator. They may damage the surface of the refrigerator and cause a fire. • Do not spray water onto the refrigerator. This may cause electric shock. Regularly use a dry cloth to remove all foreign substances such as dust or water from the power plug terminals and contact points.

  • Page 64: Replacement

    • Do not use third-party water filters. Use only Samsung-provided or -approved filters. • Unapproved filters may leak and damage the refrigerator, causing electric shock. Samsung is not responsible for any damage that may occur from use of third-party water filters.
  • Page 65 Remove the water filter. For more information or servicing, contact a licensed plumbing professional. Ordering a new filter To purchase a new water filter, contact a local Samsung service center or visit www. samsungparts.com on the web. LED Lamps To replace the lamps of the refrigerator, contact a local Samsung service center.

  • Page 66: Troubleshooting

    Troubleshooting Before calling for service, review the checkpoints below. Any service calls regarding normal situations (No Defect Cases) will be charged to users. General Temperature Symptom Possible causes Solution • Power cord is not plugged • Properly plug in the power in properly.
  • Page 67 Odors Symptom Possible causes Solution • Clean the refrigerator and • Spoiled food. remove any spoiled food. Refrigerator has odors. • Make sure strong smelling • Food with strong odors. food is wrapped airtight. Frost Symptom Possible causes Solution Frost around the •...
  • Page 68 Troubleshooting Symptom Possible causes Solution • You must wait for 12 hours • Ice maker has just been for the refrigerator to make installed. ice. • Set the freezer temperature • Freezer temperature is too Ice maker does not below -18 °C or -20 °C in high.
  • Page 69 Water does not dispense. • Dispenser panel Lock is • Deactivate dispenser panel activated. Lock. • Use only Samsung-provided or approved filters. • A third-party water filter • Unapproved filters may was installed. leak and damage the refrigerator.

  • Page 70: Do You Hear Abnormal Sounds From The Refrigerator

    Troubleshooting Do you hear abnormal sounds from the refrigerator? Before calling for service, review the checkpoints below. Any service calls related to normal sounds will be charged to the user. These sounds are normal. • When starting or ending an operation, the refrigerator may make sounds similar to a car engine igniting.
  • Page 71 • As the refrigerator cools or freezes, refrigerant gas moves through sealed pipes, causing bubbling sounds. Bubbling! • As the refrigerator temperature increases or decreases, plastic parts contract and expand, creating knocking noises. These noises occur during the defrosting cycle or when electronic parts are working.

  • Page 72: Appendix

    Appendix Safety Instruction • For the most efficient use of energy, please keep the all inner fittings such as baskets, drawers, shelves and ice cube tray on the position supplied by manufacturer. • This refrigerating appliance is not intended to be used as a built-in appliance. Install Instruction For refrigerating appliances with climate class Depending on the climate class, This refrigerating appliance is intended to be used at...

  • Page 73: Temperature Instruction

    Temperature Instruction Recommended Temperature The optimal temperature setting for food storage: • Fridge: 3 °C • Freezer: -20 °C • Ice Maker on: -8 °C NOTE The optimal temperature setting of each compartment depends on the ambient temperature. Above optimal temperature is based on the ambient temperature of 25 °C. Power Cool Power Cool speeds up the cooling process at maximum fan speed.
  • Page 74 Appendix Placement of Foods Shelves should be adjustable to accommodate a variety of Shelves packages. Sealed crisper drawers provide an optimal storage environment for fruits and vegetables. Vegetables require higher humidity conditions while fruits require lower Specialized compartment humidity conditions. (applicable models only) Crispers are equipped with controls devices to control the humidity level.
  • Page 75 Meat Product Refrigerator Freezer Fresh roasts, steaks, chops 3-4 days 2-3 months Fresh ground meat, stew meat 1-2 days 3-4 months Bacon 7 days 1 month Sausage, Raw from pork, beef, 1-2 days 1-2 months turkey Poultry / Eggs Product Refrigerator Freezer Fresh poultry...

  • Page 76: Information For Model And Ordering Spare Parts

    24 Months. • Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorized representative • You can find professional repair information on http://samsung.com/support You can find user servicing manual on http://samsung.com/support. English...
  • Page 77 Memo Untitled-10 77 2021-06-08 5:56:54...
  • Page 78 Memo Untitled-10 78 2021-06-08 5:56:54...
  • Page 79 Memo Untitled-10 79 2021-06-08 5:56:54...
  • Page 80 Contact SAMSUNG WORLD WIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Country Contact Center Web Site 0333 000 0333 www.samsung.com/uk/support IRELAND (EIRE) 0818 717100 www.samsung.com/ie/support DA68-03832P-03 Untitled-10 80 2021-06-08...
