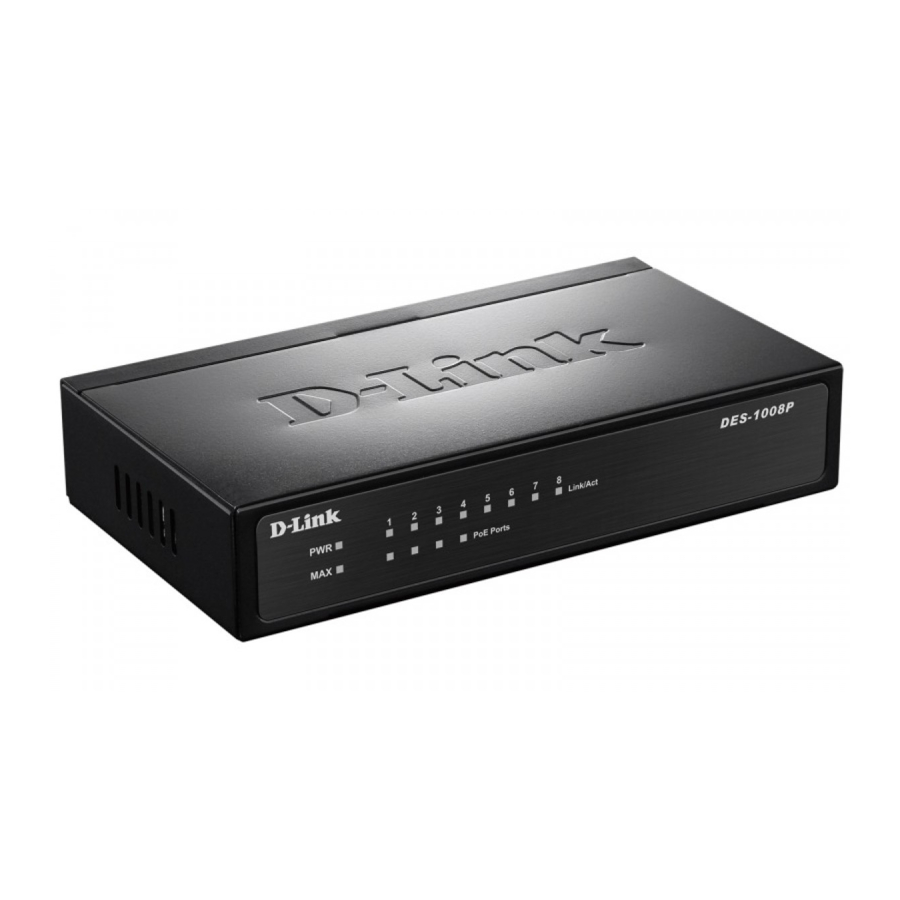

D-Link DES-1008P Quick Installation Manual

8-port 10/100 mbps switch with 4 port poe
Hide thumbs Also See for DES-1008P:

Advertisement

Quick Links

8-Port 10/100 Mbps Switch with 4 Port PoE
Check Your Package Contents
These are the items included with your DES-1008P purchase:
DES-1008P
8-Port Fast Ethernet
Switch with 4 Port PoE
Notice Before Setting Up the DES-1008P
To setup of the Switch can be performed using the following steps:
Install the DES-1008P in a fairly cool and dry place. See Technical Specification for the
A.
acceptable operation temperature and humidity ranges.
Install the Switch in a site free from strong electromagnetic source, vibration, dust, and
B.
direct sunlight.
Leave at least 10 cm of space at the left and right hand side of the Switch for ventilation.
C.
Visually inspect the DC power jack and make sure that it is fully secured to the power
D.
adapter.
Do not stack any device on top of the Switch.
Connecting the DES-1008P Fast Ethernet Switch with 4 Port
PoE to Your Network
A.
Power:
Power is supplied through an external DC power adapter. Since the switch does not include
a power switch, plugging its power adapter into a power outlet will immediately power it on.
Quick Installation Guide
DES-1008P
CD-ROM
with Product Document
Quick Installation Guide 48V,1.45A Power
Note :
Using a power supply with a different voltage rating
will damage and void the warranty of this product.

Adapter

Advertisement

loading

Summary of Contents for D-Link DES-1008P

  • Page 1 Notice Before Setting Up the DES-1008P To setup of the Switch can be performed using the following steps: Install the DES-1008P in a fairly cool and dry place. See Technical Specification for the acceptable operation temperature and humidity ranges. Install the Switch in a site free from strong electromagnetic source, vibration, dust, and direct sunlight.
  • Page 2 3. Out of PoE voltage of 44 ~ 57 VDC output Off : No PoE powered device connected. Technical Support Thank you for choosing D-Link products. For further information, support, product drivers and manuals please visit the D-Link website at www.dlink.eu UK: 08456 12 0003...
