Philips AJ100 User Manual

Clock Radio
User manual
Clock radio
Meet Philips at the Internet
http://www.philips.com
English
Printed in China PDCC-JW-0703
AJ100
1
5
6
!
8
@
#
9
0
2
3
4
English
1
SUPPLIED ACCESSORIES
–
1 X certified AC 7.5V adapter
(Input: 230-240V ~ 50Hz 30mA, Output: 7.5V
2

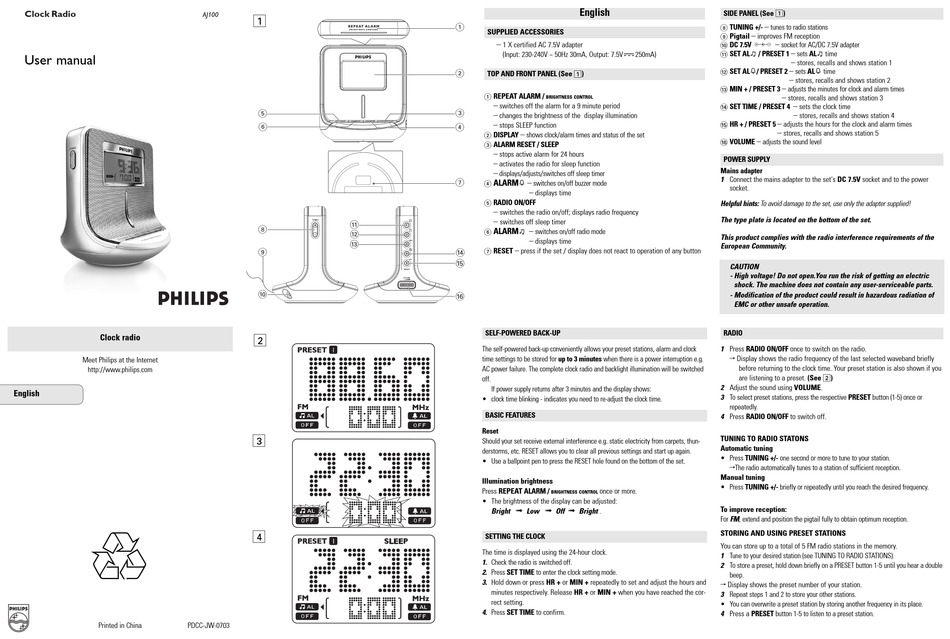

TOP AND FRONT PANEL (See 1 )
1 REPEAT ALARM /
BRIGHTNESS CONTROL
–
switches off the alarm for a 9 minute period
3
–
changes the brightness of the display illumination
–
stops SLEEP function
4
–
2 DISPLAY shows clock/alarm times and status of the set
3 ALARM RESET / SLEEP
–
stops active alarm for 24 hours
–
activates the radio for sleep function
–
displays/adjusts/switches off sleep timer
7
ALARM –
4 switches on/off buzzer mode
– displays time
5 RADIO ON/OFF
–
switches the radio on/off; displays radio frequency
– switches off sleep timer
ALARM –
6 switches on/off radio mode
–
displays time
7 RESET – press if the set / display does not react to operation of any button
$
%
^
SELF-POWERED BACK-UP
The self-powered back-up conveniently allows your preset stations, alarm and clock
time settings to be stored for up to 3 minutes when there is a power interruption e.g.
AC power failure. The complete clock radio and backlight illumination will be switched
off.
If power supply returns after 3 minutes and the display shows:
• clock time blinking - indicates you need to re-adjust the clock time.
BASIC FEATURES
Reset
Should your set receive external interference e.g. static electricity from carpets, thun-
derstorms, etc. RESET allows you to clear all previous settings and start up again.
• Use a ballpoint pen to press the RESET hole found on the bottom of the set.
Illumination brightness
Press REPEAT ALARM / once or more.
BRIGHTNESS CONTROL
• The brightness of the display can be adjusted:
➟ ➟ ➟
Bright Low Off Bright .
SETTING THE CLOCK
The time is displayed using the 24-hour clock.
1. Check the radio is switched off.
2. Press SET TIME to enter the clock setting mode.
3. Hold down or press HR + or MIN + repeatedly to set and adjust the hours and
minutes respectively. Release HR + or MIN + when you have reached the cor-
rect setting.
4. Press SET TIME to confirm.
SIDE PANEL (See 1 )
–
8 TUNING +/- tunes to radio stations
–
9 Pigtail improves FM reception
–
0 DC 7.5V socket for AC/DC 7.5V adapter
! SET AL / PRESET 1 – sets AL
250mA)
–
stores, recalls and shows station 1
–
@ SET AL / PRESET 2 sets AL
–
stores, recalls and shows station 2
–
# MIN + / PRESET 3 adjusts the minutes for clock and alarm times
– stores, recalls and shows station 3
–
$ SET TIME / PRESET 4 sets the clock time
–
stores, recalls and shows station 4
–
% HR + / PRESET 5 adjusts the hours for the clock and alarm times
–
stores, recalls and shows station 5
^ VOLUME – adjusts the sound level
POWER SUPPLY
Mains adapter
1 Connect the mains adapter to the set's DC 7.5V socket and to the power
socket.
Helpful hints: To avoid damage to the set, use only the adapter supplied!
The type plate is located on the bottom of the set.
This product complies with the radio interference requirements of the
European Community.
CAUTION
- High voltage! Do not open.You run the risk of getting an electric
shock. The machine does not contain any user-serviceable parts.
- Modification of the product could result in hazardous radiation of
EMC or other unsafe operation.
RADIO
1 Press RADIO ON/OFF once to switch on the radio.
™ Display shows the radio frequency of the last selected waveband briefly
before returning to the clock time. Your preset station is also shown if you
are listening to a preset. (See 2 )
2 Adjust the sound using VOLUME.
3 To select preset stations, press the respective PRESET button (1-5) once or
repeatedly.
4 Press RADIO ON/OFF to switch off.
TUNING TO RADIO STATONS
Automatic tuning
• Press TUNING +/- one second or more to tune to your station.
™The radio automatically tunes to a station of sufficient reception.
Manual tuning
• Press TUNING +/- briefly or repeatedly until you reach the desired frequency.
To improve reception:
For FM, extend and position the pigtail fully to obtain optimum reception.
STORING AND USING PRESET STATIONS
You can store up to a total of 5 FM radio stations in the memory.
1 Tune to your desired station (see TUNING TO RADIO STATIONS).
2 To store a preset, hold down briefly on a PRESET button 1-5 until you hear a double
beep.
™ Display shows the preset number of your station.
3 Repeat steps 1 and 2 to store your other stations.
• You can overwrite a preset station by storing another frequency in its place.
4 Press a PRESET button 1-5 to listen to a preset station.
