Bosch D8108A Installation Manual

1 | Overview

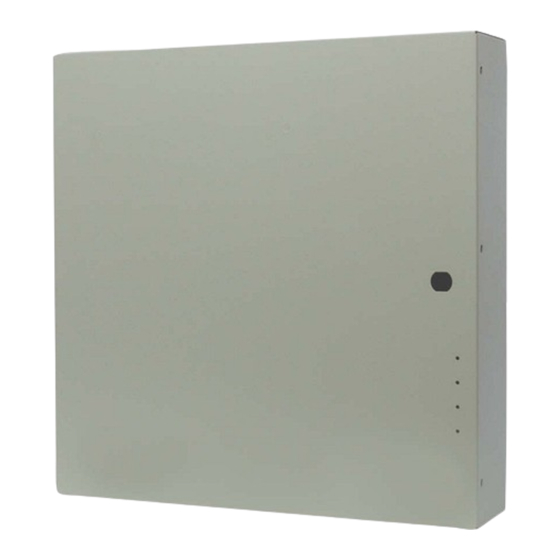

The D8108A/D8108A-CE Attack
Resistant Enclosures house many Bosch
Security Systems, Inc. control panels.
When housed in a D8108A/D8108A-
CE, a listed control panel can be used
in a high-security mercantile alarm
application. For specifi c control panel
applications, refer to the operation and
installation manual for the control panel.
The D8108A-CE enclosure includes a
transformer for CE installations.
2 | Installation
Two knockouts in the enclosure base
(one in the top, the other in the bottom)
accommodate ¾ in. (2 cm) conduit.
The enclosure door is slotted to enable
conduit access.
1. Attach the lead wires to the
terminals on the two tamper
switches and wire them in series
with an EOL resistor.
2. Using the supplied hardware,
screw the tamper switches to the
enclosure (screws on the outside
and the nuts on the inside).
3. Mount the lock for UL Burglary
and Fire applications on the
enclosure door.
4. Mount the enclosure to a hard,
fl at surface.
5. Mount the control panel (with
the mounting skirt) inside the
enclosure.
6. Wire, program, and test the
control panel and related
peripheral equipment.
7. Wire the tamper switches to a
control panel protective zone or
point input.
8. Close the enclosure door.
9. Install the supplied 7/8 in. (2.2
cm) 8-32 screws in the fi ve
locations, securing the door to the
base and making the enclosure
attack resistant.
4

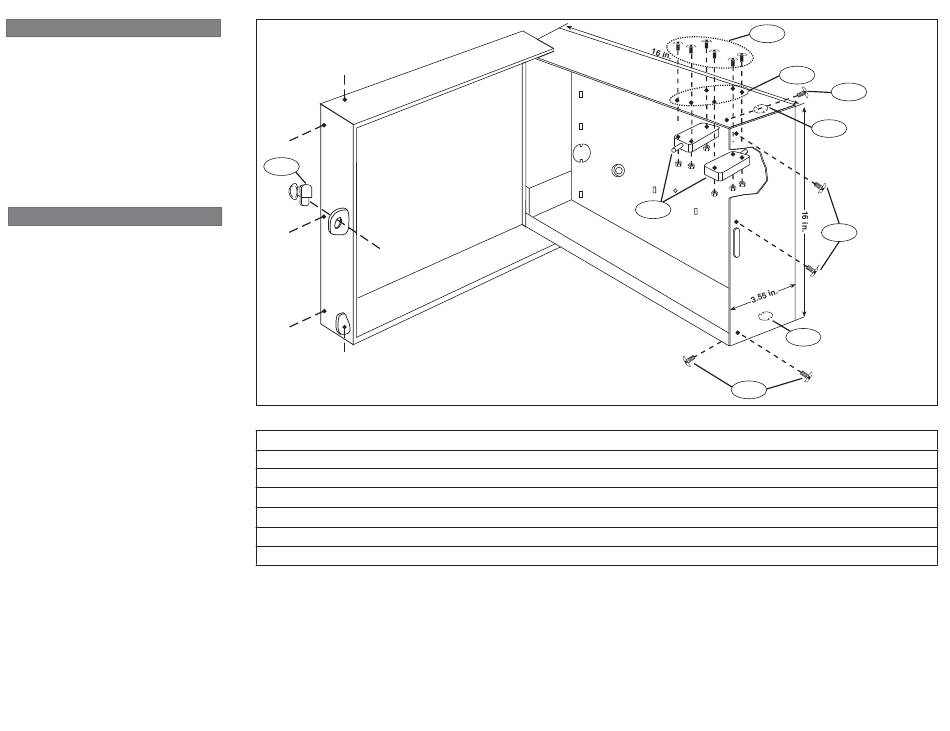

Figure 1.1: Mounting the enclosure and installing accessories
Callout ― Description
1 ― Tamper switches (2)
2 ― 1 in. (2.5 cm) 6-32 screws (6) and nuts (6) for the tamper switches
3 ― 7/8 in. (2.2 cm) 8-32 machine screws (5)
4 ― D101 Lock and key (P/N: 4998800200)
5 ― Tamper switch mounting holes
6 ― Knockouts
2
5
6
1
6
3
3
3
