WE’RE THINKING OF YOU Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
Page 3
1.1 Children and vulnerable people safety This appliance can be used by children aged from 8 years • and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
CAUTION: The cooking process has to be supervised. A • short term cooking process has to be supervised continuously. WARNING: Danger of fire: Do not store items on the • cooking surfaces. Metallic objects such as knives, forks, spoons and lids •...
Page 5
bottom of the appliance and the upper • If the mains socket is loose, do not drawer is sufficient for air circulation. connect the mains plug. • The bottom of the appliance can get hot. • Do not pull the mains cable to disconnect Make sure to install a separation panel the appliance.
• Used oil, that can contain food remnants, • Do not use water spray and steam to can cause fire at a lower temperature than clean the appliance. oil used for the first time. • Clean the appliance with a moist soft •...
Page 7
60 mm min. min. 500mm 50mm www.youtube.com/electrolux www.youtube.com/aeg How to install your Electrolux Radiant Hob - Worktop installation 3.5 Protection box min. min. If you use a protection box (an additional accessory), the protective floor directly below the hob is not necessary. The protection box accessory may not be available in some countries.

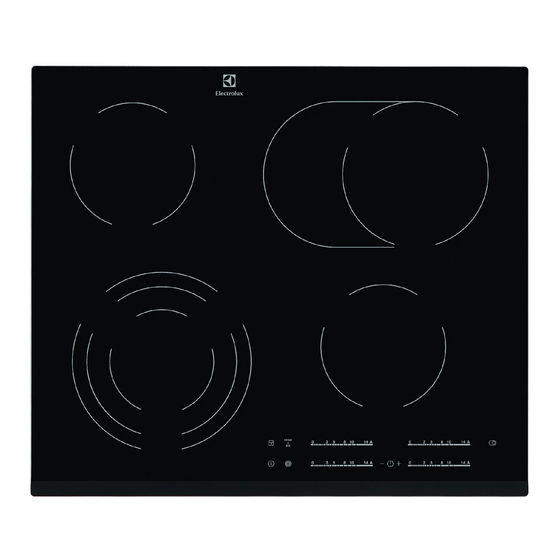

4. PRODUCT DESCRIPTION 4.1 Cooking surface layout Cooking zone Control panel 265 mm 265 mm 145 mm 170 mm 170 mm 145 mm 120/175/210 120/175/210 4.2 Control panel layout Use the sensor fields to operate the appliance. The displays, indicators and sounds tell which functions operate.
Sensor Function Comment field To select the cooking zone. To increase or decrease the time. Automatic Heat Up To activate and deactivate the function. Control bar To set a heat setting. 4.3 Heat setting displays Display Description The cooking zone is deactivated. The cooking zone operates.
Page 10
Remove the object or clean the control When you activate the zone but panel. do not activate the outer ring the • you do not deactivate a cooking zone or light that comes out from the change the heat setting. After some time zone may cover the outer ring.
Page 11
remaining time counts down to 00. The The function does not stop the timer indicator of the cooking zone disappears. functions. When the countdown ends, an Touch to activate the function. acoustic signal sounds and 00 comes on. The heat setting is lowered to flashes.
for 3 seconds. comes on. Touch When the function is set to you can hear the sounds only when: of the timer to choose one of the following: • you touch • Minute Minder comes down • - the sounds are off •...
Heat setting Use to: Time Hints (min) 12 - 13 Heavy fry, hash browns, loin steaks, 5 - 15 Turn halfway through. steaks. Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips. 7. CARE AND CLEANING otherwise, the dirt can cause damage to WARNING! the hob.
Page 14
Problem Possible cause Remedy There is water or fat stains on the Clean the control panel. control panel. An acoustic signal sounds and You put something on one or more Remove the object from the sensor the hob deactivates. sensor fields. fields.
Service Centre and conditions of guarantee are in the guarantee booklet. 9. TECHNICAL DATA 9.1 Rating plate Model EHF6547FOK PNC 949 596 005 03 Typ 60 HAD 56 AO 220 - 240 V 50 - 60 Hz Made in Germany Ser.Nr.
Page 16
EN 60350-2 - Household electric cooking • Before you activate the cooking zone put appliances - Part 2: Hobs - Methods for the cookware on it. measuring performance • The cookware bottom should have the same diameter as the cooking zone. 10.2 Energy saving •...
