Summary of Contents for Samsung Xpress C1810 Series
Page 1

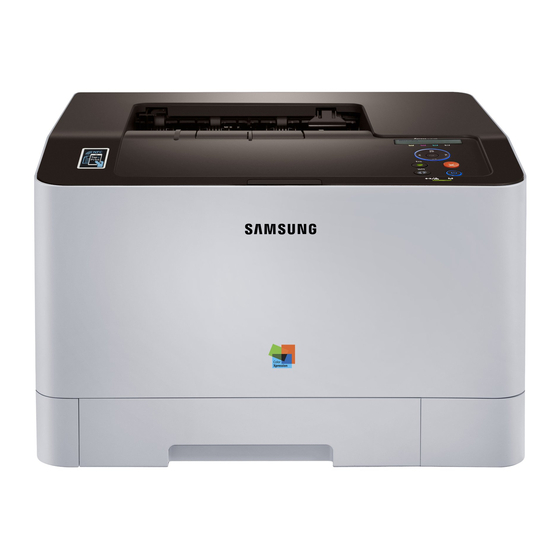

Color Laser Printer Xpress C1810 series SL-C1810W (Ver 1.01) SERVICE MANUAL Color Laser Printer Contents 1. Precautions 2. Product specification and description 3. Disassembly and Reassembly 4. Alignment and Troubleshooting 5. System Diagram 6. Reference Information Refer to the service manual in the GSPN (see the rear cover) for more information.
High voltages and lasers inside this product are dangerous. This product should only be serviced by a factory trained service technician. 2) Use only Samsung replacement parts. There are no user serviceable parts inside the product. Do not make any unauthorized changes or additions to the product as these could cause the product to malfunctions and create an electric shocks or fire hazards.
Page 7
Take care not to cut or damage the power cable or plugs when moving the machine. 9) Use caution during thunder or lightning storms. Samsung recommends that this machine be disconnected from the power source when such weather conditions are expected. Do not touch the machine or the power cord if it is still connected to the wall socket in these weather conditions.
1.2.4. Assembly and Disassembly precautions 1) Replace parts carefully and always use Samsung parts. Take care to note the exact location of parts and also cable routing before dismantling any part of the machine. Ensure all parts and cables are replaced correctly. Please carry out the following procedures before dismantling the product or replacing any parts.
HVPS board Diagram of Xpress C1810 series Electrical Circuit Xpress C1810 series has a system board of integrated engine controller and video controller. The engine controller controls all modules required to print, that is, LSU, HVPS/SMPS, Fuser, Motor etc. It communicates with the video control block inside CPU for printing.
3.1.1. Precautions when assembling and disassembling • Use only approved Samsung spare parts. Ensure that part number, product name, any voltage, current or temperature rating are correct. Failure to do so could result in damage to the machine, circuit overload, fire or electric shock.
Some LEDs may not be available depending on model or country. • To resolve the error, look at the error message and its instructions from the troubleshooting part. • You also can resolve the error with the guideline from the computers’s Samsung Printing Status window. Status Description Status The machine is off-line.
4 Normal You can set the altitude value from Device Settings in Samsung Easy Printer Manager program. • For Windows and Macintosh users, you set from Samsung Easy Printer Manager > Switch to advanced mode > Device Settings. NOTE •...
• For Macintosh, Open the Applications folder > Samsung folder > Samsung Easy Printer Manager. The Samsung Easy Printer Manager interface is comprised of various basic sections as described in the table that follows: NOTE The screenshot may differ depending on operating system you are using.
Check the operating system(s) that are compatible with your machine. Samsung Printer Status overview If an error occurs while operating, you can check the error from the Samsung Printer Status. Samsung Printer Status is installed automatically when you install the machine software.
Toner cartridge is not compatible. ► Troubleshooting method 1) Print the supply information report. Check information of the toner cartridge. 2) If the toner cartridge is not a Samsung genuine toner cartridge, replace with new one. ► Error Code C5-1110 C5-1120 ►...
Not compatible transfer belt. ► Symptom The ITB unit is not compatible. ► Troubleshooting method 1) If the toner cartridge is not a Samsung genuine ITB Unit, replace with new one. ► Error Code C5-1710 ► Error message Transfer Belt Error ►...
