Sony DAV-FR8 Speakers Connection

DVD Home Theatre System
Speakers – Connection and Installation
A A
FRONT R
SURR R
SPEAKER
FRONT R CENTER FRONT L WOOFER
SURR R SURR L WOOFER
D D
A A B B C C D D
Red Green White Grey
Sony Corporation 2004 Printed in Korea
DAV-FR8
B B
C C
SPEAKER
CENTER FRONT L WOOFER
SURR L WOOFER
E E
F F
E E F F
Purple Blue

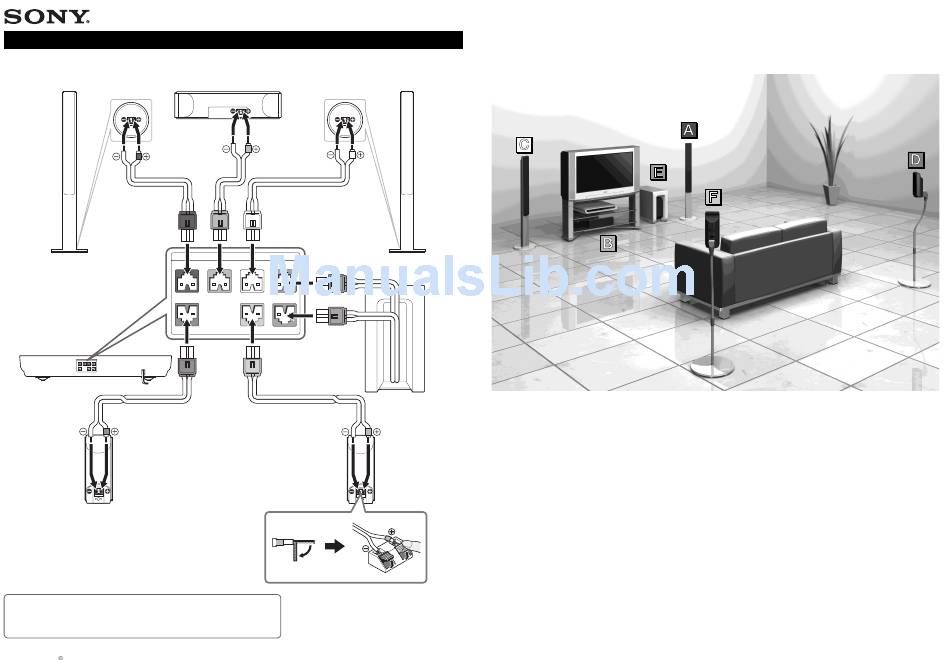

The speaker cords and plugs are colour-coded with their respective speaker terminals.
4-255-443-11(1)
Do not connect any speakers other than those supplied with this system.
For best performance, we recommend speaker placement as shown.
Be sure to see note descriptions of the Operating Instructions for details.
