Summary of Contents for Miele F 9122 Ui

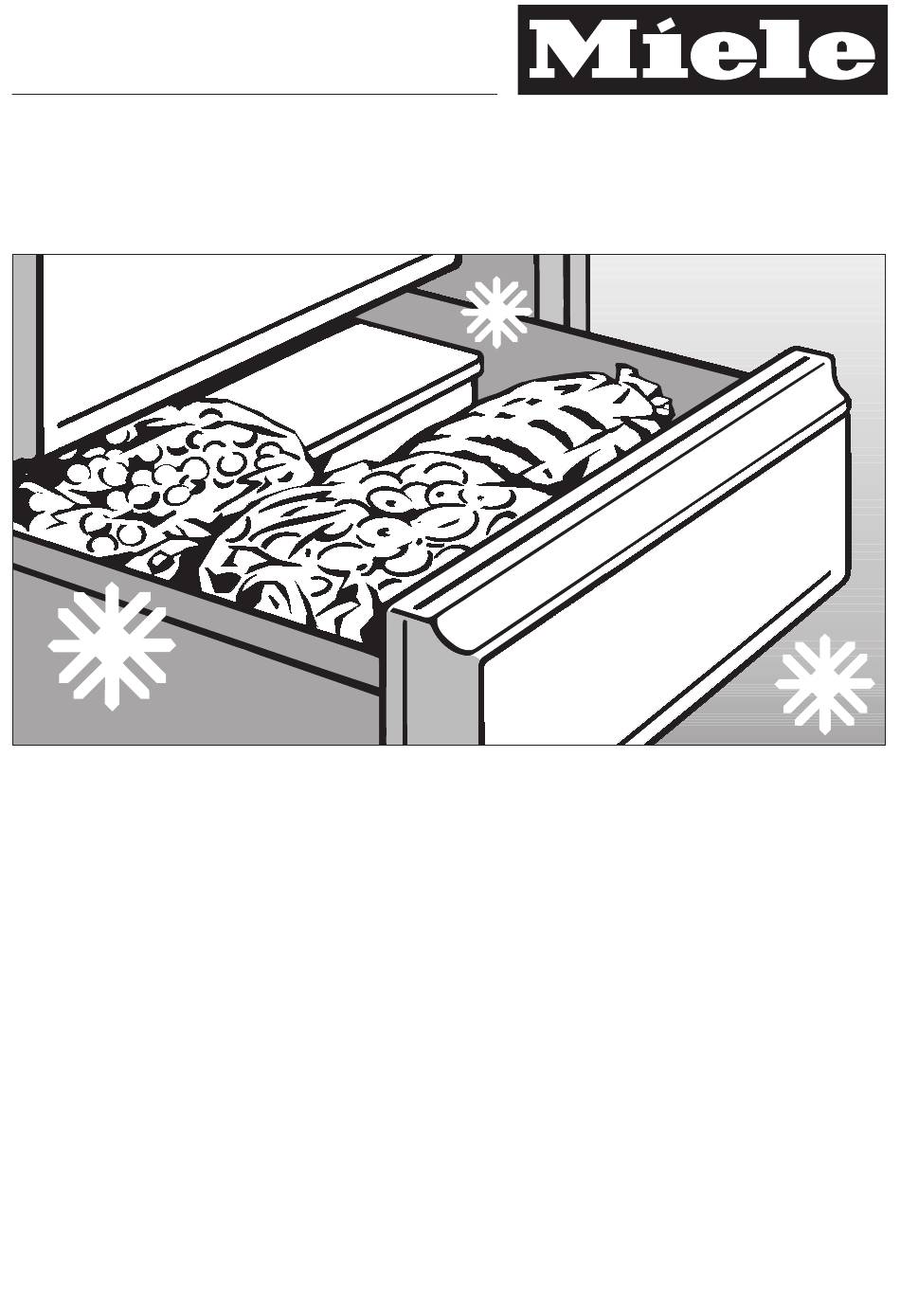

- Page 1 Operating and installation instructions Freezer F 9122 Ui en - GB To avoid the risk of accidents or damage to the appliance, it is essential to read these operating instructions before it is installed or used for the first time.
-
Page 2: Table Of Contents
Contents Guide to the appliance ..........4 Caring for the environment . - Page 3 Contents Cleaning and care ..........25 Cleaning the interior and accessories .
-
Page 4: Guide To The Appliance
Guide to the appliance a On/Off button d Super freeze button and indicator light b Temperature selector button e Alarm off button and c Temperature display indicator light f Freezer drawers g Ventilation gaps... -
Page 5: Caring For The Environment
Caring for the environment Disposal of the packing Disposal of your old appliance material Electrical and electronic appliances often contain materials which, if The transport and protective packing handled or disposed of incorrectly, has been selected from materials which could be potentially hazardous to are environmentally friendly for human health and to the environment. -
Page 6: Warning And Safety Instructions
Any other usage is not supported by This appliance complies with all the manufacturer and could be relevant legal safety requirements. dangerous. Miele cannot be held liable Improper use can, however, present for damage resulting from incorrect or a risk of both personal injury and improper use or operation of the damage to property. - Page 7 Warning and Safety instructions Technical safety The more coolant there is in an appliance, the larger the room it should Before setting up the appliance, be installed in. In the event of a check it for any externally visible leakage, if the appliance is in a small damage.
- Page 8 Faulty components must only be observed and regularly tested and replaced by genuine Miele original where there is any doubt, the spare parts. The manufacturer can only household wiring system should be guarantee the safety of the appliance inspected by a qualified electrician.
- Page 9 Warning and Safety instructions Correct use Do not store cans or bottles containing carbonated drinks or liquids Never handle frozen food with wet which could freeze in the freezer. The hands. Your hands may freeze to the cans or bottles could explode. frozen food.
- Page 10 Warning and Safety instructions Disposing of your old This appliance is designed for use within certain climate ranges (ambient appliance temperatures), and should not be used Before disposing of an old outside this range. The climate range appliance, first make the door latch or for your appliance is stated on the data lock unusable.
-
Page 11: How To Save Energy
How to save energy Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not near to a heat source (radiator, Near to a heat source (radiator, oven). -
Page 12: Switching On And Off
Switching on and off Before using for the first time Cool packs Insert the cool packs into the slots in Important: the roof of the freezer cabinet. To do To ensure the correct functioning of this: the appliance, let it stand for 1½ to 2 ^ Remove the top freezer drawer. -
Page 13: Switching Off For Longer Periods Of Time
Switching on and off Switching off for longer periods of time If the appliance is not going to be used for a longer period of time, e.g. whilst on holiday: ^ switch the appliance off, ^ disconnect it from the mains. ^ clean the appliance out and ^ leave the door ajar to air the appliance. -
Page 14: The Correct Temperature
The correct temperature Setting the temperature It is very important to set the correct temperature for storing food in the appliance. Micro-organisms will cause food which is not stored at the correct temperature to deteriorate rapidly. Temperature influences the growth rate ^ Press the temperature button of these micro-organisms. -
Page 15: Temperature Display
The correct temperature Temperature display The temperature display on the control panel always shows the required temperature. The temperature can be adjusted from: -15 °C to -32 °C The temperature display will flash if – the temperature in the appliance is not within the possible temperature range, –... -
Page 16: Alarm
Alarm Switching the alarm off early Your appliance has been fitted with a warning system which ensures that the If the noise disturbs you, you can temperature in the freezer cannot rise switch the alarm off early if you wish. unnoticed and to avoid energy being wasted if the door is left open. -
Page 17: Super Freeze
Super freeze Switch the Super freeze function on Switching off Super freeze before putting fresh food into the The Super freeze function will switch off freezer. automatically after approx. 65 hours. This helps food to freeze quickly and The indicator light will go out and the retain its nutrients, vitamins, flavours appliance will run at normal power and appearance. -
Page 18: Freezing And Storing Food
Freezing and storing food Maximum freezing capacity Storing frozen food To ensure that fresh food placed in the When buying frozen food to store in freezer freezes through to the core as your freezer, check quickly as possible, the maximum –... -
Page 19: Home Freezing
Freezing and storing food Home freezing lightly before freezing, but care should be taken as the taste of some Only freeze fresh food which is in a spices alters when frozen. good condition. – Do not place hot food or drinks in the Hints on home freezing freezer. -
Page 20: Before Placing Food In The Freezer
Freezing and storing food Freezing large items Before placing food in the freezer ^ When freezing more than 2 kg of If you wish to freeze large items such fresh food, switch on the Super as a turkey or game, the glass cold freeze function for some time before plates between the drawers can be placing the food in the freezer (see... -
Page 21: Ice Cubes
Freezing and storing food Cool packs Never re-freeze partially or fully Cool packs prevent the temperature in defrosted food. Consume defrosted the freezer rising too quickly in the food as soon as possible as it will event of a power cut. lose its nutritional value and spoil if left for too long. - Page 22 Freezing and storing food Storing the cool packs ^ Remove the top freezer drawer. ^ Push the cool pack in at the back and then press it upwards at the front until it clicks into position.
-
Page 23: Defrosting The Appliance
Defrosting the appliance In normal use, ice and frost will form in To defrost the freezer. If allowed to accumulate, Carry out the defrosting procedure this will impair the efficiency of the freezer and increase the consumption as quickly as possible if food has of electricity. - Page 24 Defrosting the appliance Do not use defrosting sprays, or de-icers as they could contain substances which could damage the plastic parts and which may cause a build up of gases and pose a danger to health. After defrosting ^ Clean the appliance, and then dry it thoroughly.
-
Page 25: Cleaning And Care
Cleaning and care Before cleaning Make sure that water cannot get into ^ Switch the appliance off. the electronics. ^ Switch off at the wall and withdraw Never use steam-cleaning the plug from the socket, or apparatus to defrost or clean the disconnect the mains fuse or remove the screw-out fuse in countries where appliance. -
Page 26: Door Seal
Cleaning and care Door seal Do not use any oils or grease on the door seal as these will cause the seal to deteriorate and become porous over time. The door seals should be cleaned regularly with clean water, and then wiped dry with a soft cloth. -
Page 27: Problem Solving Guide
^ Check that the fuse is not defective . . . the compressor runs and that the mains fuse has not continuously. tripped. If it has, contact the Miele To save energy, the compressor runs at Service Department. a lower speed, but for longer, when less cooling is required. - Page 28 . . . there is a thick layer of ice in the If you still cannot remedy the fault freezer. having followed these suggestions, ^ Check whether the door closes please contact the Miele Service properly. Department. ^ Defrost and then clean the freezer. To prevent unnecessary loss of...
-
Page 29: Noises
Noises Normal noises What causes them Humming noise made by the motor (compressor). This noise can Brrrrr... get louder for brief periods when the motor is switching on. Blubb, blubb..A gurgling noise can be heard when coolant is circulating through the pipes. -
Page 30: After Sales / Guarantee
– your Miele Dealer – Miele (see back cover for contact details). When contacting your Dealer or Miele, please quote the model and serial number of your appliance. This information is given on the data plate inside your appliance. -
Page 31: Electrical Connection
Electrical connection Electrical connection U.K. Non-rewireable plugs (BS 1363) All electrical work should be carried out The fuse cover must be re-fitted when by a suitably qualified and competent changing the fuse, and if the fuse cover person in strict accordance with current is lost, the plug must not be used until a local and national safety regulations suitable replacement is obtained. -
Page 32: Installation
Installation Location This appliance must be built in, This appliance should be installed in a otherwise it could tip up. dry, well-ventilated room. It should not be installed where it is exposed to Side-by-side installation direct sunlight or directly adjacent to a heat-producing appliance such as an The left side of this appliance has side oven or a radiator. -
Page 33: Ventilation
Installation Ventilation Before installing the appliance ^ Remove any cable clips from the Air at the back of the appliance gets warm. It is very important for the back of the appliance. cooling system of the appliance to have adequate ventilation. Ventilation into and out of the appliance is through the appliance plinth. -
Page 34: Building-In Dimensions
Building-in dimensions Plinth height B depends on the building under height: With a niche height of 820 mm the plinth height is 100 - 170 mm. The plinth height will be dictated by the height of the furniture front. With a building under height of 870 mm the plinth height is 150 - 220 mm. -
Page 35: Adjusting The Door Hinges
Adjusting the door hinges The door hinges are set ex-works to – If you would like the appliance door enable the door to be opened wide. to be cushioned so that it opens more softly, the spring tension on the However, if the opening angle of the appliance door can be adjusted. -
Page 36: Changing The Door Hinging
Changing the door hinging Appliance door Do not change the door hinging if ^ Open the door. this appliance is to be installed "side-by-side" with another appliance. Before building the appliance in, you will need to decide on which side the door is to be hinged. - Page 37 Changing the door hinging If you have put locking pins into the hinges to stop the door opening too far: ^ Remove the locking pins from the top of the hinges. ^ Refit the door onto the pre-fitted screws, and then tighten the screws. ^ Replace covers a, b and c.
-
Page 38: Building In The Appliance
– a hexagon spanner Maximum weight of Appliance furniture door in kg – an allen key. F 9122 Ui Positioning the appliance ^ Position the mains electricity cable so that the appliance can be connected easily, once installed. Fitting a door front which is heavier... - Page 39 Building in the appliance ^ Align the appliance so that the front edges of the hinges at the top and bottom are flush with the front edge of the housing unit side wall. This will create a gap all round of 42 mm to the front edges of the housing unit side walls.
-
Page 40: Aligning The Appliance
Building in the appliance Aligning the appliance ^ Hold the plinth facing at the side and pull it forwards and off. With a building-under height of 820 mm the adjustable feet must not be extended. With a building-under height of more than 820 mm the feet must be ^ Use an allen key to unscrew both extended. -
Page 41: Securing The Appliance In The Niche
A fitting kit for securing the appliance at the sides when building it under a granite worktop is available from Miele. If there is a continuous plinth in the kitchen, a ventilation gap will need to be made in the plinth for the appliance:... -
Page 42: Fitting A Furniture Door
Building in the appliance Fitting a furniture door ^ Using a pencil, lightly mark a line down the centre of the inside of the ^ A gap of 8 mm must be maintained furniture door. between the appliance door and the ^ Hang the fixing bracket with fitting fixing bracket. - Page 43 Building in the appliance ^ Whilst counterholding the adjusting bolts b with a screwdriver, tighten nuts a at the top of the appliance door. ^ Hang the furniture door onto adjusting bolts a. ^ Loosely attach nuts b on the adjusting bolts.
- Page 44 Building in the appliance ^ Align depth "Z" on the furniture door: To make sure the appliance is Loosen the screws in the long slots at correctly fitted: the top c and bottom d of the – The door must close properly. appliance door.
- Page 48 Alteration rights reserved / 0711 M.-Nr. 09 057 990 / 00 F 9122 Ui...
