- Page 1 DV48H7400E(G)* DV45H7400E(G)* DV45H7200E(G)* DV45H7000E(G)* Gas and Electric Dryer user manual imagine the possibilities Thank you for purchasing this Samsung product. DC68-03170J-17_IB_DV7000H_EN_R.indd 1 DC68-03170J-17_IB_DV7000H_EN_R.indd 1 2023-06-30 2023-06-30 3:29:52 3:29:52...
-
Page 2: Table Of Contents
contents INSTALLING YOUR DRYER Unpacking your dryer Basic requirments Ducting requirements Important to installer Location considerations Alcove or closet installation Mobile home installation Exhausting Gas requirements Commonwealth of Massachusetts installation instructions Electrical requirements Grounding Electrical connections Installation - General procedure Connecting the Inlet Hose (DV48(5) H7400E(G)* ONLY) Final installation check list... - Page 3 Congratulations on your new Samsung Dryer. This manual contains valuable information on the installation, use, and care of your appliance. Please take the time to read this manual to take full advantage of your dryer’s many benefi ts and features.
- Page 4 safety instructions WARNING: To reduce the risk of fi re, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following: WARNING 1. Read all instructions before using this appliance. 2. Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, or other fl...
- Page 5 21. Control board and inlet valve are intentionally not grounded and may present a risk of electric shock only during servicing. - Do not contact this part while appliance is energized. CALIFORNIA PROPOSITION 65 WARNING WARNING WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov. WARNING - Risk of Fire •...
- Page 6 safety instructions Do not allow children or pets to play on, in, or in front of the appliance. Close supervision is necessary when the appliance is used near children and pets. Before discarding or removing your dryer from service, remove the door to the drying compartment to prevent children or animals from becoming trapped inside.
-
Page 7: Installing Your Dryer
Unpack your dryer and Inspect it for shipping damage. Make sure you have received all of the items shown below. If your dryer was damaged during shipping, or you do not have all of the items, contact 1-800-SAMSUNG (726-7864). To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the dryer. -
Page 8: Basic Requirments
installing your dryer BASIC REQUIRMENTS Make sure you have everything necessary for proper installation • A GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements. • A POWER CORD for electric dryers (except in Canada). • GAS LINES (if installing a gas dryer). The gas lines must meet national and local codes. •... -
Page 9: Important To Installer
If the new dryer is being installed into an existing exhaust system, you must make sure: • The exhaust system meets all local, state, and national codes. • That a fl exible plastic duct is not used. • To Inspect and clean all lint buildup from inside the existing duct. •... -
Page 10: Mobile Home Installation
A minimum of 72 in² (465 cm²) of unobstructed space is required. Call 1-800-SAMSUNG(726-7864) for information on purchasing the Floor Anchoring Kit as an accessory. All mobile home installations must be exhausted to the outside with the exhaust duct termination securely fastened to the mobile home structure, using materials that will not support combustion. -
Page 11: Gas Requirements
GAS REQUIREMENTS Use only natural or LP (liquid propane) gases. The installation must be conformed with local codes, or in the absence of local codes, with the national fuel gas code, ANSI Z223.1/NFPA 54, latest revision(for the UNITED STATES), or with the natural gas and propane installation code, CSA B149.1(for Canada). -
Page 12: Electrical Requirements
installing your dryer ELECTRICAL REQUIREMENTS The Wiring diagram is located on the plate below the control panel or frame back. • Improperly connecting the equipment grounding conductor can result in a risk of electric shock. Check with a qualifi ed electrician or serviceman if you are in doubt as to whether your dryer is WARNING properly grounded. -
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS Before operating or testing, follow all grounding instructions in the Grounding section. An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN EXTENSION CORD. Gas models – U.S. and Canada A 120 volt, 60 Hz AC approved electrical service, with a 15-ampere fuse or circuit breaker is required. -
Page 14: Installation - General Procedure
installing your dryer INSTALLATION - GENERAL PROCEDURE For proper installation, we recommend that you hire a qualifi ed installer. Read these instructions completely before you begin the installation. To install the dryer, follow these steps: 1. Move your dryer to an appropriate location for installation. Consider installing the dryer and washer side- by-side so you have easy access to both appliances. - Page 15 6. Review the Electrical Requirements section, then follow the 3 Wire system connection instructions (Step 7) or 4 Wire system instructions (Step 8) below. 7. Three Wire system instructions: A. External ground connector B. Neutral grounding wire (white) C. Center silver-colored terminal block screw D.
- Page 16 installing your dryer U.S. MODELS: Risk Of Electric Shock WARNING All U.S.models are designed for a 3-WIRE SYSTEM CONNECTION. The dryer frame is grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral.
-
Page 17: Connecting The Inlet Hose (Dv48(5)H7400E(G)* Only)
CONNECTING THE INLET HOSE (DV48(5)H7400E(G)* ONLY) METHOD1 The dryer must be connected to the cold water faucet using the new inlet hoses. Do not use old hoses. 1. If space permits, attach the brass female end of the “Y” connector to the cold water faucet. 2. -
Page 18: Dryer Exhaust Tips
installing your dryer DRYER EXHAUST TIPS Plastic or non-metal fl exible duct presents a potential fi re hazard. WARNING 1. Make sure your dryer is installed properly so it exhausts air Wall easily. Dryer DUCT EXHAUST 2. Use 4” diameter rigid metal duct. Tape all joints, including at TAPE the dryer. -
Page 19: Vent Blockage Test
VENT BLOCKAGE TEST After the dryer is installed, start the Vent Blockage Test to check if the duct system is properly installed. The Vent Blockage Test automatically detects the status of the ducts and reports any blockage or problems. Proper ducting can reduce drying time and save energy. The Vent Blockage Test must run with the dryer in a cool state. -
Page 20: Exhaust Ducting Guide
EXHAUST DUCTING GUIDE Ducting 1. Make sure the dryer is installed properly so the air exhausts freely. 2. Use 4-inch rigid metal ducts. Tape all joints including the dryer connection. Never use lint-trapping screws. 3. To facilitate the exhaust, keep the ducts as straight as possible. Cleaning Clean all old ducts before installing the dryer, and make sure the vent fl... -
Page 21: Door Reversal
DOOR REVERSAL If you want to reverse the direction of the door, it is recommended calling a qualifi ed service technician. 1. Unplug the power cord. 2. Remove the four hinge screws from the door 3. Remove the door by lifting it 4. - Page 22 installing your dryer 10. Remove the holder-glass. 11. Exchange the positions of: : The cover-hinge and handle door : The holder-hinge and guider- holder glass 12. Remove the Lever-Door, Cover- Fig 2 Lever (DV45H7000E(G)* Only) and then install it on the opposite side. : DV48(5)H7400E(G)*/ DV45H7200E(G)* Refer Figure.
-
Page 23: Operating Instructions, Tips

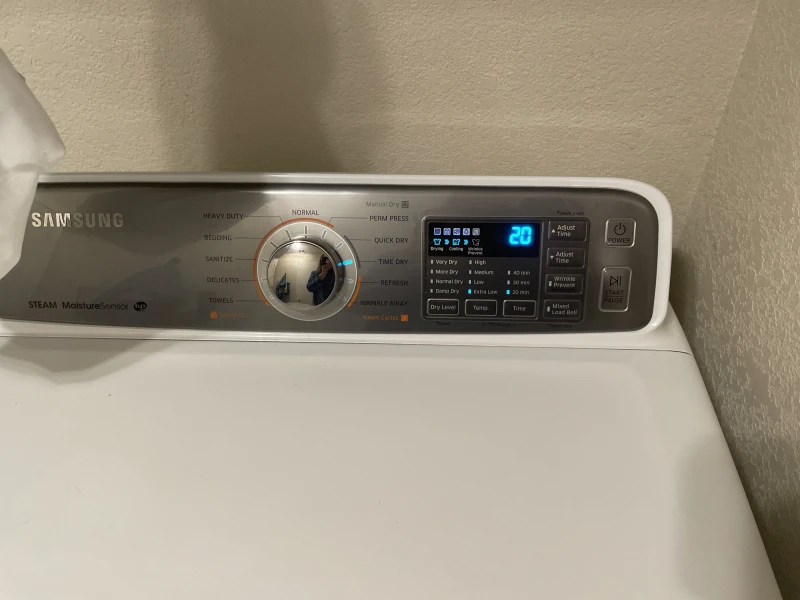

operating instructions, tips To reduce the risk of fi re, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance. WARNING Overview of the control panEL DV48(5)H7400E(G)* DV45H7200E(G)* DV45H7000E(G)* To select a cycle, rotate the Cycle Selector dial to the desired cycle. The indicator light by the cycle name will illuminate. - Page 24 operating instructions, tips SANITIZE – Sanitizes garments by infusing high temperature heat deep into the fabric during the drying cycle. Use this cycle to keep your bedding and curtains clean through sanitization. DELICATES – The Delicates cycle is designed to dry heat-sensitive items at a low drying temperature.
- Page 25 When using Manual Dry cycles, you can adjust the drying time by pressing the time selection button. Time Selection During the Sensory Dry cycle, the time light indicator is off because exact Button drying times are determined by fl uctuating humidity levels. Therefore, the actual drying time may diff er from the displayed time.
-
Page 26: Child Lock
operating instructions, tips CHILD LOCK Prevents children from playing with your dryer. Setting/Releasing If you want to set or release the Child Lock, press the Temp. and Time buttons simultaneously for 3 seconds. Child Lock Details You can turn Child Lock on while your dryer is running. Once you turn Child Lock on, no button, except for the Power button, will respond until you turn off the Child Lock function. -
Page 27: Smart Care (Dv48(5)H7400E(G)*, Dv45H7200E(G)* Only)
Smart Care app. Downloading the Smart Care app • Download the Samsung Laundry App into your mobile phone from the Android market or Apple App store. (Search word : Samsung Smart Washer/Dryer) Precautions when using Smart Care •... -
Page 28: Clean The Lint Filter
operating instructions, tips CLEAN THE LINT FILTER • After each load. • To shorten drying time. • To operate more energy effi ciently. Do not operate your dryer without the lint fi lter in place. Filter Frame Front Door LOAD THE DRYER PROPERLY •... -
Page 29: Care And Cleaning
care and cleaning Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. WARNING Service Personnel - Do not contact the following parts while the appliance is energized: Control board and inlet valve. CONTROL PANEL Clean with a soft, damp cloth. -
Page 30: Special Laundry Tips
special laundry tips SPECIAL LAUNDRY TIPS Please follow the care label or manufacturer’s instructions for drying special items. If care label instructions are not available, use the following information as a guide. Bedspreads & Comforters • Follow the care label instructions or dry using the Bedding cycle. •... -
Page 31: Troubleshooting
troubleshooting CHECK THESE POINTS IF YOUR DRYER… PROBLEM SOLUTION Doesn’t run. • Make sure the door is latched shut. • Be sure the power cord is plugged into a live electrical outlet. • Check your home’s circuit breakers or fuses. •... -
Page 32: Information Codes
Make sure a button is NOT being pressed pressed for over 30secs or button is continuously. Try restarting the cycle. (DV45H7000E(G)*) stuck. If the problem continues, call for service. For any codes not listed above, call 1–800–726–7864 (1–800–SAMSUNG). English - 32 DC68-03170J-17_IB_DV7000H_EN_R.indd Sec4:32 DC68-03170J-17_IB_DV7000H_EN_R.indd Sec4:32 2023-06-30 2023-06-30... -
Page 33: Appendix
appendix FABRIC CARE CHART The following symbols provide garment care directions. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems. -
Page 34: Protecting The Environment
appendix PROTECTING THE ENVIRONMENT This appliance is manufactured from recyclable materials. If you decide to dispose of this appliance, please observe local waste disposal regulations. Cut off the power cord so that the appliance cannot be connected to a power source. Remove the door so that animals and small children cannot get trapped inside the appliance. -
Page 35: Cycle Chart
CYCLE CHART DV48(5)H7400E(G)* ( : factory setting, : selectable) Functions Cycle Recommended Item Max Load Size Sensor Dry Level NORMAL Cottons, Work clothes, Linen, Mixed Loads Normal dry Heavy Fabrics such as jean, corduroys, HEAVY DUTY Normal dry heavy work clothes Bulky items such as blankets, Sheets, BEDDING Normal dry... - Page 36 appendix CYCLE CHART DV45H7200E(G)* ( : factory setting, : selectable) Functions Cycle Recommended Item Max Load Size Sensor Dry Level NORMAL Cottons, Work clothes, Linen, Mixed Loads Normal dry Heavy Fabrics such as jean, corduroys, HEAVY DUTY Normal dry heavy work clothes Bulky items such as blankets, Sheets, BEDDING Normal dry...
- Page 37 CYCLE CHART DV45H7000E(G)* ( : factory setting, : selectable) Functions Cycle Recommended Item Max Load Size Sensor Dry Level NORMAL Cottons, Work clothes, Linen, Mixed Loads Normal dry Heavy Fabrics such as jean, corduroys, HEAVY DUTY Normal dry heavy work clothes Bulky items such as blankets, Sheets, BEDDING Normal dry...
- Page 38 SAMSUNG authorized servicers within the customer’s geographic area. If in-home service is not available, SAMSUNG may elect, at its option, to provide transportation of the product to and from an authorized service center. If the product is located in an area where service by a SAMSUNG authorized servicer is not available, you may be responsible for a trip charge or required to bring the product to a SAMSUNG authorized service center for service.
- Page 39 SAMSUNG does not warrant uninterrupted or error-free operation of the product. No warranty or guarantee given by any other person, fi rm, or corporation with respect to this product shall be binding on SAMSUNG. To obtain warranty service, please contact SAMSUNG at: Samsung Electronics America, Inc.
- Page 40 Warranty service can only be performed by a SAMSUNG authorized service center. The original dated bill of sale must be presented upon request as proof of purchase to SAMSUNG or SAMSUNG’s authorized service center. SAMSUNG will provide in-home service during the warranty period at no charge, subject to availability within the Canada.
- Page 41 SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF SAMSUNG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
- Page 42 memo DC68-03170J-17_IB_DV7000H_EN_R.indd Sec7:42 DC68-03170J-17_IB_DV7000H_EN_R.indd Sec7:42 2023-06-30 2023-06-30 3:30:01 3:30:01...
- Page 43 memo DC68-03170J-17_IB_DV7000H_EN_R.indd Sec7:43 DC68-03170J-17_IB_DV7000H_EN_R.indd Sec7:43 2023-06-30 2023-06-30 3:30:01 3:30:01...
- Page 44 MEXICO 800-SAMSUNG www.samsung.com/mx/support DC68-03170J-17 Visits by a Service Engineer to explain functions, maintenance or installation is not covered by warranty. Please contact your Samsung call agent for help with any of these issues. DC68-03170J-17_IB_DV7000H_EN_R.indd Sec7:44 DC68-03170J-17_IB_DV7000H_EN_R.indd Sec7:44 2023-06-30 2023-06-30 3:30:01...
