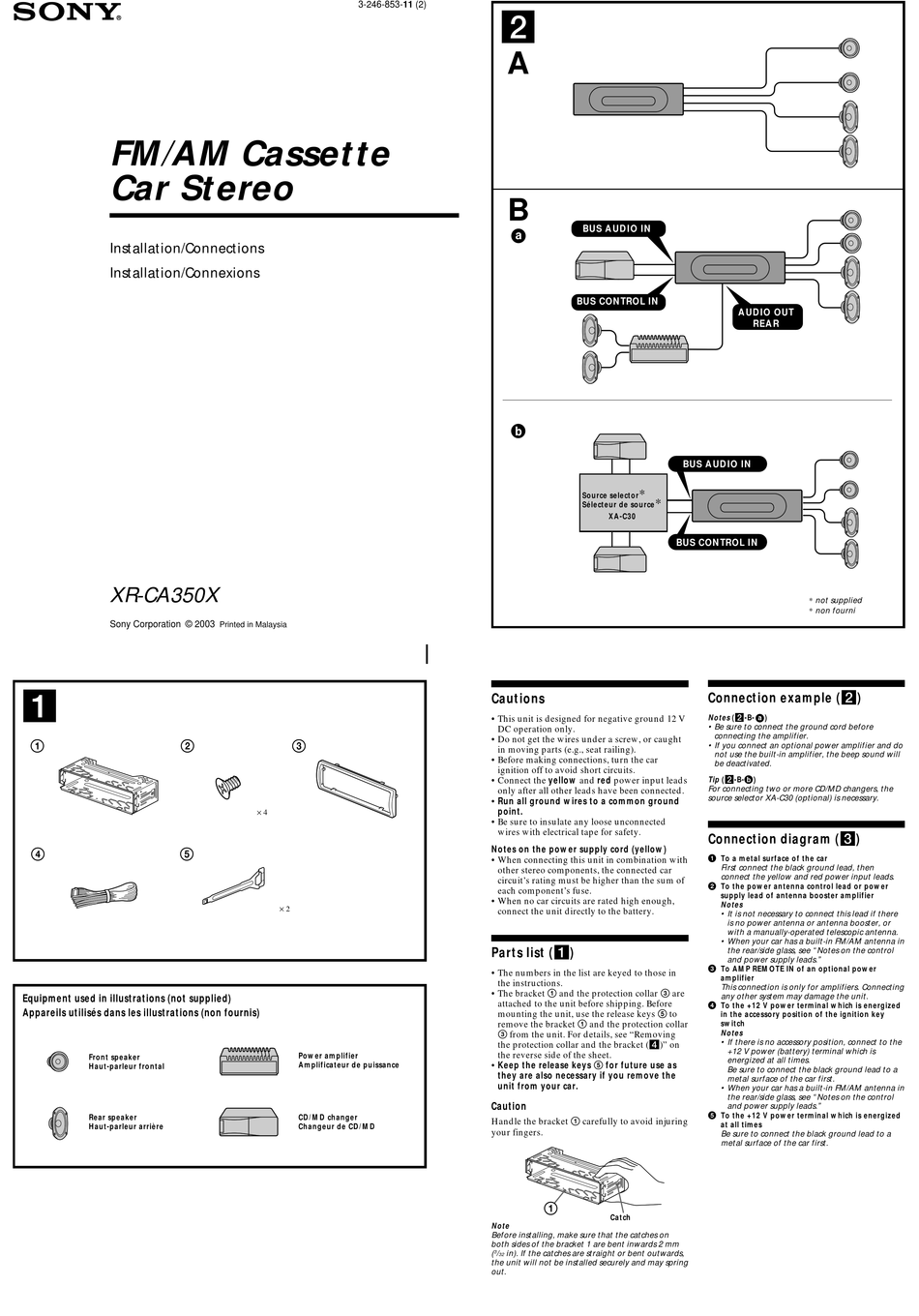

Sony Xplod XR-CA350X Installation/Connections

FM/AM Cassette
Car Stereo
Installation/Connections
Installation/Connexions
XR-CA350X
Sony Corporation © 2003
1
1 2
4 5
Equipment used in illustrations (not supplied)
Appareils utilisés dans les illustrations (non fournis)
Front speaker
Haut-parleur frontal
Rear speaker
Haut-parleur arrière
3-246-853-11 (2)
Printed in Malaysia
3
4
2
Power amplifier
Amplificateur de puissance
CD/MD changer
Changeur de CD/MD
2
A
B
BUS AUDIO IN
BUS CONTROL IN
*
Source selector
*
Sélecteur de source
XA-C30
Cautions
•This unit is designed for negative ground 12 V
DC operation only.
•Do not get the wires under a screw, or caught
in moving parts (e.g., seat railing).
•Before making connections, turn the car
ignition off to avoid short circuits.
•Connect the yellow and red power input leads
only after all other leads have been connected.
•Run all ground wires to a common ground
point.
•Be sure to insulate any loose unconnected
wires with electrical tape for safety.
Notes on the power supply cord (yellow)
•When connecting this unit in combination with
other stereo components, the connected car
circuit's rating must be higher than the sum of
each component's fuse.
•When no car circuits are rated high enough,
connect the unit directly to the battery.

Parts Iist (1)

•The numbers in the list are keyed to those in
the instructions.
•The bracket 1 and the protection collar 3 are
attached to the unit before shipping. Before
mounting the unit, use the release keys 5 to
remove the bracket 1 and the protection collar
3 from the unit. For details, see "Removing
the protection collar and the bracket (4)" on
the reverse side of the sheet.
•Keep the release keys 5 for future use as
they are also necessary if you remove the
unit from your car.
Caution
Handle the bracket 1 carefully to avoid injuring
your fingers.
1
Catch
Note
Before installing, make sure that the catches on
both sides of the bracket 1 are bent inwards 2 mm
3
( / in). If the catches are straight or bent outwards,
32
the unit will not be installed securely and may spring
out.
AUDIO OUT
REAR
BUS AUDIO IN
BUS CONTROL IN
* not supplied
* non fourni
Connection example (2)
Notes (2-B- )
• Be sure to connect the ground cord before
connecting the amplifier.
• If you connect an optional power amplifier and do
not use the built-in amplifier, the beep sound will
be deactivated.
Tip (2-B- )
For connecting two or more CD/MD changers, the
source selector XA-C30 (optional) is necessary.

Connection diagram (3)

1 To a metal surface of the car
First connect the black ground lead, then
connect the yellow and red power input leads.
2 To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary to connect this lead if there
is no power antenna or antenna booster, or
with a manually-operated telescopic antenna.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control
and power supply leads."
3 To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting
any other system may damage the unit.
4 To the +12 V power terminal which is energized
in the accessory position of the ignition key
switch
Notes
• If there is no accessory position, connect to the
+12 V power (battery) terminal which is
energized at all times.
Be sure to connect the black ground lead to a
metal surface of the car first.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control
and power supply leads."
5 To the +12 V power terminal which is energized
at all times
Be sure to connect the black ground lead to a
metal surface of the car first.
