Sony CDX-RW300 Installation/Connections

FM/AM
Compact Disc
Player
Installation/Connections
Instalación/Conexiones
CDX-RW300
© 2004 Sony Corporation
1
1 2
4 5
Equipment used in illustrations (not supplied)
Equipo utilizado en las ilustraciones (no suministrado)
Front speaker
Altavoz frontal
Rear speaker
Altavoz posterior
3-261-846-31 (1)
Printed in Korea
3
4
2
Active subwoofer
Subwoofer activo
Power amplifier
Amplificador de potencia
2
A
B
AUDIO OUT REAR
Cautions
• This unit is designed for negative ground 12 V
DC operation only.
• Do not get the leads under a screw, or caught
in moving parts (e.g. seat railing).
• Before making connections, turn the car
ignition off to avoid short circuits.
• Connect the yellow and red power input leads
only after all other leads have been connected.
• Run all ground leads to a common ground
point.
• Be sure to insulate any loose unconnected
leads with electrical tape for safety.
• The use of optical instruments with this
product will increase eye hazard.
Notes on the power supply lead (yellow)
• When connecting this unit in combination with
other stereo components, the connected car
circuit's rating must be higher than the sum of
each component's fuse.
• When no car circuits are rated high enough,
connect the unit directly to the battery.

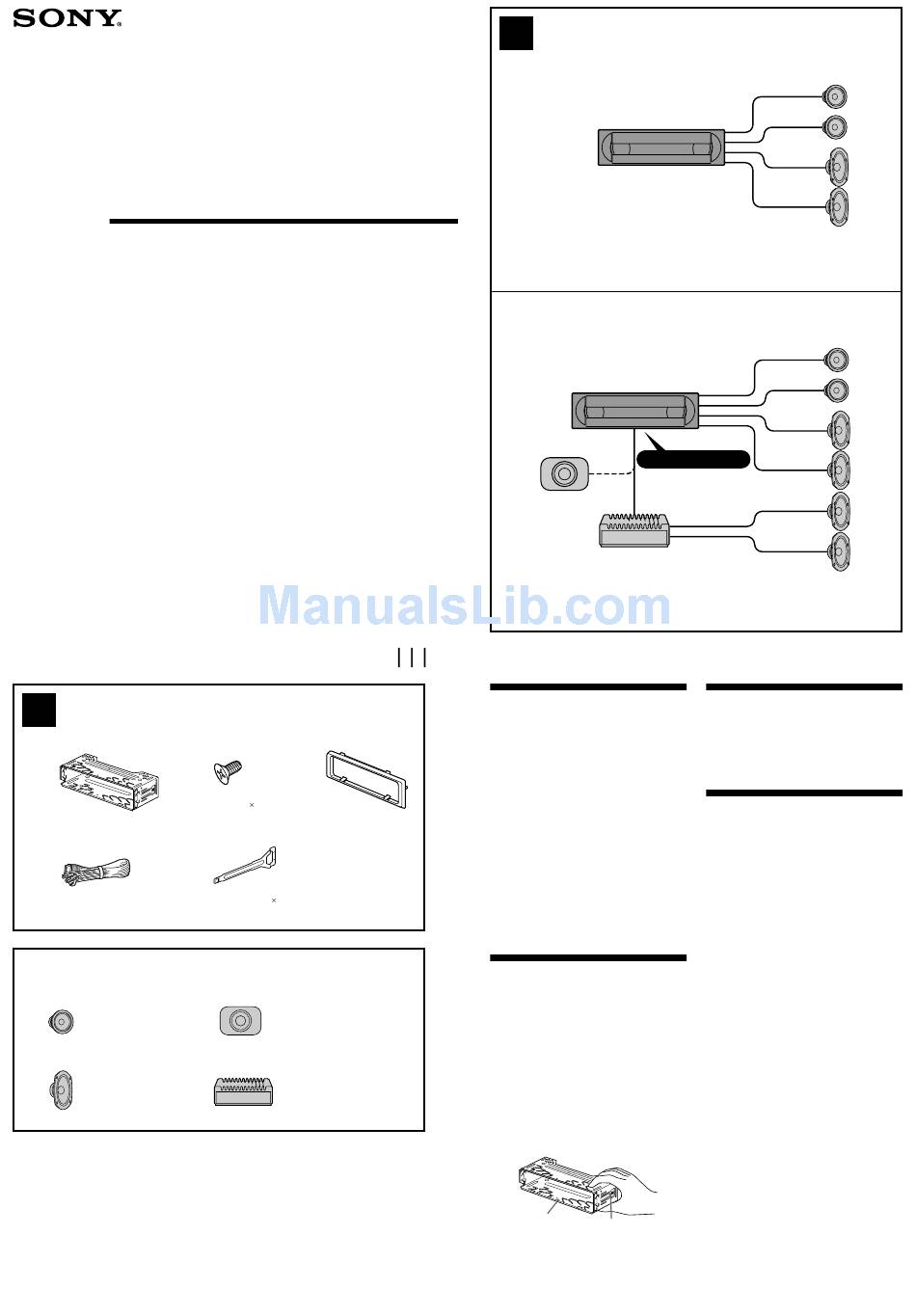

Parts Iist (1)
• The numbers in the list are keyed to those in
the instructions.
• The bracket 1 and the protection collar 3 are
attached to the unit before shipping. Before
mounting the unit, use the release keys 5 to
remove the bracket 1 and the protection collar
3 from the unit. For details, see "Removing
the protection collar and the bracket (4)" on
the reverse side of the sheet.
• Keep the release keys 5 for future use as
they are also necessary if you remove the
unit from your car.
Caution
Handle the bracket 1 carefully to avoid injuring
your fingers.
1
Catch
Note
Before installing, make sure that the catches on
both sides of the bracket 1 are bent inwards 2 mm
( 3 / in). If the catches are straight or bent outwards,
32
the unit will not be installed securely and may spring
out.
Connection example (2)
Notes (2-B)
• Be sure to connect the ground lead before
connecting the amplifier.
• If you connect an optional power amplifier and do
not use the built-in amplifier, the beep sound will
be deactivated.
Connection diagram (3)
1 To a metal surface of the car
First connect the black ground lead, then
connect the yellow and red power input leads.
2 To the power antenna control lead or power
supply lead of antenna booster amplifier
Notes
• It is not necessary to connect this lead if there
is no power antenna or antenna booster, or
with a manually-operated telescopic antenna.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control
and power supply leads."
3 To AMP REMOTE IN of an optional power
amplifier
This connection is only for amplifiers. Connecting
any other system may damage the unit.
4 To the +12 V power terminal which is energized
in the accessory position of the ignition key
switch
Notes
• If there is no accessory position, connect to the
+12 V power (battery) terminal which is
energized at all times.
Be sure to connect the black ground lead to a
metal surface of the car first.
• When your car has a built-in FM/AM antenna in
the rear/side glass, see "Notes on the control
and power supply leads."
5
To the +12 V power terminal which is energized
at all times
Be sure to connect the black ground lead to a
metal surface of the car first.
