Toro 121-7576 Installation Instructions

Weight Kit
Z 2000 Series Riding Mower
Model No. 121-7576
Loose Parts
Use the chart below to verify that all parts have been shipped.
Description
Bolt (1/4 x 1-5/8 inches) for 3 weights
Bolt (1/4 x 2-1/4 inches) for 5 weights
Flat washer
Weight
Nut
Installing the Weight
1. Lift up on the floor pan and remove it from the
machine.
2. Insert a flat washer and the appropriate bolt into the
footrest as follows: (Figure 1).
•
If installing 3 weights, use the 1-5/8 inch bolts.
•
If installing 5 weights, use the 2-1/4 inch bolts.
1. Bolt
2. Flat washer
3. Slide each weight, one at a time onto the bolts and
secure them using 2 nuts (Figure 1 and Figure 2).
© 2012—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
3
1
2
3

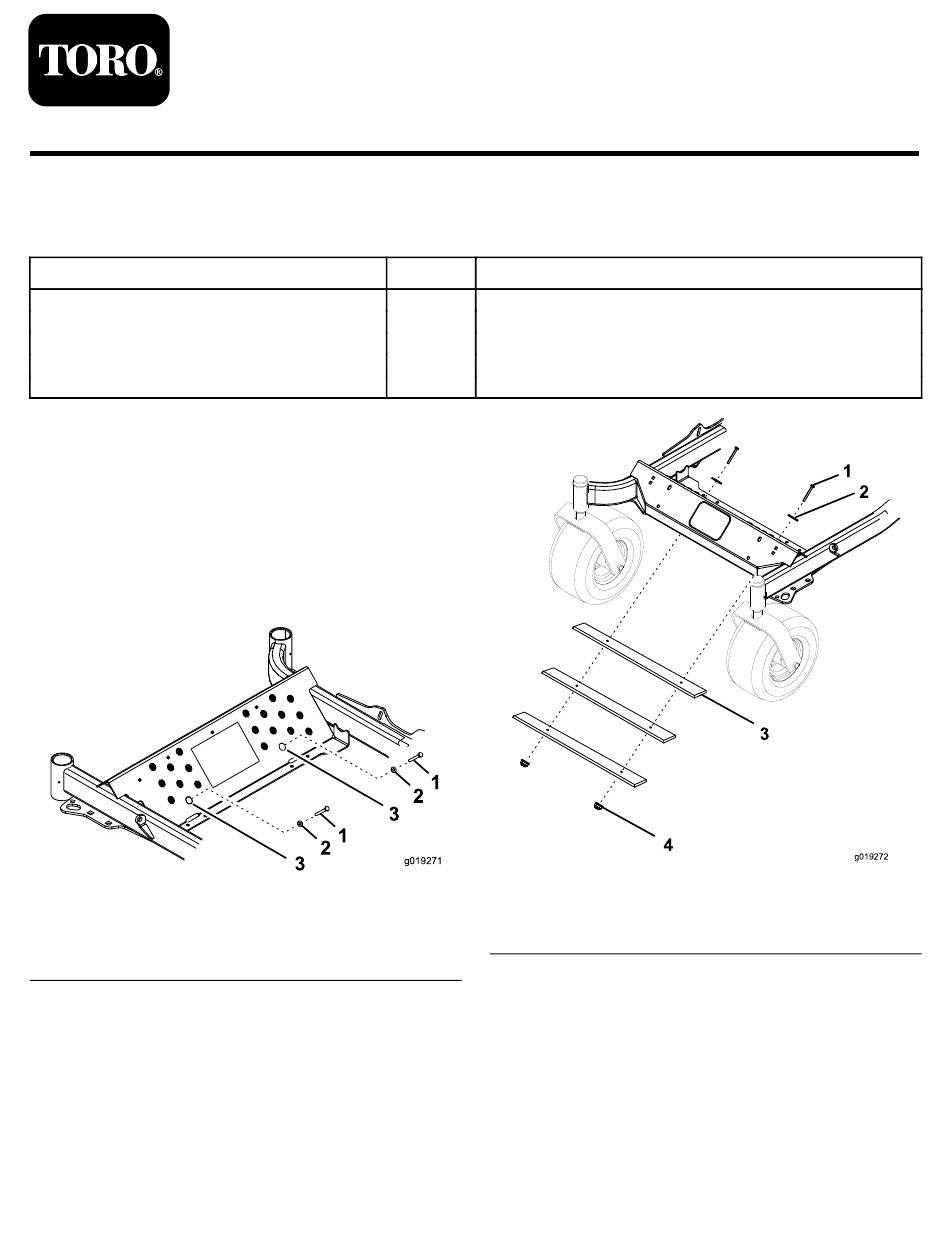

Figure 1
3. Use this hole when
securing the weights
Register at www.Toro.com.
Qty.
2
2
2 Install the weight
3
2
1
2
g019271
1. Bolt
2. Flat washer
4. Install and lower the floor pan.
Form No. 3373-801 Rev A
Installation Instructions
Use
3
4
Figure 2
3. Weight (3 shown)
4. Nut
Original Instructions (EN) All Rights Reserved *3373-801* A
Printed in the USA.
1
2
g019272
