Page 1

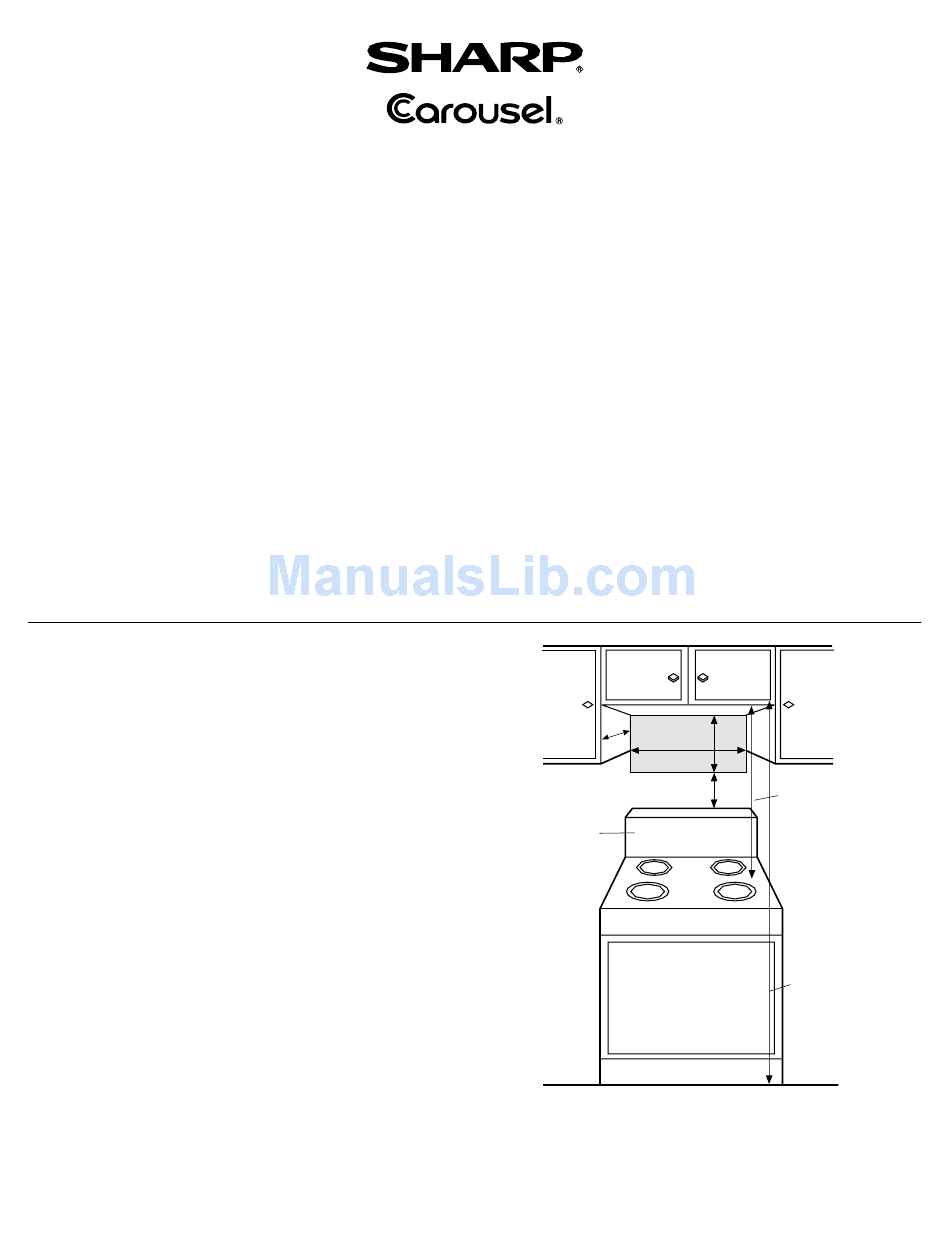

MICROWAVE OVEN/HOOD SYSTEM INSTALLATION INSTRUCTIONS Please read all instructions thoroughly before installing the Microwave Oven/Hood System. Two people are recommended to install this product. If a new electrical outlet is required, its installation should be completed by a qualified electrician before the Microwave Oven/Hood is installed.
1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or serviceperson. 2. Neither Sharp nor the dealer can accept any liability for dam- age to the oven or personal injury resulting from failure to observe the correct electrical connection procedures.
4 HOOD EXHAUST DUCT When the hood is vented to the outside, a hood exhaust duct is required. All ductwork must be metal; absolutely do not use plastic duct. Check that all connections are made securely. Please read the following carefully: Exhaust connection: The hood exhaust has been designed to connect to a standard 3-1/4”...
If there is any damage, do not operate the oven and contact your dealer or SHARP AUTHORIZED SERVICER. 3. Remove and save Screw (A) as shown in Figure 6.
Page 5
(B) HORIZONTAL EXHAUST: Outside Ventilation 1. Remove and save 2 screws from back edge and 1 screw from the top center of Fan Cover Bracket. Remove Fan Cover Bracket by sliding it in the opposite direction of the arrow on the Fan Cover Bracket, as shown in Figure 9.
(C) VERTICAL EXHAUST: Outside Ventilation 1. Remove and save 2 screws from back edge and 1 screw from the top center of the Fan Cover Bracket. Remove Fan Cover Bracket by sliding it in the opposite direction of the arrow on the Fan Cover Bracket as shown in Figure 9 on page 5.
Page 7
MOUNTING OVEN TO THE WALL Two people are recommended to attach the Microwave Oven/Hood to the Mounting Plate. 1. Thread the power supply cord through the hole made in the bottom of the top cabinet. 2. Install the oven by sliding it onto the arms of the Mounting Plate.
Page 8
1. CHARCOAL FILTER (RK-230). Filter is used when hood exhaust is recirculated only. Check with your dealer or order directly from the SHARP Accessories and Supplies Center. Call toll-free 1-800-642-2122. 2. FILLER PANEL KIT. This is available for use when the oven is installed in a 36” or 42” wide opening. The metal filler panels come in pairs, each either 3 or 6 inches wide.
