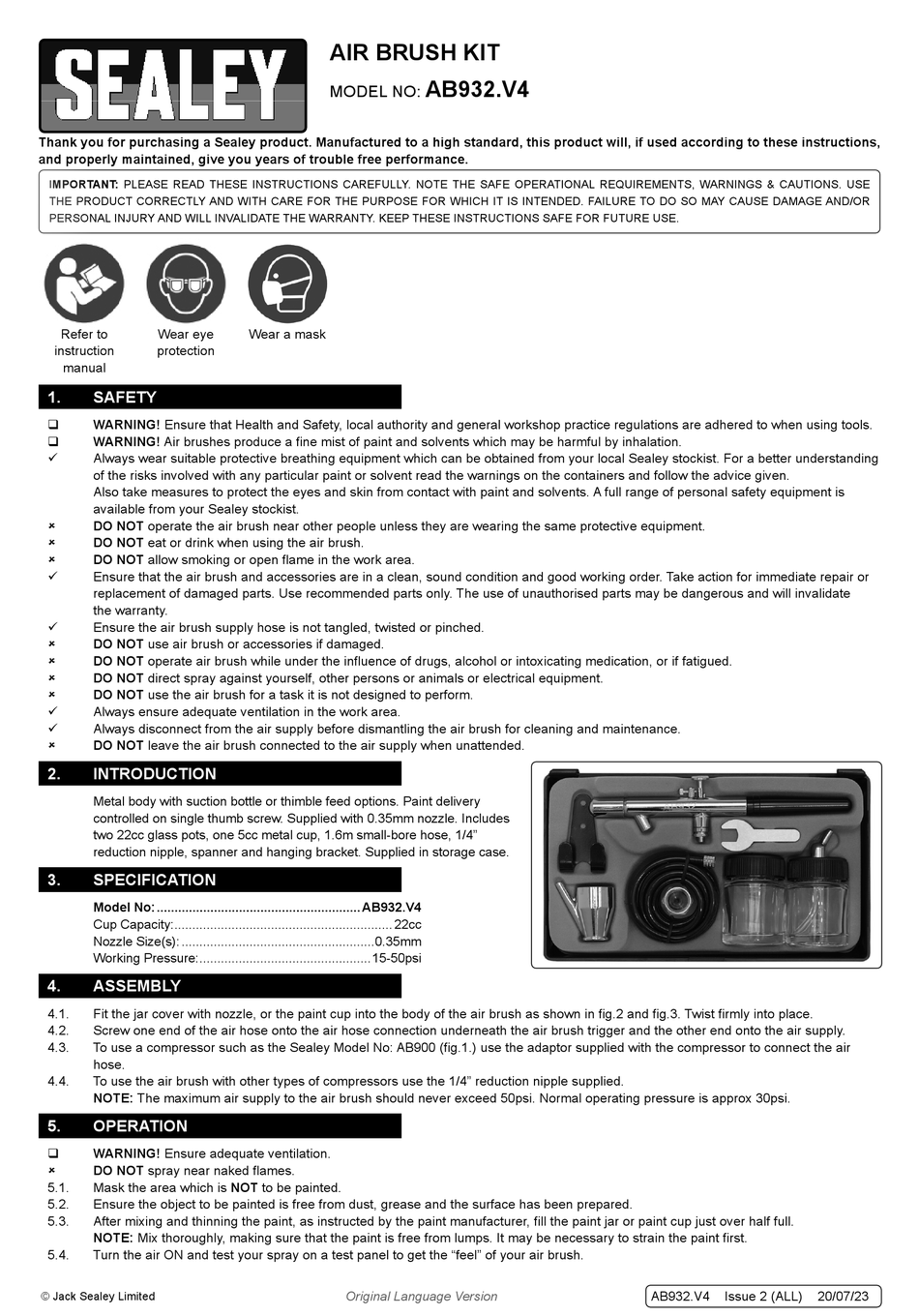

Sealey AB932.V4 Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
WARNING! Ensure that Health and Safety, local authority and general workshop practice regulations are adhered to when using tools.
‰
WARNING! Air brushes produce a fi ne mist of paint and solvents which may be harmful by inhalation.
‰
Always wear suitable protective breathing equipment which can be obtained from your local Sealey stockist. For a better understanding

of the risks involved with any particular paint or solvent read the warnings on the containers and follow the advice given.
Also take measures to protect the eyes and skin from contact with paint and solvents. A full range of personal safety equipment is
available from your Sealey stockist.
DO NOT operate the air brush near other people unless they are wearing the same protective equipment.
8
DO NOT eat or drink when using the air brush.
8
DO NOT allow smoking or open fl ame in the work area.
8
Ensure that the air brush and accessories are in a clean, sound condition and good working order. Take action for immediate repair or

replacement of damaged parts. Use recommended parts only. The use of unauthorised parts may be dangerous and will invalidate
the warranty.
Ensure the air brush supply hose is not tangled, twisted or pinched.

DO NOT use air brush or accessories if damaged.
8
DO NOT operate air brush while under the infl uence of drugs, alcohol or intoxicating medication, or if fatigued.
8
DO NOT direct spray against yourself, other persons or animals or electrical equipment.
8
DO NOT use the air brush for a task it is not designed to perform.
8
Always ensure adequate ventilation in the work area.

Always disconnect from the air supply before dismantling the air brush for cleaning and maintenance.

DO NOT leave the air brush connected to the air supply when unattended.
8
2. INTRODUCTION

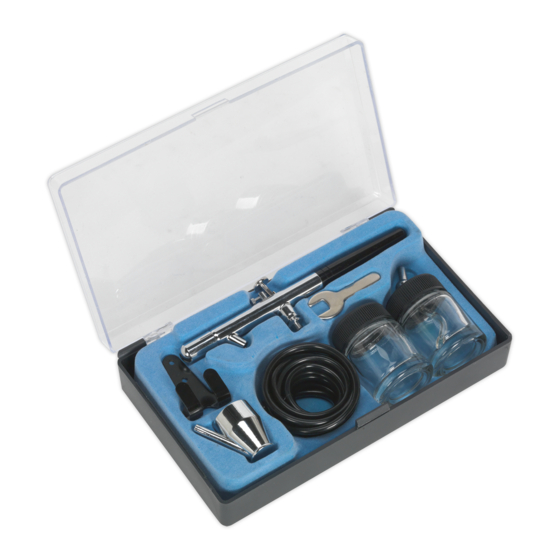

Metal body with suction bottle or thimble feed options. Paint delivery
controlled on single thumb screw. Supplied with 0.35mm nozzle. Includes
two 22cc glass pots, one 5cc metal cup, 1.6m small-bore hose, 1/4"
reduction nipple, spanner and hanging bracket. Supplied in storage case.
3. SPECIFICATION
Model No: ......................................................... AB932.V4
Cup Capacity: ............................................................. 22cc
Nozzle Size(s): ......................................................0.35mm
Working Pressure: ................................................15-50psi
4. ASSEMBLY
4.1. Fit the jar cover with nozzle, or the paint cup into the body of the air brush as shown in fi g.2 and fi g.3. Twist fi rmly into place.
4.2. Screw one end of the air hose onto the air hose connection underneath the air brush trigger and the other end onto the air supply.
4.3. To use a compressor such as the Sealey Model No: AB900 (fi g.1.) use the adaptor supplied with the compressor to connect the air
hose.
4.4. To use the air brush with other types of compressors use the 1/4" reduction nipple supplied.
NOTE: The maximum air supply to the air brush should never exceed 50psi. Normal operating pressure is approx 30psi.
5. OPERATION
WARNING! Ensure adequate ventilation.
‰
DO NOT spray near naked fl ames.
8
5.1. Mask the area which is NOT to be painted.
5.2. Ensure the object to be painted is free from dust, grease and the surface has been prepared.
5.3. After mixing and thinning the paint, as instructed by the paint manufacturer, fi ll the paint jar or paint cup just over half full.
NOTE: Mix thoroughly, making sure that the paint is free from lumps. It may be necessary to strain the paint fi rst.
5.4. Turn the air ON and test your spray on a test panel to get the "feel" of your air brush.
© Jack Sealey Limited
AIR BRUSH KIT
MODEL NO:
Wear a mask
Original Language Version
AB932.V4
AB932.V4 Issue 2 (ALL) 20/07/23
