■ To replace the chassis fan
1. If you are installing a new chassis fan, attach the fan guard to the correct face of the new fan.
Use the fan guard and four rivets that you removed from the old chassis fan. Position the guard against the face of the new
fan so that the airflow arrow on the fan points toward the guard (see
rivet all the way through its mounting hole until the rivet snaps into the locked position.

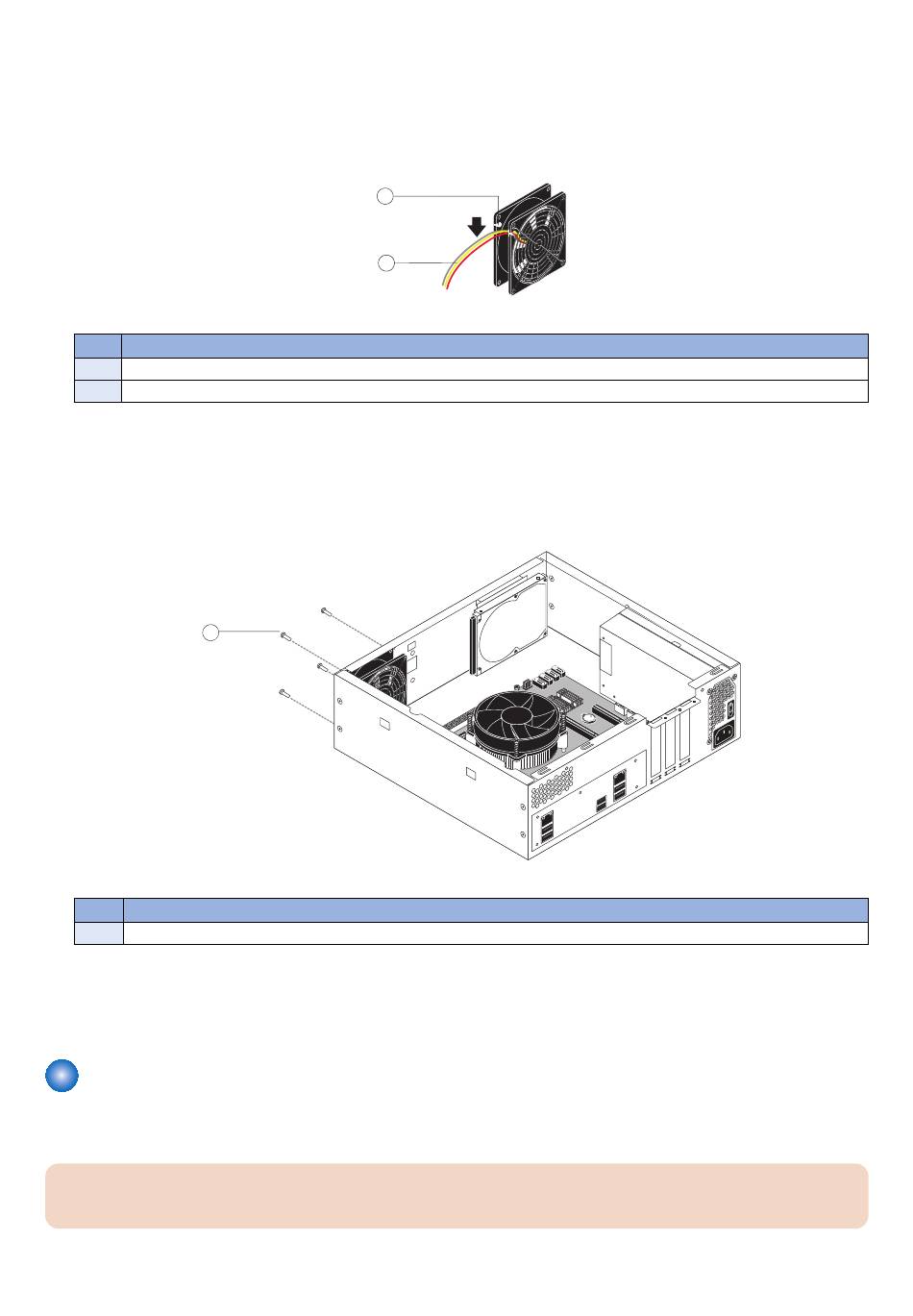

2. Take off the fan cable from the cable line hole.
No.
1 Fan cable
2 Cable line hole
3. Position the fan against the chassis.
When correctly positioned, the fan guard on the fan should face the motherboard, and the fan cable should reach its connector
on the motherboard.
4. Align the four holes on the fan with the four holes in the chassis, and replace the four rivets that secure the fan to the chassis
(see below figure).
Hold the fan firmly against the chassis, and push each rivet all the way until it snaps into the locked position. Make sure that
the fan is tightly secured to the chassis.
1
No.
1 Rivet (1 of 4)
5. Connect the fan cable connector to FRONT FAN connector (J30) on the motherboard.
The cable connector is keyed to fit only one way.
6. Reassemble the imagePRESS Server and verify its functionality (see
page 35).

Power supply

This section describes how to remove and replace the power supply. For more information about the power supply, see
"Specifications" on page 61.
IMPORTANT:
Do not open the power supply for service or troubleshooting purposes. Opening the power supply voids the warranty.
2
1
Taking off the fan cable from the cable line hole
Replacing the chassis fan
30
"To remove the chassis fan" on page
Item
Item
"To reinstall and verify the imagePRESS Server" on
3. REPLACING PARTS
28). Push each
