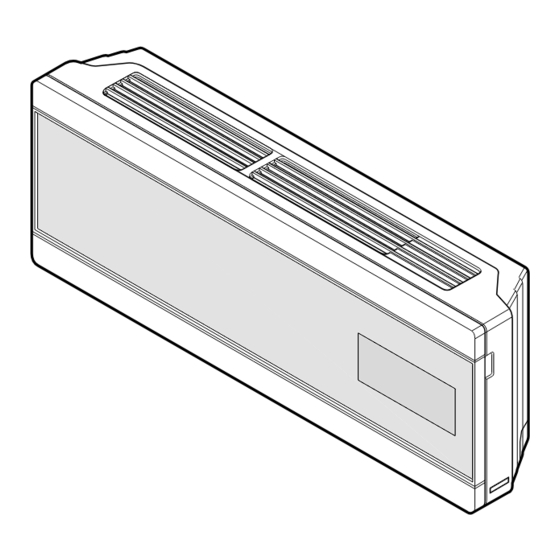

Heat Pump Indoor Unit
INSTALLATION MANUAL
MODELS : SE/S3 Series
Type : ART COOL Mirror
System
IMPORTANT
• Please read this installation manual completely
before installing the product.
• Installation work must be performed in accordance
with the national wiring standards by authorized
personnel only.
• Please retain this installation manual for future
reference after reading it thoroughly.
LG
Advertisement
Related Manuals for LG MULTI V SE Series
Summary of Contents for LG MULTI V SE Series
- Page 1 System Heat Pump Indoor Unit INSTALLATION MANUAL MODELS : SE/S3 Series Type : ART COOL Mirror IMPORTANT • Please read this installation manual completely before installing the product. • Installation work must be performed in accordance with the national wiring standards by authorized personnel only.
-
Page 2: Table Of Contents
Artcool Deluxe Type Indoor Unit Installation Manual TABLE OF CONTENTS Required Parts Required Tools Installation Requirements Installation Parts ....3 Safety Precautions ....4 Installation Installation guide map Level gauge Four type "A" screws & plastic Screw driver anchors Electric drill Selection of the best location Connecting cable Hole core drill ..........7... -
Page 3: Installation Parts
Installation Parts Installation Parts Type 1 Type 2 Installation Plate Installation Plate Installation plate Type 1 Type 2 Type "A" screws and plastic anchors Type "A" screws and plastic anchors Installation Manual 3... -
Page 4: Safety Precautions
Safety Precautions Safety Precautions To prevent injury to the user or other people and property damage, the following instructions must be followed. Be sure to read before installing the air conditioner. Be sure to observe the cautions specified here as they include important items related to safety. Incorrect operation due to ignoring instruction will cause harm or damage. - Page 5 Safety Precautions Do not modify or extend the Do not let the air conditioner Be cautious when unpacking power cable. run for a long time when the and installing the product. humidity is very high and a door or a window is left open. •...
- Page 6 Safety Precautions Installation Always check for gas (refriger- Install the drain hose to ensure Keep level even when installing ant) leakage after installation or that water is drained away prop- the product. repair of product. erly. • Low refrigerant levels may cause •...
-
Page 7: Installation
Installation Installation Read completely, then follow step by step. Selection of the best location There should not be any heat source or steam • near the unit. • There should not be any obstacles to prevent the More than 50 cm More than 10 cm air circulation. -
Page 8: Piping Method
Installation Drill a Hole in the Wall • Drill the piping hole with a ø70mm hole core drill. WALL Drill the piping hole at either the right or the left Indoor Outdoor with the hole slightly slanted to the outdoor side. Piping Method Preparing the indoor unit's piping and drain hose for 3. - Page 9 Installation 5. Connecting the pipings to the indoor unit and drain Wrap the area which accommodates the rear pip- hose to drain pipe. ing housing section with vinyl tape. Align the center of the pipings and sufficiently tighten Indoor Connection the flare nut by hand.
- Page 10 Installation 3. Insert the connecting cable into the indoor unit. Pipe Size[Torque] Don't connect the cable to the indoor unit. LIQUID Make a small loop with the cable for easy connec- Ø12.7[5.5kg . m] Ø6.35[1.8kg . m] tion later. Ø15.88[6.6kg . m] Ø9.52[4.2kg .
- Page 11 Installation Bundle the piping and drain hose together by wrapping them with cloth tape over the range CAUTION within which they fit into the rear piping housing section. Installation Information (For left piping) Pipe • Good case Drain hose Vinyl tape For left piping.
-
Page 12: Drain Piping
Installation Drain Piping CAUTION 1. To remove the front panel from the indoor unit, remove the front panel from the indoor unit • Bad case cabinet. Set the air direction louvers up-and-down to the Following bending type from right to left could cause problem of pipe damage. -
Page 13: Wiring Connection
Installation Wiring Connection Connect the wires to the terminals on the control board individually according to the outdoor unit connection. • Ensure that the color of the wires of outdoor unit and the terminal No. are the same as those of indoor unit respectively. -
Page 14: Installation Of Remote Controller
Installation Installation of Remote Controller HOW TO MOUNT ONTO A WALL HOW TO INSERT BATTERIES 1. Remove the battery cover from the remote • Do not use rechargeable batteries, controller. such batteries differ from standard • Slide the cover according to the arrow dry cells in shape, dimensions, and direction. - Page 15 Installation Installation of Remote Control • Although the room temperature sensor is in the indoor unit, the remote controller should be installed in such places away from direct sunlight and high humidity. Installation of the remote controller • Select places that are not splashed with water. •...
- Page 16 Installation Optional operation 1) Two Thermistor System (1) Open the rear cover of the wired remote-controller to Room Temp. sensor set the mode. Slide switch for 2 Thermistor (2) Select one of three selectable modes as follows. R13H R12H OP5R16H CO1H •...
