Sony HT-DDW650 Connection And Installation Manual

4-246-055-52(1)
TV monitor
Right
A A
Front speaker
Right
D
Surround
speaker
DIGITAL ANTENNA
OPTICAL
VIDEO 2
IN
AM
y
VIDEO IN VIDEO IN
DVD IN
COAXIAL
L
R
IN OUT IN AUDIO IN AUDIO IN
CD MD/TAPE DVD VIDEO 2
DVD & VCR
IN LINE LINE
(FROM ANT.) OUT IN 1
R
AUDIO
RF L
OUT
(TO TV)
VIDEO
Sony Corporation ©2003 Printed in Malaysia
HT-DDW650
HOME THEATER SYSTEM

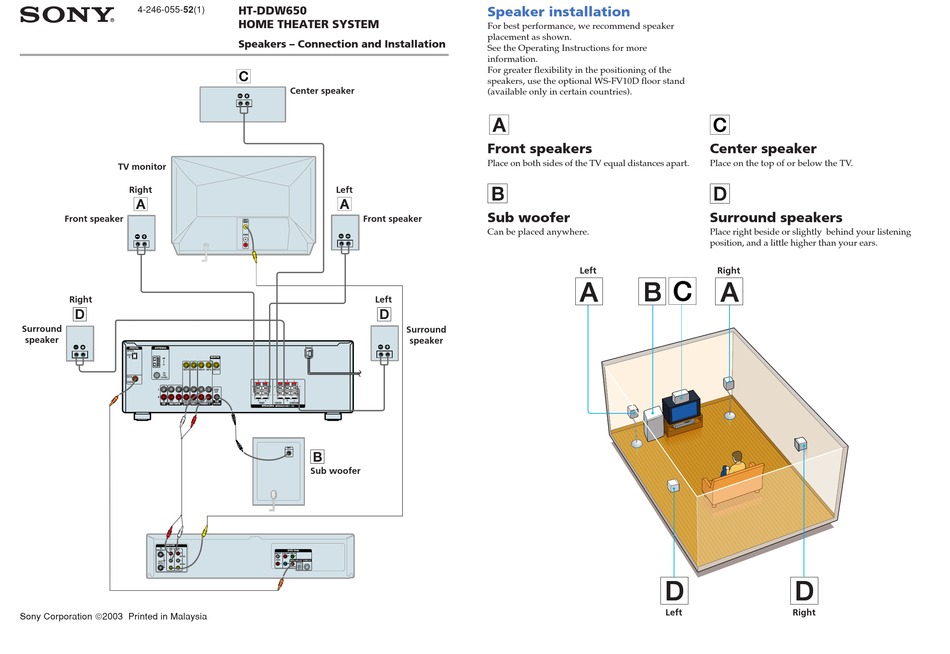

Speakers – Connection and Installation
C
Center speaker
Left
A
Front speaker
INPUT
VIDEO
AUDIO
MONITOR
VIDEO OUT VIDEO IN VIDEO OUT
R L R L
AUDIO
OUT
R L R L
AUDIO OUT AUDIO IN SUB
VIDEO 1 WOOFER FRONT CENTER SURROUND
SPEAKERS IMPEDANCE USE 8 – 16Ω
INPUT
B
Sub woofer
DVD Only
LINE OUT COMPONENT VIDEO OUT
P Y
L r
AUDIO
DIGITAL AUDIO OUT S-VIDEO OUT
OPTICAL
R P
b
COAXIAL
Speaker installation
For best performance, we recommend speaker
placement as shown.
See the Operating Instructions for more
information.
For greater flexibility in the positioning of the
speakers, use the optional WS-FV10D floor stand
(available only in certain countries).
A A
Front speakers
Place on both sides of the TV equal distances apart.
B
Sub woofer
Can be placed anywhere.
Left
D
Surround
speaker
Center speaker
Place on the top of or below the TV.
D
Surround speakers
Place right beside or slightly behind your listening
position, and a little higher than your ears.
Left
Right
Left Right
