Summary of Contents for Beko DC 7041

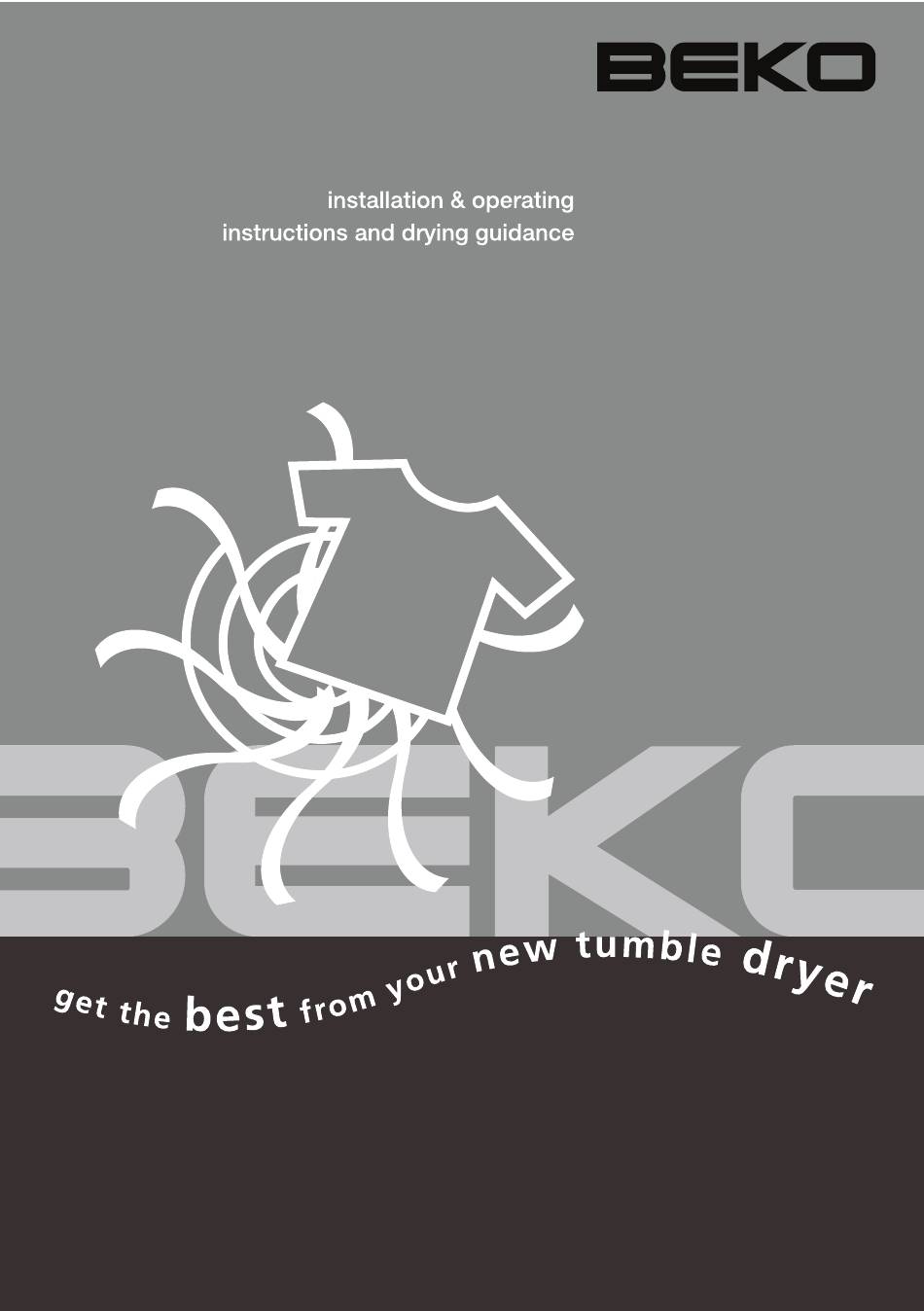

- Page 1 Condenser Sensor Dryer DC 7041...
- Page 2 Read this manual prior to initial operation of the product! Dear Customer, We hope that your product, which has been manufactured in modern facilities and passed through a strict quality control procedure, will give you very good results. We advise you to read through this manual carefully before using your product and keep it for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Warning indicators ......17 1 Your Dryer Changing the delay time ....18 Overview ..........4 Cancelling the time delay ....18 Technical Specifications .......5 Starting the programme .....18 Progress of programme .....18 2 Important safety instructions 6 Changing the programme after the General safety ........6 programme has started .....19 Intended use ........7... -
Page 4: Your Dryer
Overview 1- Control panel 5- Rating plate 2- Kick plate opening tab 6- Fluff filter 7- Power cord 3-Adjustable feet 4-Kick plate 4 EN... -
Page 5: Technical Specifications
Technical Specifications Height (adjustable) 84,6 cm Width 59,5 cm Depth 53 cm Capacity (max.) 7 kg Weight (net) 36 kg Voltage Rated power input Check the rating label Model code Rating label is located behind the loading door. Specifications of this appliance may change without notice to improve the quality of the product. -
Page 6: Important Safety Instructions
Important safety instructions This section includes safety information or adaptors to connect the dryer to that will help protection from risks of power supply in order to decrease the personal injuries or materialistic damages. risk of electric shock. Failure to follow these instructions •... -
Page 7: Intended Use
outdoor conditions. • Underwear that contains metal • Do not tamper with the controls. reinforcements should not be placed in • Do not perform any repair or part a dryer. Damage to the dryer can result replacing procedures on the product if metal reinforcements come loose even if you know or have the ability to during drying. -
Page 8: Installation
Installation AMake sure that you have removed A Prior to installation, visually check if the the transportation safety assembly product has any defects on it. If so, do (nylon+styrofoam pieces) before using not have it installed. Damaged products the product for the first time. Do not will cause risks for your safety. -
Page 9: Adjusting The Feet
instructions. Do not dispose of them with 1. Remove the hose on the machine by pulling it out from its end. Do not use any tools to normal domestic waste. take out the hose. Transportation of the machine 2. Connect the special drain hose supplied with 1. -
Page 10: Electrical Connection
Electrical Connection Built-under installation Make sure that you have an earthed This appliance can be installed under a power outlet socket rated at 13 amps worktop. (minimum). A Undercounter installation without the Attention! top cover must only be carried out by an If you use your dryer as built-in, authorised agent.Risk of electric shock. -
Page 11: Initial Preparations For Drying
Initial preparations for drying Things to be done for energy A B C saving: • Make sure that you operate the product at its full capacity but pay attention to not exceeding it. • Spin your laundry at the highest speed possible when washing them. -
Page 12: Preparing Laundry For Drying
chemicals in the dryer. A Consider the information in the • Do not dry your unwashed laundry in the “Programme Selection Table”. Always dryer. start the programme in accordance • Items soiled with cooking oils, acetone, with the maximum load capacity. C Adding laundry to the machine more alcohol, fuel oil, kerosene, stain remover, turpentine, paraffin and paraffin removers... -
Page 13: Selecting A Programme And Operating Your Machine Control Panel
Selecting a Programme and Operating Your Machine Control panel 1. Washing machine spin speed*/ Timer pro- 5. On/Off button gramme selection Used to turn on and off the machine. Spin speed used to spin the laundry in the 6. Anti-creasing washing machine / Indicates the time for Prevents the laundry from creasing after the timer programmes. -
Page 14: Programme Selection
Preparing the machine C Do not dry curtains and lace in your machine. 1. Plug in your machine. Special programmes 2. Place the laundry in the machine. For special cases, there are also extra 3. Press the “On/Off” button. programmes available: C Pressing the “On/Off”... -
Page 15: Timer Programmes
Timer Programmes that bear machine dryable approval on its label. The display shows the time remaining •Delicates for the programme to complete while a You can dry your highly delicate laundry programme is running. Time is displayed that are suitable for drying or laundry which in hours and minutes as “02:30”. -
Page 16: Programme Selection And Consumption Table
Programme selection and consumption table Programme table Approximate Spin speed in washing amount of Drying time Programmes Capacity (kg) machine (rpm) remaining (minutes) humidity Cottons / Coloreds Extra dry 1000 % 60 Cupboard dry 1000 % 60 Iron dry 1000 % 60 Xpress 35 min. -
Page 17: Drying Degree
Auxiliary function Changing the contrast Audio Warning Contrast can be adjusted in order to make the symbols on the display appear clearer. It may particularly be necessary to change the contrast setting of the display Cancel Audio warning Audio warning Audio warning audio warning level 1... -
Page 18: Changing The Delay Time
Warning symbol turns on with certain 2. Press Time delay buttons “+” or “-” to intervals to remind that the condenser set the desired time delay. needs cleaning. 3. Press “Start/Pause/Cancel” button. The Door open Time delay symbol lights up. Pause symbol fades. -
Page 19: Changing The Programme After The Programme Has Started
“Freshen up”: interrupt drying continuously, it will - Illuminates when the programme ends. extend the programme duration and C Anti-creasing icon will light up at the increase energy consumption. end of the programme if anti-creasing Therefore, it is recommended to add function is active. -
Page 20: Ending The Programme Through Cancelling
displayed Ending the programme through cancelling A new programme can be selected and started after “Programme cancel” is activated in order to change the drying programme. To cancel any selected programme: Press “Start/Pause/Cancel” button for about 3 seconds. “Lint filter cleaning” and “Water tank”... -
Page 21: Maintenance And Cleaning
Maintenance and cleaning Filter Cartridge / Door Inner Surface Lint and fibres released from the laundry to the air during the drying cycle are collected in the “Filter Cartridge”. CSuch fibre and lint are generally formed Sensor during wearing and washing. C Always clean the filter and the inner surfaces of the cover after each drying process. -
Page 22: Water Tank
Water tank; For the condenser The moisture in the damp laundry is taken Hot and humid air in the condenser is from the laundry and condensed. Drain cooled with the cold air from the room. the water tank after each drying cycle or Thus, the humid air circulating in your during drying when “Water tank”... - Page 23 4. Clean the condenser by applying pressurized water with a shower head and wait until the water drains. 5. Place the condenser in its housing. Fasten the 2 locks and make sure that they are seated securely. 6. Close the kick plate cover. 23 EN...
-
Page 24: Suggested Solutions For Problems
Suggested solutions for problems Drying process takes too much time • Meshes of the filter may be clogged. Wash with water. Laundry comes out wet at the end of drying. • Meshes of the filter may be clogged. Wash with water. •... - Page 25 “Condenser cleaning” symbol is on. • Filter drawer/Condenser might have not been cleaned. Clean the filters in the condenser/filter drawer under the kick plate. A Call an authorised service if the problem persists. 25 EN...
-
Page 26: Guarantee
Guarantee Important notes Your new product is guaranteed against the cost of breakdown repairs for 2 years • Your product is designed and built for from the date of the original purchase. domestic household use only. What is covered? • The guarantee will be void if the product is installed or used in •... -
Page 27: Service
Service Please keep your purchase receipt Service once the manufacturers guarantee has expired. or other proof of purchase in a safe If you have purchased an extended place; you will need to have it should guarantee please refer to the instructions the product require attention under contained within the extended guarantee guarantee.
