SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk.
Page 4
SAFETY INSTRUCTIONS • Children should be supervised to ensure that they do not play with the appliance. • If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
Page 5
SAFETY INSTRUCTIONS • Remove all objects from pockets such as lighters and matches. • The appliance is not to be used if industrial chemicals have been used for cleaning. Installation • This appliance should only be transported by two or more people holding the appliance securely.
Page 6
• Do not touch the door during a high temperature programme. • In case of a water leak from the appliance or flood, disconnect the power plug and contact the LG Electronics customer information centre. • Turn off water taps to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur.
Page 7
• Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the...
SAFETY INSTRUCTIONS Disposal • Before discarding an old appliance, unplug it. Cut off the cable directly behind the appliance to prevent misuse. • Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.
Page 9
No. 08069379999, Toll Free No. 1800-315-9999 for details. All collection centre and pick up facilities are done by third parties with LG Electronics India Pvt. Ltd. Merely as a facilitator. For more detailed information, please visit...

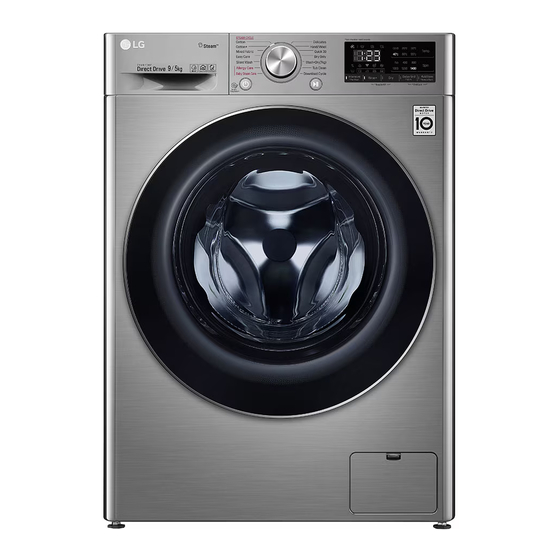

INSTALLATION INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View Rear View Control Panel Power Plug Detergent Dispenser Drawer Transit Bolts Drum Drain Hose Door Cover Cap Drain Plug Drain Pump Filter Levelling Feet...
Page 11
INSTALLATION Accessories Spanner Cold Supply Hose Elbow Bracket for Securing Drain Hose Caps for Covering Transit Bolt Holes *1 The included accessories vary depending on the model you purchased.
Page 12
INSTALLATION Specifications Model FHD0905SWS / FHD0905SWW Power Supply 230 V~, 50 Hz Product Weight 69 kg Dimension(mm) D’’ D’ 1100...
INSTALLATION Installation Place Index Clearance (mm) Requirements Before installing the appliance, check the following information to make sure that the appliance should be installed in a correct place. WARNING Installation Location • This appliance must only be used for domestic household purposes and should not be used in •...
INSTALLATION grounded/earthed in accordance with all local NOTE codes and ordinances. • You can purchase rubber cups (part No. 4620ER4002B) from the LG service centre. Unpacking the Appliance Ventilation Lifting the Appliance Off the Foam Base • Make sure that air circulation around the...
INSTALLATION Levelling the Appliance Starting with the bottom two transit bolts use the spanner (included) to fully loosen all Checking the Level transit bolts by turning them counterclockwise. When pushing down the edges of the top plate diagonally, the appliance should not move up and down at all (check both directions).
• Do not install the washing machine on a plinth, Failure to do so may cause vibration or noise. stand or elevated surface unless it is manufactured by LG Electronics for use with this model. Connecting the Water Supply Hose...
Page 17
INSTALLATION • No further backflow protection required for Push the adapter onto the end of the tap so connection to the water inlet. that the rubber seal is connected to be watertight. Tighten the 4 fixing screws and the adapter ring plate. Checking the Rubber Seal Two rubber seals are supplied with the water...
INSTALLATION Connecting the Hose to the • Securing the drain hose correctly will protect the floor from damage due to water leakage. Appliance Screw the supply hose to the water inlet valve on the back of the appliance. 105 cm •...
OPERATION OPERATION Operation Overview Add cleaning products or detergent and softener. Using the Appliance • Add the proper amount of detergent to the detergent dispenser. If desired, add bleach Before the first wash, select the Cotton wash or fabric softener to the appropriate areas of programme and add a half amount of the the dispenser.
• This allows you to select an additional programmes and will light when selected. Remote Start With the LG ThinQ app, you can use a smartphone to control your appliance remotely. • In order to use this function, refer to SMART FUNCTIONS.
Page 21
OPERATION Description Customizing Washing Programme Buttons Use these buttons to adjust the water temperature or spin speed settings for the selected programme. • The current settings are shown in the display. • Press the button for that option to select other settings. Display •...
Page 22
OPERATION Description lights up when the Pre Wash option is activated. lights up when the control panel is locked except for the Power button. lights up when the appliance is connected to Wi-Fi network at home. lights up when the remote control feature is activated. lights up when the cycle starts and the door is locked.
OPERATION Preparing the Wash Load NOTE Sort the wash load for best washing results, and • The dashes under the symbol give you then prepare the clothes according to the symbols information about the type of fabric and the on their care labels. maximum allowance of mechanical stress.
Page 24
OPERATION detergents that are suitable for Drum (front • Minimum load: 1/3 of full load. load) type washers. • If too many suds occur, reduce the detergent amount. Using the Dispenser • If too much detergent is used, too many suds can occur and this will result in poor washing To add detergent dosage to the dispenser: results or cause heavy load to the motor.
Page 25
OPERATION rinse cycle. Either powdered or liquid fabric NOTE softener may be used. • Pour fabric softener to the maximum fill line. • Do not put tablets into the dispenser. Pouring excessive fabric softener over the maximum fill line can cause it to dispense too early, which may stain the clothes.
OPERATION Programme Table Washing Programme Cotton 40 ℃ (Cold to 95 ℃) Max. Load: Rating Description Washes normally soiled clothes by combining various drum motions. Cotton+ 60 ℃ (Cold to 60 ℃) Max. Load: Rating Description Washes normally soiled clothes by combining various drum motions with less energy consumption than Cotton programme with comparable settings.
Page 27
OPERATION Hand/Wool 30 ℃ (Cold to 40 ℃) Max. Load: 2 kg Description Washes hand-washable and machine-washable delicate clothes such as washable wool, lingerie, dresses etc. • Use detergent for machine washable woolens Quick 30 20 ℃ (Cold to 40 ℃) Max.
Page 28
OPERATION Programme Intensive Pre Wash Rinse+ Cotton Cotton+ Mixed Fabric Easy Care Silent Wash Allergy Care Baby Steam Care Delicates Hand/Wool Quick 30 Dry Only Wash+Dry Selectable Maximum Spin Speed Spin Speed Programme Default Available Cotton 1400 rpm Cotton+ 1400 rpm Mixed Fabric 1000 rpm Easy Care...
Page 29
OPERATION Spin Speed Programme Default Available Dry Only No Spin No Spin / 1000 / 1200 / 1400 rpm Wash+Dry 1400 rpm 1000 - 1400 rpm NOTE • Actual maximum spin speed may vary depending on the load conditions. The values above are rounded to the nearest hundred.
OPERATION Drying Programme Blankets and Duvets Check fabric care labels on blankets and duvets General Tips for Drying before using the drying programme. Some blankets and duvets may shrink by the heated air. Use the automatic programmes to dry most loads. Electronic sensors measure the temperature of the Rubber and Plastics exhaust to increase or decrease drying...
Page 31
OPERATION Time 30/60/120 minutes Press the Power button. Change the drying time according to the maximum load. • Fabric Type: Cotton, towels Select a wash programme. • Max. Load: 1 kg (30 minutes), 2 kg (60 minutes), 4 kg (120 minutes) Add detergent.
Page 32
OPERATION Press the Start/Pause button. NOTE • If you select the programme, you will be unable to select a dry programme. If this occurs, press the Power button twice to cycle the machine off and back on. Using Air Condensing Dry without Water EcoHybrid option is available for air condensing dry without the water consumption used for...
OPERATION Extra Options and Press the Power button. Functions You can use the extra options and functions to Add detergent. customize the programmes. Customizing a Washing Select a washing programme. Programme Each programme has default settings that are Customize the washing programme (Temp., selected automatically.
Page 34
OPERATION Press the Power button. Select a washing programme. Select a washing programme. Press the Delay End button as necessary. Press and hold the Intensive button for 3 Press the Start/Pause button. seconds. NOTE • Except for LED of the Delay End button, all LEDs Press the Start/Pause button.
Page 35
OPERATION Press and hold the Delay End and Add Item buttons at the same time for 3 seconds to activate this function. • A beeper will sound, and will appear on the display. Unlocking the Control Panel Turn on the power. Press and hold the Delay End and Add Item buttons at the same time for 3 seconds to deactivate this function.
SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application notifications on a smartphone. The notifications are triggered even if the LG ThinQ application is off. The LG ThinQ application allows you to communicate with the appliance using a smartphone. NOTE LG ThinQ Application Features •...
Page 37
SMART FUNCTIONS • Smartphone user interface (UI) may vary Run the LG ThinQ application and sign in with depending on the mobile operating system (OS) your existing account or create an LG account and the manufacturer. to sign in. • If the security protocol of the router is set to WEP, you may fail to set up the network.
LG ThinQ application. • Launch the LG ThinQ application and select the Disable this function manually Smart Diagnosis feature in the menu. Follow When this function is activated, press and hold the the instructions provided in the LG ThinQ Remote Start button for 3 seconds.
Page 39
SMART FUNCTIONS • Keep the smartphone in place until the data transfer has finished. Time remaining for data transfer is displayed. After the data transfer is complete, the diagnosis will be displayed in the application. NOTE • For best results, do not move the smartphone while the tones are being transmitted.
MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. • Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They may damage the finish.
Page 41
MAINTENANCE Cleaning the Water Inlet Filter Run this function once a month (or more often if needed) to reduce build-up of detergent and softener and other residue. The water inlet filter collects lime or any sediment that may be in water that is supplied to the •...
Page 42
MAINTENANCE Allow the water to cool before cleaning the drain Unscrew the drain pump filter slowly to drain pump filter. Open the door in an emergency or the remaining water and then proceed to perform an emergency water evacuation. remove any debris or objects from the filter. Unplug the appliance.
Page 43
MAINTENANCE check for build-up of cleaning products once or twice a month. Remove the detergent dispenser drawer by pulling the drawer straight out until the drawer stops. • Then gently pull the drawer outward while pressing hard the disengage button. Remove the build-up of detergent and softener.
Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to LG Electronics service centre.
Page 45
• Check and clean the drain filter. Door sensor malfunctions. dE dE1 dEz dE4 DOOR ERROR • Please call LG service centre. You can find your local LG service centre phone number in the warranty card. This is a control error. CONTROL ERROR •...
Page 46
TROUBLESHOOTING Symptoms Possible Cause & Solution Thumping sound Heavy clothes may produce a thumping sound. This is usually normal. • If the sound continues, the appliance is probably out of balance. Stop and redistribute the clothes. The clothes may be out of balance. •...
Page 47
TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does not Door is open. operate. • Close the door and make sure that nothing is caught under the door preventing it from closing completely. Circuit breaker/fuse is tripped/blown. • Check house circuit breakers/fuses. Replace fuses or reset breaker. The appliance should be on a dedicated branch circuit.
Page 48
TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does not Kinked drain hose. drain water. • Ensure that the drain hose is not kinked. Drain located higher than 1 m above the floor. • Make sure that the drain hose is no higher than 1 m above the bottom of the appliance.
Page 49
TROUBLESHOOTING Symptoms Possible Cause & Solution Staining Clothes were not properly sorted. • Always wash dark colours separately from light colours and whites to prevent discoloration. • Never wash heavily soiled items with lightly soiled items. Wrinkling Appliance is not unloaded promptly. •...
Page 50
• Find the Wi-Fi network connected to your smartphone and remove it, then not connected to the register your appliance on LG ThinQ. Wi-Fi network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance using the Wi-Fi network.
Page 51
TROUBLESHOOTING Symptoms Possible Cause & Solution Your home appliance The router frequency is not 2.4 GHz. and smartphone are • Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 not connected to the GHz and connect the appliance to the wireless router. To check the router Wi-Fi network.
